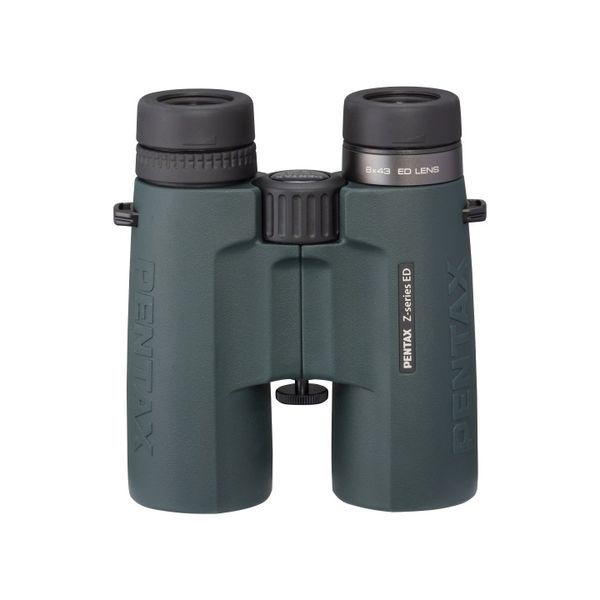

Pentax ZD 8x43 ED Binoculars

Loading
  • Pentax ZD 8x43 ED Binoculars
  • Pentax ZD 8x43 ED Binoculars
  • Pentax ZD 8x43 ED Binoculars
$1,595.00 HURRY! Only 1 unit left

  • Extra Low-Dispersion Glass
  • Phase-Corrected BAK4 Roof Prisms
  • Hybrid Aspherical Lens Elements
  • Fully Multicoated Optics
  • Angle Viewing: 50°
  • Nitrogen-Filled, Water and Fogproof
  • Closed Bridge Configuration
  • Magnesium Alloy Chassis
  • Tripod Mountable
  • Twist-Up Eyecups

The Pentax 8x43 Z-Series ZD ED Binocular features multiple optical technologies to improve the image quality and ensure accurate colors in all weather and lighting conditions.

The image-enhancement starts with hybrid aspherical lens elements and extra-low dispersion (ED) glass. The aspherical elements eliminate distortion around the edges of the lens for clear edge-to-edge views and corrects lens astigmatism that can prevent the ability to bring subjects into sharp focus. ED glass corrects for chromatic aberration to ensure colors are accurately rendered. Anti-reflection fully multicoated optics maximize light transmission through the entire optical path to make views appear bright and crisp, especially in low light. Finally, the BAK4 roof prisms are phase-corrected to enhance contrast and further correct chromatic aberration. These technologies work together to produce bright and clear high-contrast images with accurate colors and virtually no distortion.

Complementing the optical performance is a housing that is built for a lifetime of rugged outdoor use. The chassis is made of a lightweight and durable magnesium alloy with a rubberized armor that protects against impacts while providing a slip-resistant grip. The optical tubes are nitrogen filled for fogproof performance and O-ring sealed to make the binocular submersible to as much as 3.3'. An protective external lens coating helps to repel dust, water, and oil to ensure obstruction-free viewing. For longer glassing sessions, they are tripod mountable with an optional adapter.

Optical Performance

  • 8x magnification
  • 43mm objective lenses
  • BAK4 Roof prism optical path
  • Anti-reflection fully multicoated optics
  • Extra-low dispersion (ED) glass reduces chromatic aberration for sharper images with accurate color
  • Phase corrected prisms produce high-contrast images with true color rendition
  • Hybrid aspherical lens elements correct for spherical aberrations to reduce distortion at the edges of the lens and corrects for astigmatism that can prevent sharp focusing
  • 8' field of view at 1000 yards
  • 50° angle of view

Use and Handling

  • Closed bridge configuration
  • Large knurled center focus wheel
  • Right-eye diopter adjustment
  • 22mm eye relief, 5.4mm exit pupil
  • Twist-up eyecups for use with or without eye wear
  • Tripod mountable with optional adapter

Construction Details

  • Lightweight and durable magnesium alloy housing
  • Rubberized armoring protects against impacts and provides slip-resistant grip
  • Nitrogen-filled, fogproof and submersible to 3.3' (1m)
  • Internal focusing system helps to maintain waterproof seals
  • Dust/water/grease repellent coatings keeps the optical surfaces clean



Prism Type

Roof

Magnification

8x

Objective Lens Diameter

43mm

Angle of View

6.3° (actual)

Field of View

330.7 @ 1000 yd / 110.2 m @ 1000 m

Minimum Focus Distance

42.7 / 1.1 m

Exit Pupil Diameter

5.4 mm

Eye Relief

22 mm

Focus Type

Center

Tripod Mount

Yes (Adapter Optional)

Dimensions

5.7 x 5.0 x 2.1" / 14.5 x 12.7 x 5.3 cm

Weight

25.2 oz / 714.4 g
