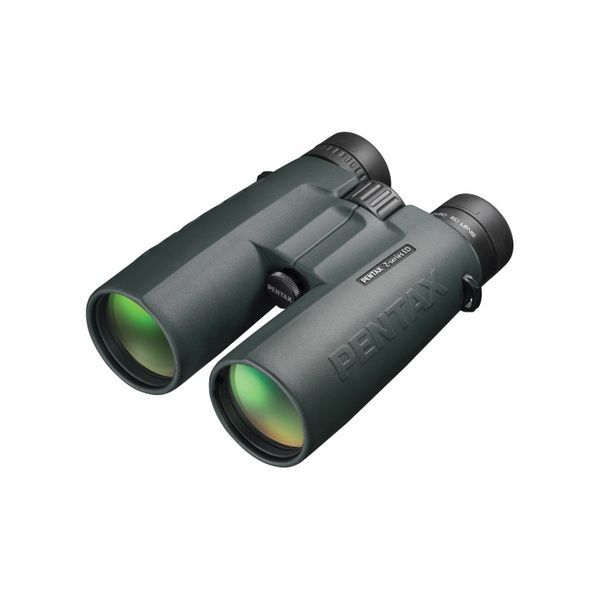

Pentax ZD 10x50 ED Binoculars

The Pentax 10x50 Z-Series ZD ED Binocular features multiple optical technologies to improve the image quality and ensure accurate colors in all weather and lighting conditions.

The image-enhancement starts with hybrid aspherical lens elements and extra-low dispersion (ED) glass. The aspherical elements eliminate distortion around the edges of the lens for clear edge-to-edge views and corrects lens astigmatism that can prevent the ability to bring subjects into sharp focus. ED glass corrects for chromatic aberration to ensure colors are accurately rendered. Anti-reflection fully multicoated optics maximize light transmission through the entire optical path to make views appear bright and crisp, especially in low light. Finally, the BAK4 roof prisms are phase-corrected to enhance contrast and further correct chromatic aberration. These technologies work together to produce bright and clear high-contrast images with accurate colors and virtually no distortion.

Complementing the optical performance is a housing that is built for a lifetime of rugged outdoor use. The chassis is made of a lightweight and durable magnesium alloy with a rubberized armor that protects against impacts while providing a slip-resistant grip. The optical tubes are nitrogen filled for fogproof performance and O-ring sealed to make the binocular submersible to as much as 3.3'. An protective external lens coating helps to repel dust, water, and oil to ensure obstruction-free viewing. For longer glassing sessions, they are tripod mountable with an optional adapter.

Optical Performance

• 10x magnification
• 43mm objective lenses
• BAK4 Roof prism optical path
• Anti-reflection fully multicoated optics
• Extra-low dispersion (ED) glass reduces chromatic aberration for sharper images with accurate color
• Phase corrected prisms produce high-contrast images with true color rendition
• Hybrid aspherical lens elements correct for spherical aberrations to reduce distortion at the edges of the lens and corrects for astigmatism that can prevent sharp focusing
• 0' field of view at 1000 yards
• 60° wide angle of view

Use and Handling

• Closed bridge configuration
• Large knurled center focus wheel
• Right-eye diopter adjustment
• 17mm eye relief, 4.3mm exit pupil
• Twist-up eyecups for use with or without eye wear
• Tripod mountable with optional adapter

Construction Details

• Lightweight and durable magnesium alloy housing
• Rubberized armoring protects against impacts and provides slip-resistant grip
• Nitrogen-filled, fogproof and submersible to 3.3' (1m)
• Internal focusing system helps to maintain waterproof seals
• Dust/water/grease repellent coatings keeps the optical surfaces clean
