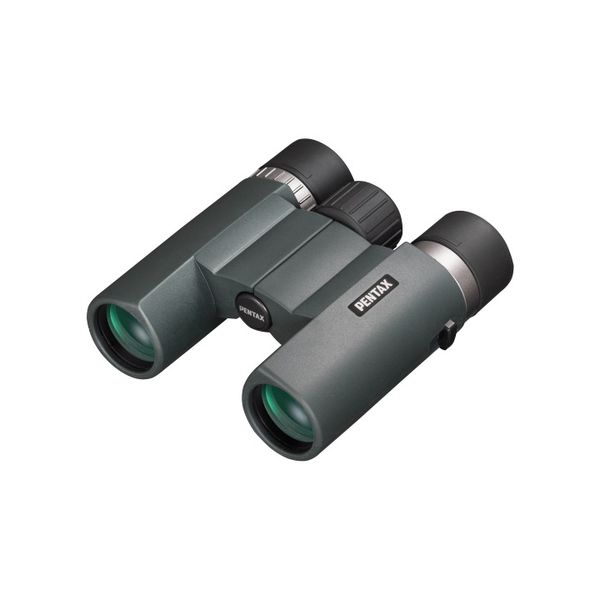

Pentax AD 9x28 WP Binoculars
- Phase-Corrected BAK4 Roof Prisms
- Fully Multicoated Optics
- Angle of View: 50°
- Nitrogen-Filled, Water and Fogproof
- Closed Bridge Configuration
- Reinforced Polycarbonate Housing
- Center Focusing
- Twist-Up Eyecups
Pentax's 9x28 A-Series AD WP Binocular features an exciting transitional magnification that produces an enhanced viewing experience over a lower power without the visible hand-shake often associated with higher magnifications. The BAK4 roof prisms are phase-corrected to improve image contrast and enhance color rendition. All of the optics are anti-reflection fully multicoated to maximize light transmission to produce the brightest views possible.
To help cut weight, the housing is made of corrosion and impact-resistant fiberglass reinforced polycarbonate polymer. It is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3, as well as fogproof in all weather conditions.
Optical Performance
- 9x magnification
- 28mm objective lenses
- BAK4 roof prisms
- Phase corrected prism coatings enhance contrast and improve color rendition
- Anti-reflection fully multicoated optics
- 4 field of view at 1000 yards
- 50° angle of view
Use and Handling
- Closed bridge configuration
- Knurled center focusing wheel
- Twist-up eyecups for use with or without eye wear
- 18mm eye relief, 3.1mm exit pupil
Construction Details
- Lightweight fiberglass reinforced polycarbonate housing
- Housing is corrosion, temperature and impact-resistant
- Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Inner focusing mechanism provides smooth focus while preserving waterproof seals
- Weighs in at just 12.8 oz
Prism Type |
Roof |
Magnification |
9x |
Objective Lens Diameter |
28mm |
Angle of View |
5.6° (actual) |
Field of View |
294.0 @ 1000 yd / 98.0 m @ 1000 m |
Minimum Focus Distance |
81.7 / 24.9 m |
Exit Pupil Diameter |
3.1 mm |
Eye Relief |
18 mm |
Focus Type |
Center |
Tripod Mount |
None |
Dimensions |
4.6 x 4.5 x 1.7 / 11.7 x 11.4 x 4.3 cm |
Weight |
12.8 oz / 362.9 g |
Brand: Pentax |
Code: 62831
APN: 0027075288621 |
Supplier Code: 62831
Brand: Pentax |
Code: 62831
APN: 0027075288621 |
Supplier Code: 62831
