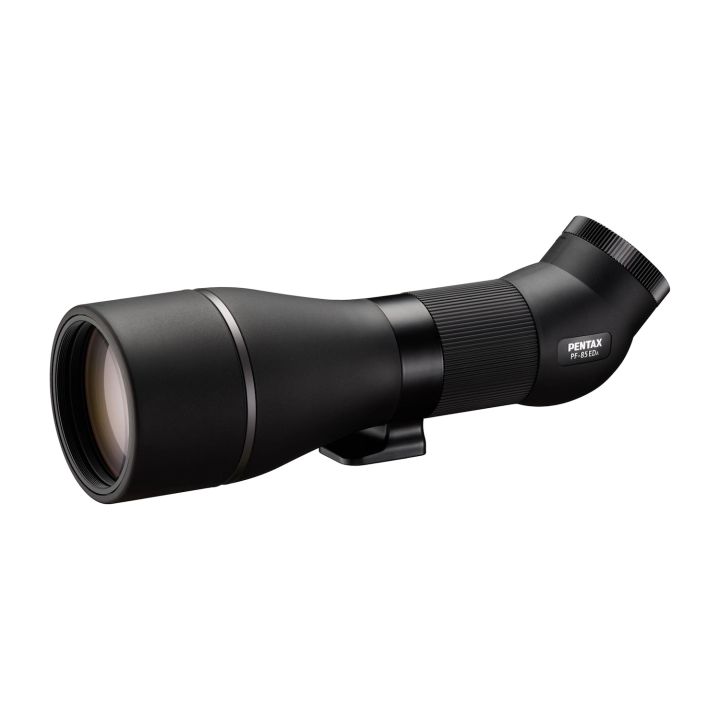

Pentax PF-85EDA Angled Spotting Scope Kit (with 8-24mm Zoom Eyepiece)

Viewing Angle

Angled

Objective Lens Diameter

85 mm

Battery / Runtime

No

Viewing Angle

Angled

Prism Type

Roof

Objective Lens Diameter

85 mm

Fogproof

Yes, Nitrogen Filled

Environmental Protection

Water-Resistant (Unrated)

Battery / Runtime

No

Filter Thread

No

Tripod Mounting Thread

1/4"-20 Female

Dimensions

L: 13.7 x H: 4.6 x W: 4.0" / L: 34.7 x H: 11.7 x W: 10.2 cm

Weight

3.5 lb / 1.6 kg

Magnification

With PF-100ED Scopes: 26 to 78x
With PF-80EDA Scopes: 21 to 63x
With PF-80ED Scopes: 20 to 60x
With PR-80EDA Scopes: 20 to 61x
With PR-65EDA Scopes: 16 to 46x
With PF-65ED(A)II Scopes: 16 to 48x

Angle of View

With PF-100ED Scopes: 1.5 to 0.8° (Actual)
With PF-80EDA Scopes: 1.8 to 0.9° (Actual)
With PF-80ED Scopes: 1.9 to 1° (Actual)
With PR-80EDA Scopes: 1.9 to 1° (Actual)
With PR-65EDA Scopes: 2.4 to 1.3° (Actual)
With PF-65ED(A)II Scopes: 2.4 to 1.2° (Actual)
38 to 60° (Apparent)

Field of View

With PF-100ED Scopes: 78 to 42' @ 1000 yd / 26 to 14 m @ 1000 m
With PF-80EDA Scopes: 93 to 49' @ 1000 yd / 31 to 16.5 m @ 1000 m
With PF-80ED Scopes: 99 to 51' @ 1000 yd / 33 to 17 m @ 1000 m
With PR-80EDA Scopes: 99 to 54' @ 1000 yd / 33 to 18 m @ 1000 m
With PR-65EDA, PF-65ED(AII Scopes: 120 to 63' @ 1000 yd / 40 to 21 m @ 1000 m

Exit Pupil Diameter

With PF-100ED Scopes: 3.9 to 1.3 mm
With PF-80EDA Scopes: 3.8 to 1.3 mm
With PF-80ED Scopes: 4 to 1.3 mm
With PR-80EDA Scopes: 4 to 1.3 mm
With PR-65EDA Scopes: 4.1 to 1.4 mm
With PF-65ED(A)II Scopes: 4 to 1.4 mm

Eye Relief

18.0 to 22.0 mm

Dimensions

ø: 2.7 x L: 5.7" / ø: 69 x L: 144 mm

Weight

1.2 lb / 550 g
