Zhiyun Crane 3S Lab Handheld Stabiliser for DSLR & Cine Cameras**
- 14.3 lb Payload, Zoom and Focus Wheel
- Redesigned Detachable SmartSling Handle

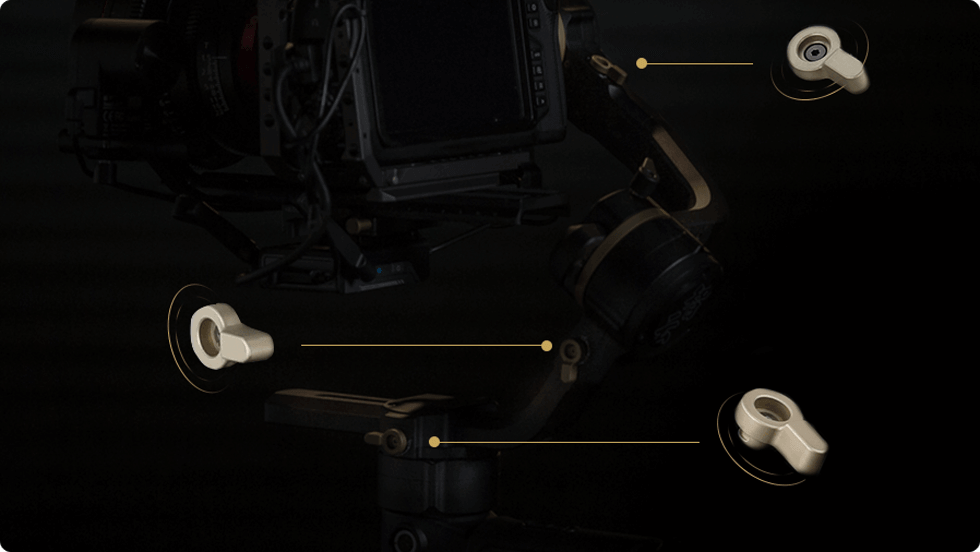

- Updated Axis Locking System
- ViaTouch 2.0 Remote Motion Control

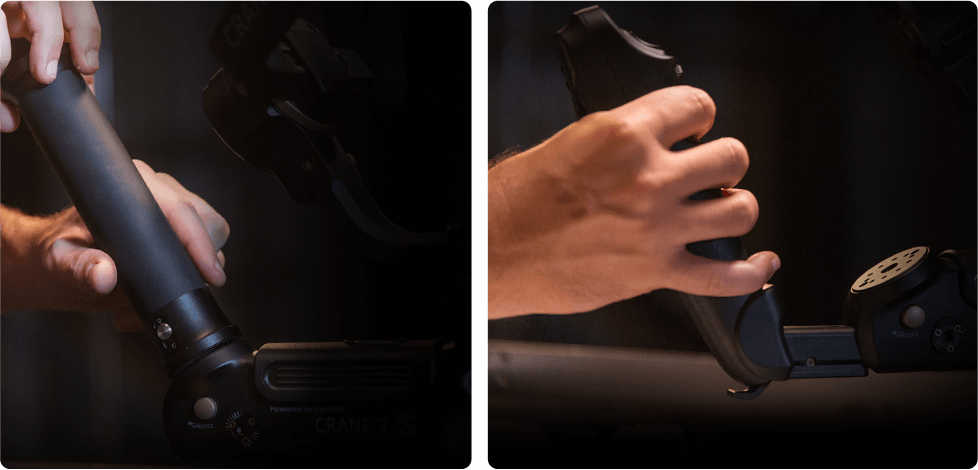

Extendable Arm. Greater Flexibility
Modular Design. Versatile Shooting
Cross-Compatibility. You can Imagine
Zero Swinging. Hero Security

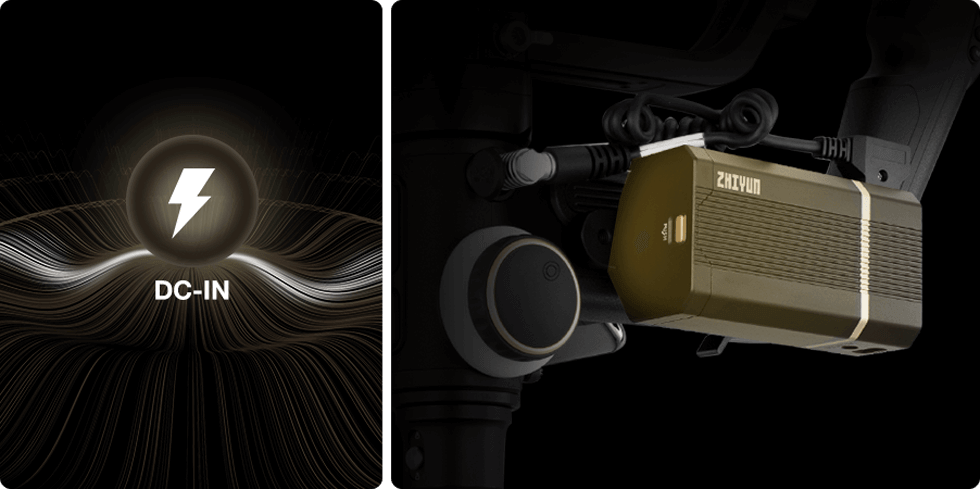

Continuous Uptime Supported by PowerPlus
Phenomenal Speed. Seriously Smooth

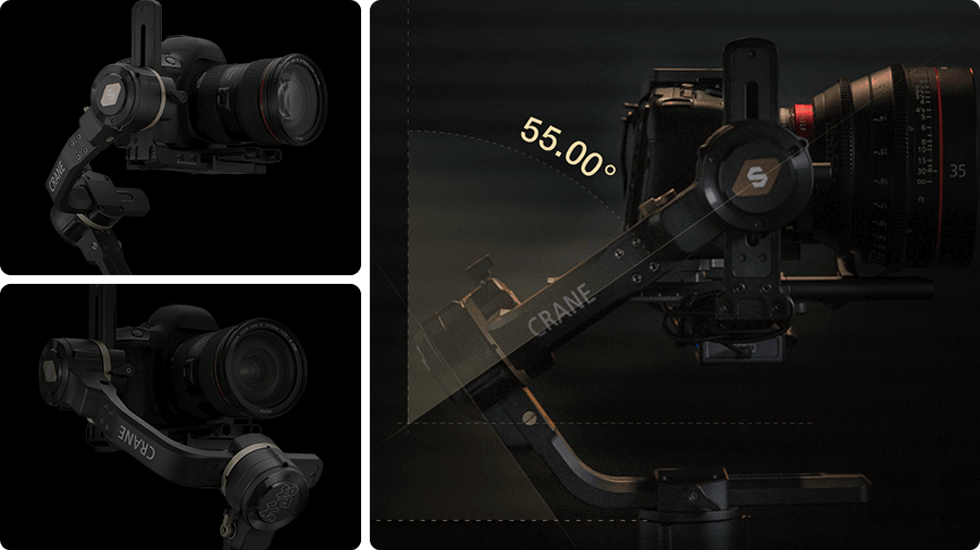

Properly Calculated 55°: Broader Vision

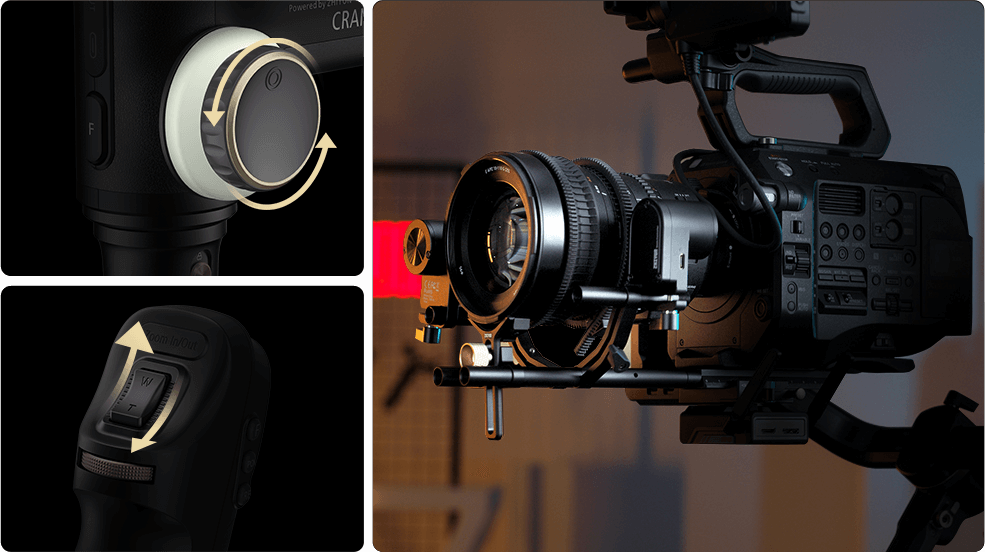

Improved Zoom & Focus System

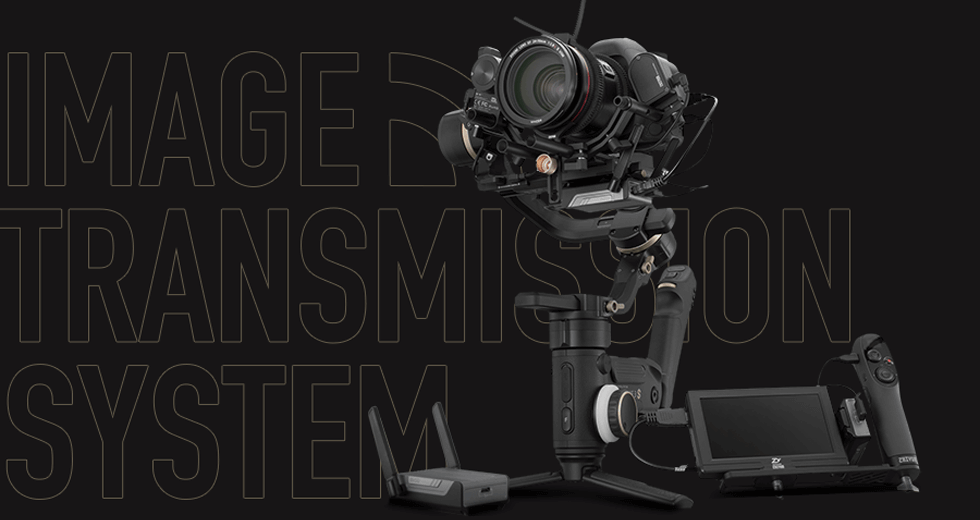

CRANE 3S X TransMount Image Transmission System

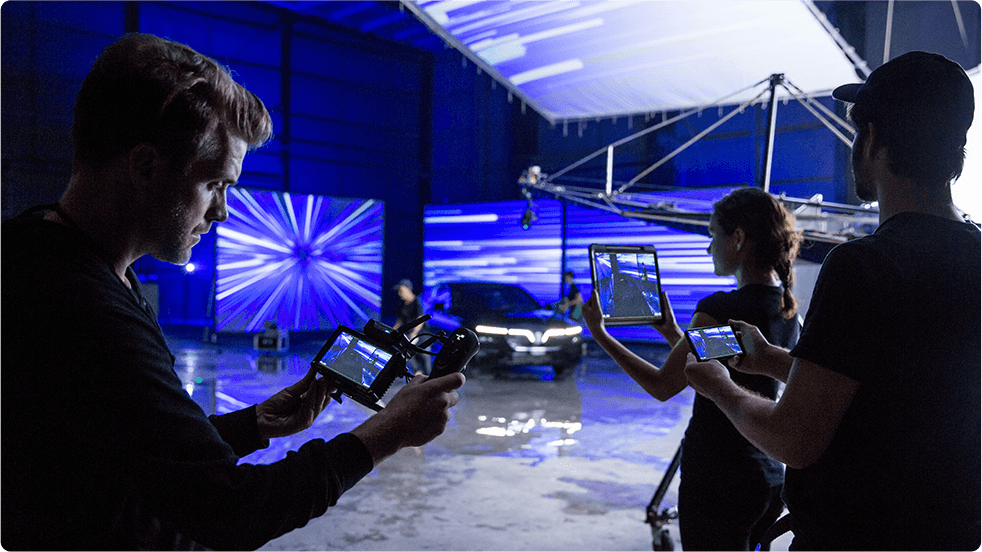

Synchronized Teamwork
Triple Control, Film at Your Will
Gimbal
|
Number of Axes |
3-Axis (Pitch, Roll, Yaw) |
|
Rotation Range |
Yaw (Pan): 360° |
|
Load Capacity |
1.32 to 14.3 lb / 0.6 to 6.49 kg |
Connectivity
|
Ports |
1 x USB Type-C (Power / Control) Input |
|
Wireless Protocol |
Bluetooth 5.0 |
Battery
|
Battery Type |
3 x 18650 |
|
Capacity (mAh) |
2600 mAh |
|
Battery Runtime |
12 Hours |
|
Battery Chemistry |
Lithium-Ion |
|
Voltage |
9.8 to 11.1 VDC |
Power
|
Operating Voltage |
9.8 to 25.2 VDC |
|
Operating Current |
360 to 5400 mA (Maximum) |
Environmental
|
Operating Temperature |
14 to 113°F / -10 to 45°C |
General
|
Mounting |
9 x 1/4"-20 Female |
|
Dimensions |
13.62 x 13.54 x 3.86" / 346 x 344 x 98 mm |
|
Weight |
5.45 lb / 2.47 kg |
| Product Manuals | |
|---|---|
| Zhiyun Crane 3S Lab Handheld Stabiliser for DSLR & Cine Cameras** - Product Manual |
- Zhiyun-Tech CRANE 3S Handheld Stabilizer
- Quick Release Camera Plate
- SmartSling Handle
- 3 x 18650 Battery
- Battery Charger
- Extension Arm
- Handle Adapter Base
- Backing Base
- Tripod
- Lens Support
- Lens Support Rod
- Micro-USB Canon Control Cable
- Mini-USB Canon Control Cable
- USB Type-C Panasonic Control Cable
- USB Type-C to Multi Sony Control Cable
- USB Type-C Charging Cable
- Foam Storage Box
- 3 x 1/4"-20 Screw
- Wrench Set (M1.3, M2.5, M4)
Brand: Zhiyun-Tech |
Code: C020017INT
MPN:
APN: 6970194085982 |
Supplier Code:
Brand: Zhiyun-Tech |
Code: C020017INT
MPN:
APN: 6970194085982 |
Supplier Code:
At a glance
- 14.3 lb Payload, Zoom and Focus Wheel
- Redesigned Detachable SmartSling Handle
- Updated Axis Locking System
- ViaTouch 2.0 Remote Motion Control
Extendable Arm. Greater Flexibility |
|
|
Modular Design. Versatile Shooting |
Cross-Compatibility. You can Imagine |
|
|
Zero Swinging. Hero Security |
Continuous Uptime Supported by PowerPlus |
|
Phenomenal Speed. Seriously Smooth |
|
Properly Calculated 55°: Broader Vision |
|
|
Improved Zoom & Focus System |
CRANE 3S X TransMount Image Transmission System
|
|
|
Triple Control, Film at Your Will |
From intense chasing shoot to studio filming, different types of shooting environment require both high capacity and flexibility of shooting equipment. Bearing filmmakers in mind, ZHIYUN felt the Crane series can be even better to adapt to strict and unpredictable filming environment. Now introducing the new CRANE 3S, the legendary gimbal built on a heritage of innovation with magnificent motors and brand new modular design, which aims for wider application and intuitive control.

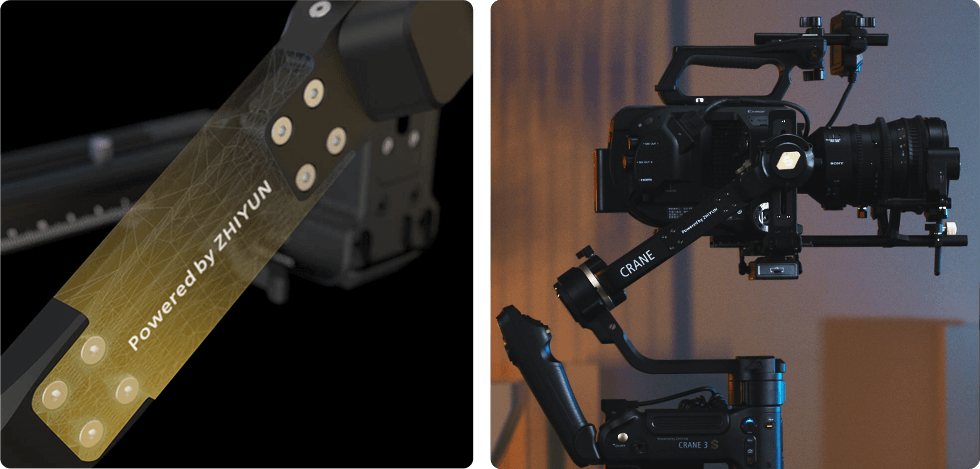

Reengineered for More Ambitious Camera Setups
It is not simply an upgrade but reconstruction. CRANE 3S is constructed with brand new SUPER motors which allow for Max. 6.5kg payload for a wide range of camera setups. Please refer to the Compatibility List for full details.

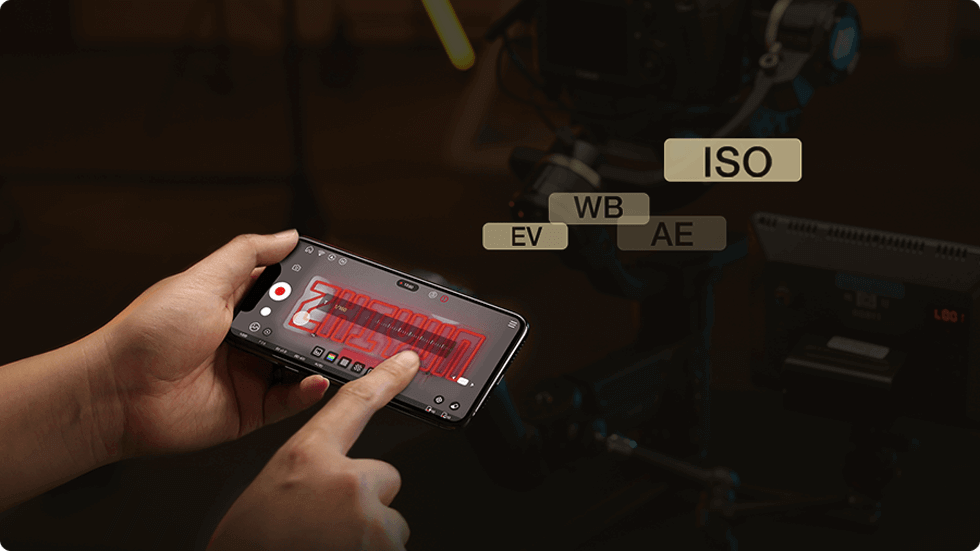

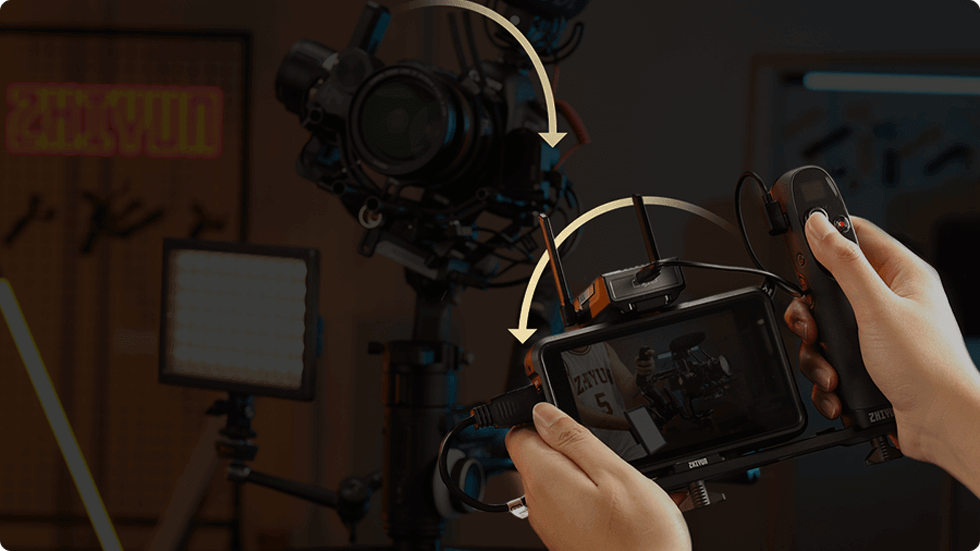

ViaTouch 2.0
ViaTouch 2.0 bridges the communication gap between your stabilizer, camera and monitoring devices via a dedicated phone app, allowing you to intuitively adjust various camera and gimbal parameters with perfect synergy. (*ZY Play APP and TransMount Image Transmission Transmitter are required to utilize the feature.)
Stay Focused All the Way
TransMount Image Transmission System supports zoom/focus control via phone app or remote controller. You can even customize sensitivity of zoom/focus control to your own needs for optimal experience.

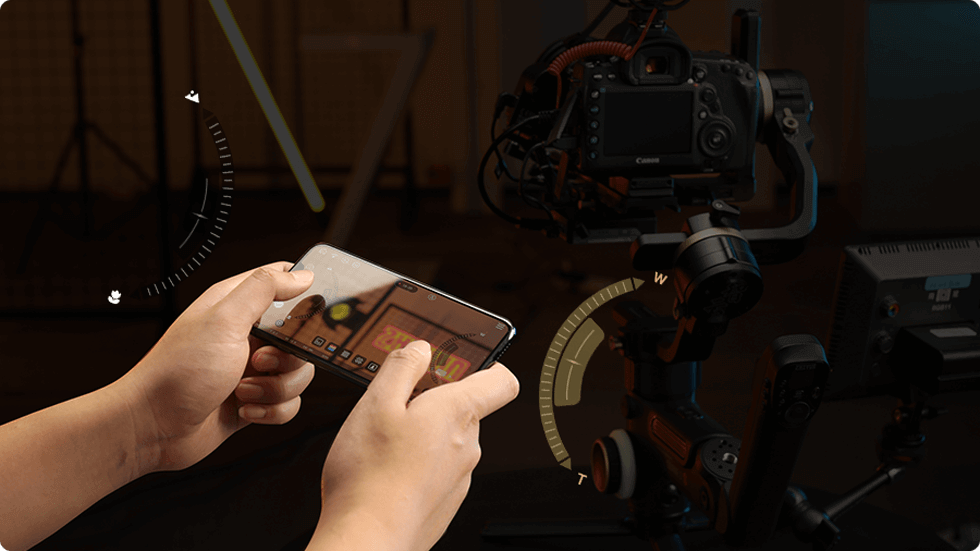

SyncMotion: Visualized Control
For the first time in the industry, a visualized remote motion control system is introduced - ViaTouch 2.0. Filmmakers will be able to motion control the gimbal while monitor shots via smartphones or monitors.
