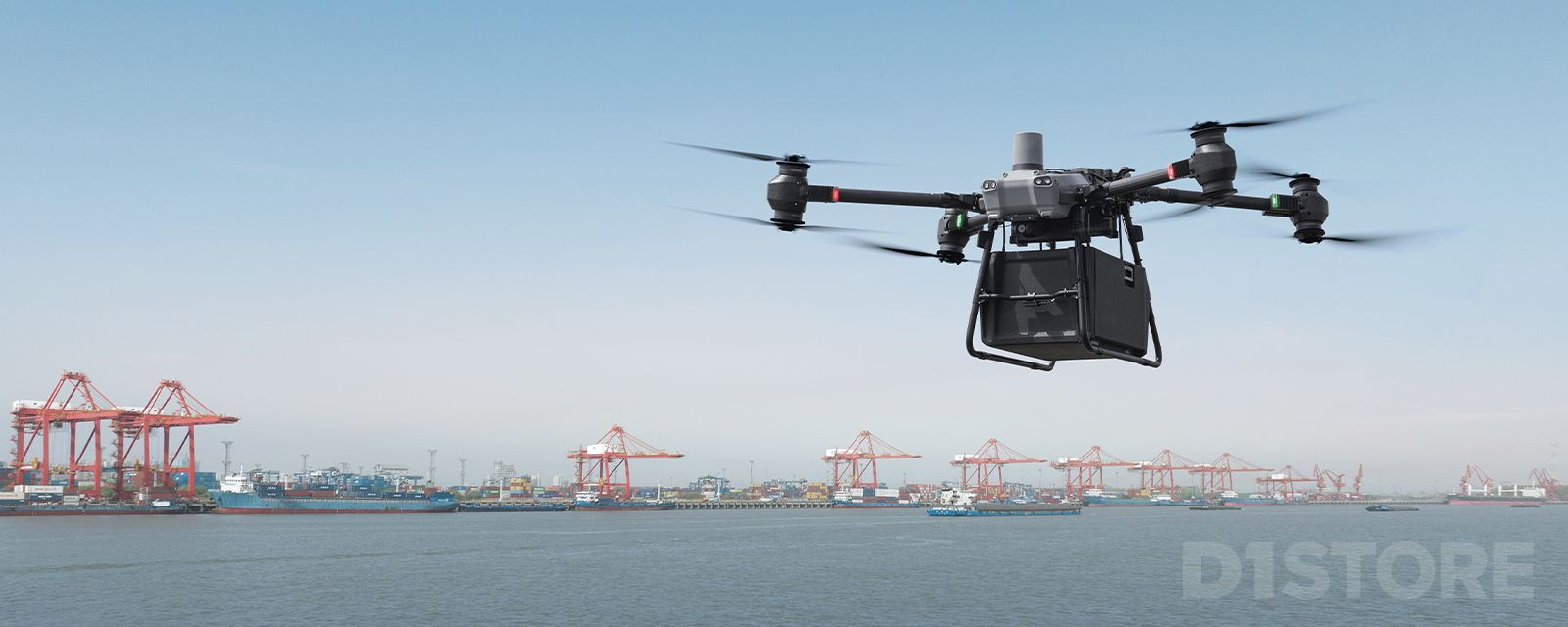

DJI FlyCart 30 Delivery Drone / RPAS
Designed to Deliver
Representing the culmination of countless industry-leading technologies, the DJI FlyCart 30 reimagines aerial delivery with a versatile, powerful delivery solution in a portable, foldable form factor.
FlyCart 30 sports a maximum payload capacity of 40 kg with a single battery and can fly up to 16 km with a full payload, making it suitable for countless delivery applications.

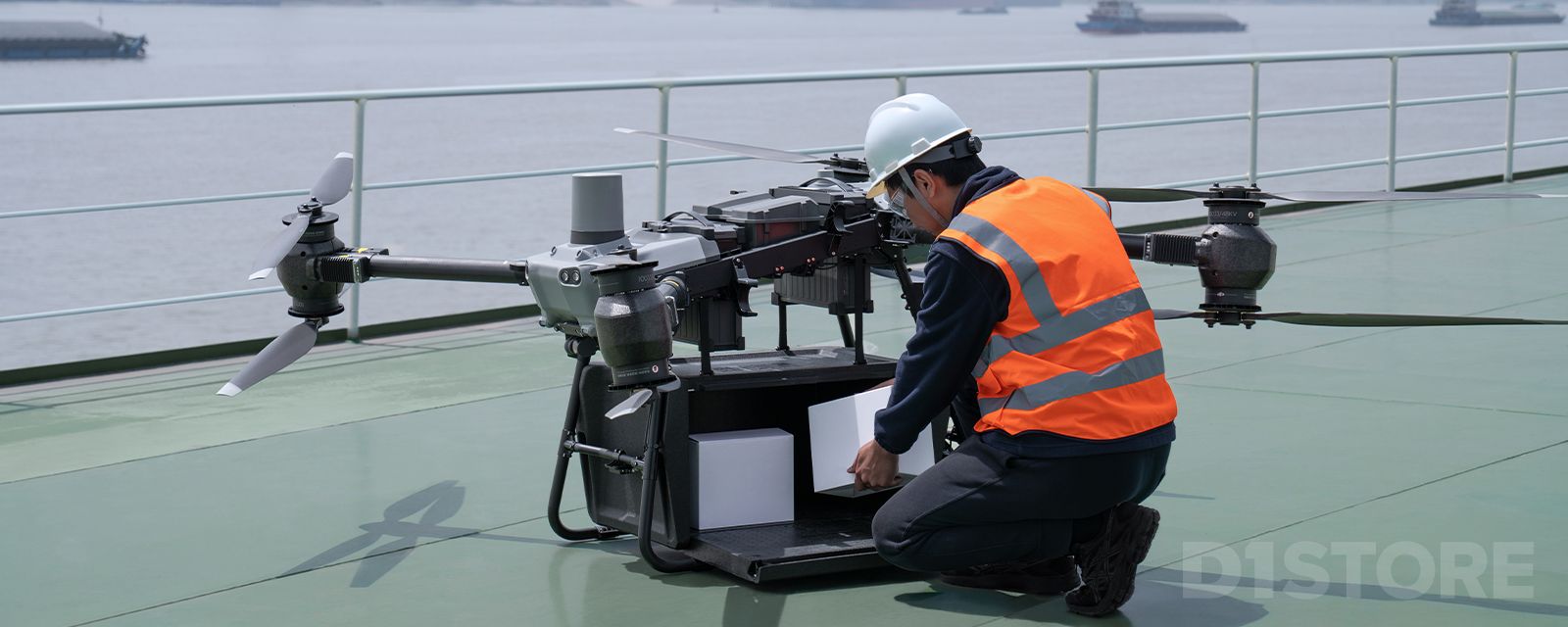

Carry Your Cargo
One of two operating modes, Cargo Mode is designed to facilitate aerial deliveries to hard-to-reach locales.

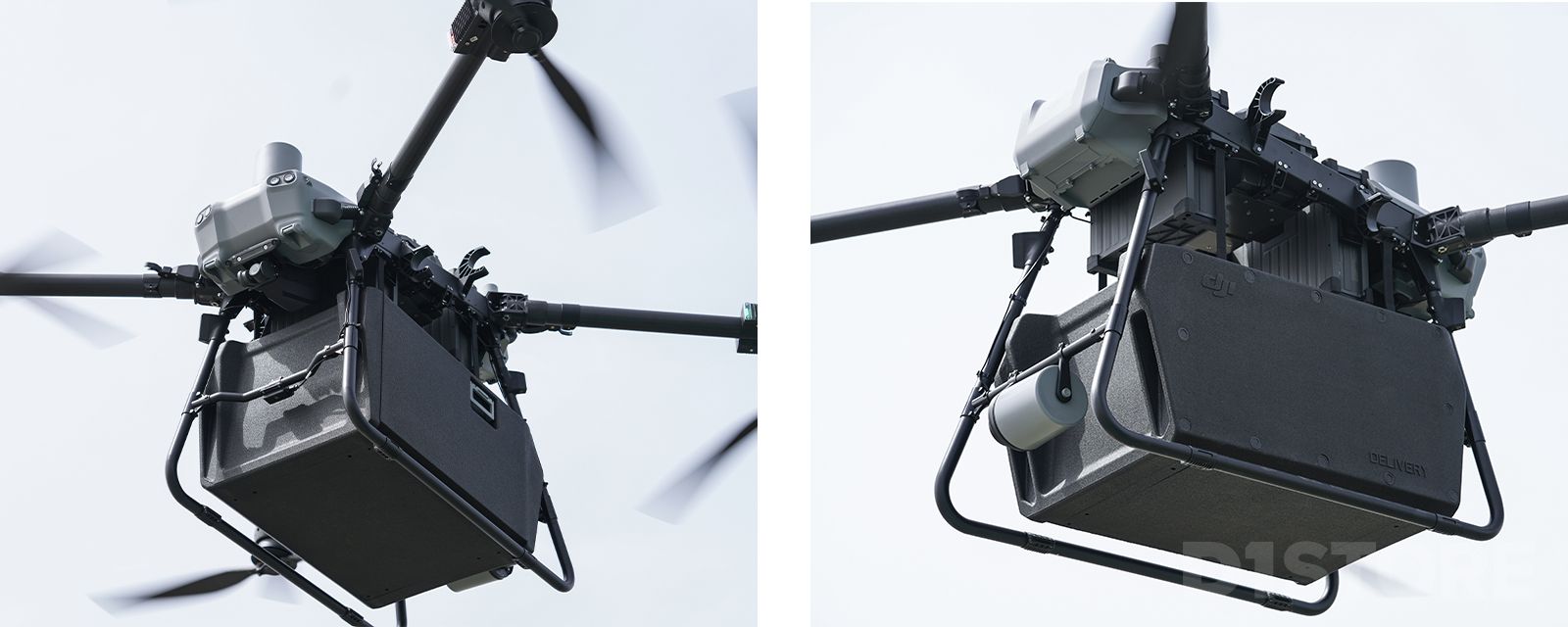

FlyCart’s large attachable EPP cargo case features a 70 L capacity, ideal for cargo of different shapes and sizes. With cargo mode engaged, FC30 supports a 30 kg maximum payload with dual batteries and an increased 40 kg payload support with a single battery.
Winch It Up

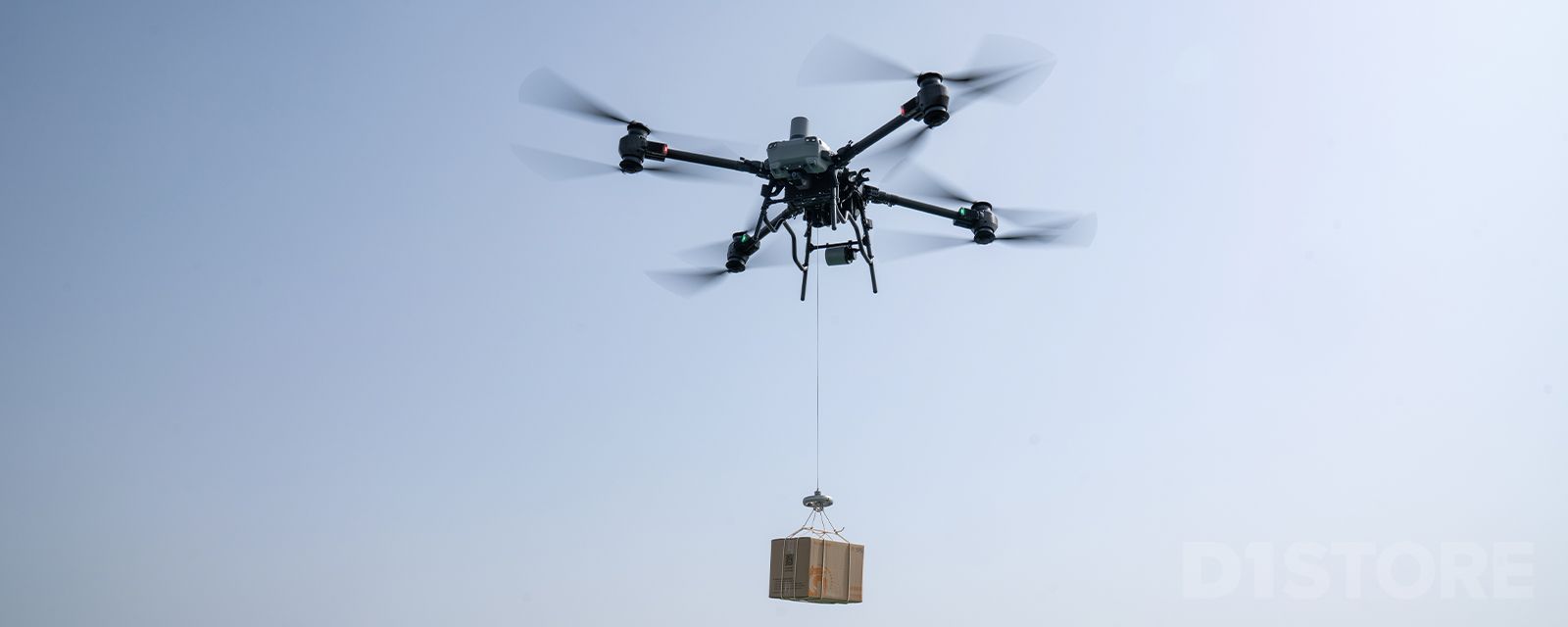

Deploy the FlyCart 30 Winch System to deliver winched cargo via a retractable 20m cable. Control the cable retraction manually or use intelligent automatic delivery and detachment for maximum safety.
Winch Mode is ideal for delivering larger and awkwardly-shaped payloads including solar panels, equipment and more.

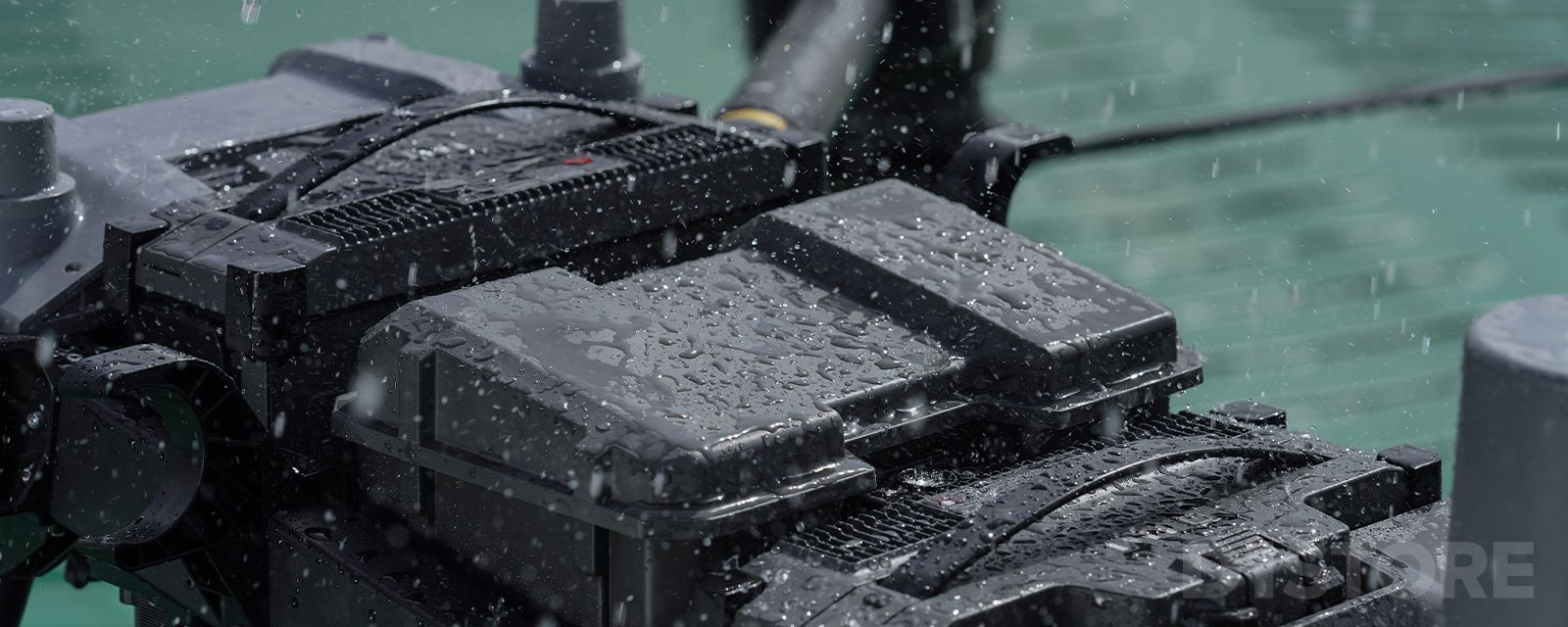

Fly in Rain or Shine
FlyCart 30 is built to perform, whether rain or shine. With an operating temperature of -20° to 45° C and maximum wind resistance of 12 m/s, FlyCart 30 can handle practically anything the weather throws at it.
Plus, an IP55 protection rationing ensures that FlyCart remains fully functional, even in the rain.
Far Away Flying
DJI FlyCart 30 features a best-in-class maximum video transmission range of 20 km. Powered by the DJI O3 video transmission protocol, FC30 achieves stable long-range transmission with a four-antenna transceiver system that can be further supported with the DJI Cellular Dongle.
FlyCart supports a maximum flight distance of 28 km using dual batteries with a cruising speed of 15 m/s. Dual Operator Mode facilitates secure handover of controls for extended range missions.
Superior Safety
With Front and Rear Phased Array Radars in addition to a dual Binocular Vision System, FlyCart 30 can detect obstacles from multiple directions to maintain safe flight.

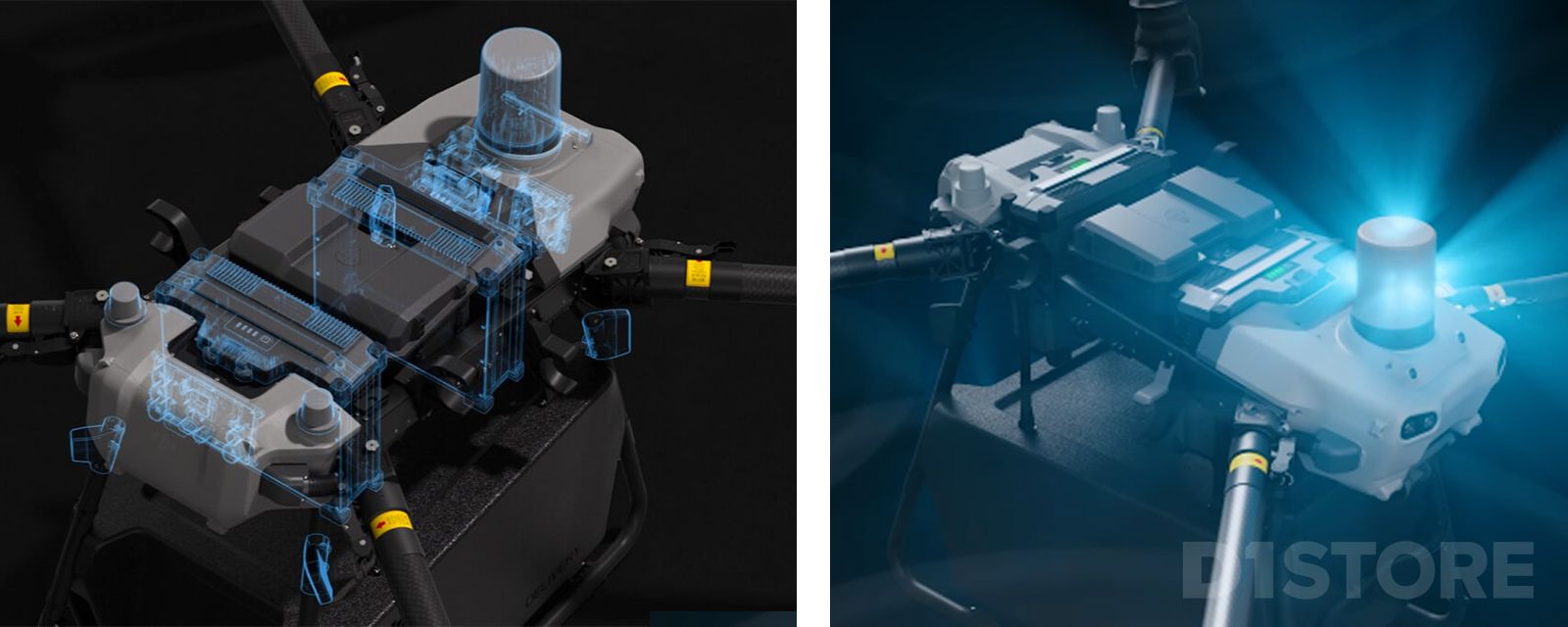

Reliable Redundancies: FC30 sports countless redundancy system with dual IMUs, barometers and batteries. Plus, a built-in parachute that deploys in emergency scenarios for safe landings.

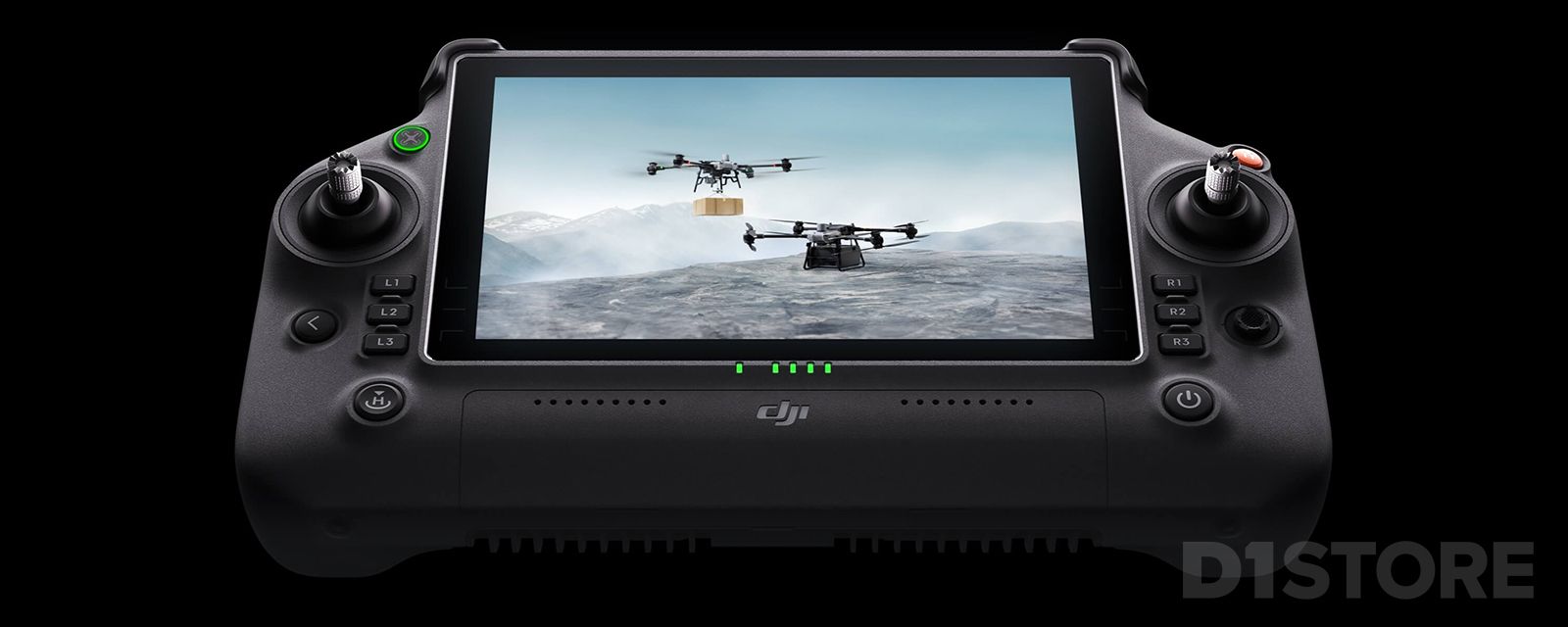

DJI RC Plus
Control FlyCart 30 with the DJI RC Plus, a powerful controller featuring a 7” high-bright screen, 6 hour battery life and IP54 protection.
With Dual Operator Mode controls can be seamlessly be handed off from one controller to another when needed.
It’s the best drone controller in the business, and fully optimised for FlyCart.
Superb Software
DJI Pilot 2: DJI Pilot 2 provides operators with key information, real-time status reporting and in-depth, intelligent flight controls for a smooth user experience with each flight.

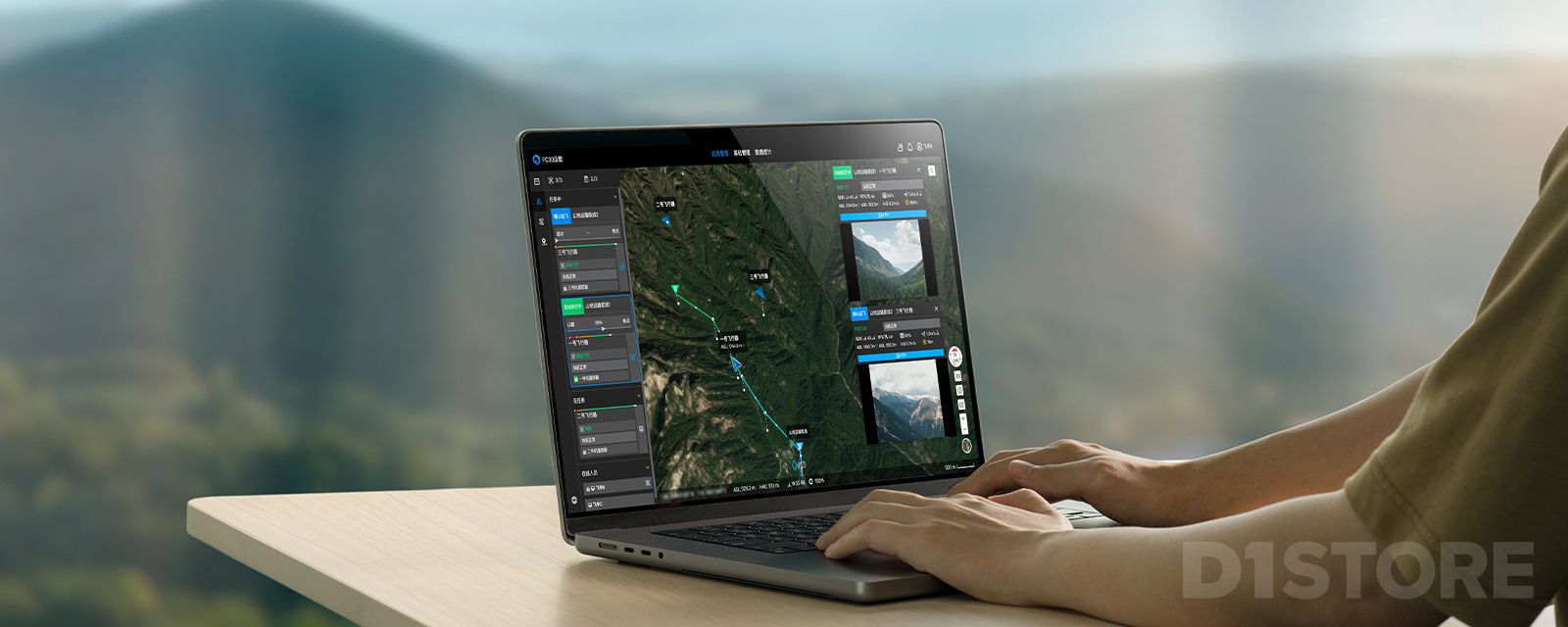

DJI DeliveryHub: The new DJI DeliverHub software integrates seamlessly with FlyCart as an all-in-one delivery management platform. DeliveryHub facilitates centralised planning, status monitoring and resource management to ensure mission success.
|
Weight |
42.5kg (without battery） |
|
Max Takeoff Weight |
95kg (With cargo, at sea level） |
|
Max Diagonal Wheelbase |
2200mm |
|
Dimensions |
1590 x 1900 x 947 mm(LxWxH) (arms unfolded, propellers folded) |
|
Dimensions |
2800x3085x947 mm(LxWxH) (arms&propellers unfolded) |
|
Dimensions |
1115x760x1027 mm(LxWxH) (arms&propellers folded) |
|
Folding Method |
Towards body |
|
Loadable Battery Quantity |
2 |
|
Hovering Endurance (empty weight, with max battery capacity) |
29min(dual battery mode) |
|
Hovering Endurance (max weight, with max battery capacity) |
18min(30kg weight load,dual battery mode) |
|
Max Flight Distance (empty weight, with max battery capacity) |
28km(dual battery mode) |
|
Max Flight Distance (max weight, with max battery capacity) |
16km(30kg weight load,dual battery mode) |
|
Max Flight Time (max weight, with max battery capacity) |
18min(30kg weight load,dual battery mode) |
|
Operating Temperature |
-20° to 45° C |
|
Ingress Protection Rating |
IP55 |
|
Hovering Accuracy (with strong GNSS signal) |
RTK positioning enabled: |
|
RTK/GNSS Operating Frequency |
RTK: GPS L1/L2、Galileo F1/F2、BeiDou B1I/B2I/B3I、Galieo E1/E5b、QZSS L1/L2、GNSS: GPS L1、BeiDou B1I、Galileo F1、Galieo E1、QZSS L1 |
|
Max Pitch Angle |
30° |
|
Max Ascent Speed |
5m/s |
|
Max Descent Speed |
3m/s(vertical) |
|
Max Horizontal Speed |
20m/s |
|
Max Flight Altitude |
6000m (empty weight) |
|
Max Wind Speed Resistance |
12m/s |
|
Stator Size |
100x33 mm |
|
Motor KV Value |
48rpm/V |
|
Max Motor Power |
4000W/rotor |
|
Propellers Material |
Carbon fiber composite |
|
Propellers Diameter |
54 inch |
|
Propellers Type |
Foldable double-blade propeller propeller |
|
Main-rotor Diameter |
1375mm |
|
Rotor Quantity |
8 |
| Product Manuals | |
|---|---|
| DJI FlyCart 30 Delivery Drone / RPAS - Product Manual |
- DJI FlyCart 30 Aircraft
- DJI RC Plus remote controller
- Remote controller strap
- Power cable
- USB-A to USB-C cable
- USB-C to USB-C cable
- Battyer cover
- 100W USB-C power adapter
- WB37 battery
- Goggles
