DJI Matrice 30 RPAS - Standard Package (excludes TB30 batteries) M30
- Lightweight & portable all in one enterprise drone.
- Comes with built-in 12MP Wide Camera and 48MP Zoom Camera.
- IP55 Environmental protection.
- Long flight time up to 41 minutes.
- Strong wind resistance up to 15 m/s.
Aircraft
Dimensions
|
470×585×215 mm (L×W×H) |
| Dimensions (folded) | 365×215×195 mm (L×W×H) |
| Diagonal Wheelbase | 668 mm |
| Weight (incl. two batteries) | 3770 ± 10 g |
| Max Takeoff Weight | 4000 g |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE) |
| Hovering Accuracy (windless or breezy) |
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK) |
| RTK Positioning Accuracy (fixed RTK enabled) |
1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) |
| Max Angular Velocity | Pitch: 150°/sec.; Yaw: 100°/sec. |
| Max Tilt Angle | 35° (N-mode and Forward Vision System enabled: 25°) |
| Max Ascent/Descent Speed | 6 m/s, 5 m/s |
| Max Tilt Descent Speed | 7 m/s |
| Max Horizontal Speed | 23 m/s |
|
Max Service Ceiling Above Sea Level |
5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) |
| Max Wind Resistance | 15 m/s 12 m/s during taking off and landing |
| Max Hover Time | 36 min |
| Max Flight Time | 41 min |
| Motor Model | 3511 |
| Propeller Model | 1671 1676 High Altitude (not included) |
| Ingress Protection Rating | IP55 |
| GNSS | GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) |
| Operating Temperature | -20° to 50° C |
Gimbal
| Angular Vibration Range | ±0.01° |
| Controllable Range | Pan: ±90° Tilt: -120° to +45° |
| Mechanical Range | Pan: ±105° Tilt: -135° to +60° Roll: ±45° |
Zoom Camera
| Sensor | 1/2" CMOS, Effective pixels: 12M |
| Lens | DFOV: 84° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞ |
FPV Camera
| Resolution | 1920×1080 |
| DFOV | 161° |
| Frame Rate | 30 fps |
- DJI Matrice 30 aircraft body
- DJI RC Plus remote controller
- BS30 Battery Station
- 2 x 1671 Propellers (CW & CCW)
- USB-C cable
- USB-C to USB-C cable
- Carry case
- Screws & tools
Note, TB30 batteries are sold separately.
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Brand: DJI |
Code: DJIM30
APN: 6941565929563 |
Supplier Code: CB.202203170239
Brand: DJI |
Code: DJIM30
APN: 6941565929563 |
Supplier Code: CB.202203170239
At a glance
- Lightweight & portable all in one enterprise drone.
- Comes with built-in 12MP Wide Camera and 48MP Zoom Camera.
- IP55 Environmental protection.
- Long flight time up to 41 minutes.
- Strong wind resistance up to 15 m/s.
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au

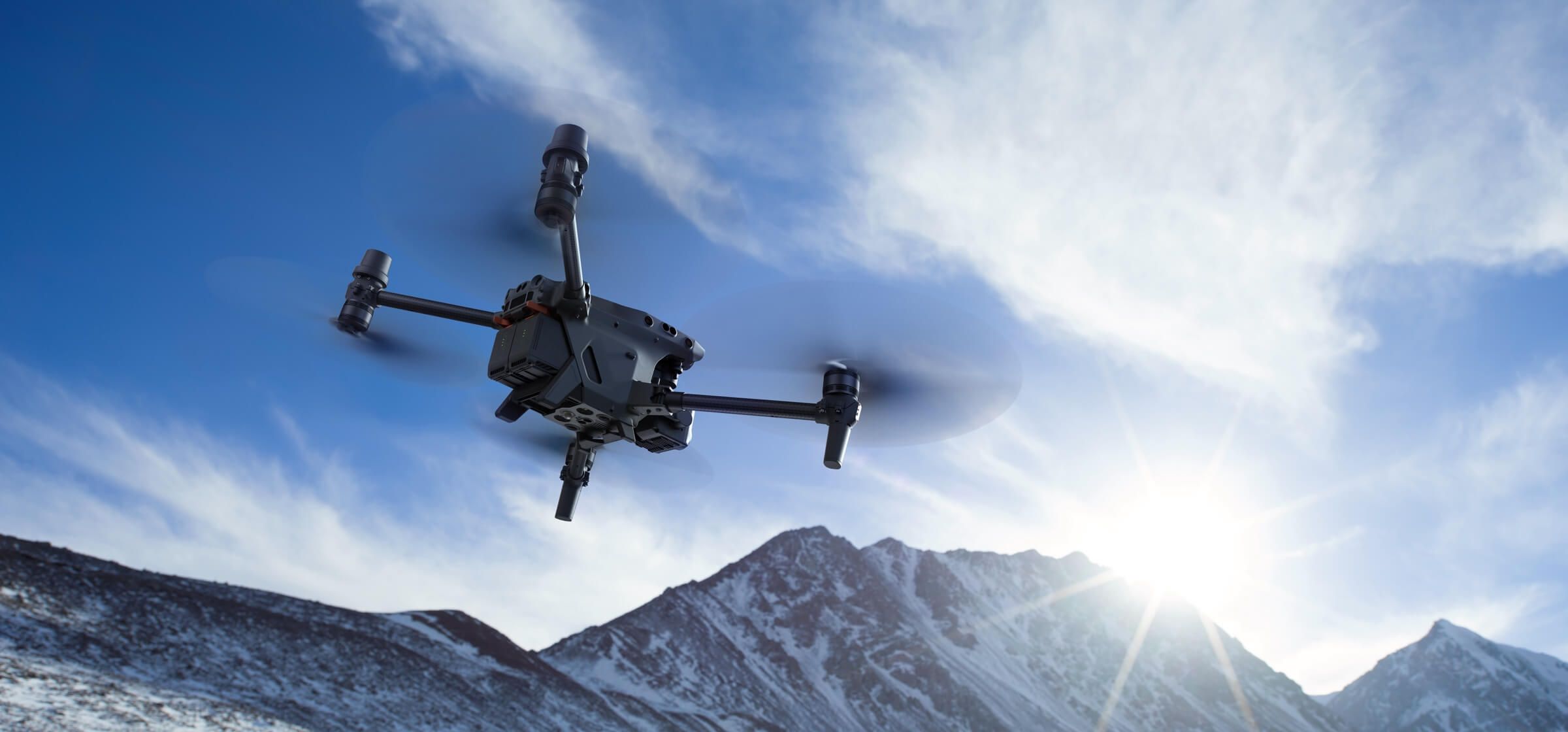

Powerful Flight PerformanceA balance of power and portability delivers higher operational efficiency
|
 |
 |
Environmental AdaptabilityWith IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
|

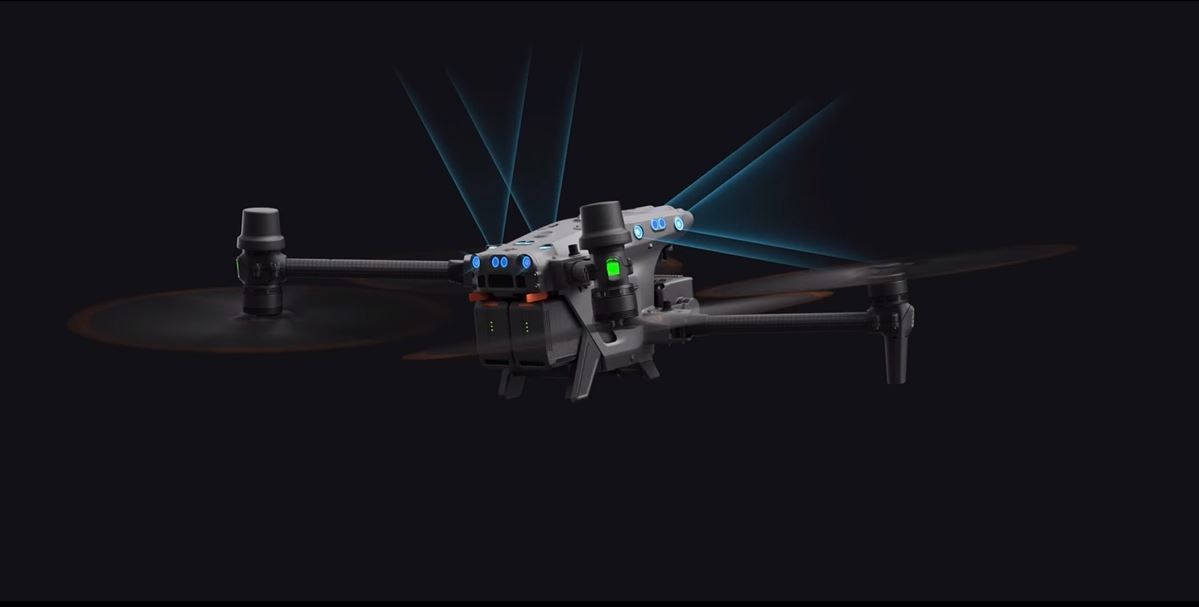

Safe and ReliableDual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.
|
 |
 |

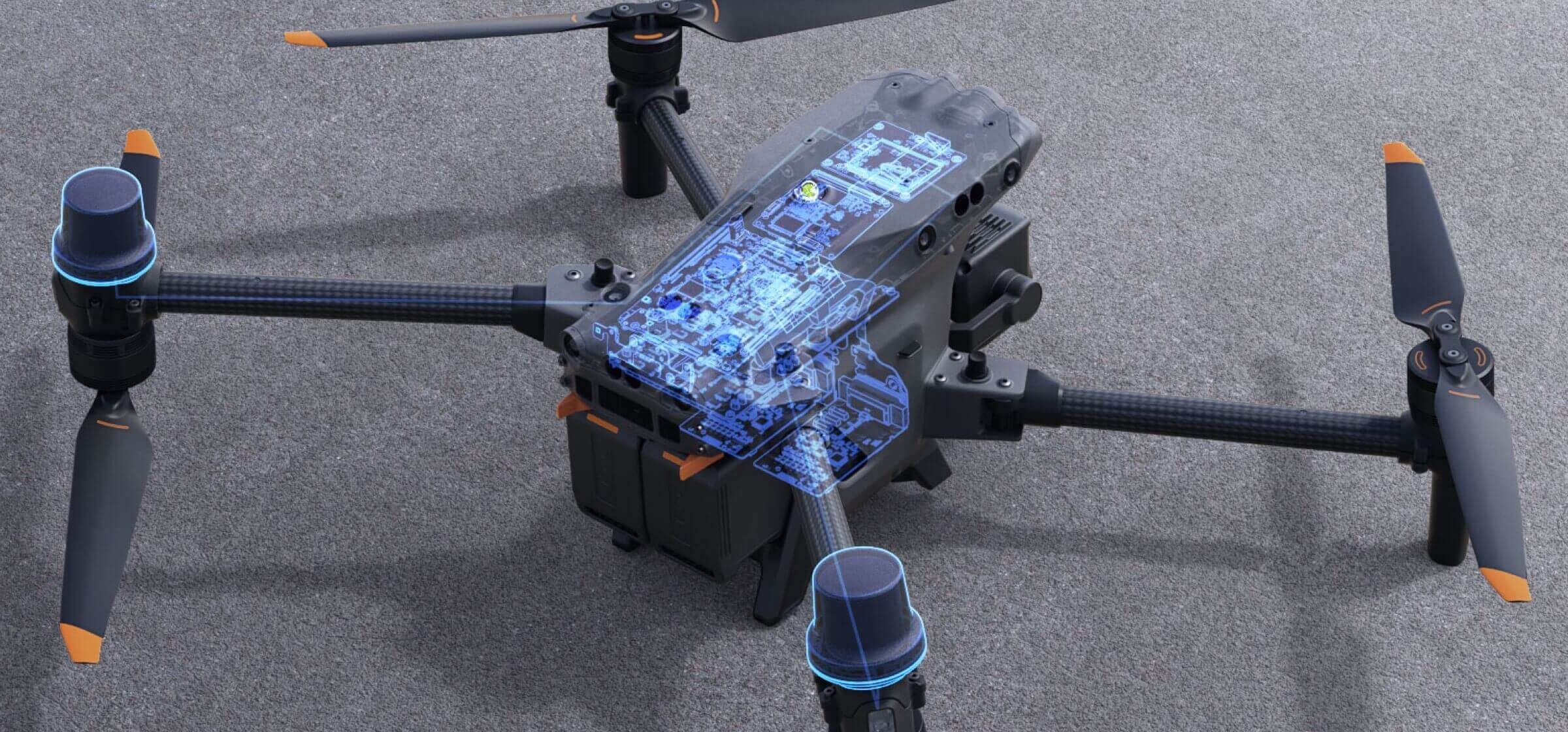

Redundancies and Backup SystemsBuilt-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
|
Enhanced TransmissionFour built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments. Bolster your connection with DJI Cellular Module, an optional 4G dongle that supports stable video transmission in complex, or remote work environments.
|
 |
 |
Lightweight and PortableCompact and foldable, the M30 Series is easy to pack up, carry, and deploy.
|

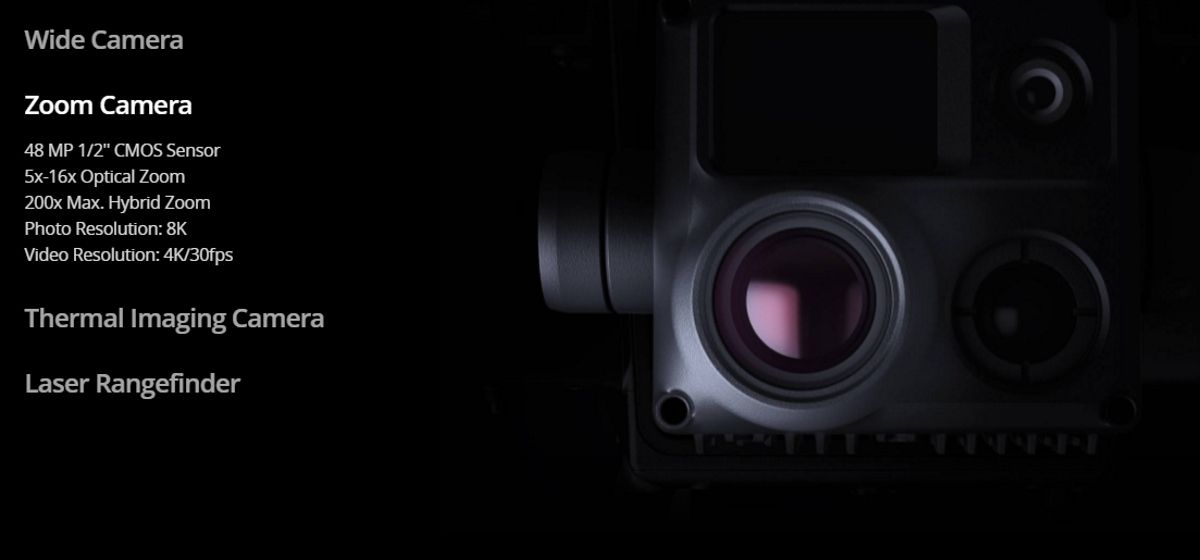

Capture EverythingThe M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.
|
 |
