DJI Mavic 3 Enterprise Multispectral 3M
- Compact and portable
- Foldable for easy storage
- Multispectral Camera: 4 × 5MP G/R/RE/NIR
- RGB camera: 20 MP
- 4/3 CMOS, mechanical shutter
- Omnidirectional Obstacle Avoidance
- 15km Transmission Distance
- Precise Centimeter-level RTK positioning
- Efficient aerial surveying
- Up to 200 hectares per flight

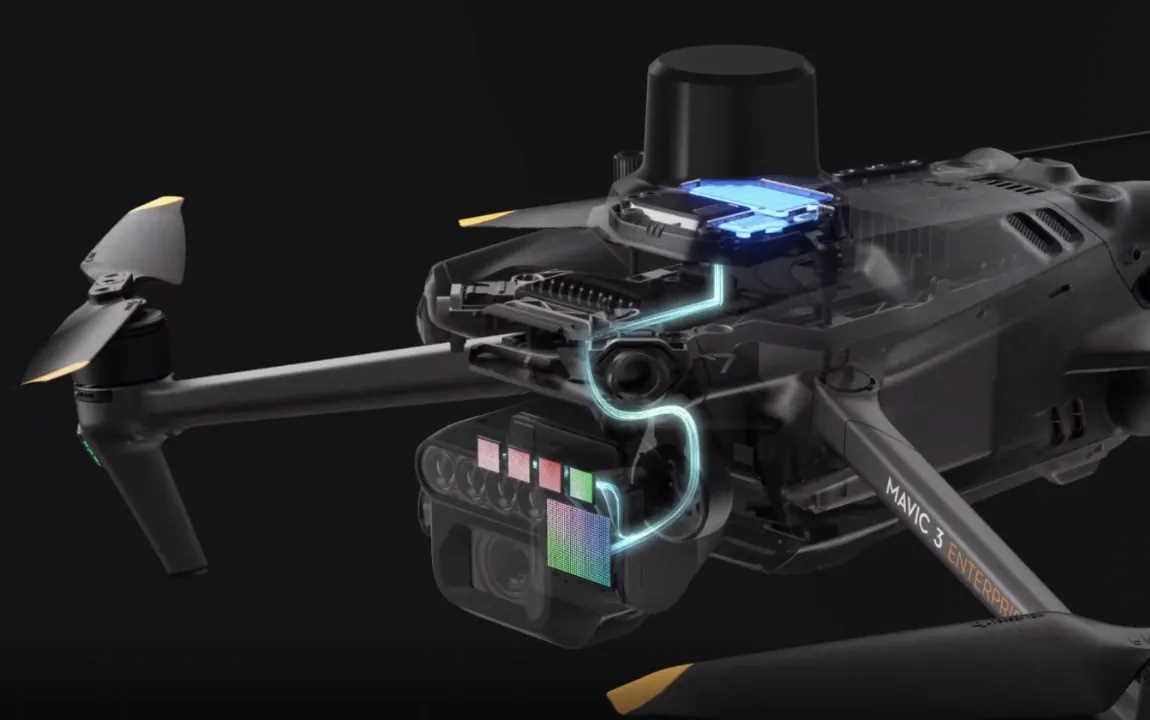

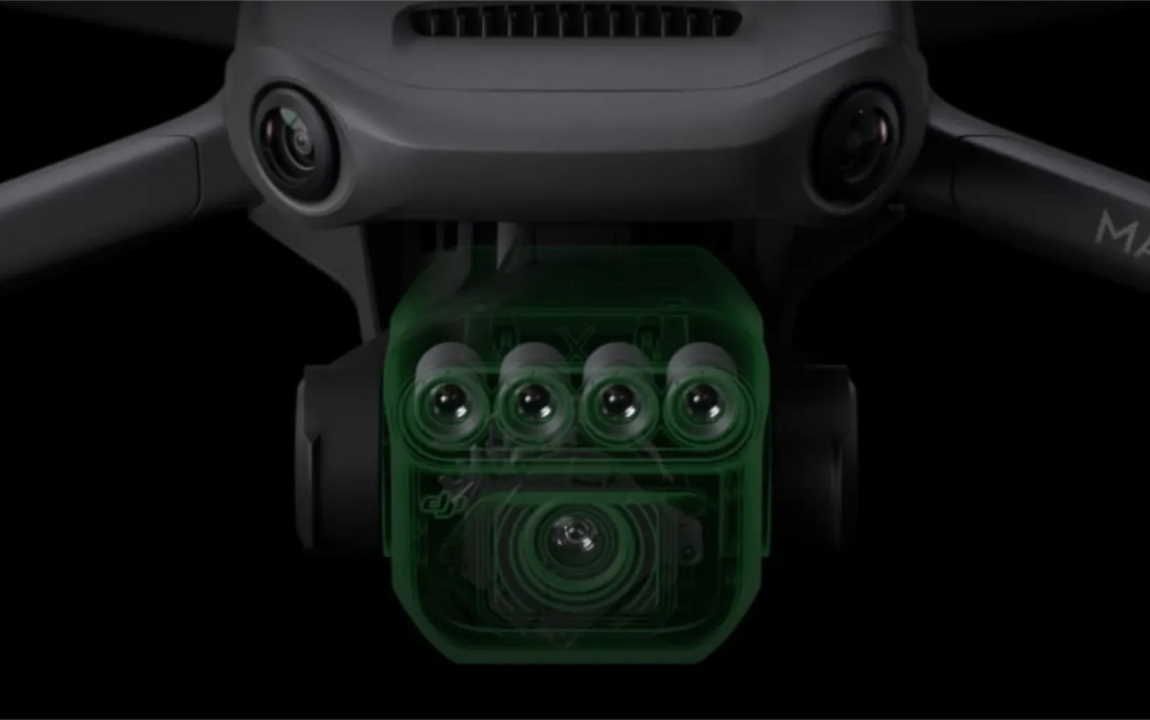

Highly Intergrated Imaging SystemThe built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.
|
|
|

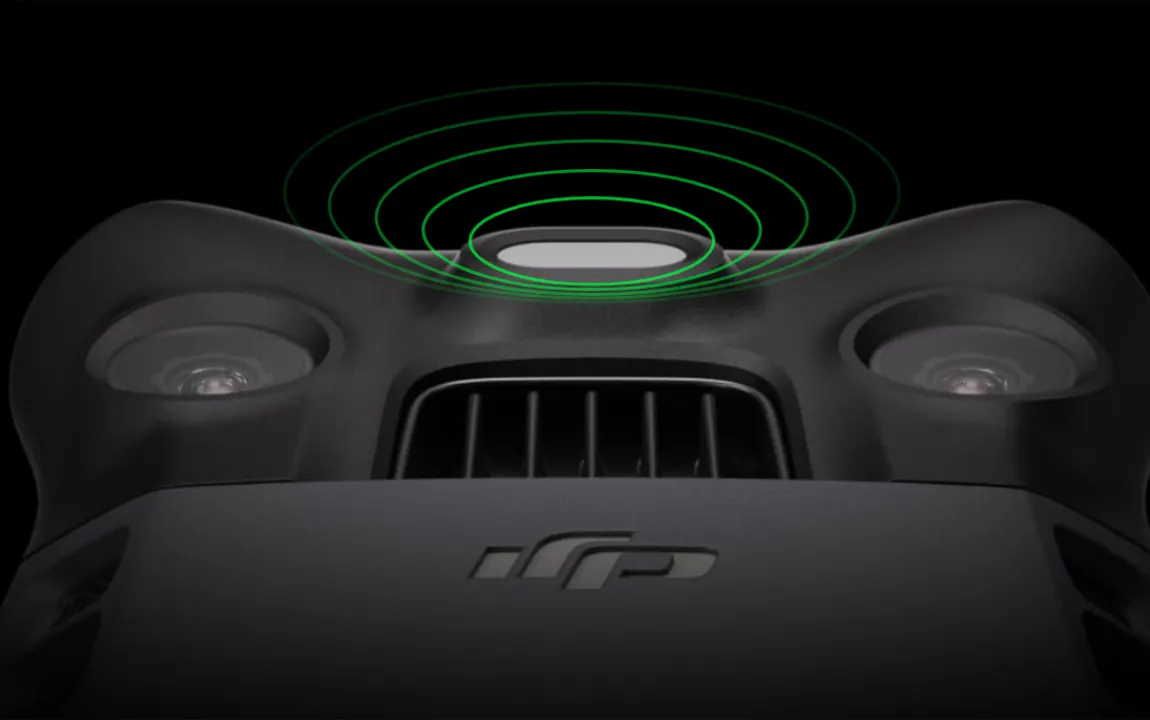

Sunlight SensorThe built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.
|
Accurate images that capture every pixelMavic 3M with RTK module for centimetre-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre. This enables Mavic 3M to do high-precision aerial surveying without using ground control points.
|
|
|
Efficient and Reliable Battery LifeUltra-long battery life, fast bursts - 43-minute flight time - 200 hectares during a single flight
|

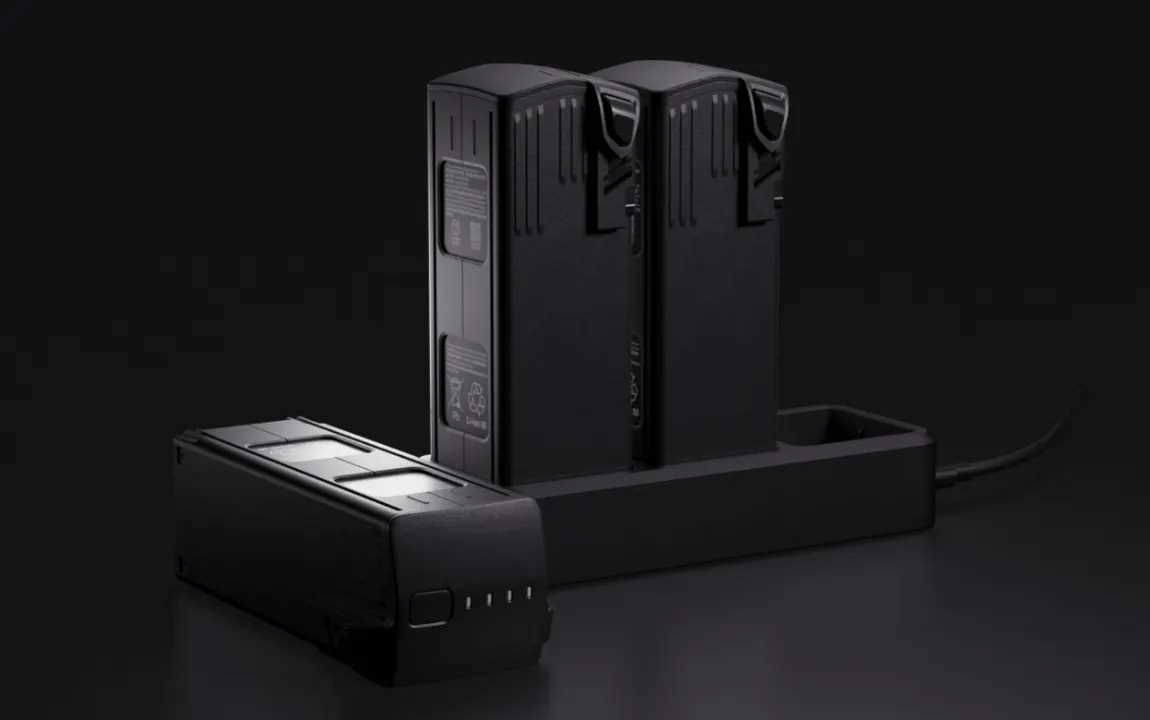

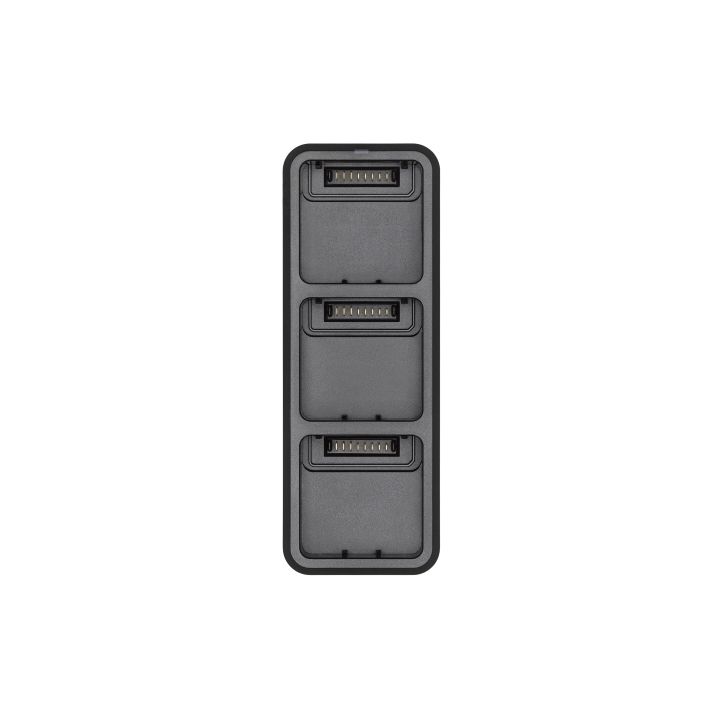

Fast chargingFast charge batteries with 100W charging hub, or directly charge the drone with 88W fast charging. - Charging hub - 100W - Aircraft - 88W
|
|
|
Stable signal, smooth image transmissionThe O3 transmission integrates two transmitting signals and four receiving signals to support 15km ultra-long transmission distances.
|
Omnidirectional obstacle sensing, terrain-follow aerial surveyingThe aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight (with propellers and RTK module) | 951g |
| Max Takeoff Weight | 1,050g |
| Dimensions (Folded/Unfolded) | Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height) Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height) |
| Diagonal Length | Diagonal: 380.1 mm |
| Max Ascent Speed | 6 m/s (Normal Mode) 8 m/s (Sport Mode) |
| Max Descent Speed | 6 m/s (Normal Mode) 6 m/s (Sport Mode) |
| Max Flight Speed (at sea level, no wind) | 15 m/s (Normal Mode) Flying forward: 21 m/s, flying sideways: 20 m/s, flying backwards: 19 m/s (Sport mode) |
| Max Wind Speed Resistance | 12 m/s |
| Max Take-off Altitude Above Sea Level | 6000 m (without a payload) |
| Max Flight Time (without wind) | 43 minutes |
| Max Hover Time (without wind) | 37 minutes |
| Max Flight Distance | 32 km |
| Max Tilt Angle | 30° (Normal Mode) 35° (Sport Mode) |
| Max Angular Velocity | 200°/s |
| GNSS | GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled) |
| Hovering Accuracy Range | Vertical: ±0.1 m (Vision Positioning enabled); ±0.5 m (GNSS Positioning enabled); ±0.1 m (D-RTK enabled) Horizontal: ±0.3 m (Vision Positioning enabled); ±0.5 m (HD Positioning enabled); ±0.1 m (RTK enabled) |
| Operating Temperature | -10° to 40° C |
| Propeller Model Number | 9453F Enterprise Edition |
| Light Sensor | Built-in module |
| Motor Model Number | 2008 |
RGB Camera
| Image Sensor | 4/3 CMOS Effective Pixels: 20 MP |
| Lens | FOV: 84° Equivalent focal length: 24 mm Aperture: f/2.8 to f/11 Focus: 1 m to ∞ |
| ISO Range | 100-6400 |
| Shutter speed | Electronic shutter: 8-1/8000 s Mechanical shutter: 8-1/2000 s |
| Max Image Size | 5280×3956 |
| Photo Shooting Mode | Single shot: 20 MP Timelapse: 20 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s JPEG + RAW: 3/5/7/10/15/20/30/60 s Panorama: 20 MP (original material) |
| Video Resolution | H.264: 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Max Video Bitrate | 4K: 130Mbps FHD: 70Mbp |
| Supported File System | exFAT |
| Image Format | JPEG/DNG (RAW) |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
Multispectral Camera
| Image Sensor | 1/2.8-inch CMOS, effective pixels: 5 MP |
| Lens | FOV: 73.91° (61.2° x 48.10°) Equivalent focal length: 25 mm Aperture: f/2.0 Focus: Fixed Focus |
| Multispectral Camera Band | Green (G): 560 ± 16 nm; Red (R): 650 ± 16 nm; Red Edge (RE): 730 ± 16 nm; Near infrared (NIR): 860 ± 26 nm; |
| Gain Range | 1x-32x |
| Shutter Speed | Electronic Shutter: 1/30~1/12800 s |
| Max Image Size | 2592×1944 |
| Image Format | TIFF |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Photo Shooting Mode | Single shot: 5 MP Timelapse: 5 MP TIFF: 2/3/5/7/10/15/20/30/60 s |
| Video Resolution | H.264 FHD: 1920 x 1080@30fps Video content: NDVI/GNDVI/NDRE |
| Product Manuals | |
|---|---|
| DJI Mavic 3 Enterprise Multispectral 3M - Product Manual | Specifications |
| DJI Mavic 3 Enterprise Multispectral 3M - Specifications |
- DJI Mavic 3 Enterprise Multispectral aircraft
- DJI RTK module
- microSD card
- Remote controller

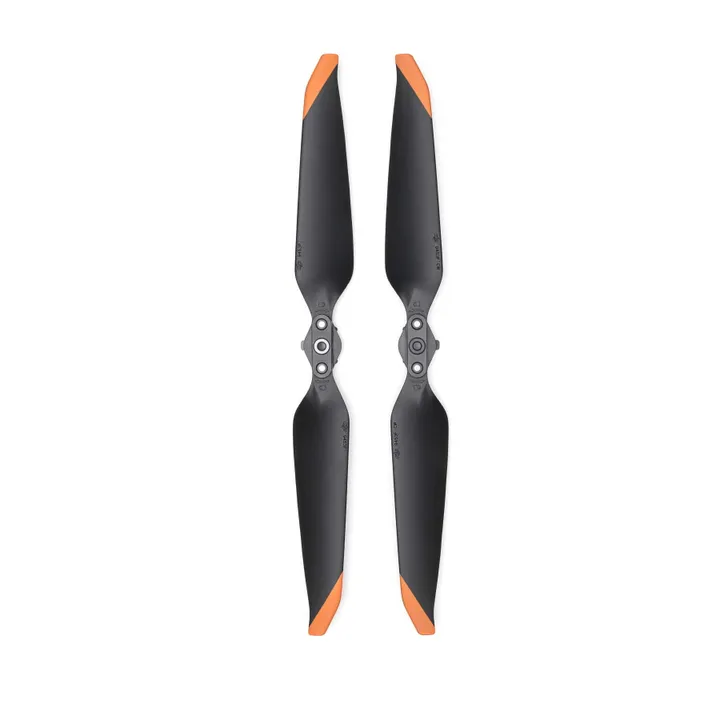

- 3 x propeller (pair)
- 1 x battery charger
- 1 x power cable
- 1 x USB-C cable
- 1 x USB-C to USB-C cable
- 1 x carry case
- 1 x screw driver
- 1 x user manual
- 1 x DJI Terra 6 month Basic Care
- 1 x Standard Maintenance Package
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Brand: DJI |
Code: DJIMAVIC3M
APN: 6941565950505 |
Supplier Code: CB.202210310426
Brand: DJI |
Code: DJIMAVIC3M
APN: 6941565950505 |
Supplier Code: CB.202210310426
At a glance
- Compact and portable
- Foldable for easy storage
- Multispectral Camera: 4 × 5MP G/R/RE/NIR
- RGB camera: 20 MP
- 4/3 CMOS, mechanical shutter
- Omnidirectional Obstacle Avoidance
- 15km Transmission Distance
- Precise Centimeter-level RTK positioning
- Efficient aerial surveying
- Up to 200 hectares per flight
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Highly Intergrated Imaging SystemThe built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.
|
|
|
|
Sunlight SensorThe built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.
|
Accurate images that capture every pixelMavic 3M with RTK module for centimetre-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging centre. This enables Mavic 3M to do high-precision aerial surveying without using ground control points.
|
|
|
|
Efficient and Reliable Battery LifeUltra-long battery life, fast bursts - 43-minute flight time - 200 hectares during a single flight
|
Fast chargingFast charge batteries with 100W charging hub, or directly charge the drone with 88W fast charging. - Charging hub - 100W - Aircraft - 88W
|
|
|
|
Stable signal, smooth image transmissionThe O3 transmission integrates two transmitting signals and four receiving signals to support 15km ultra-long transmission distances.
|
Omnidirectional obstacle sensing, terrain-follow aerial surveyingThe aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.
|
|

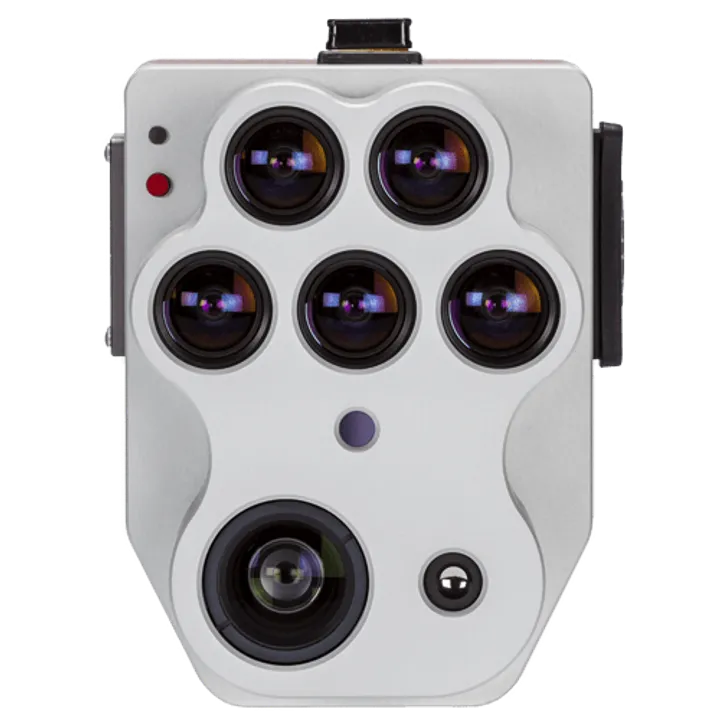

Micasense Altum-PT Multispectral & Thermal Camera Kit with DJI Skyport for M350
