DJI Mavic 3 Enterprise Thermal 3T with 1-Year Basic Enterprise Care Package
- Compact & portable drone / RPAS.
- 4/3" CMOS wide camera.
- 640x512 thermal camera.
- 45 min max flight time.
- DJI O3 Enterprise transmission.
- Centimetre-level positioning with DJI RTK module (additional).
- High volue loud speaker (additional).

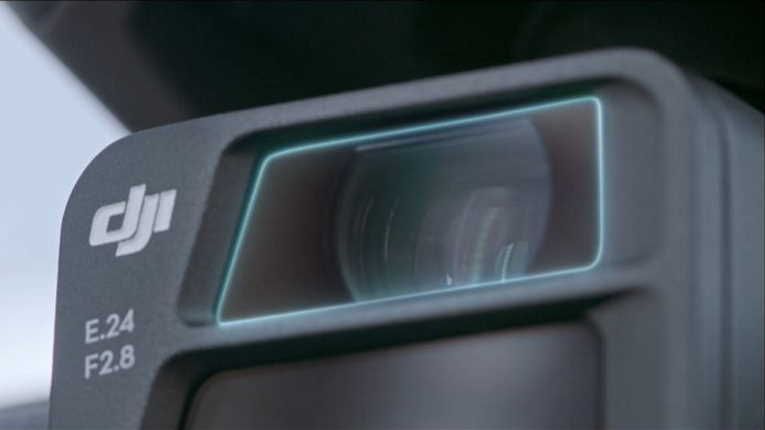

Focus and Find
Both Mavic 3E and Mavic 3T are equipped with a 12MP Zoom Camera, supporting up to 56× Max Hybrid Zoom to see essential details from afar.

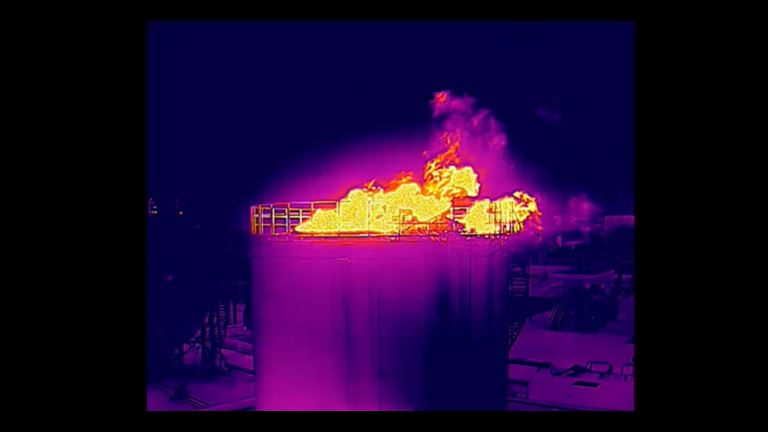

See the Unseen
Mavic 3T's thermal camera has 640 × 512 resolution and supports point and area temperature measurement, high temperature alerts, color palettes, and isotherms to help you find your targets and make quick decisions.

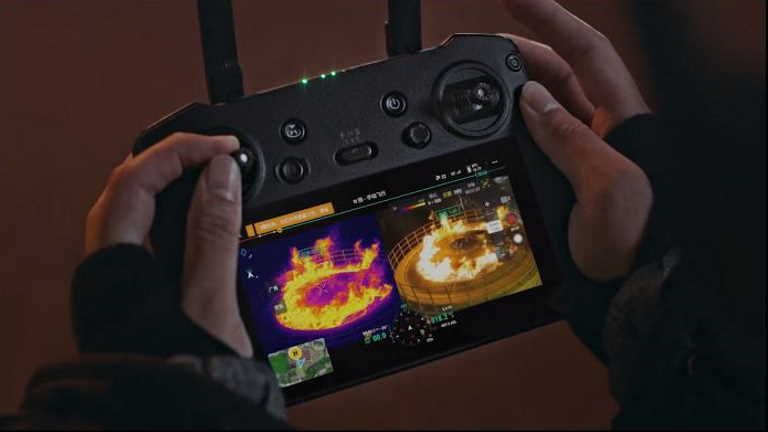

Simultaneous Split-Screen ZoomMavic 3T's thermal and zoom cameras support 28× continuous side-by-side zoom for easy comparisons.
|
|
|

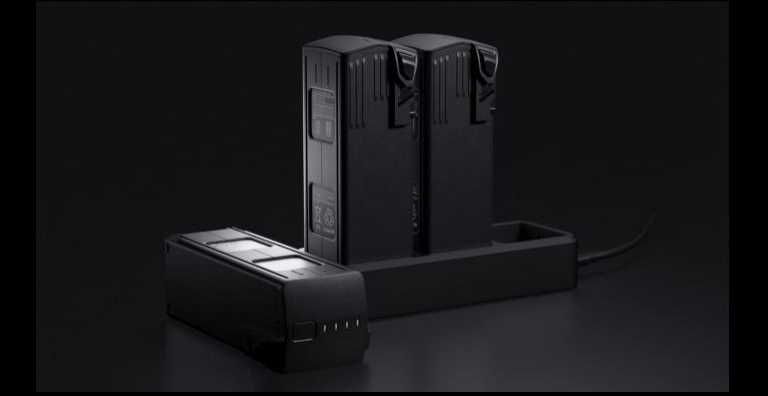

Batteries Optimized For Endurance45-min flight durations let you cover more ground each mission, for surveying of up to 2 square kilometers in a single flight.
|
Aircraft
| Weight (with propellers, without accessories) | DJI Mavic 3E: 915 g DJI Mavic 3T: 920 g |
| Max Takeoff Weight | DJI Mavic 3E: 1,050 g DJI Mavic 3T: 1,050 g |
| Dimensions | Folded (without propellers): 221×96.3×90.3 mm (L×W×H) Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H) |
| Diagonal Distance | 380.1 mm |
| Max Ascent Speed | 6 m/s (Normal Mode) 8 m/s (Sport Mode) |
| Max Descent Speed | 6 m/s (Normal Mode) 6 m/s (Sport Mode) |
| Max Flight Speed (at sea level, no wind) | 15 m/s (Normal Mode) Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) |
| Max Wind Speed Resistance | 12 m/s |
| Max Take-off Altitude Above Sea Level | 6000 m (without payload) |
| Max Flight Time (no wind) | 45 mins |
| Max Hover Time (no wind) | 38 mins |
| Max Flight Distance | 32 km |
| Max Tilt Angle | 30° (Normal Mode) 35° (Sport Mode) |
| Max Angular Velocity | 200°/s |
| GNSS | GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled) |
| Hovering Accuracy | Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK) |
| Operating Temperature Range | -10° to 40° C |
| Internal Storage | N/A |
| Motor Model | 2008 |
| Propeller Model | 9453F Propellers for Enterprise |
| Beacon | Built into the aircraft |
Wide Camera
| Sensor | DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP |
| Lens |
DJI Mavic 3E: DJI Mavic 3T: |
| ISO Range | DJI Mavic 3E: 100-6400 DJI Mavic 3T: 100-25600 |
| Shutter Speed |
DJI Mavic 3E: DJI Mavic 3T: |
| Still Photography Modes |
DJI Mavic 3E: DJI Mavic 3T: * Shooting 48MP photo does not support 2s interval |
| Video Resolution | H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Bitrate |
DJI Mavic 3E: DJI Mavic 3T: |
| Supported File Formats | exFAT |
| Photo Format | DJI Mavic 3E: JPEG/DNG (RAW) DJI Mavic 3T: JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
Tele Camera
| Sensor | 1/2-inch CMOS, Effective pixels: 12 MP |
| Lens | FOV: 15° Format Equivalent: 162 mm Aperture: f/4.4 Focus: 3 m to ∞ |
| ISO Range | DJI Mavic 3E: 100-6400 DJI Mavic 3T: 100-25600 |
| Shutter Speed | Electronic Shutter: 8-1/8000 s |
| Max Image Size | 4000×3000 |
| Photo Format | JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Still Photography Modes |
DJI Mavic 3E: DJI Mavic 3T: |
| Video ResolutionH.264 | 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Bitrate |
DJI Mavic 3E: DJI Mavic 3T: |
Digital Zoom |
8x (56x hybrid zoom) |
Thermal Camera
| Thermal Imager | Uncooled VOx Microbolometer |
| Pixel Pitch | 12 μm |
| Frame Rate | 30 Hz |
| Lens | DFOV: 61° Format Equivalent: 40 mm Aperture: f/1.0 Focus: 5 m to ∞ |
| Sensitivity | ≤50 mk @ f/1.1 |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Temperature Measurement Range | -20° to 150° C (High Gain Mode) 0° to 500° C (Low Gain Mode) |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Photo Format | JPEG (8-bit) R-JPEG (16-bit) |
| Video Resolution | 640×512@30fps |
| Bitrate | 6 Mbps |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Still Photography Modes | DJI Mavic 3T: Single: 640×512 Timed: 640×512 JPEG: 2/3/5/7/10/15/20/30/60 s |
| Digital Zoom | 28x |
| Infrared Wavelength | 8-14 μm |
| Infrared Temperature Measurement Accuracy | ±2° C or ±2% (using the larger value) |
| Product Manuals | |
|---|---|
| DJI Mavic 3 Enterprise Thermal 3T with 1-Year Basic Enterprise Care Package - Product Manual | Specifications |
| DJI Mavic 3 Enterprise Thermal 3T with 1-Year Basic Enterprise Care Package - Specifications |
- DJI Mavic 3 Enterprise Aircraft
- Remote Controller
- MicroSD card
- Power cable
- USB-C cable
- 3 x Propellers (pair)
- Battery charger
- USB-C to USB-C cable
- Screwdriver
- User manual
- Hard carry case
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Brand: DJI |
Code: DJIMAVIC3T
APN: 6941565944207 |
Supplier Code: CB.202208190373
Brand: DJI |
Code: DJIMAVIC3T
APN: 6941565944207 |
Supplier Code: CB.202208190373
At a glance
- Compact & portable drone / RPAS.
- 4/3" CMOS wide camera.
- 640x512 thermal camera.
- 45 min max flight time.
- DJI O3 Enterprise transmission.
- Centimetre-level positioning with DJI RTK module (additional).
- High volue loud speaker (additional).
"Best prices guaranteed! We’ll match or beat any legitimate prices."
Read the CASA Drone regulations @ knowyourdrone.gov.au
Focus and FindBoth Mavic 3E and Mavic 3T are equipped with a 12MP Zoom Camera, supporting up to 56× Max Hybrid Zoom to see essential details from afar.
|
|
|
|
See the UnseenMavic 3T's thermal camera has 640 × 512 resolution and supports point and area temperature measurement, high temperature alerts, color palettes, and isotherms to help you find your targets and make quick decisions.
|
Simultaneous Split-Screen ZoomMavic 3T's thermal and zoom cameras support 28× continuous side-by-side zoom for easy comparisons.
|
|
|
|
Batteries Optimized For Endurance45-min flight durations let you cover more ground each mission, for surveying of up to 2 square kilometers in a single flight.
|
