2400W Max Output Power
DJI Power 1000 provides stable power with a battery capacity of 1024 Wh, max output power of 2400 W, [1] and fast charging for select DJI drones.
Fast Charges DJI Drones [3]
Fast charge select DJI drones with the DJI Power SDC super-fast charge function for more worry-free flight and expanded creativity.
Fully Charged in 70 Mins

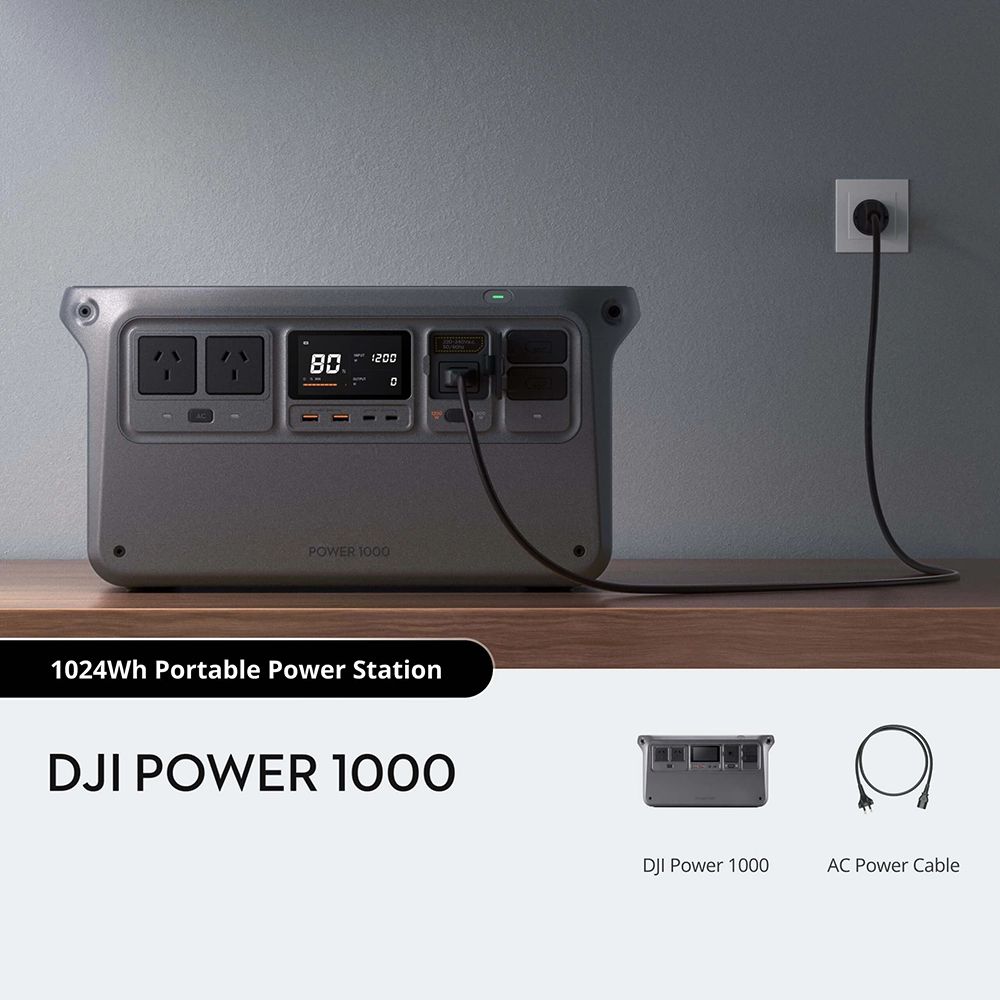

When connected to grid power, DJI Power 1000 supports 1200W and 600W recharging. Get 100% charge in 70 minutes or 80% in just 50 minutes. [2]
Safe and Secure Design
Power 1000 has passed 26 product test certifications from the Swiss SGS, ensuring safe use and a 4000-cycle life [4] (approx. 10 years). [5]
Two USB-C Out Ports (140W Max)
DJI Power 1000 has two 140W USB-C output ports, [6] with a total power output of up to 280 W for seamless use with USB-C-port-equipped devices.
Extensive Accessories
Power 1000 has 2 USB-A ports, 2 AC output ports, 1 SDC port, 1 SDC Lite port, and 2 1/4″ thread holes for expanded charge and recharge options.
Supports Solar Charging [7]
DJI Power 1000 can connect to solar panels via MPPT module or DJI Power Car Power Outlet to SDC Power Cable [8] for solar recharging.
Large 1024Wh Power Supply for Charging Multiple Devices
- Mobiler Phones approx 57 times
- Projector approx 9.2 hours
- Car refrigerator approx 19 hours
- Coffee machine approx 55 minutes
- Digital camera approx 59 times
- Laptop approx 9 times
DJI Power 1000 has a battery capacity of 1024 Wh to provide a max output power of 2400 W for 99% common devices stably in a range of scenarios.
1. When the product's battery level is above 20%, it can achieve a maximum continuous output power of 2200 W. At an output power of 2400 W, the product can sustain approx. 90 seconds of runtime.
2. Tested under laboratory conditions at 25° C (77° F) and should be used for reference only.
3. Fast charge batteries for DJI Mavic 3 series, DJI Air 3, DJI Inspire 3, and the Matrice 30 series. Requires certain accessories, which are sold separately.
4. Measured under 25° C (77° F) laboratory conditions, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.
5. Based on the correct usage of the product, DJI Power 1000 will have an approximate lifespan of 10 years, calculated on the basis of completing one full recharge/discharge cycle on a daily basis. This data is for reference only. Actual user experience may vary.
6. The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
7. Solar panels, the DJI Power Solar Panel Adapter Module (MPPT), and the adapter cable required for solar recharging are all sold separately.
8. DJI Power 1000 can connect to up to two DJI Power Solar Panel Adapter Modules (MPPT), which can then connect up to three solar panels, meaning up to six solar panels can be connected to DJI Power 1000 at the same time. DJI Power 1000 can also connect to one solar panel through the DJI Power Car Power Outlet to SDC Power Cable.
9. DJI Power Solar Panel Adapter Module (MPPT) and solar panels are sold separately. The minimum time to fully recharge was measured under 25° C (77° F) laboratory conditions and is for reference only. Actual recharging time is subject to factors like the angle of sunlight and light intensity. Actual user experience may vary. Solar panels from DJI-certified brand Zignes are recommended. To use solar panels not officially recommended by DJI, convert the solar panel connector to an XT60 interface. To prevent damage to the MPPT module and the power station, ensure the open-circuit voltage of each solar panel is less than 30 V. The power output of each solar panel connected to a single XT60 interface should not exceed 200 W, with the total output power of solar panels connected to the entire MPPT module capped at 400 W.
| General |
| Model |
DYM1000H |
| Capacity |
1024Wh |
| Net Weight |
Approx. 13 kg |
| Dimensions |
448×225×230 mm (L×W×H) |
| Number of Ports |
AC Output × 2 USB-C × 2 USB-A × 2 SDC × 1 SDC Lite × 1 AC Input × 1 |
| Max Operating Altitude |
3000 m |
| Output Specifications |
| AC Output |
AC 220-240 V, 50/60 Hz, max continuous output: 2200 W, max output: 2400 W (total)
When the product's battery level is above 20%, it can achieve a maximum continuous output power of 2200 W. At an output power of 2400 W, the product can sustain approx. 90 seconds of runtime. AC output data varies by country and region. Given that the voltage in Japan is 100 V, the max continuous output power of the Japanese version is 2000 W.
|
| AC Output (Bypass Mode) |
AC 220-240 V, 10 A, 2200 W |
| USB-A Output |
5 V, 3 A 9 V, 2 A 12 V, 2 A Max output power per channel: 24 W |
| USB–C Output |
5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 5 A 28 V, 5 A (EPR) Max output power per channel: 140 W*
* The USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
|
| SDC and SDC Lite Output |
SDC: 9-27 V, max current: 10 A, max output power: 240 W SDC Lite: 9-27 V, max current: 10 A, max output power: 240 W
Both of the SDC and SDC Lite ports support extensive accessories.
|
| Input Specifications |
| AC Input |
AC 220-240 V, 1200 W (recharging), 2200 W (Bypass mode) |
| SDC and SDC Lite Input |
SDC: DC 32-58.4 V, max 400 W, 8 A SDC Lite: DC 32-58.4 V, max 400 W, 8 A
Both of the SDC and SDC Lite ports support extensive accessories.
|
| Battery |
| Cell Chemistry |
LFP (lithium ferrophosphate) |
| Cycle Life |
Maintains over 70% capacity after 4000 cycles.
Measured at 25℃/77°F room temperature, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.
|
| Operating Temperature |
| Power Supply Temperature |
-10° to 45° C (14° to 113° F) |
| Recharging Temperature |
0° to 45° C (32° to 113° F) |
| Storage Temperature |
-10° to 45° C (14° to 113° F) |
- DJI Power 1000
- DJI Power AC Power Cable
