  • Microbox Reprographic Studio (A1/A2/A3)

  • Flexible reprographic system for digitization in the cultural heritage sector.
  • Allows for a wide variety of originals, formats and textures to be digitized in true colour and distortion free.

Our modular Reprographic Studio is designed as a versatile high-performance
scanning system which opens up an extraordinary range of possibilities. It is the ideal solution for demanding digitization projects in the field of cultural heritage that involve special requirements in terms of format, surface structure and illumination:

Whether stamps or large formats, coins or paintings, sealed letters or glass negatives, loose, bound, flat, raised or corrugated originals, glossy or matt surfaces or a wide variety of material structures, incident , transmitted or raking light – the book2net Reprographic Studio meets all requirements.

Do you have a challenging project? Get in touch with us and let us advise you. We will put together a customized system that meets your personal requirements.

Our module standards guarantee investment security and sustainability: if the requirements of your project change, the configurations of the existing system can be adapted and supplemented at any time.

Hochleistungssensor

  • CMOS Hochleistungsflächensensor

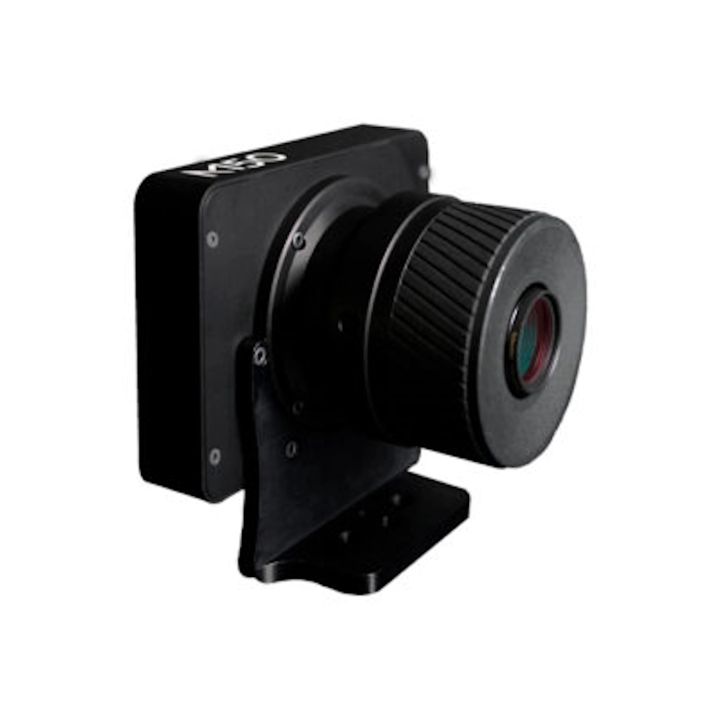

  • Verfügbare Kameravarianten: M150 / M70 / Sony Alpha / Fuji GFX M70
  • 0,3 Sek. Scanzeit (A1 Color bei 400 ppi)
  • 2,2 Sek. Prozesszeit (scannen + übertragen + speichern)
  • USB 3.0 Interface
  • Optimiert für OCR-Anwendungen durch reduziertes Signalrauschen


Optics

  • Schneider-Kreuznach precision lenses
  • Selectable according to requirements
  • Depth of field 12 cm for A2
  • Brilliant color rendering
  • Perfect linearity
  • Distortion-free
  • Long durability


LED illumination

  • Daylight luminaires for soft and uniform illumination
  • 504 high-CRI LEDs
  • 2 x 40 x 55 cm panels with diffuser panel (standard)
  • Including fabric diffuser for even softer illumination
  • Height-adjustable stand for optimum adjustment of the illumination height


Camera slider

  • Motorized height adjustment
  • Repro columns in A2 and A1 format
  • Convenient scalability:
    • Format positions in the DIN A1/A2 to DIN A5 range can be individually defined and approached
    • Color profiles and adjustment parameters can be saved according to the desired formats and loaded directly via the software at one click


Support table

  • Fixed support table with object-friendly surface
  • A1/A2/A3 standard (A0 on request)
  • Modular, expandable concept
  • Wide range of accessories:
    • Light table
    • Alignement add for slides/glass negative
    • Book support
    • and many more tools on request


Software & Features

  • Live Video Preview
  • Easy Scan / bookScan professional scanning software
  • OCR (optional)
  • Live Control Professional (optional)


Color management

Integrated true color management:
METAMORFOZE, FADGI, ISO/TS 19264:1 2017 standard regarding color quality, resolution, noise & linearity
