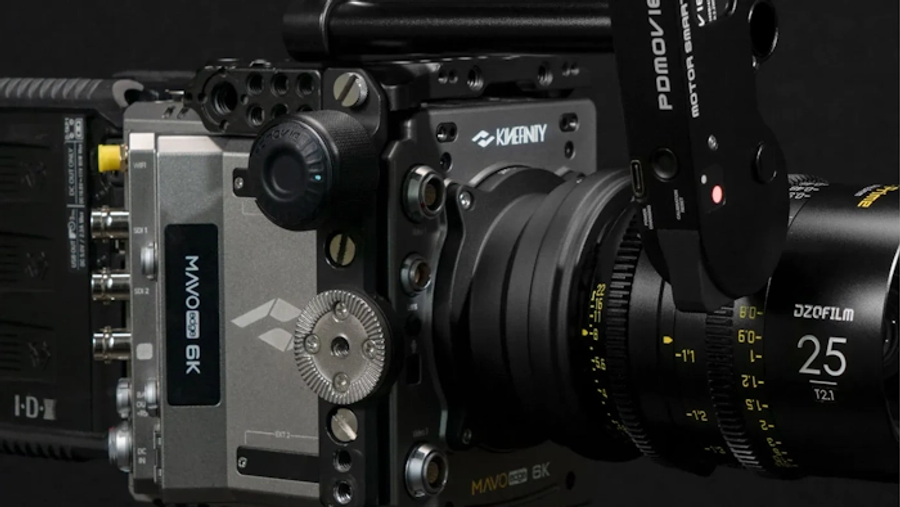

PDMOVIE LIVE AIR 3 Smart LiDAR Wireless Focus Lens Control Kit (Advanced)

Loading
  • PDMOVIE LIVE AIR 3 Smart LiDAR Wireless Focus Lens Control Kit (Advanced)
  • PDMOVIE LIVE AIR 3 Smart LiDAR Wireless Focus Lens Control Kit (Advanced)
$979.00 ETA: 17/08/2024

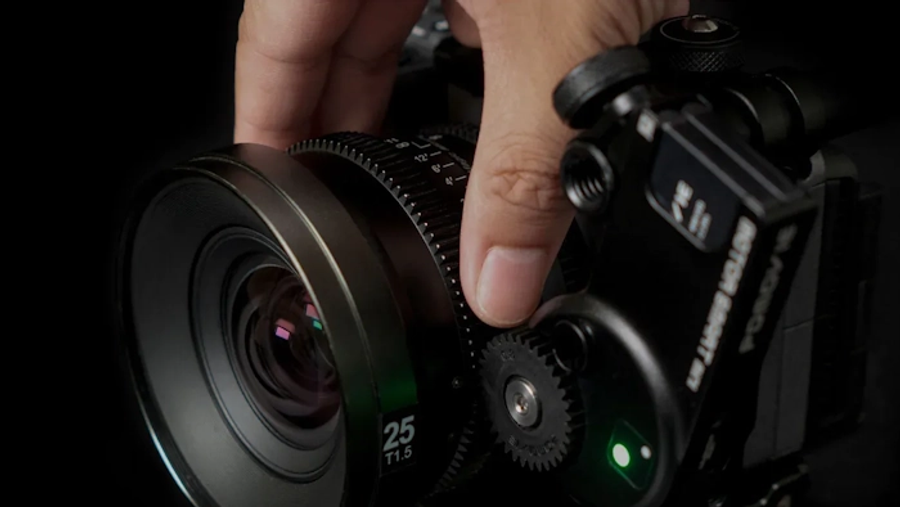

  • Wirelessly Control Lens Focus via LiDAR
  • 0.7 Nm Smart LiDAR Motor, Batteries
  • Bluetooth Focus Controller

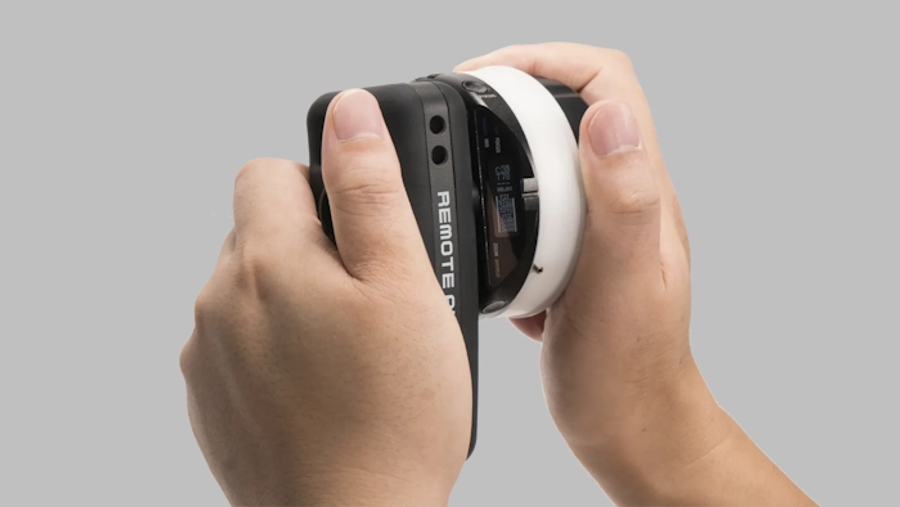

  • REMOTE AIR RIG Handwheel Unit
  • Shoe Mount Adapter, 15mm Rod
  • Lens Gear Ring, Mounting Clamp

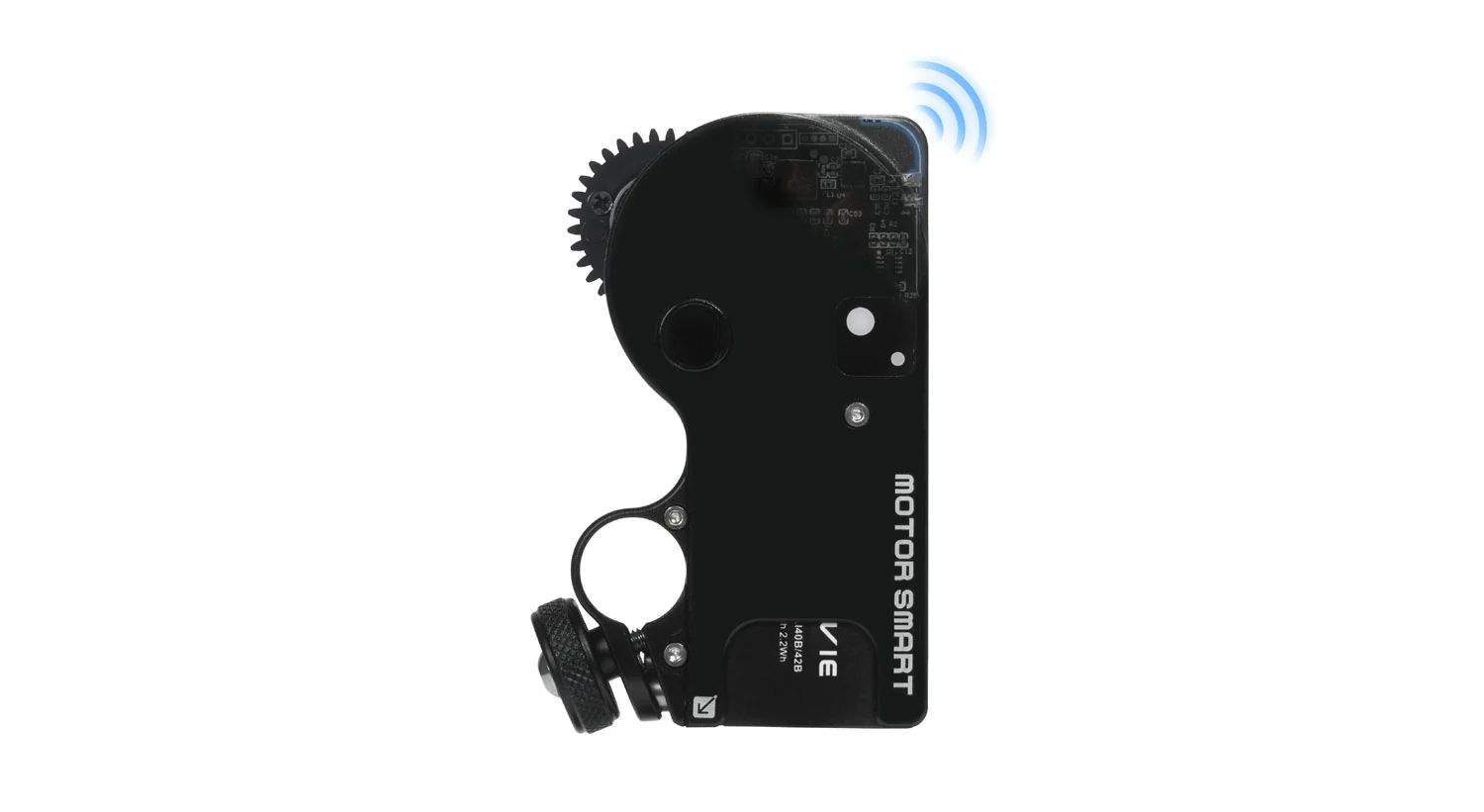

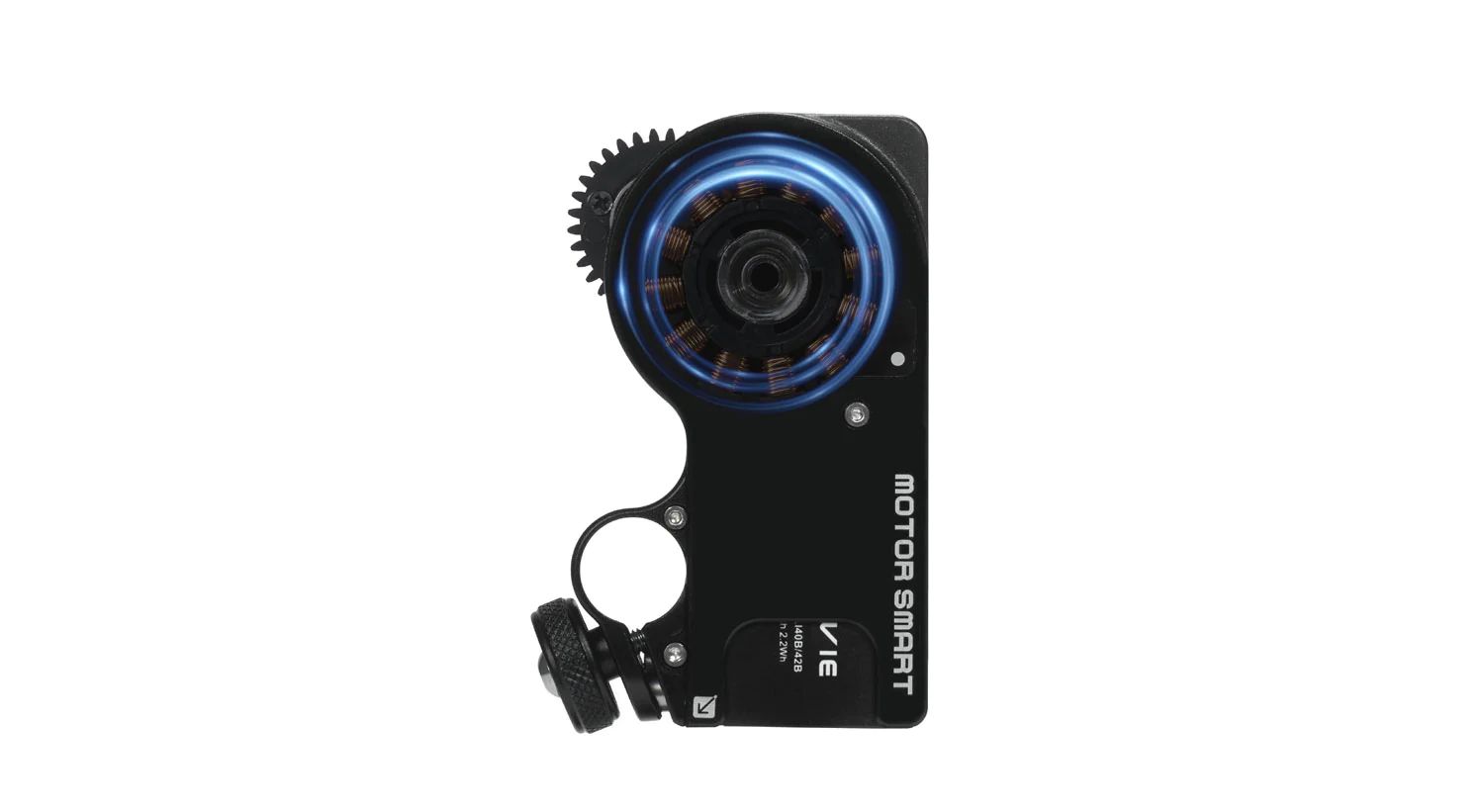

Drive Module

High Torque, Low Latency, High Precision

Antenna Module

The latest 5.3 Bluetooth connection technology, with a control distance of up to 100 meters

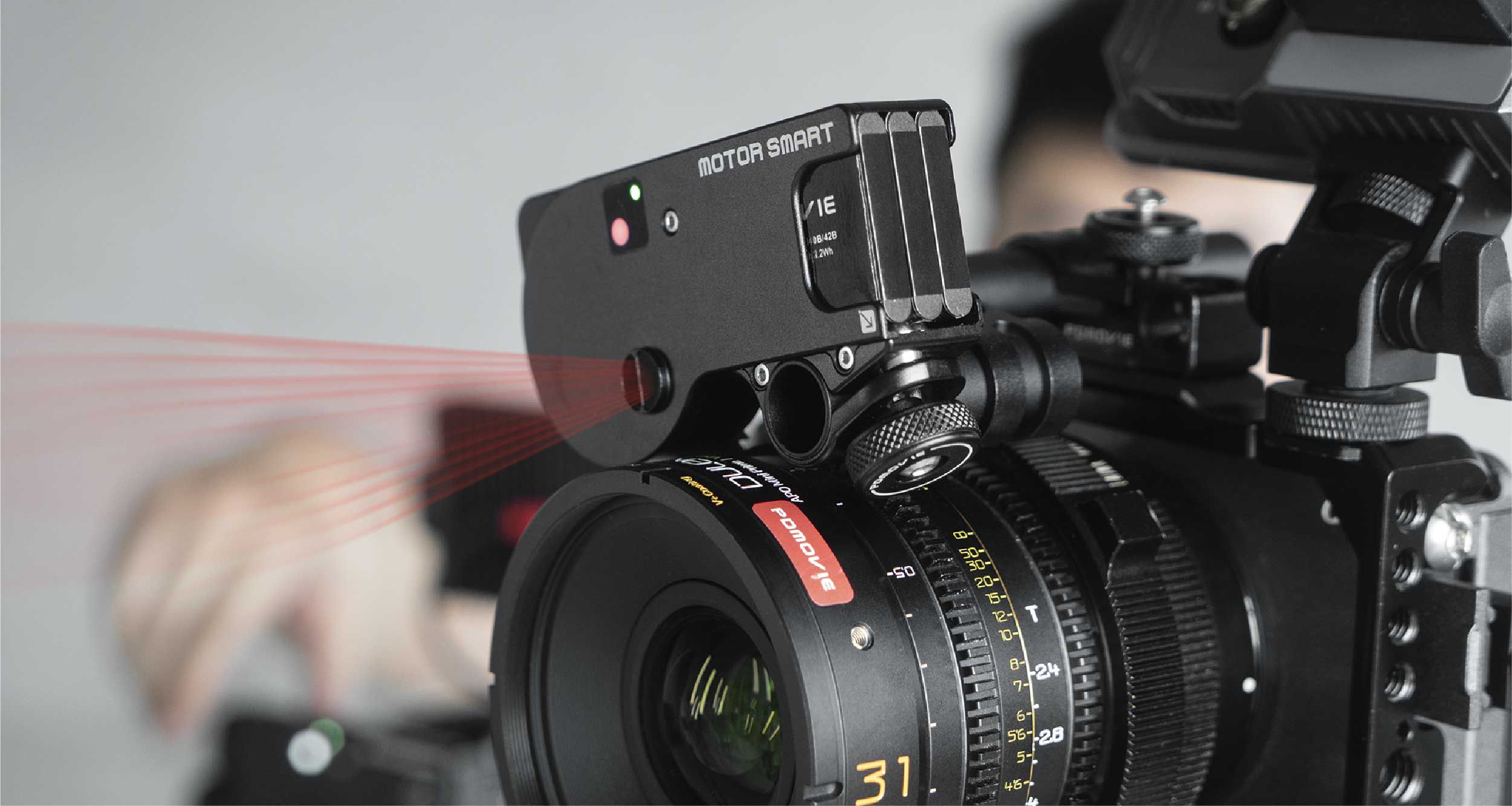

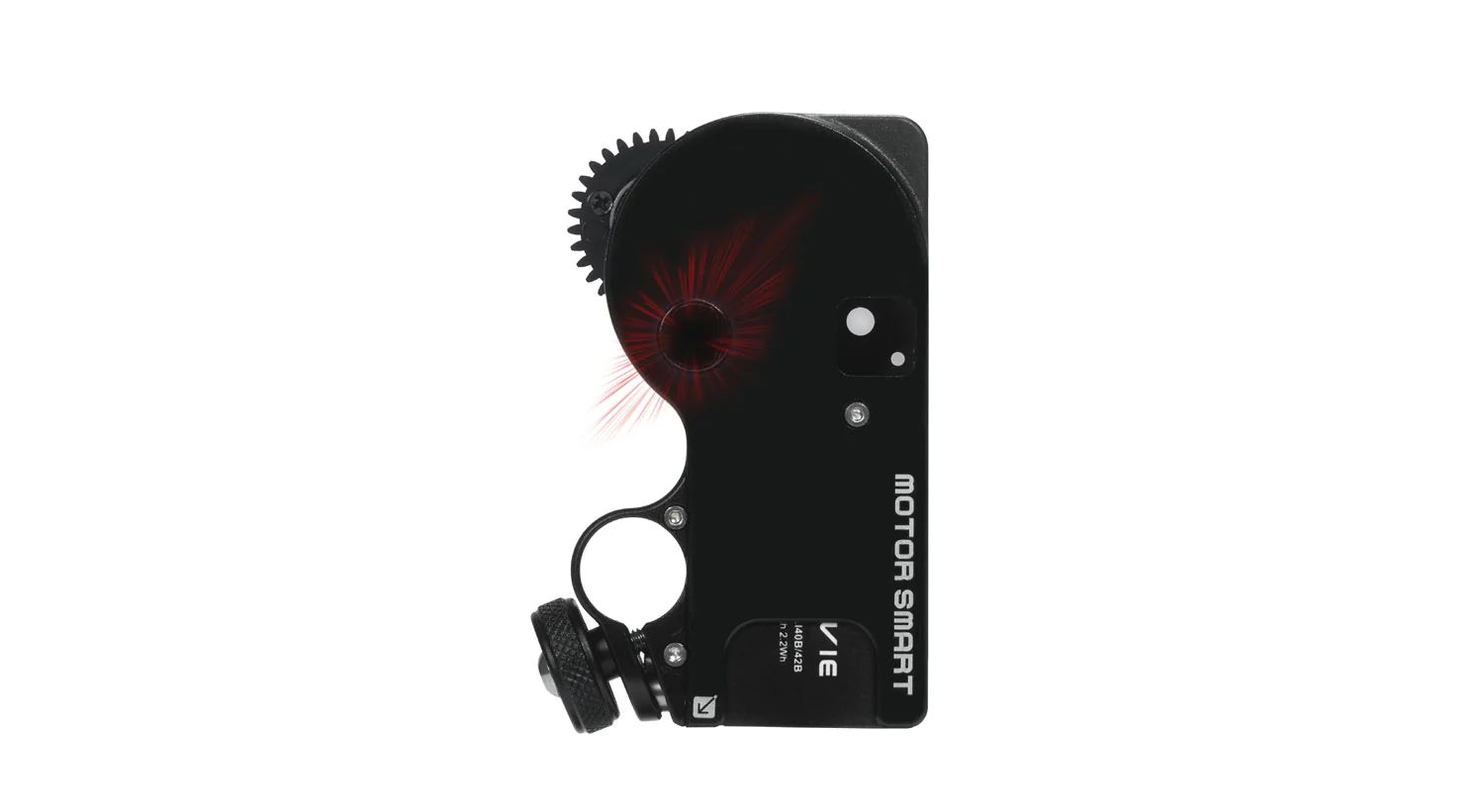

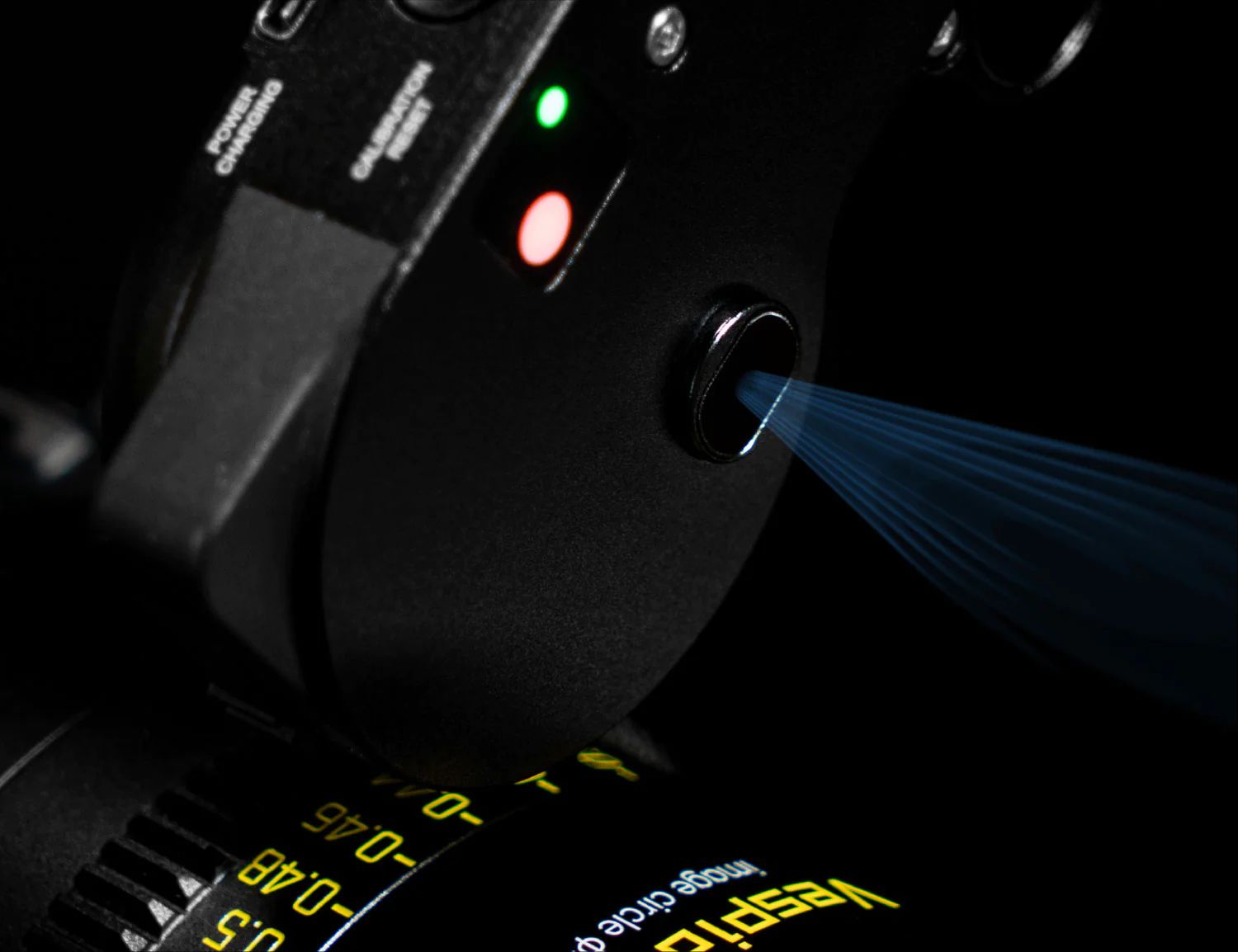

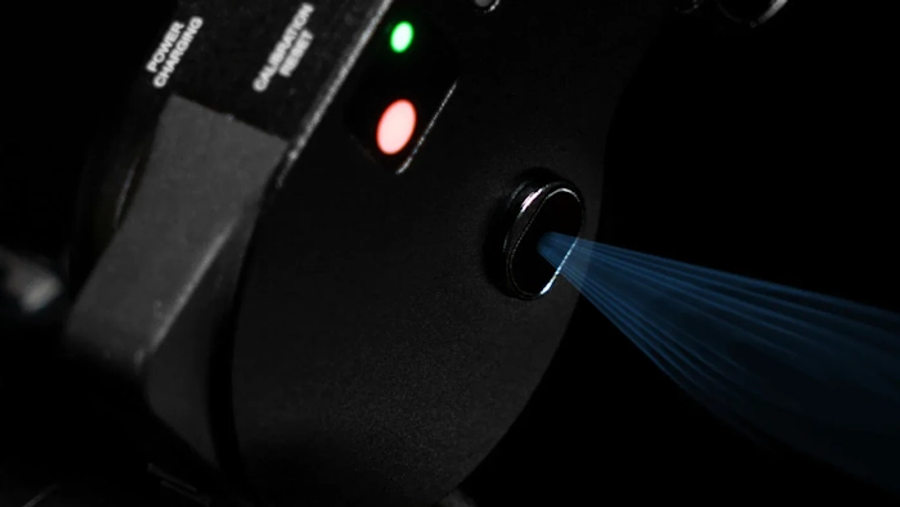

LiDAR Module

Fast scanning target distance AI analysis travel data Assisted autofocus

Power Supply Module

Independent power supply, supporting fast charging and quick replacement, with a battery life of nearly 6-10 hours

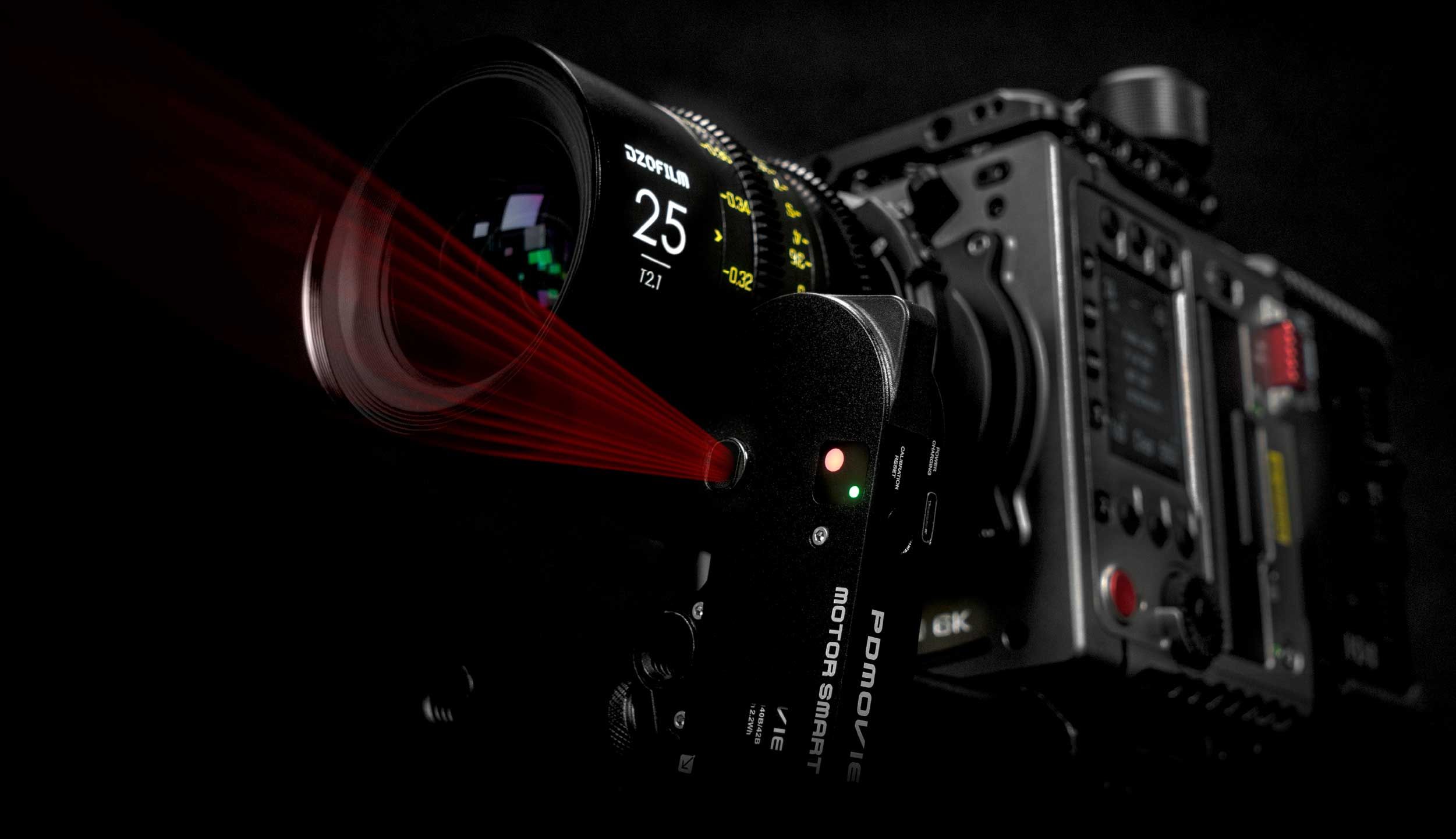

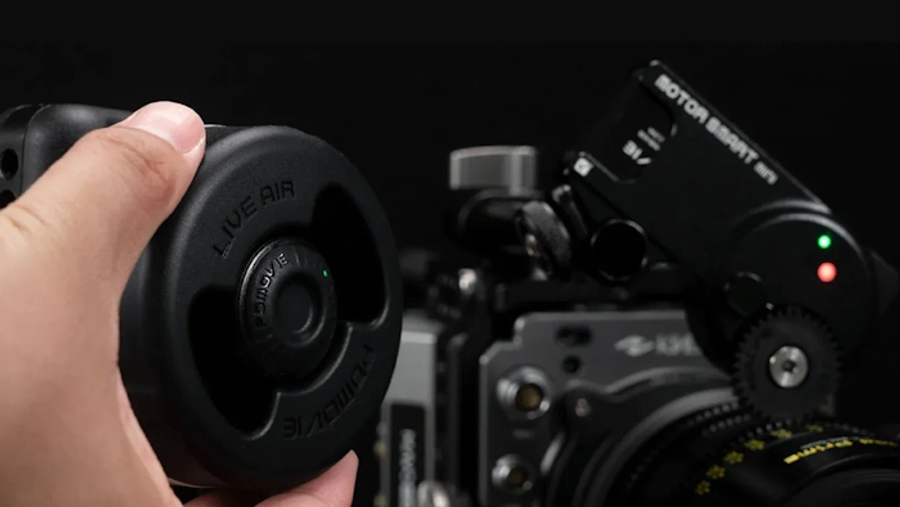

Autofocus Mode

The LiDAR motor does not require connection to the controller and can be used once calibration is completed.

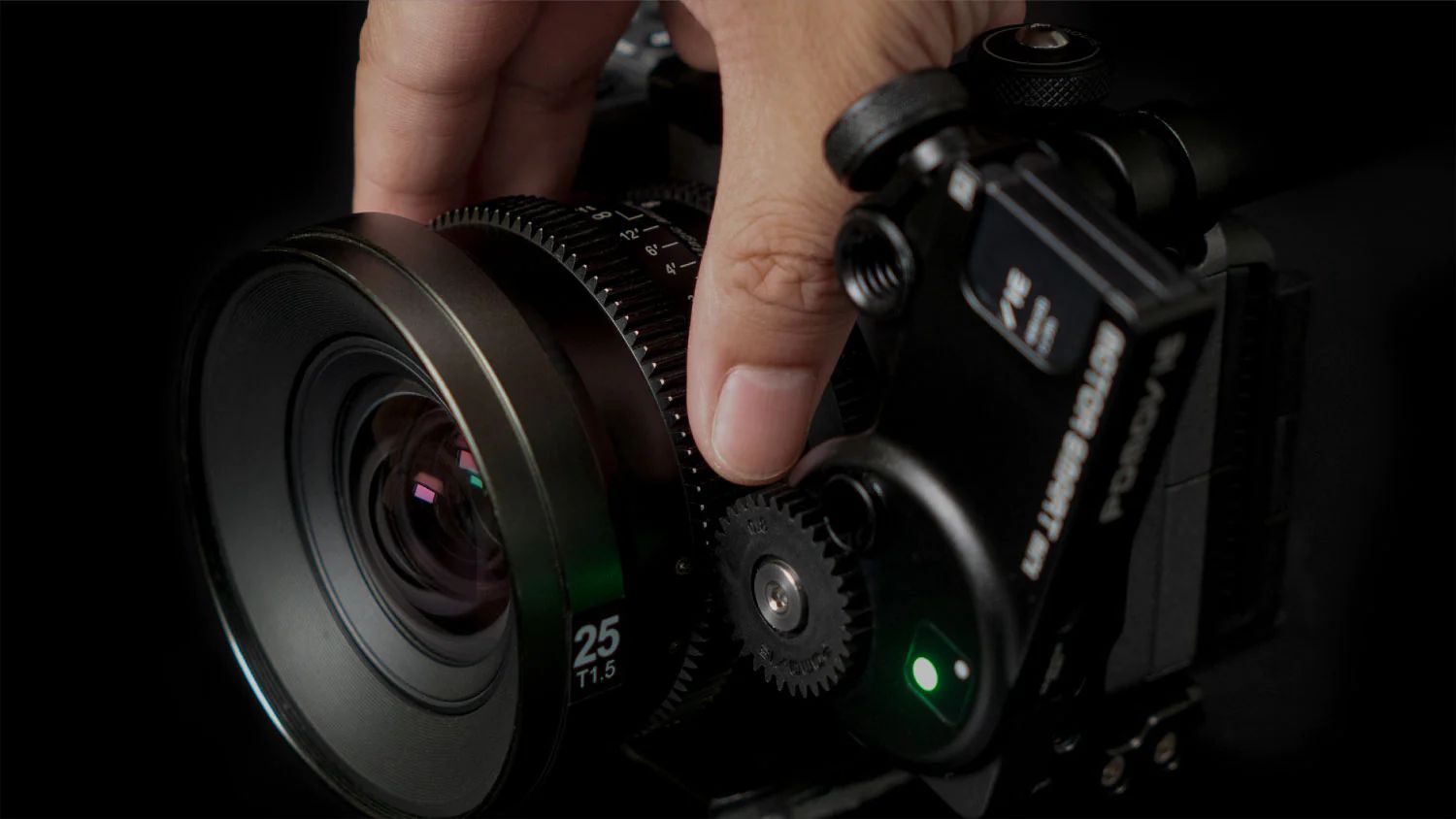

Manual Focus Mode

When the controller moves away from the nearest focus position, it switches to manual control. It is recommended to reserve an empty channel for pure manual wireless control. *MOTOR SMART can be switched to pure manual control mode by pressing the motor button three times.

High Resolution

The controller has a travel resolution of 16384 DPI, and the motor has a travel resolution of up to 16384 DPI per rotation, enabling low-latency response to operational commands

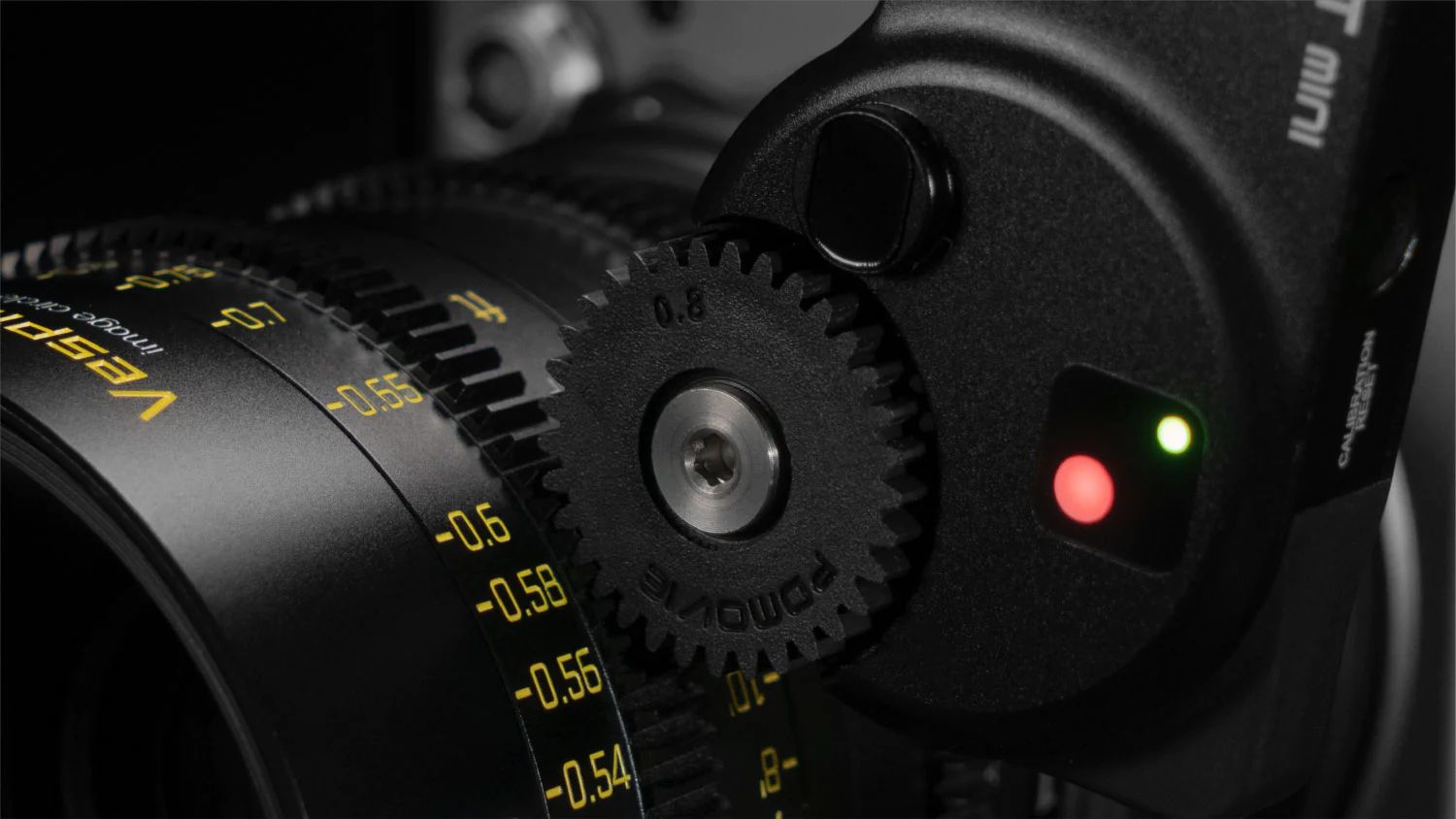

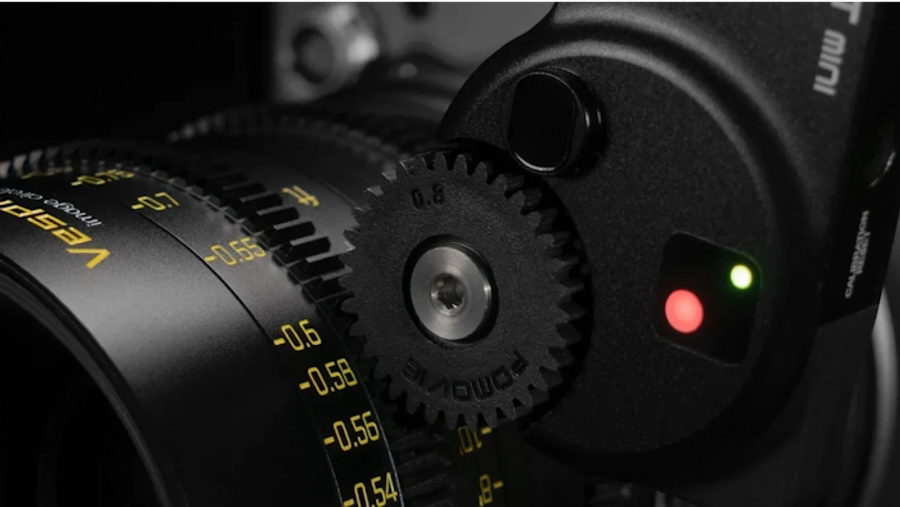

Standard Gears

Comes with a 0.8 Mod gear as standard, and additional 0.4/0.5/0.6 Mod gears can be purchased for easy compatibility with various lenses

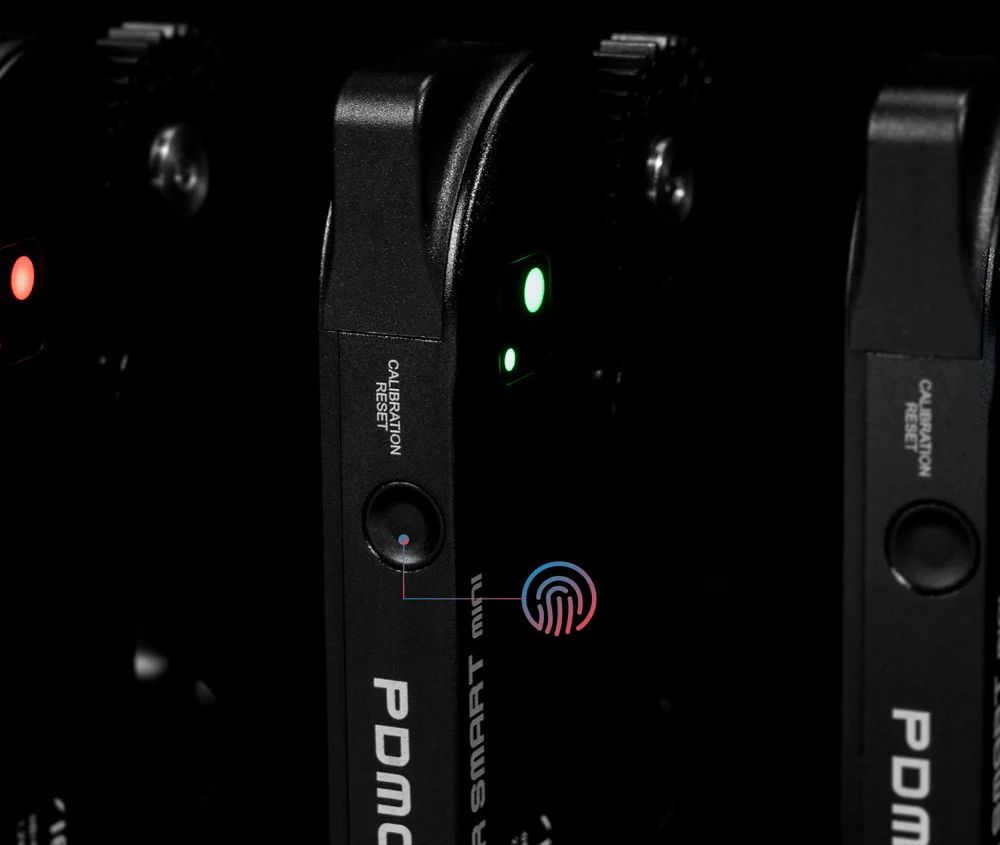

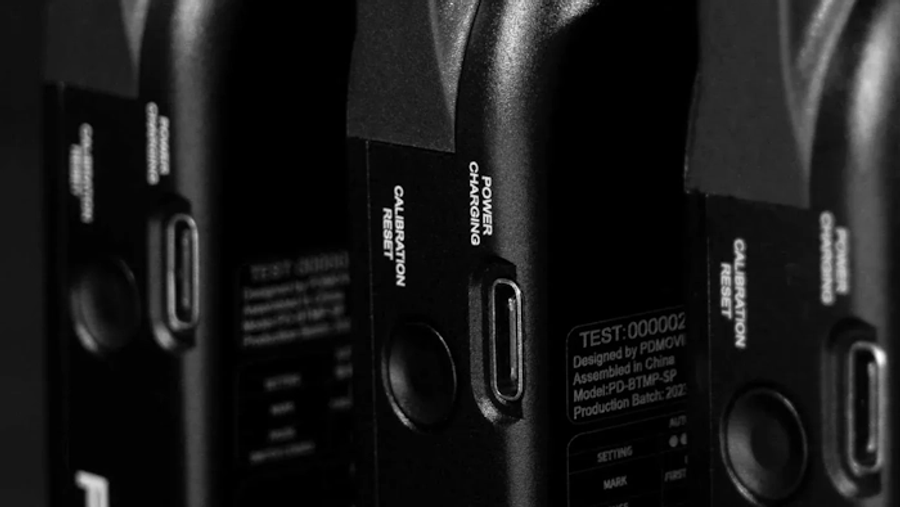

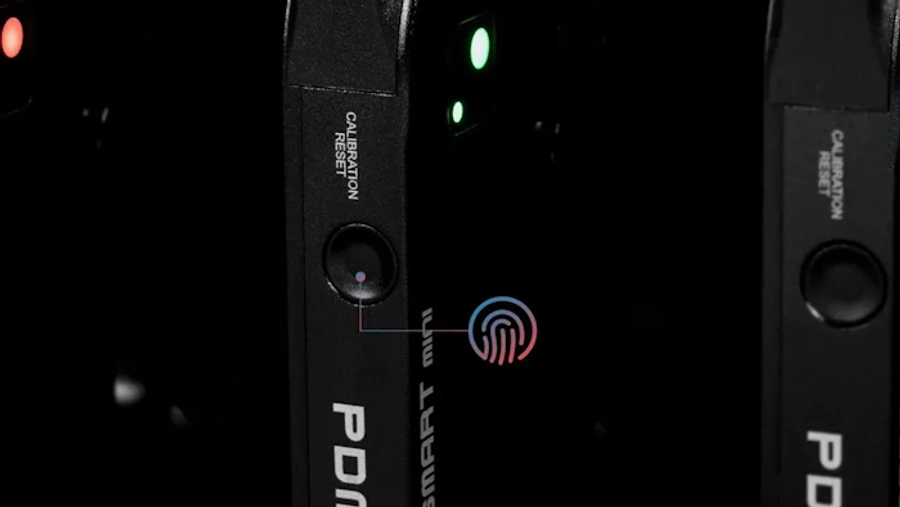

Manual/Automatic calibration

Using the motor button, easily start automatic lens calibration. For lenses with infinite rotation, manual calibration can also be used to set the lens travel distance

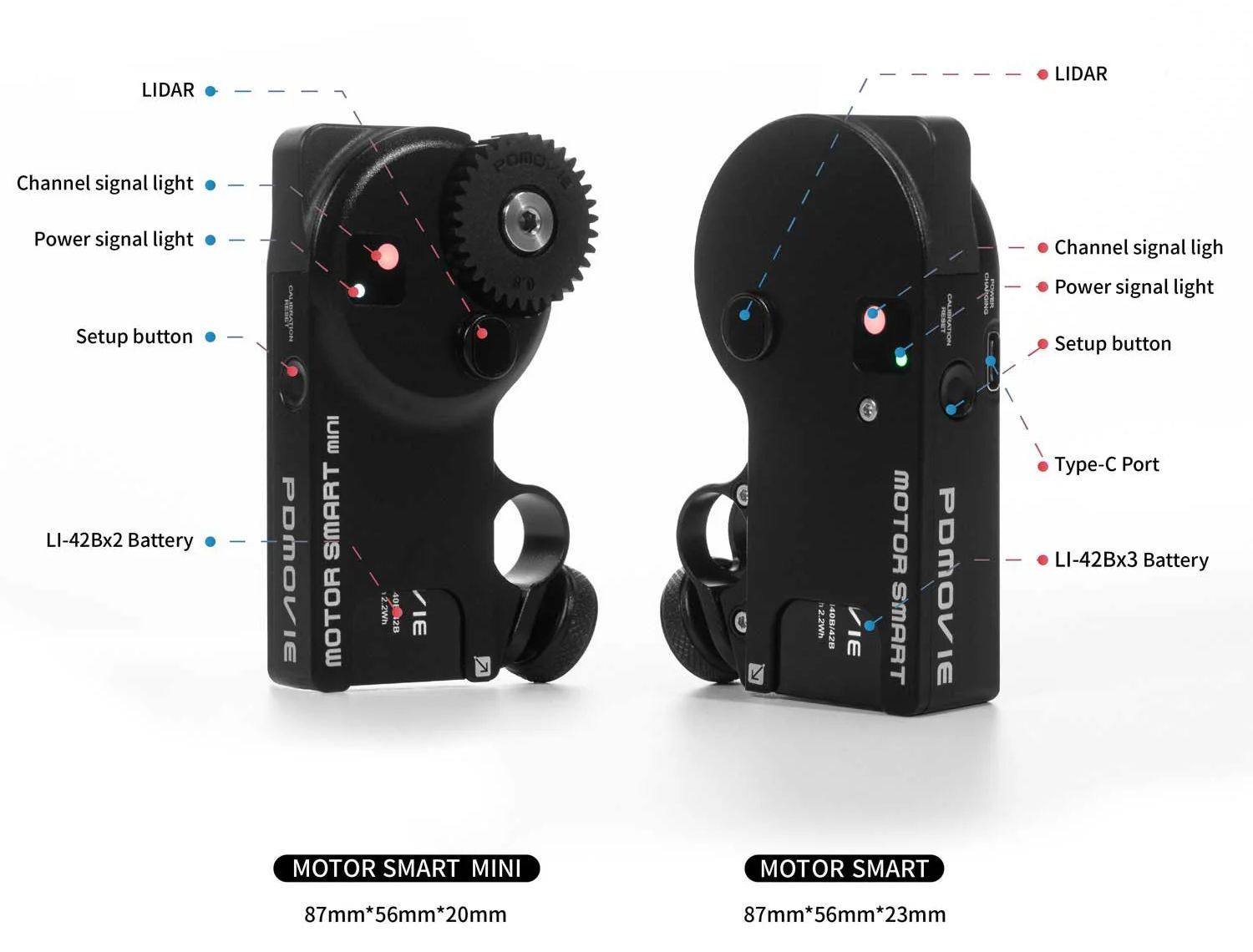

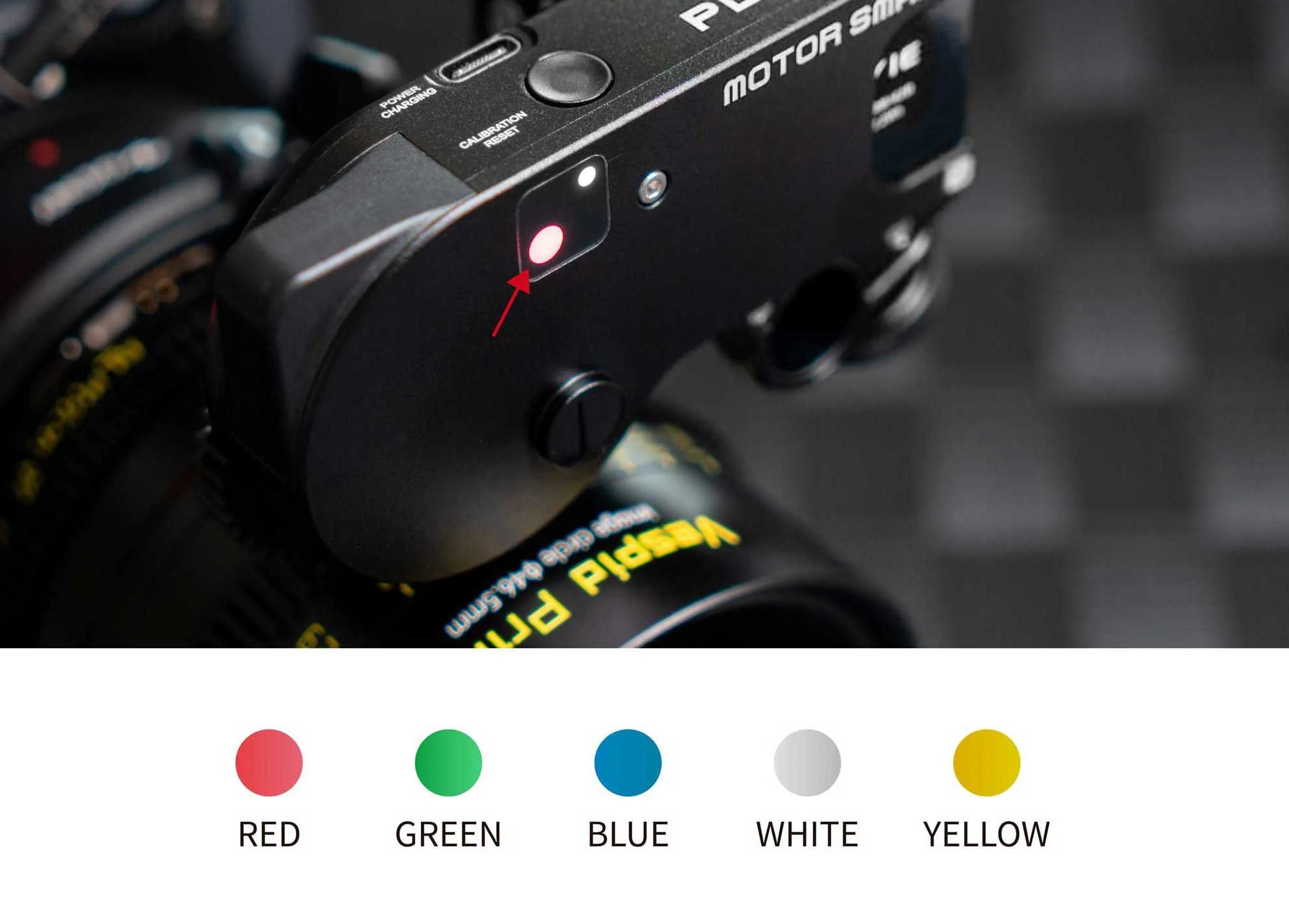

Status Indicator, Simple and Clear

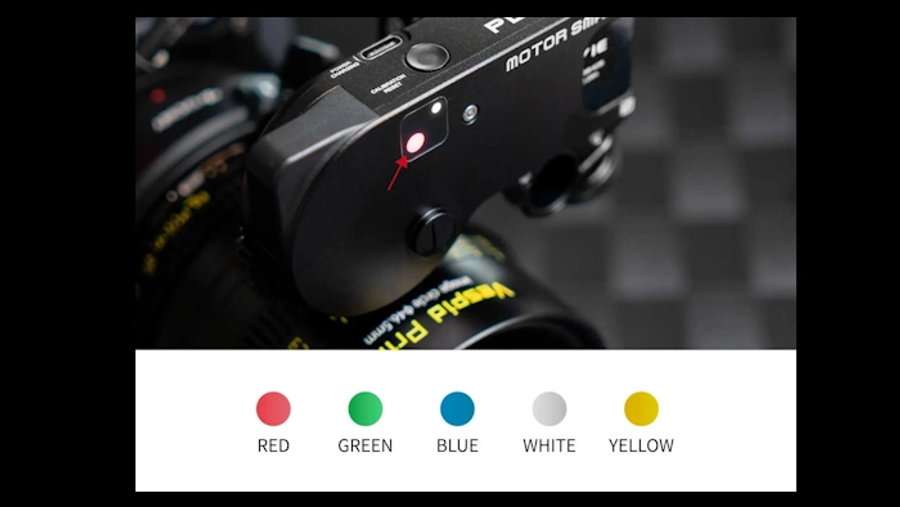

Lens Channel

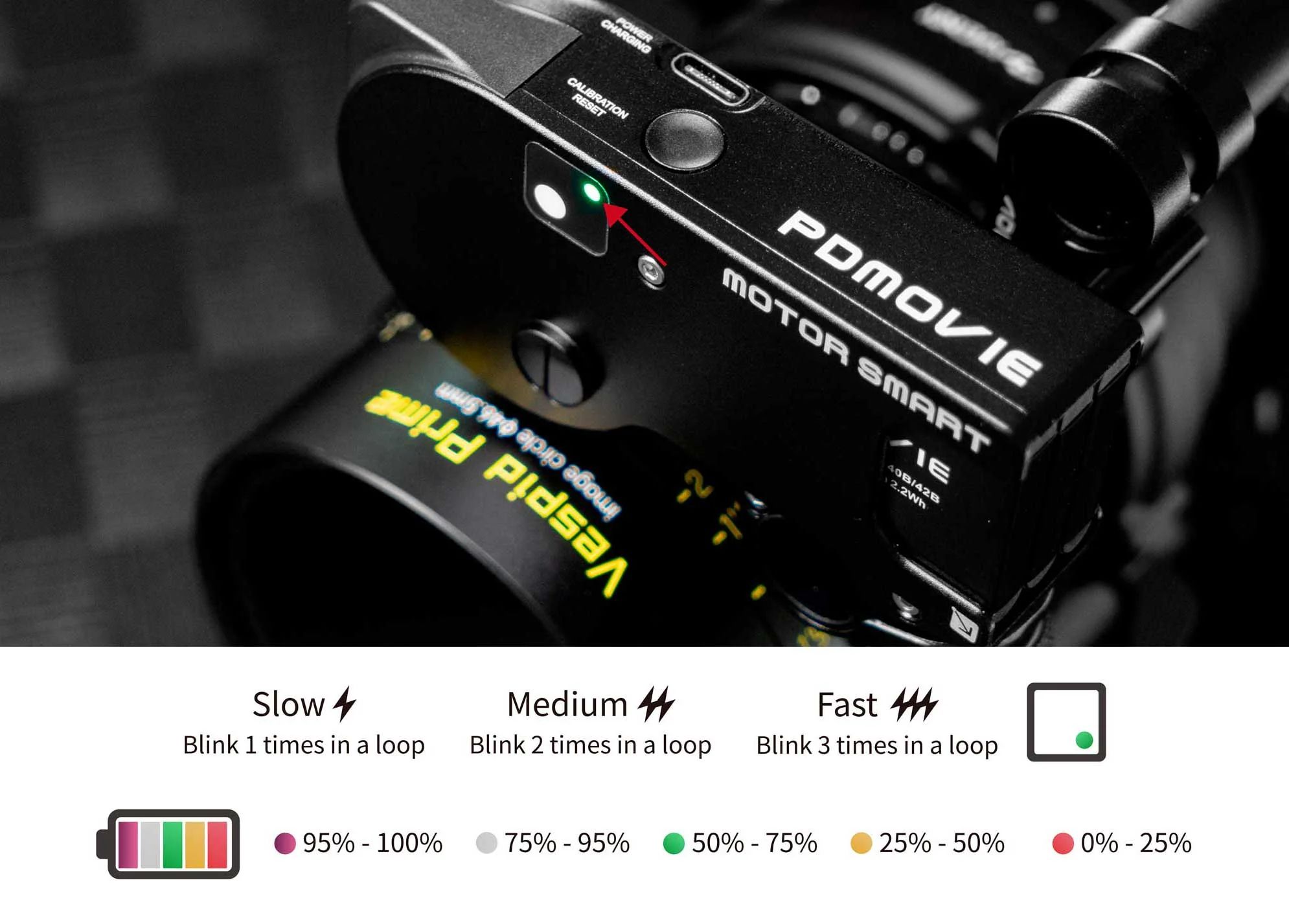

Status Indicator, Simple and Clear

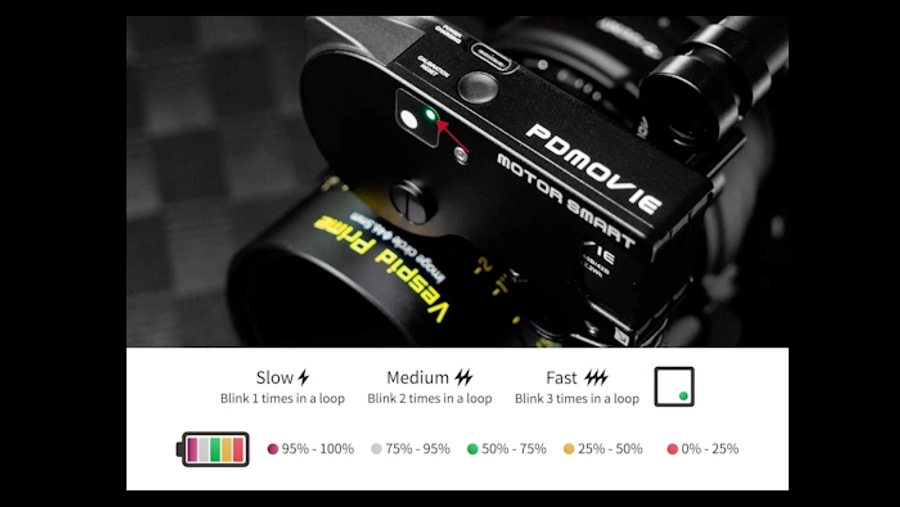

Motor Status

ONE-CLICK SETTINGS

All setting commands can be completed with one button.

NO SIGNAL INTERFERENCE

The LiDAR motor does not require connection to the controller and can be used once calibration is completed.

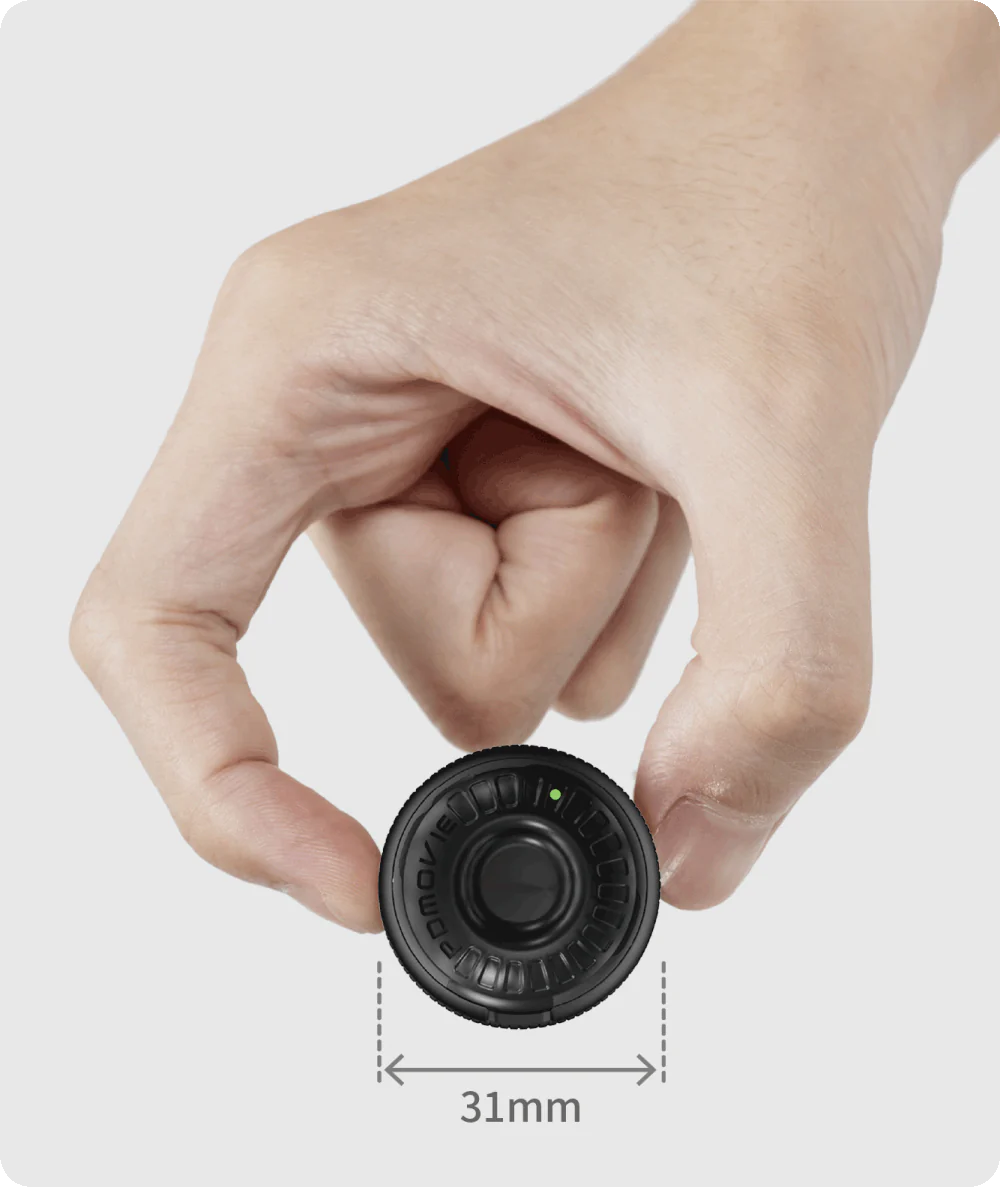

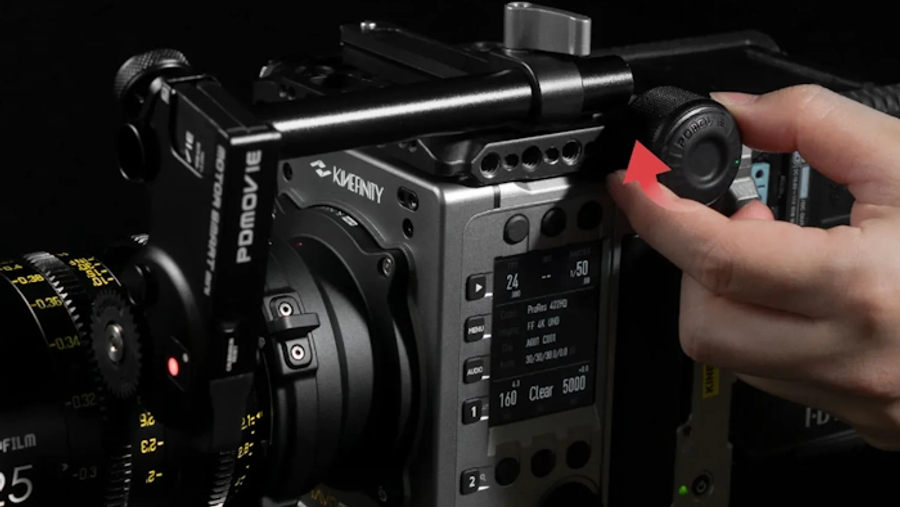

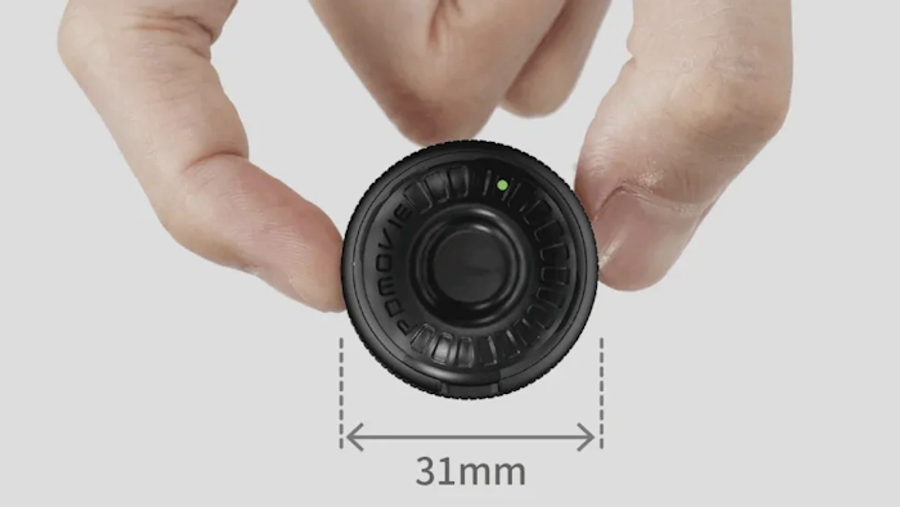

The World's Smallest Thumbwheel for Focus Control

31mm x 32mm Weight: 28g Bluetooth: Max 100m

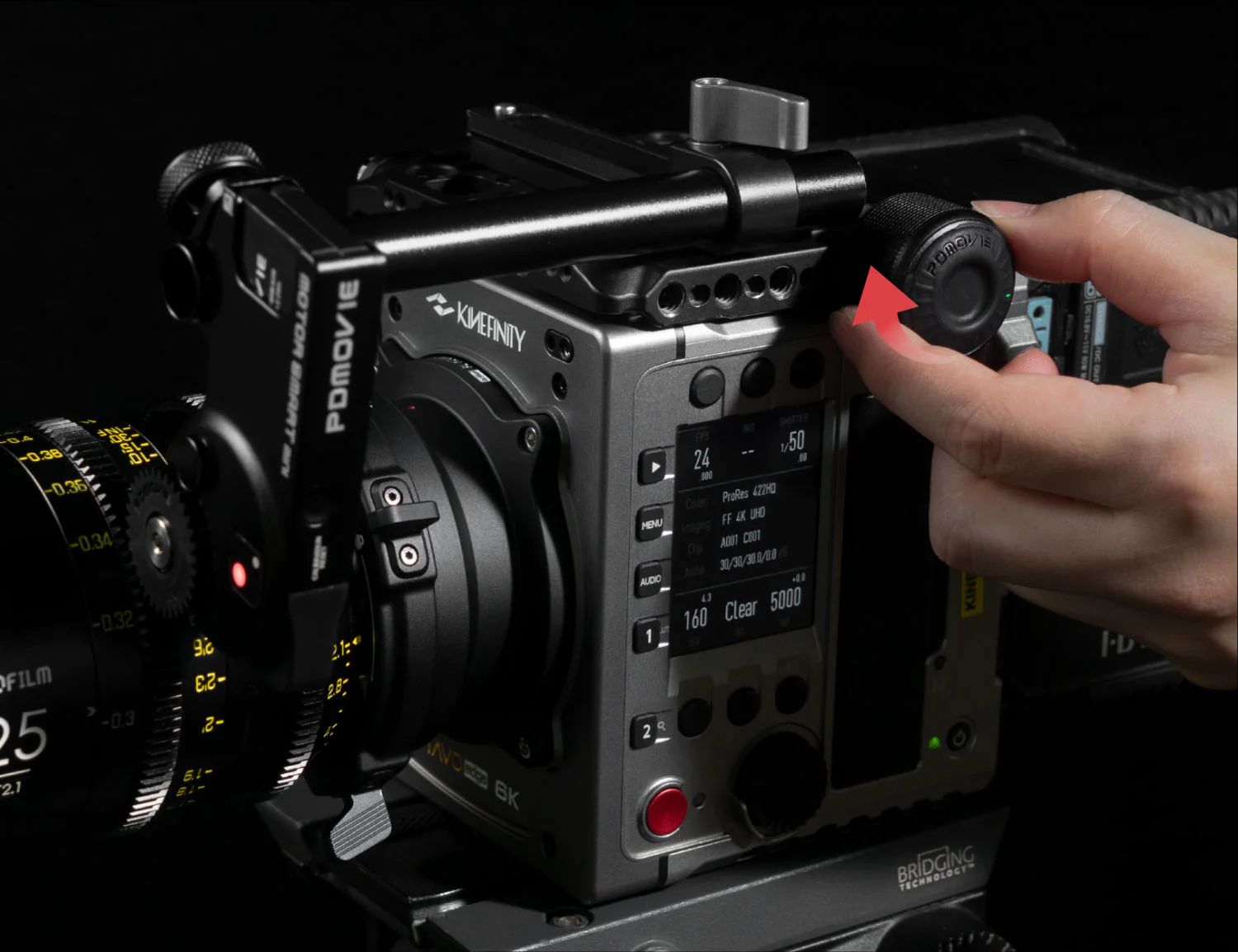

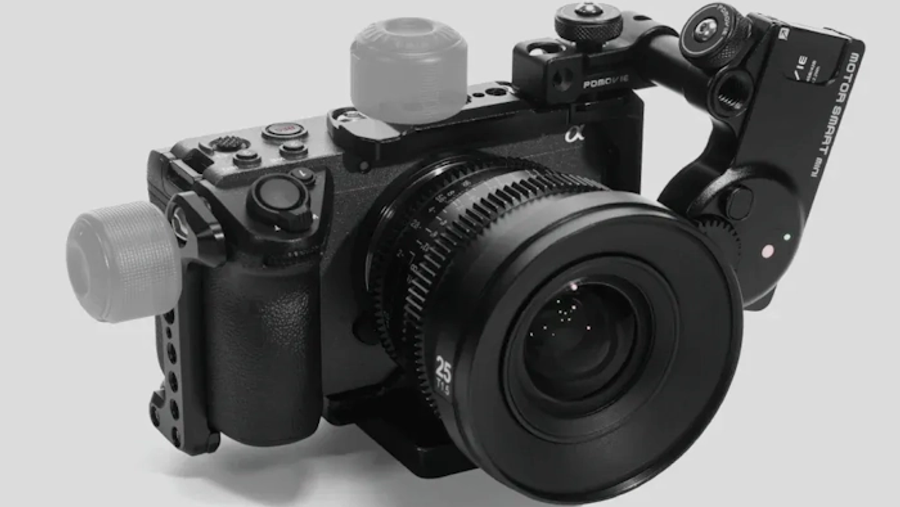

Easy Installation Anywhere, Without Any Obstacles

The controller comes with a 1/4-inch screw and can be mounted on any equipment with a corresponding screw hole, such as kits, handles, and monitors

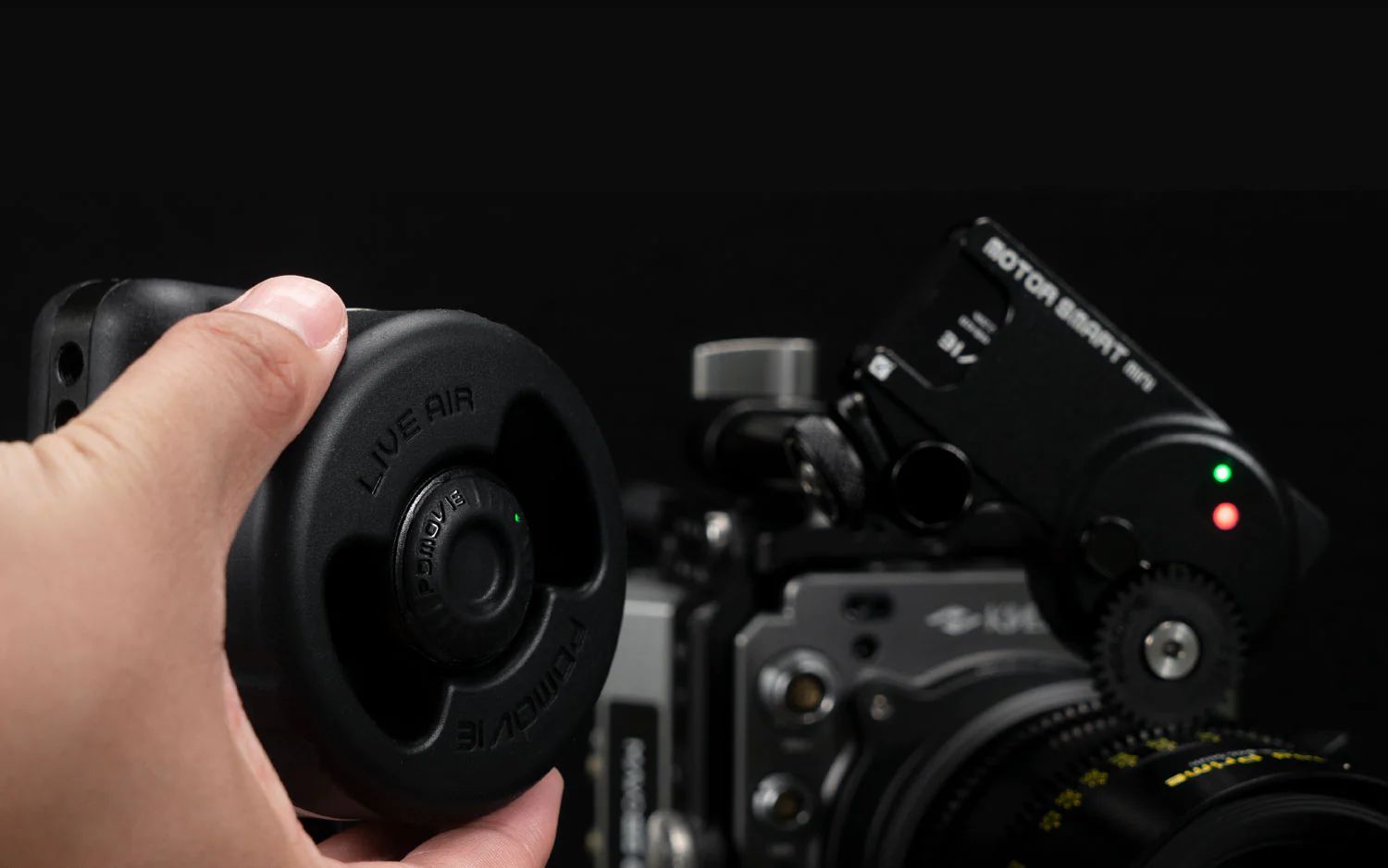

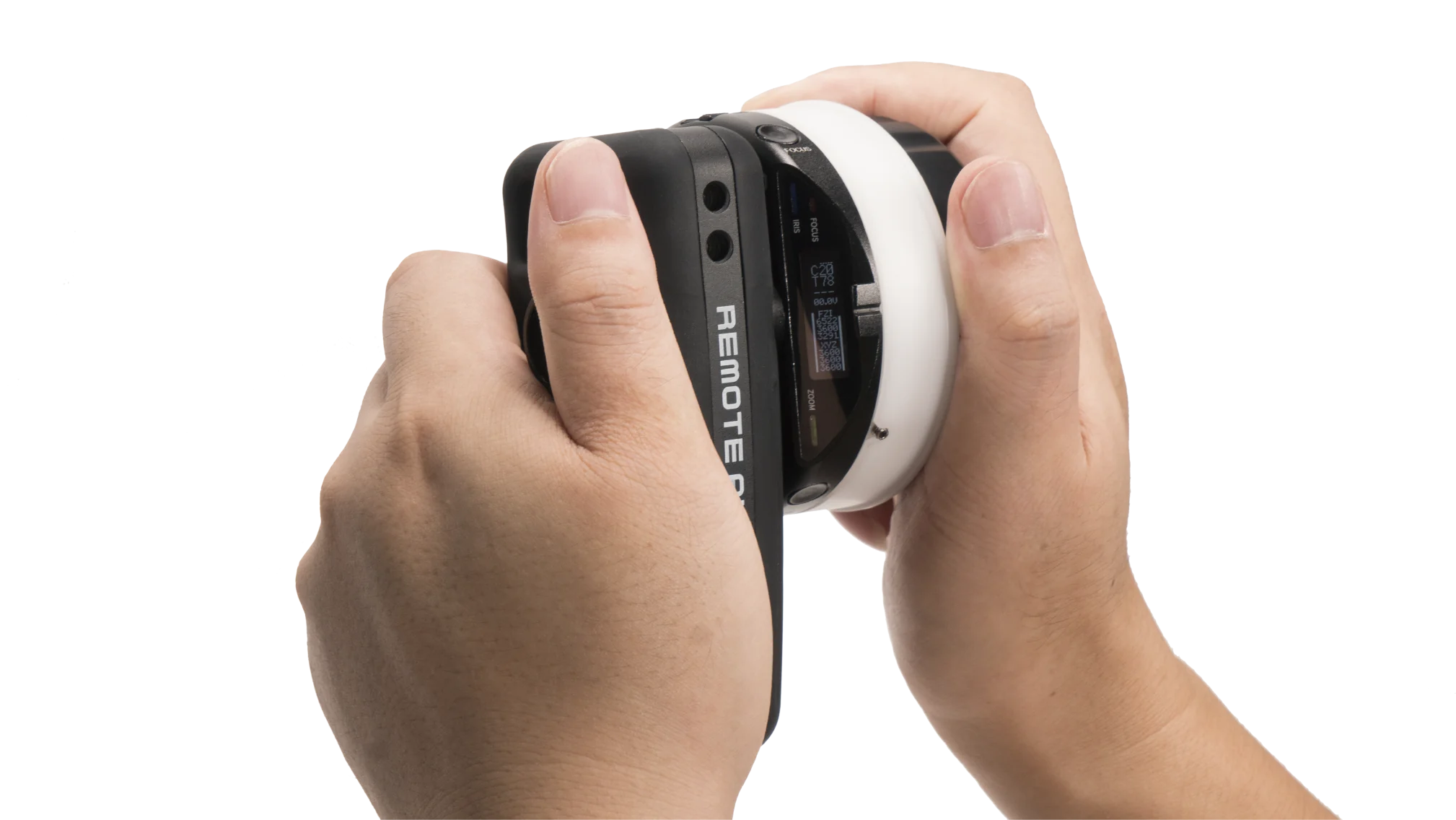

Fine Control

Whether it is hot summer or cold winter, whether you wear gloves or not, it will not affect the smoothness of the control handwheel.

PDMOVIE Bluetooth Focus Controller For PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP

General

Compatibility

PDMOVIE PD-BTMP Motor / PD-BTMP-N Motor / PD-BTMP-S Motor / PD-BTMP-SP Motor

Bluetooth Distance

328' / 100 m

Wireless

Wireless

Bluetooth 5.0
*Built-In

Bluetooth

Yes

Battery

Battery Chemistry

Lithium-Ion

Battery Capacity

200 mAh

Power

DC Input Power

3.6 VDC

Environmental

Operating Temperature

-4 to 140°F / -20 to 60°C

Physical

Mounting

1 x 1/4"-20 Screw

Dimensions

1.3 x 1.2" / 32 x 31 mm

Weight

1 oz / 28 g

PDMOVIE MOTOR SMART Mini Intelligent Focus Motor Specs

General

Compatibility

PDMOVIE LIVE AIR Controller

Wireless

Wireless

Yes

Mobile App Compatible

No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Power

Power Source

Battery

Battery Type

2 x LI-42B

Physical

Mounting

Side: 1 x 15mm Rod Clamp

Color

Black

Dimensions

Not Specified by Manufacturer

Weight

Not Specified by Manufacturer

PDMOVIE LIR2477 Battery For PDL-TC-AFX Focus Controller Specs

General

Compatibility

PDMOVIE PDL-TC-AFX Focus Controller

Battery

Battery Chemistry

Lithium-Ion

Output Voltage

3.6 VDC

Physical

Weight

Not Specified by Manufacturer

PDMOVIE LI-42Bx2 Battery For PD-BTMP, PD-BTMP-N & PD-BTMP-S Specs

General

Compatibility

PDMOVIE PD-BTMP Motor / PD-BTMP-N Motor / PD-BTMP-S Motor

Battery

Battery Chemistry

Lithium-Ion

Battery Capacity

600 mAh / 2.2 Wh

Output Voltage

3.7 VDC

Physical

Dimensions

1.6 x 1.2 x 0.5" / 40 x 31 x 12 mm

Weight

Not Specified by Manufacturer

PDMOVIE 2/4-Channel Battery Charger For LI-42B & LI42Bx2 Batteries Specs

General

Compatibility

PDMOVIE LI-42B Battery / LI-42Bx2 Battery

Power

Power Source

USB

Physical

Cable Length

Not Specified by Manufacturer

Dimensions

Not Specified by Manufacturer

Weight

Not Specified by Manufacturer

Product Manuals
PDMOVIE LIVE AIR 3 Smart LiDAR Wireless Focus Lens Control Kit (Advanced) - Product Manual

  • PDMOVIE Bluetooth Focus Controller for PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP
  • PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
  • 1/4"-20 Screw
  • PDMOVIE MOTOR SMART Mini Intelligent Focus Motor
  • 2 x LI42B Battery
  • Micro-USB Charging Cable
  • USB Charger

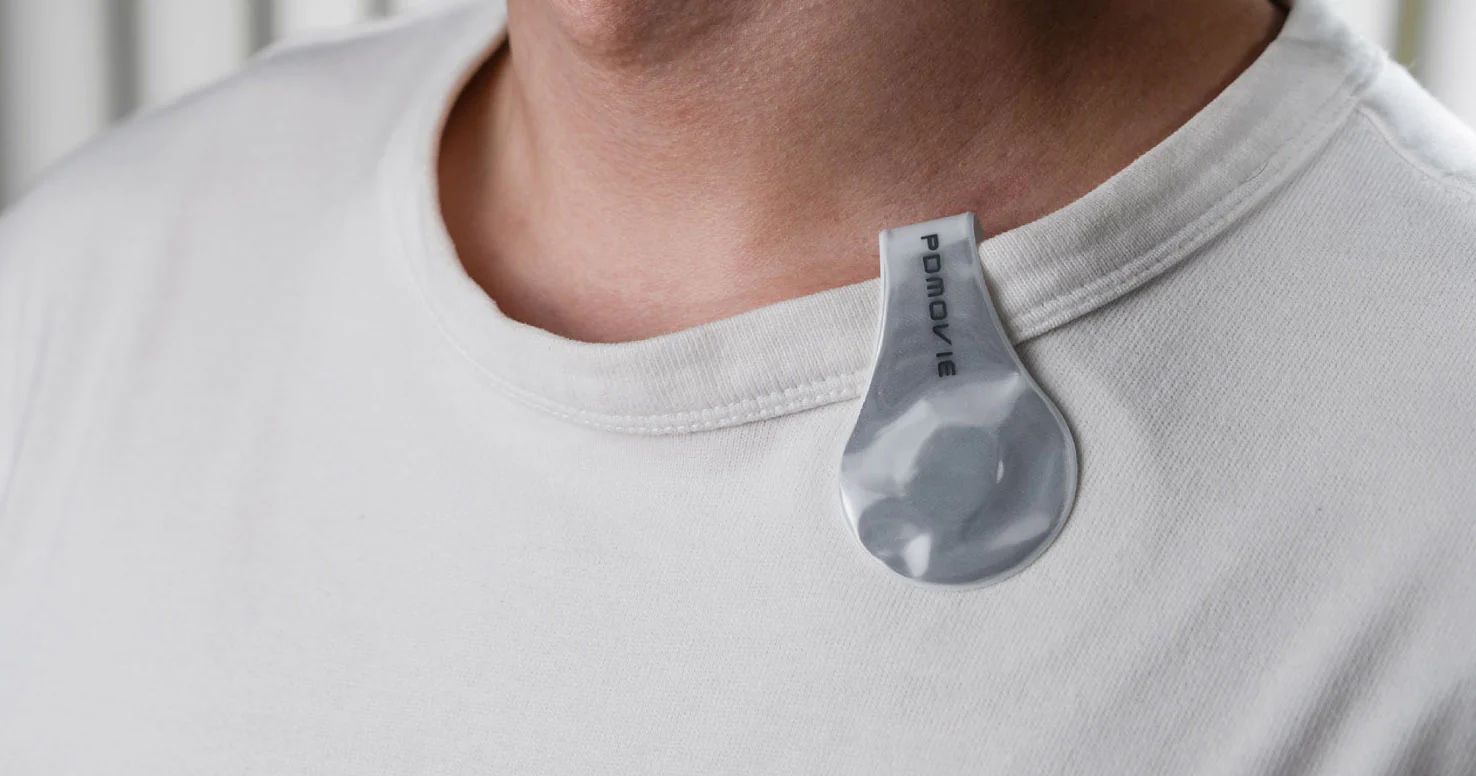

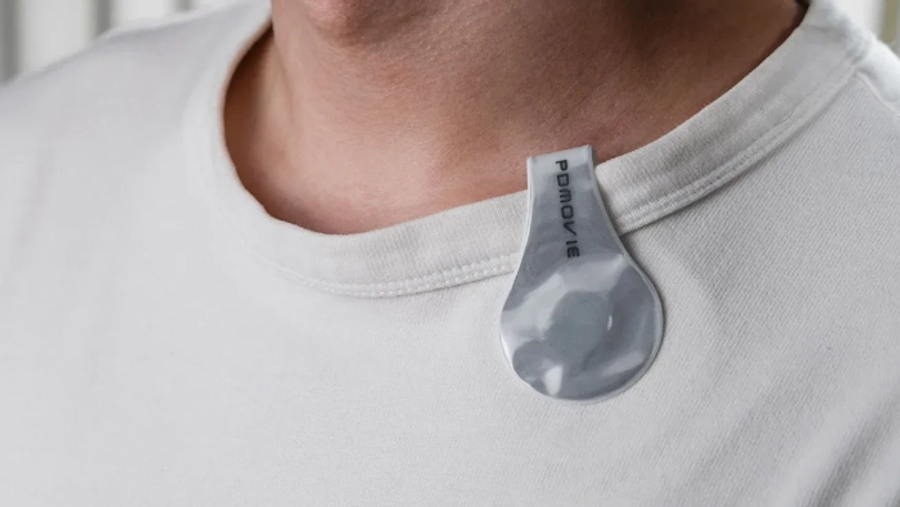

  • 2 x Assistive Focus Tile
  • Registration Extension: 6-Month
  • PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
  • 2 x PDMOVIE LI-42Bx2 Battery for PD-BTMP, PD-BTMP-N & PD-BTMP-S
  • PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries
  • USB Cable
  • PDMOVIE 15mm Rod Clamp with Rod & Shoe Adapter for Motor
  • PDMOVIE 15mm Rod (5.9")
  • 2 x 1/4"-20 Screw
  • Allen Wrench
  • PDMOVIE 15mm Rod (5.9")
  • PDMOVIE REMOTE AIR RIG Handwheel Controller for PDL-TC-AFX Focus Wheel
  • Handgrip 19mm Rod
  • 1/4"-20 Screw
  • Large Handwheel
  • Micro-USB Charging Cable
  • Lens Gear Ring
  • Mounting Clamp
  • 2 x Focus Assist Tile
