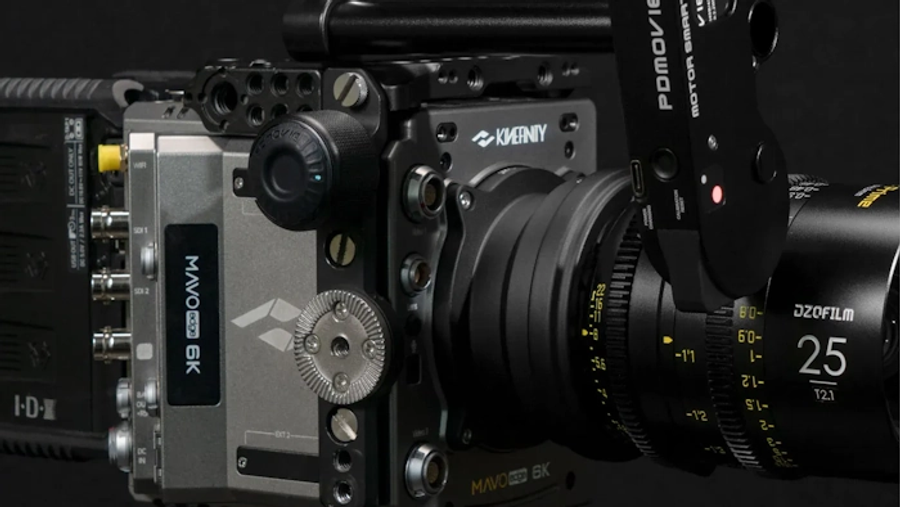

PDMOVIE LIVE AIR 3 Smart LiDAR Wireless Focus Lens Control Kit (Deluxe)

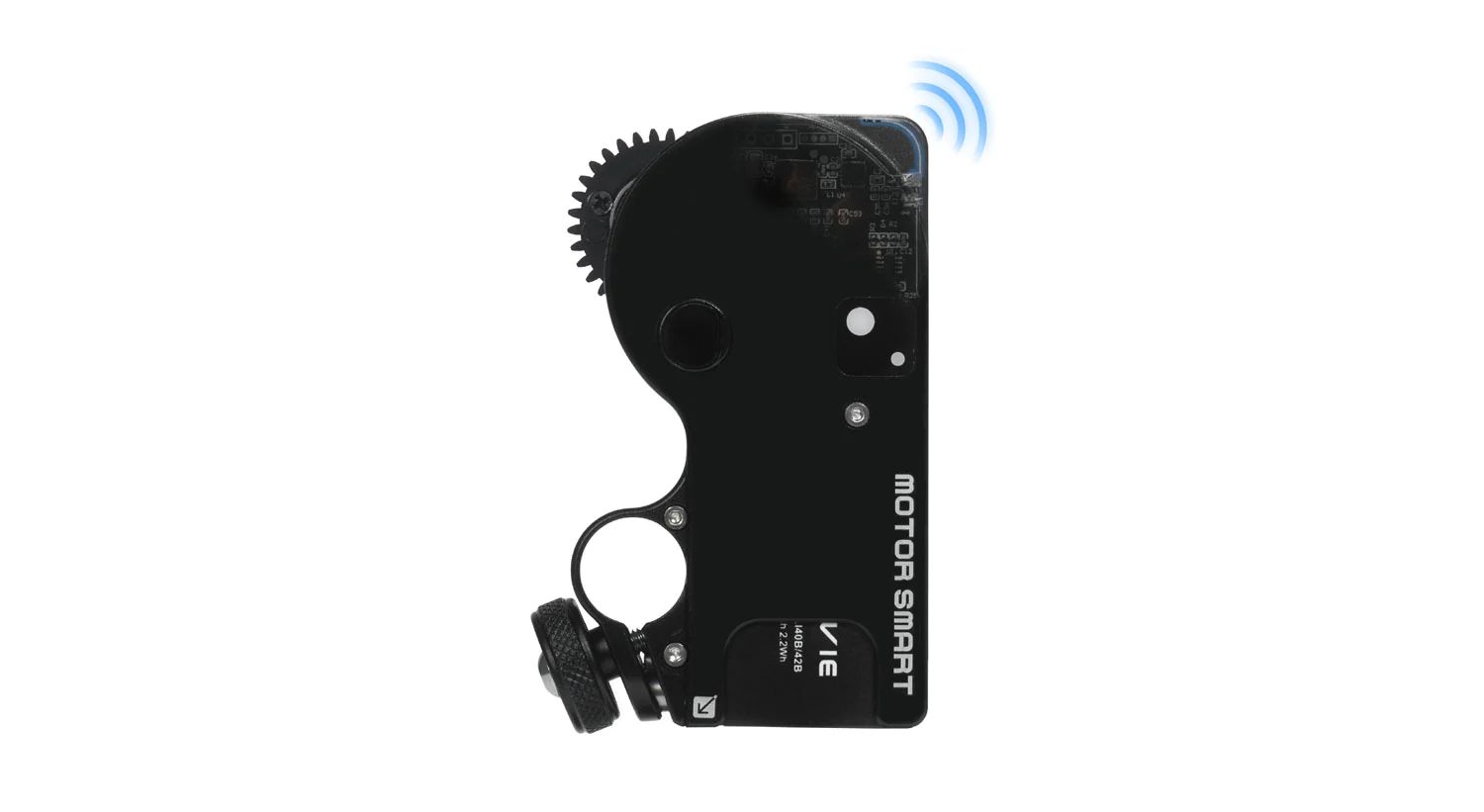

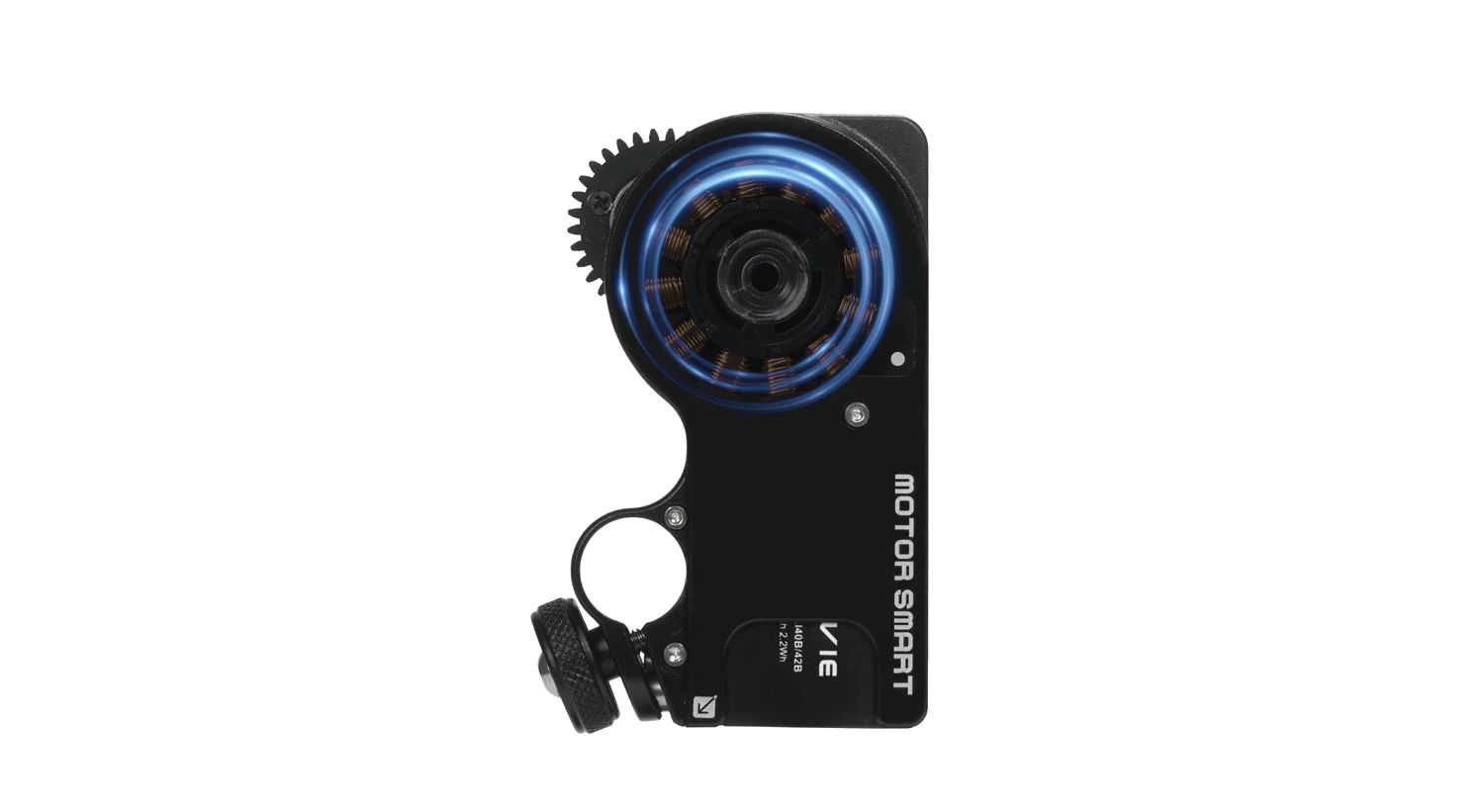

Drive Module
High Torque, Low Latency, High Precision
Antenna Module
The latest 5.3 Bluetooth connection technology, with a control distance of up to 100 meters
LiDAR Module
Fast scanning target distance AI analysis travel data Assisted autofocus
Power Supply Module
Independent power supply, supporting fast charging and quick replacement, with a battery life of nearly 6-10 hours
Autofocus Mode
The LiDAR motor does not require connection to the controller and can be used once calibration is completed.

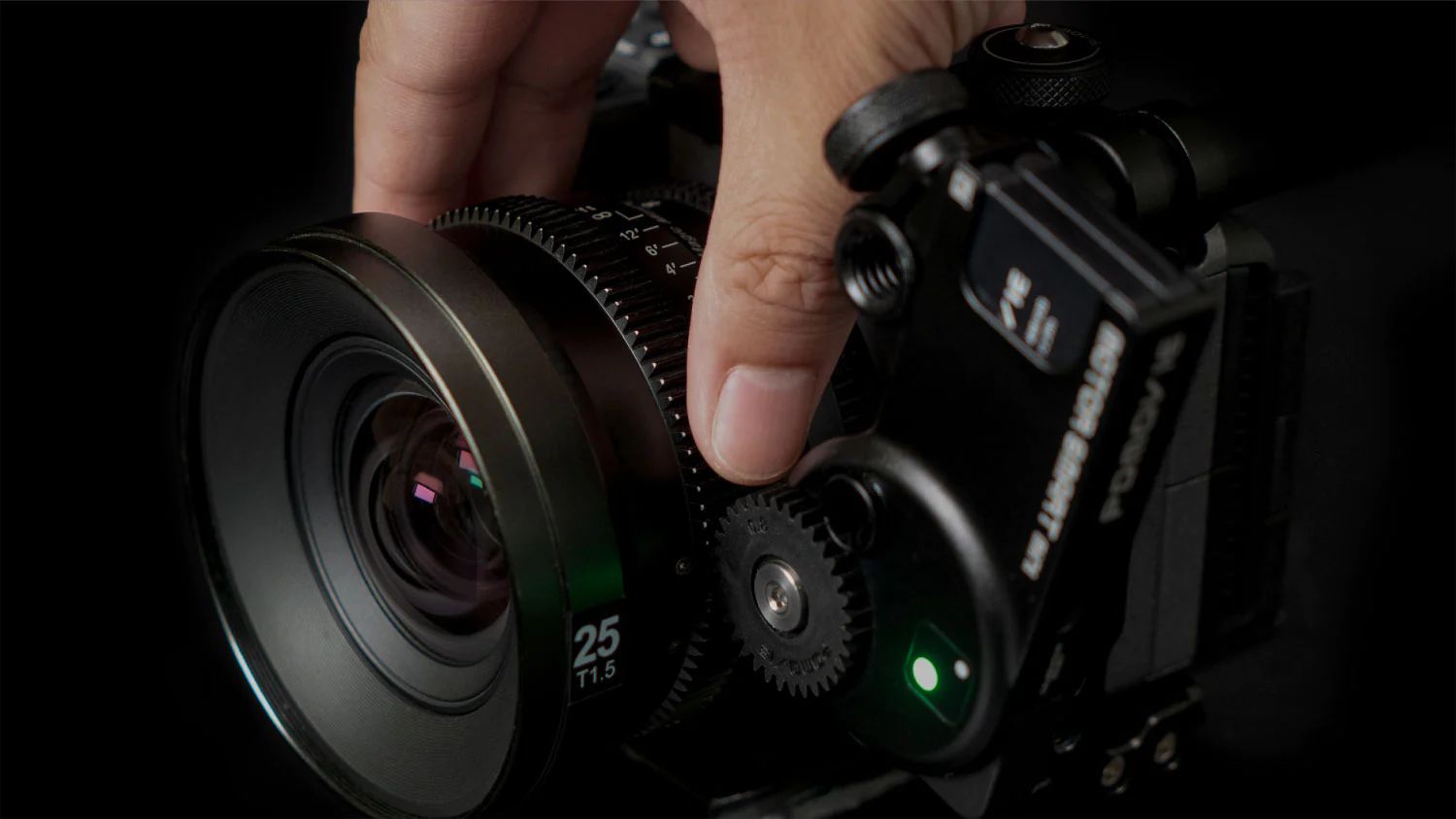

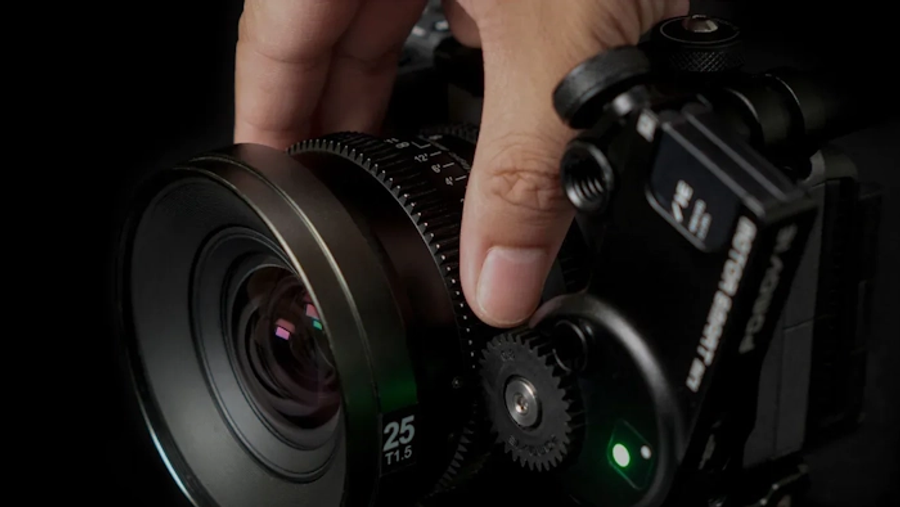

Manual Focus Mode
When the controller moves away from the nearest focus position, it switches to manual control. It is recommended to reserve an empty channel for pure manual wireless control. *MOTOR SMART can be switched to pure manual control mode by pressing the motor button three times.
High Resolution
The controller has a travel resolution of 16384 DPI, and the motor has a travel resolution of up to 16384 DPI per rotation, enabling low-latency response to operational commands

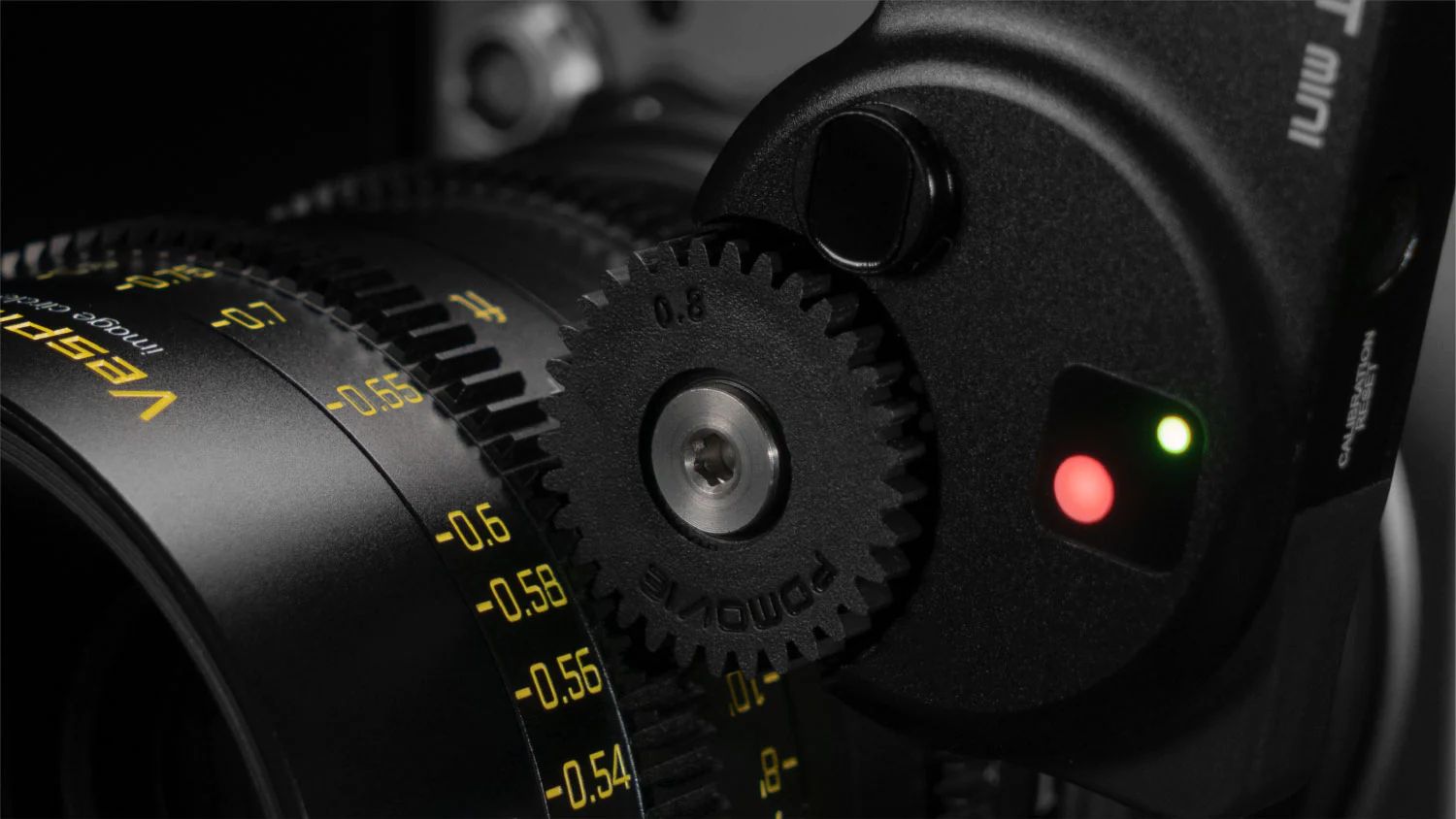

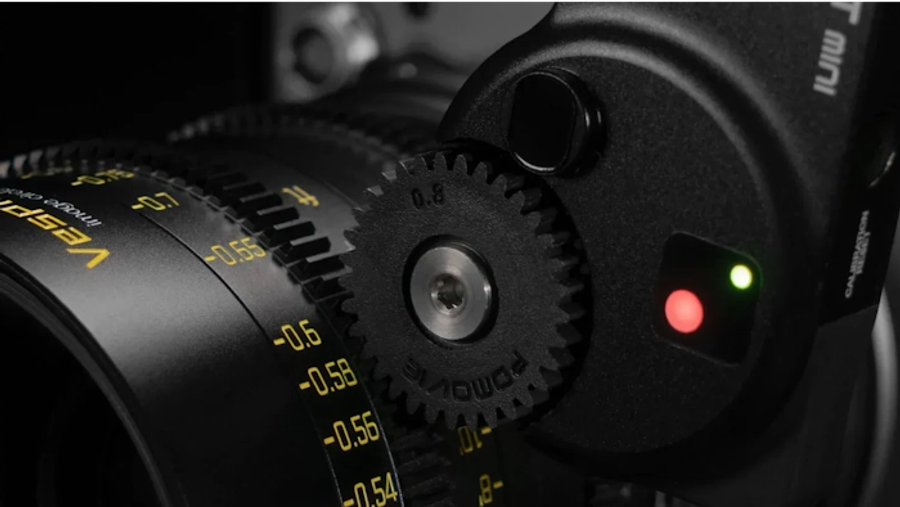

Standard Gears
Comes with a 0.8 Mod gear as standard, and additional 0.4/0.5/0.6 Mod gears can be purchased for easy compatibility with various lenses
Manual/Automatic calibration
Using the motor button, easily start automatic lens calibration. For lenses with infinite rotation, manual calibration can also be used to set the lens travel distance

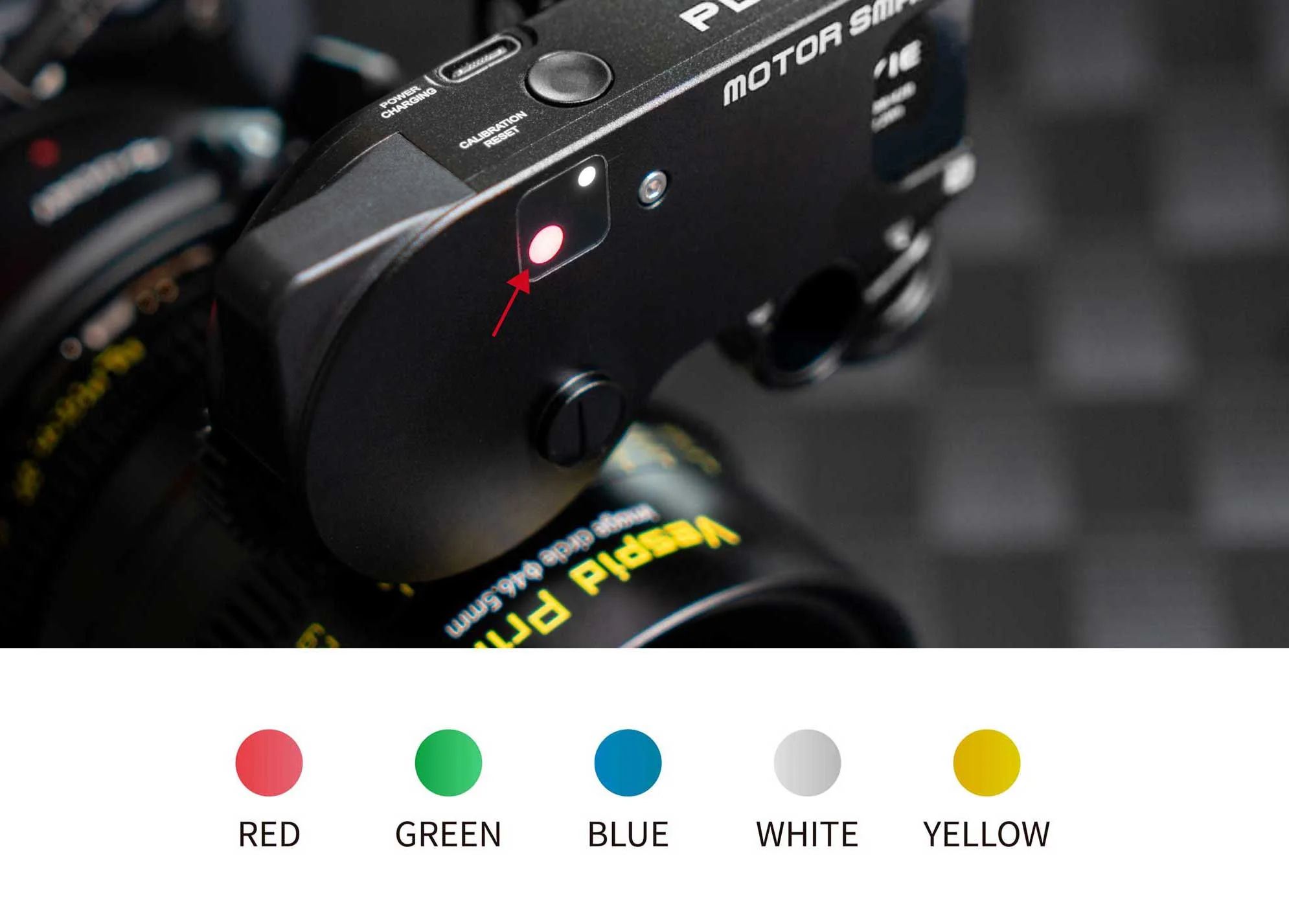

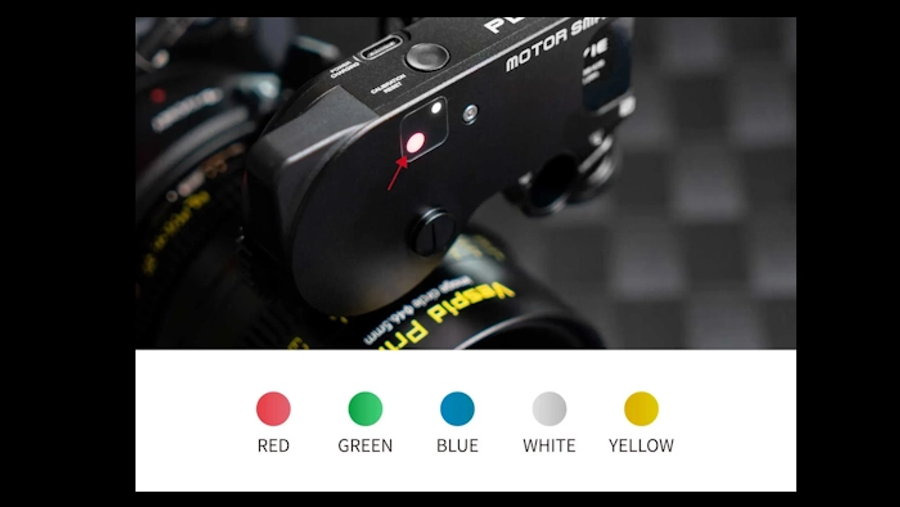

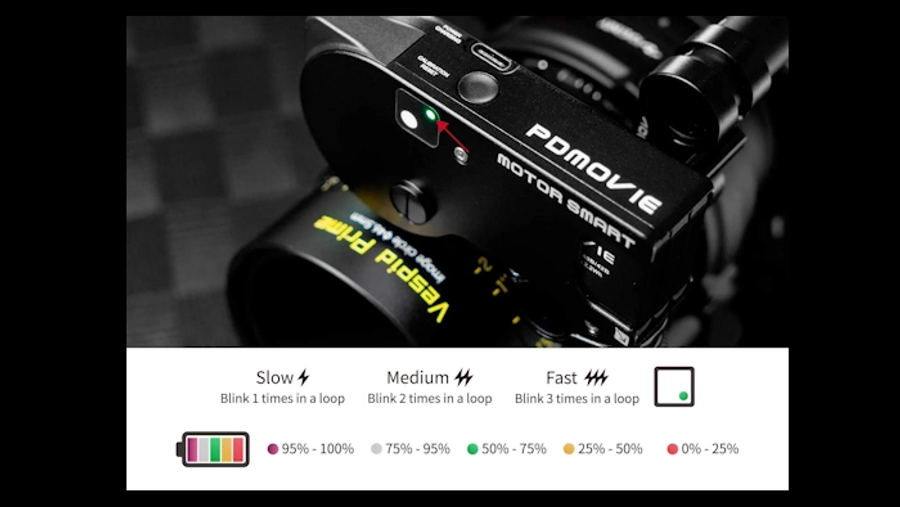

Status Indicator, Simple and Clear
Lens Channel
Status Indicator, Simple and Clear
Motor Status

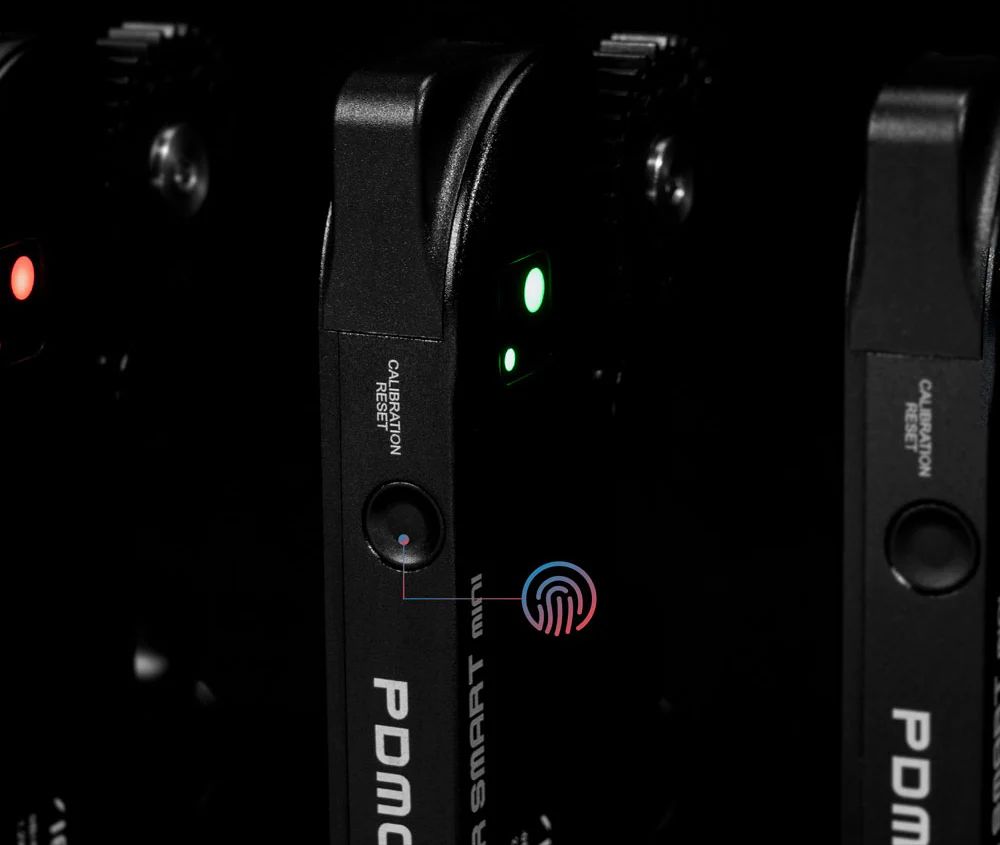

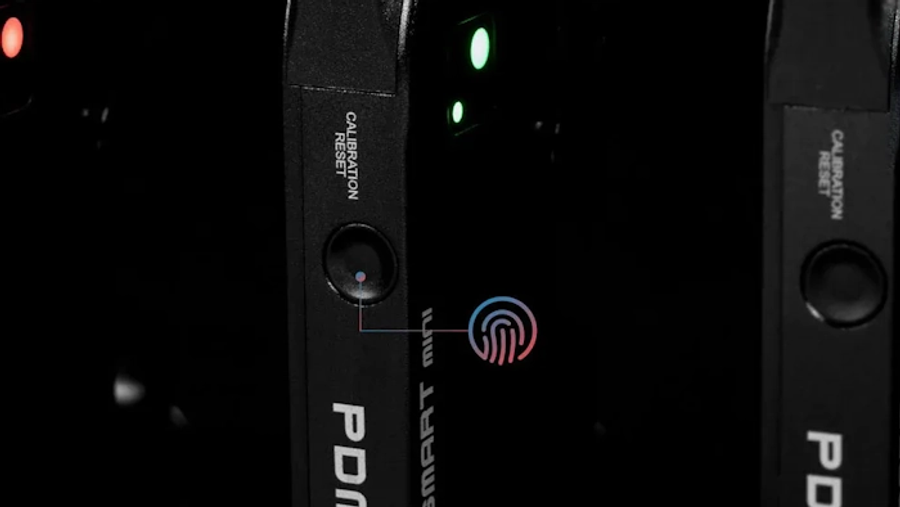

ONE-CLICK SETTINGS
All setting commands can be completed with one button.
NO SIGNAL INTERFERENCE
The LiDAR motor does not require connection to the controller and can be used once calibration is completed.

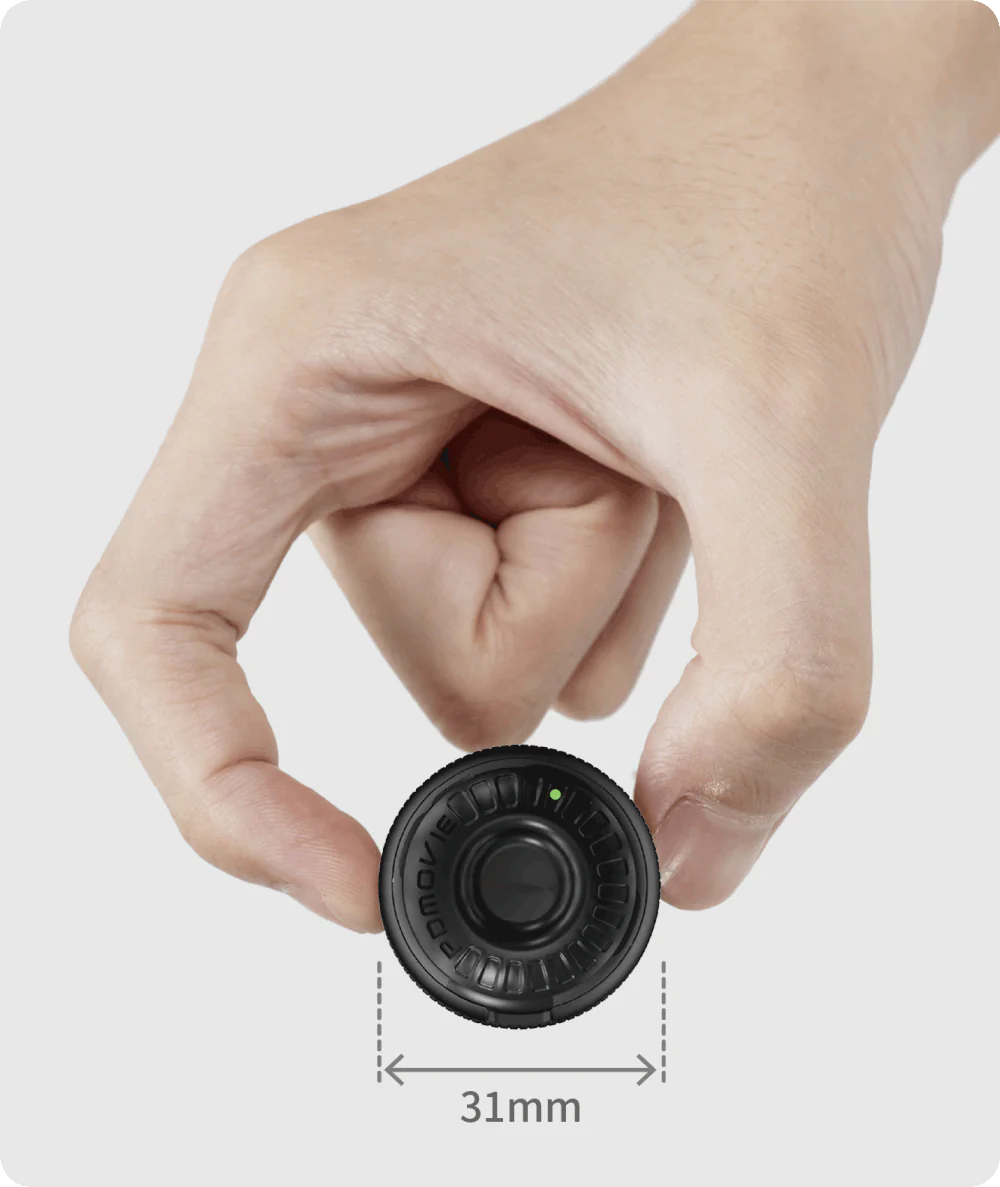

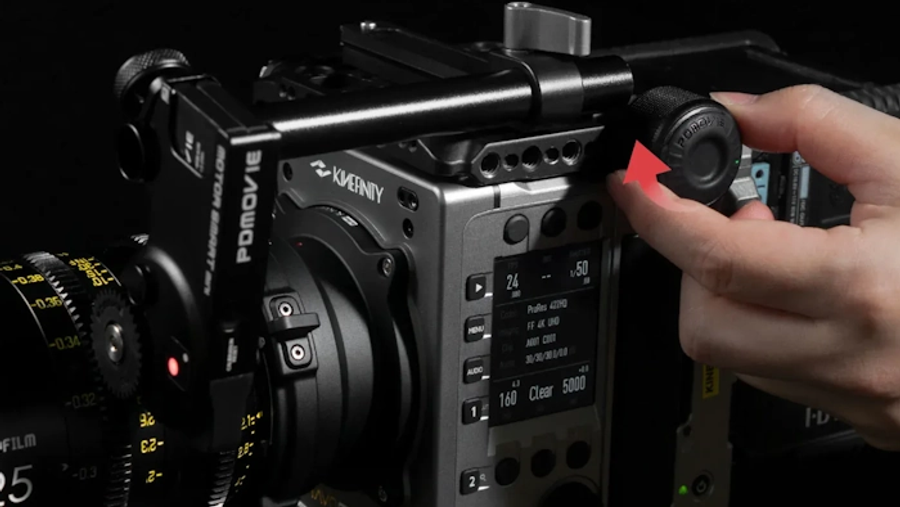

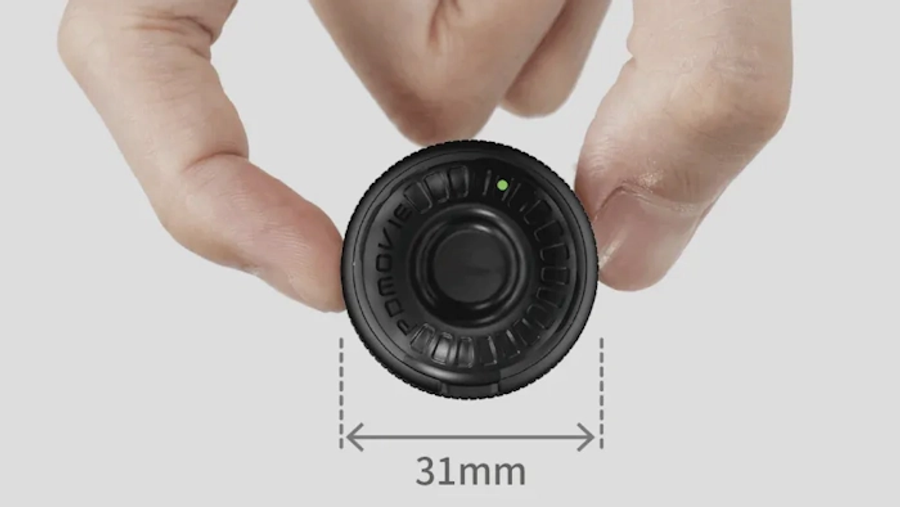

The World's Smallest Thumbwheel for Focus Control
31mm x 32mm Weight: 28g Bluetooth: Max 100m

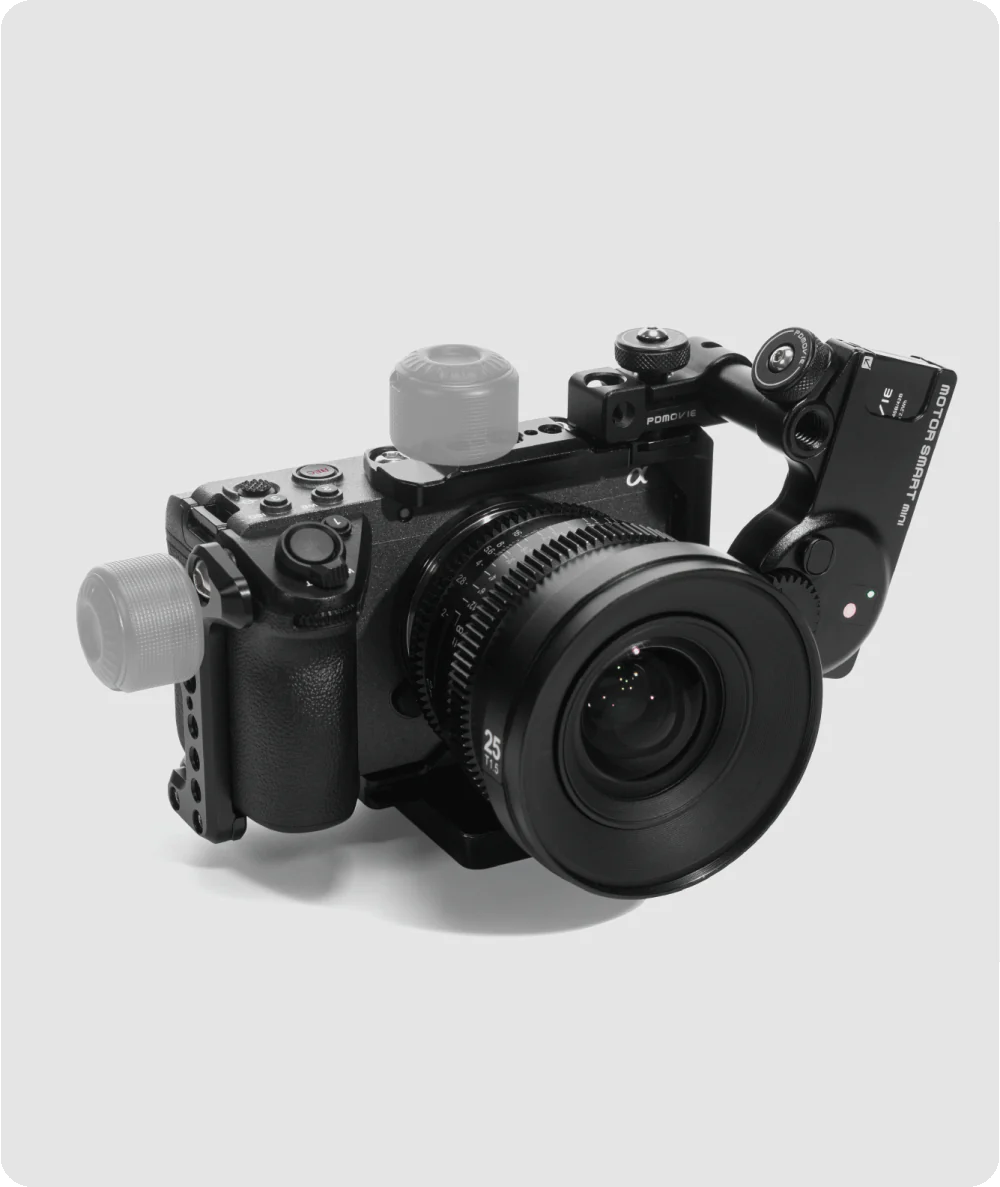

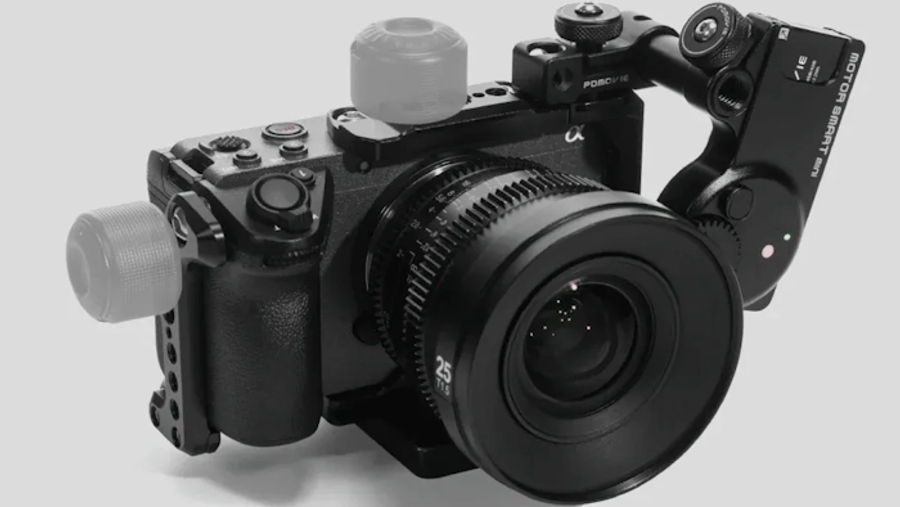

Easy Installation Anywhere, Without Any Obstacles
The controller comes with a 1/4-inch screw and can be mounted on any equipment with a corresponding screw hole, such as kits, handles, and monitors

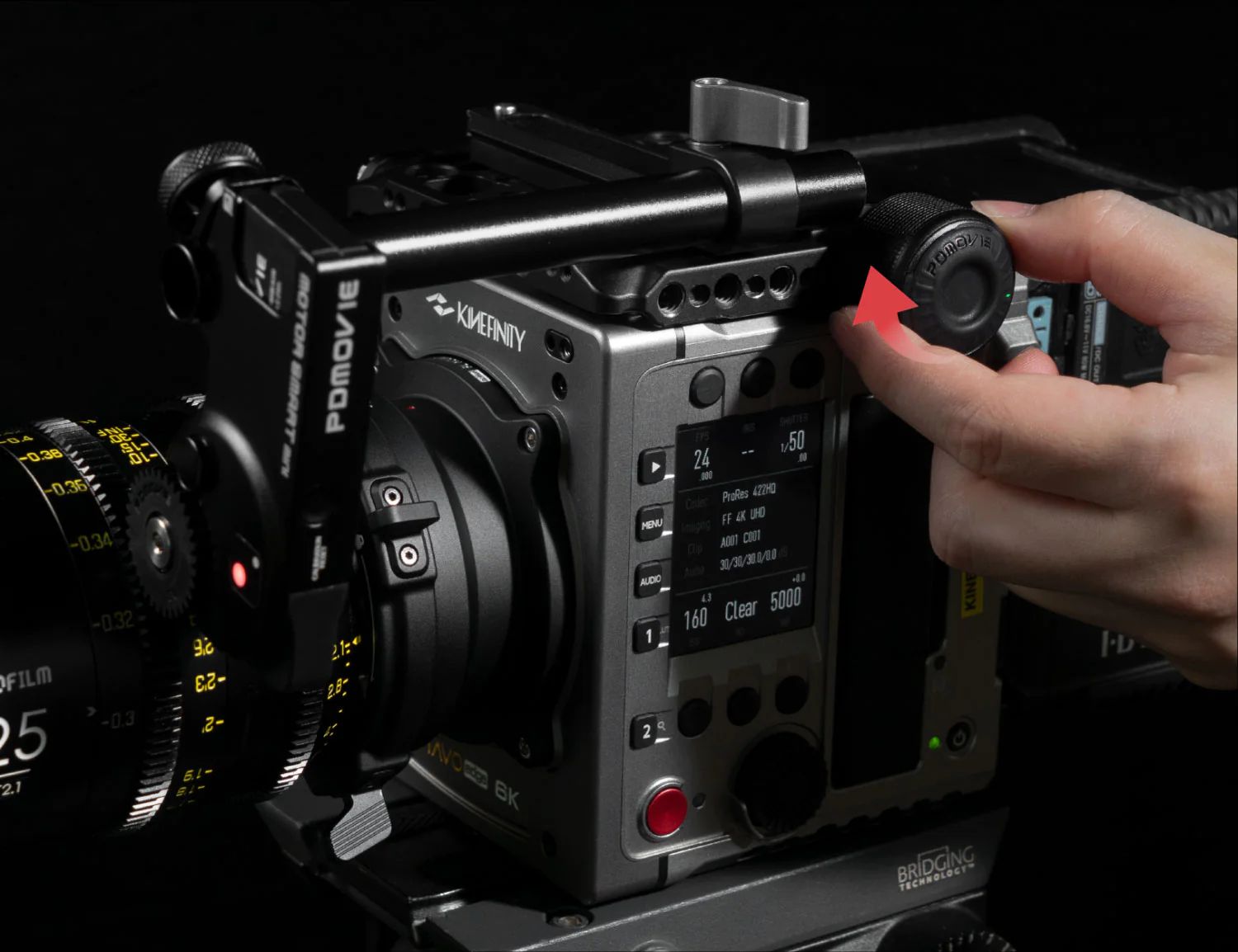

Fine Control
Whether it is hot summer or cold winter, whether you wear gloves or not, it will not affect the smoothness of the control handwheel.
PDMOVIE Bluetooth Focus Controller For PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP Specs
General
|
Compatibility |
PDMOVIE PD-BTMP Motor / PD-BTMP-N Motor / PD-BTMP-S Motor / PD-BTMP-SP Motor |
|
Bluetooth Distance |
328' / 100 m |
Wireless
|
Wireless |
Bluetooth 5.0 |
|
Bluetooth |
Yes |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Battery Capacity |
200 mAh |
Power
|
DC Input Power |
3.6 VDC |
Environmental
|
Operating Temperature |
-4 to 140°F / -20 to 60°C |
Physical
|
Mounting |
1 x 1/4"-20 Screw |
|
Dimensions |
1.3 x 1.2" / 32 x 31 mm |
|
Weight |
1 oz / 28 g |
PDMOVIE MOTOR SMART Mini Intelligent Focus Motor Specs
General
|
Compatibility |
PDMOVIE LIVE AIR Controller |
Wireless
|
Wireless |
Yes |
|
Mobile App Compatible |
No |
Power
|
Power Source |
Battery |
|
Battery Type |
2 x LI-42B |
Physical
|
Mounting |
Side: 1 x 15mm Rod Clamp |
|
Color |
Black |
|
Dimensions |
Not Specified by Manufacturer |
|
Weight |
Not Specified by Manufacturer |
PDMOVIE LIR2477 Battery For PDL-TC-AFX Focus Controller Specs
General
|
Compatibility |
PDMOVIE PDL-TC-AFX Focus Controller |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Output Voltage |
3.6 VDC |
Physical
|
Weight |
Not Specified by Manufacturer |

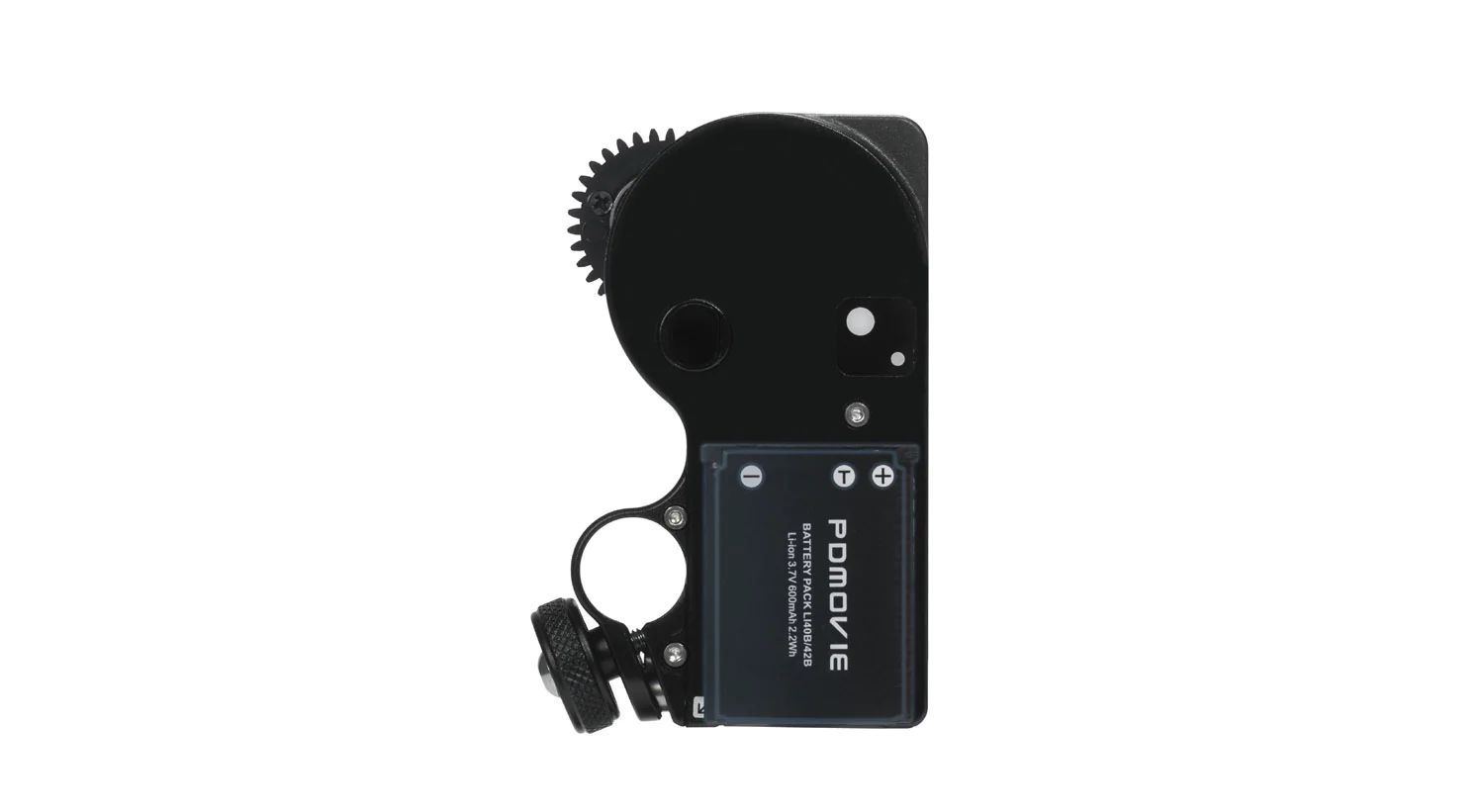

PDMOVIE LI-42Bx2 Battery For PD-BTMP, PD-BTMP-N & PD-BTMP-S Specs
General
|
Compatibility |
PDMOVIE PD-BTMP Motor / PD-BTMP-N Motor / PD-BTMP-S Motor |
Battery
|
Battery Chemistry |
Lithium-Ion |
|
Battery Capacity |
600 mAh / 2.2 Wh |
|
Output Voltage |
3.7 VDC |
Physical
|
Dimensions |
1.6 x 1.2 x 0.5" / 40 x 31 x 12 mm |
|
Weight |
Not Specified by Manufacturer |
PDMOVIE 2/4-Channel Battery Charger For LI-42B & LI42Bx2 Batteries Specs
General
|
Compatibility |
PDMOVIE LI-42B Battery / LI-42Bx2 Battery |
Power
|
Power Source |
USB |
Physical
|
Cable Length |
Not Specified by Manufacturer |
|
Dimensions |
Not Specified by Manufacturer |
|
Weight |
Not Specified by Manufacturer |
PDMOVIE 15mm Rod Clamp With Rod & Shoe Adapter For Motor Specs
Key Specs
|
Mounting |
Cage Mount: 2 x Included 1/4"-20 Male Screw, 1 x Built-In Cold Shoe |
|
Rod Standard |
15 mm Single Rod |
|
Rod Ports |
1 x 15 mm Rod Port |
|
Color |
Black |
|
Pan |
None |
|
Tilt |
None |
|
Roll |
None |
Mounting
|
Mounting |
Cage Mount: 2 x Included 1/4"-20 Male Screw, 1 x Built-In Cold Shoe |
|
Rod Standard |
15 mm Single Rod |
|
Rod Ports |
1 x 15 mm Rod Port |
|
Included Rods |
Yes |
PDMOVIE 15mm Rod (5.9") Specs
Physical
|
Diameter |
15 mm |
|
Length |
5.9" / 15 cm |
|
Thread Type |
None |
|
Number of Rods |
1 |
PDMOVIE REMOTE AIR RIG Handwheel Controller For PDL-TC-AFX Focus Wheel Specs
Key Specs
|
Mounting |
Accessory Mount: 1 x Built-In 1/4"-20 Male Screw, Multiple x Built-In 1/4"-20 Female Thread |
|
Rod Standard |
19 mm Single Rod |
|
Rod Ports |
1 x 19 mm Rod Port |
|
Color |
Black |
Mounting
|
Mounting |
Accessory Mount: 1 x Built-In 1/4"-20 Male Screw, Multiple x Built-In 1/4"-20 Female Thread |
|
Rod Standard |
19 mm Single Rod |
|
Rod Ports |
1 x 19 mm Rod Port |
|
Included Rods |
Yes |
General
|
Dimensions |
4.7 x 2.2 x 1.4" / 120 x 55 x 36 mm (Handgrip) |
| Product Manuals | |
|---|---|
| PDMOVIE LIVE AIR 3 Smart LiDAR Wireless Focus Lens Control Kit (Deluxe) - Product Manual |
- PDMOVIE Bluetooth Focus Controller for PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP
- PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
- 1/4"-20 Screw
- PDMOVIE MOTOR SMART Intelligent Focus Motor
- 3 x LI42B Battery
- USB-C Charging Cable
- 2 x Assistive Focus Tile
- 2 x PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
- 2 x PDMOVIE LI-42Bx2 Battery for PD-BTMP, PD-BTMP-N & PD-BTMP-S
- PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries
- USB Cable
- PDMOVIE 15mm Rod Clamp with Rod & Shoe Adapter for Motor
- PDMOVIE 15mm Rod (5.9")
- 2 x 1/4"-20 Screw
- Allen Wrench
- PDMOVIE 15mm Rod (5.9")
- PDMOVIE REMOTE AIR RIG Handwheel Controller for PDL-TC-AFX Focus Wheel
- Handgrip
- 19mm Rod
- 1/4"-20 Screw
- Large Handwheel
- 2 x USB-C Charging Cable
- Lens Gear Ring
- Mounting Clamp
- 2 x Focus Assist Tile
Brand: PDMovie |
Code: PDL-AFX-RA-SP
Supplier Code: PDL-AFX-RA-SP
Brand: PDMovie |
Code: PDL-AFX-RA-SP
Supplier Code: PDL-AFX-RA-SP
At a glance
Drive ModuleHigh Torque, Low Latency, High Precision |
|
|
Antenna ModuleThe latest 5.3 Bluetooth connection technology, with a control distance of up to 100 meters |
LiDAR ModuleFast scanning target distance AI analysis travel data Assisted autofocus |
|
|
Power Supply ModuleIndependent power supply, supporting fast charging and quick replacement, with a battery life of nearly 6-10 hours |
Autofocus ModeThe LiDAR motor does not require connection to the controller and can be used once calibration is completed. |
|
|
Manual Focus ModeWhen the controller moves away from the nearest focus position, it switches to manual control. It is recommended to reserve an empty channel for pure manual wireless control. *MOTOR SMART can be switched to pure manual control mode by pressing the motor button three times. |
High ResolutionThe controller has a travel resolution of 16384 DPI, and the motor has a travel resolution of up to 16384 DPI per rotation, enabling low-latency response to operational commands |
|
|
Standard GearsComes with a 0.8 Mod gear as standard, and additional 0.4/0.5/0.6 Mod gears can be purchased for easy compatibility with various lenses |
Manual/Automatic calibrationUsing the motor button, easily start automatic lens calibration. For lenses with infinite rotation, manual calibration can also be used to set the lens travel distance |
|
|
Status Indicator, Simple and ClearLens Channel |
Status Indicator, Simple and ClearMotor Status |
|
|
ONE-CLICK SETTINGSAll setting commands can be completed with one button. |
NO SIGNAL INTERFERENCEThe LiDAR motor does not require connection to the controller and can be used once calibration is completed. |
|
|
The World's Smallest Thumbwheel for Focus Control31mm x 32mm Weight: 28g Bluetooth: Max 100m |
Easy Installation Anywhere, Without Any ObstaclesThe controller comes with a 1/4-inch screw and can be mounted on any equipment with a corresponding screw hole, such as kits, handles, and monitors |
|
|
Fine ControlWhether it is hot summer or cold winter, whether you wear gloves or not, it will not affect the smoothness of the control handwheel. |
A decade of honing, striving for simplicity to the extreme, We have always pondered on how to make the follow focus system simpler and more user-friendly, So we had to start from scratch and rebuild. LIVE AIR 3 SMART is born for simplicity, abandoning all cables, fancy screens, and complicated menus. Users don't need to spend time learning more, nor do they need to look at unnecessary data. Simply insert the battery into the motor, and it powers on automatically. Everything is designed for faster, simpler, and easier operation.

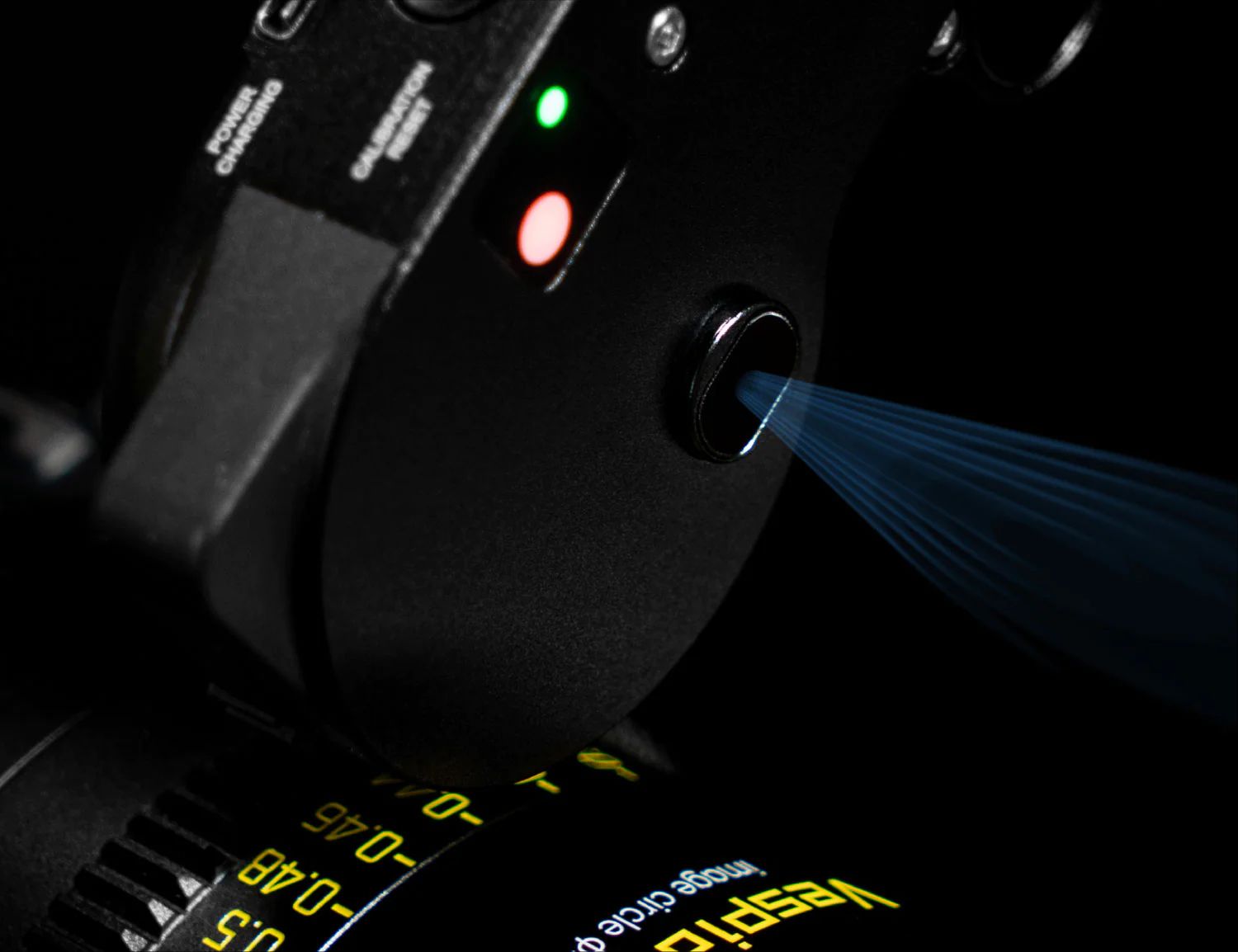

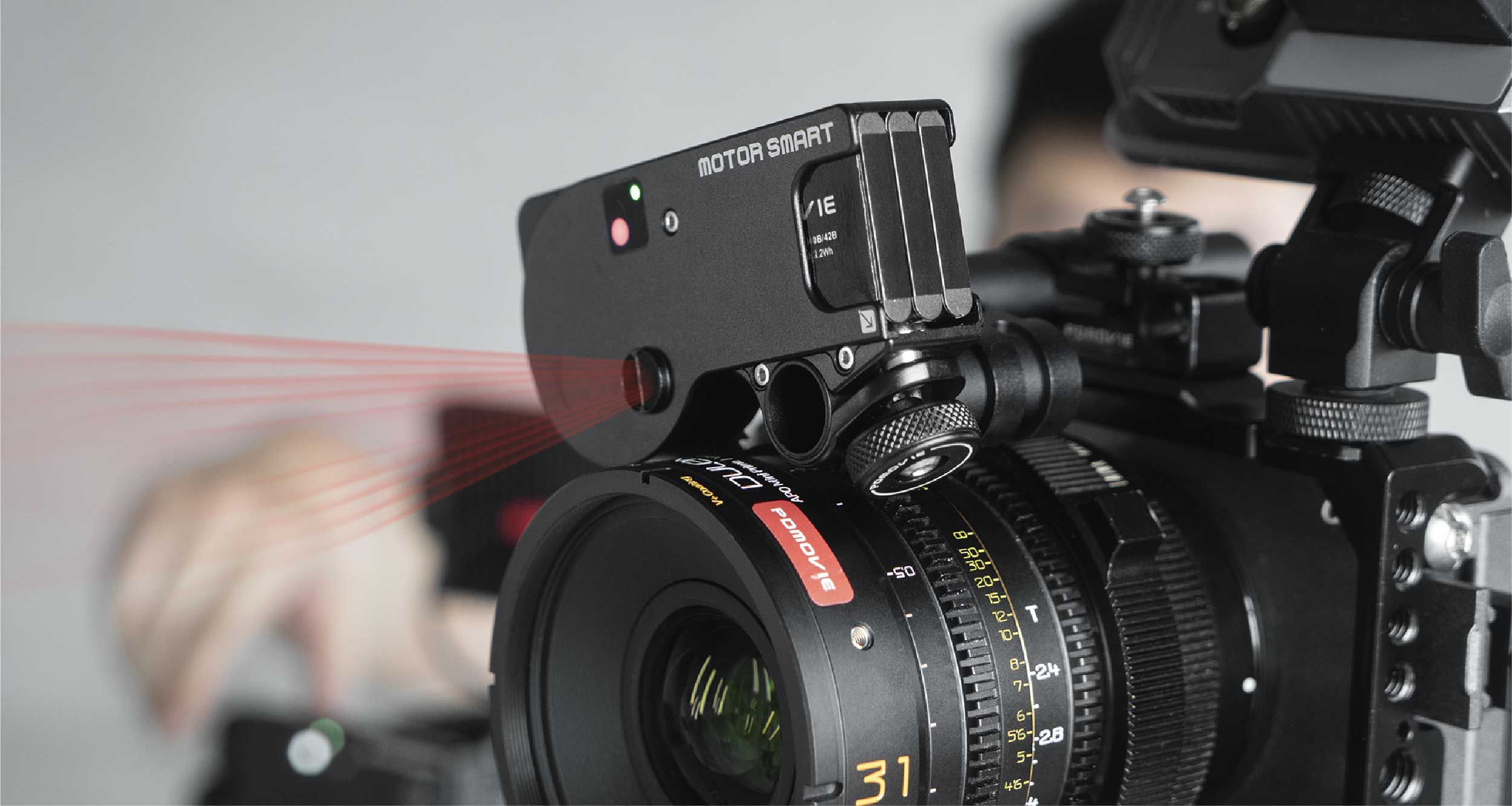

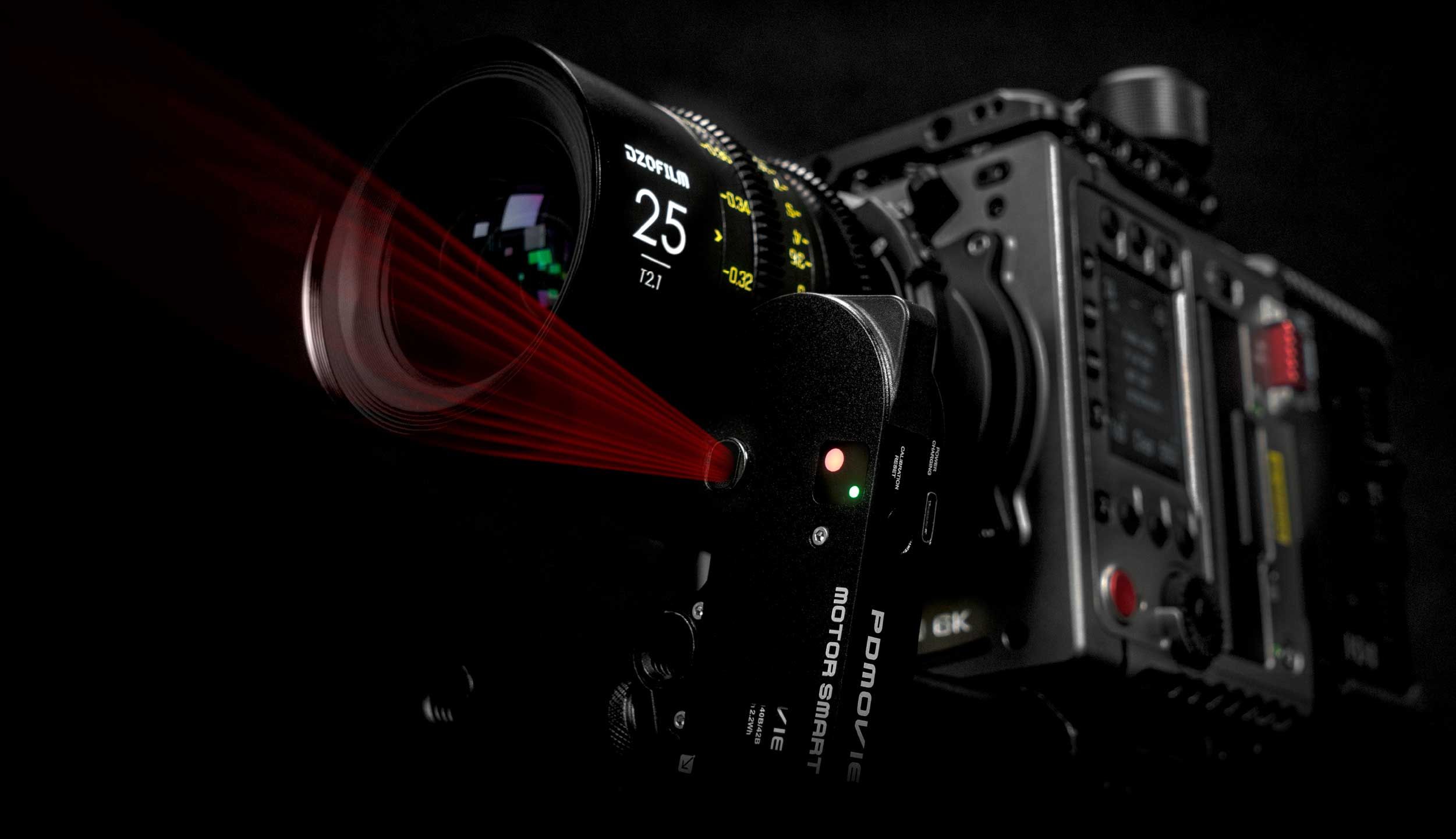

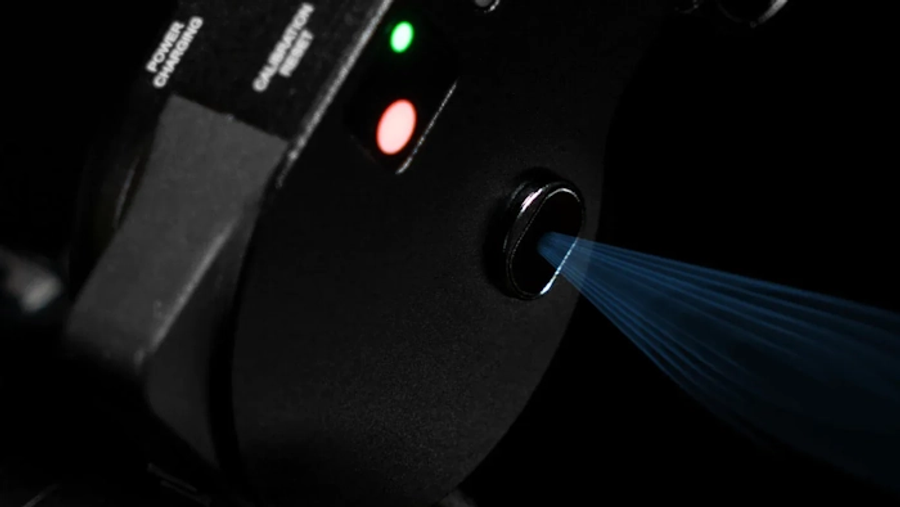

LiDAR Assisted Autofocus
LIVE AIR 3 SMART is user-friendly and requires minimal setup. The introduction of LiDAR distance measurement autofocus greatly reduces the difficulty of focusing, allowing creators to focus more on composition and design, providing them with greater inspiration.
Array Focusing Technology
LiDAR automatic ranging can project a total of 4096 ranging points with a field of view angle of 28°. It accurately measures the distance to the subject within the effective range and automatically controls the motor to drive the lens for autofocus based on the data.

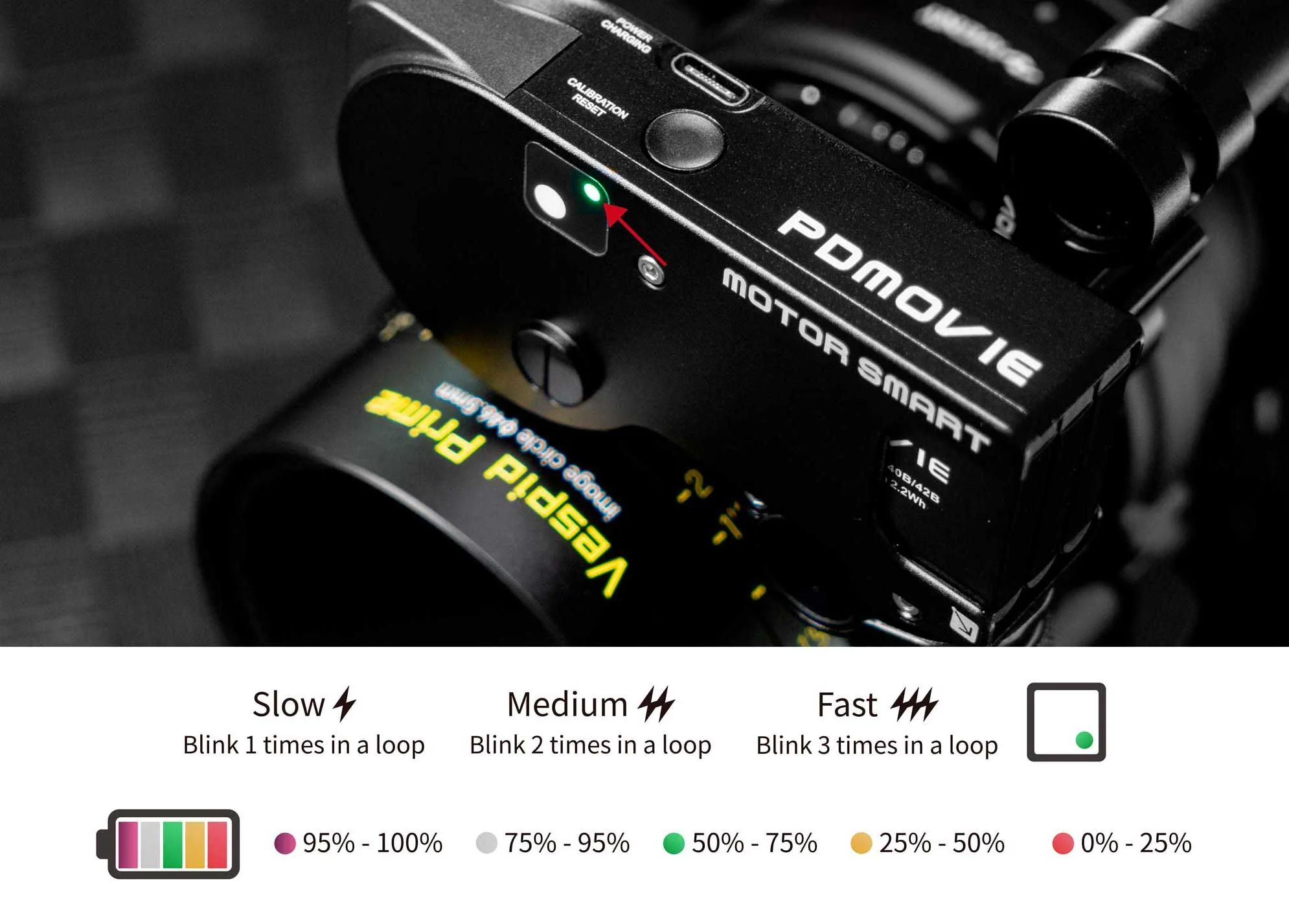

Three-speed focusing speed to adapt to different shooting scenarios
The LiDAR MOTOR is equipped with three autofocus speed modes. High-speed mode for capturing fast-moving subjects with precision, medium-speed mode for everyday shooting scenarios, and slow-speed mode for creating a more cinematic breathing effect.
Front/Rear Focus Lock Change
Depending on the requirements of the shooting scenario, you can easily switch between autofocus on the front focus or back focus. The front focus is the default focus on the object closest to the LiDAR, while the back focus is the default focus on the object at the far end of the LiDAR scanning range. (The back focus autofocus lock mode requires connection to the controller. Without controller connection, the motor will only default to front focus autofocus.)
Double Power Mode
When the MOTOR SMART is in a high-speed response state and the battery is at 100% capacity, it will automatically activate the Double Power mode. In this mode, the motor's power output is doubled, and the peak torque can reach up to 1.5Nm. The radar scanning rate can also be increased to 480Hz. When the battery level drops below 95%, the motor will automatically exit the Double Power mode. To keep the motor in the Double Power mode for an extended period, an external power source can be connected via the Type-C interface.
Quick Lens AF Marking
After completing lens travel calibration, simply mark three positions to quickly complete the marking process and enjoy autofocus functionality.

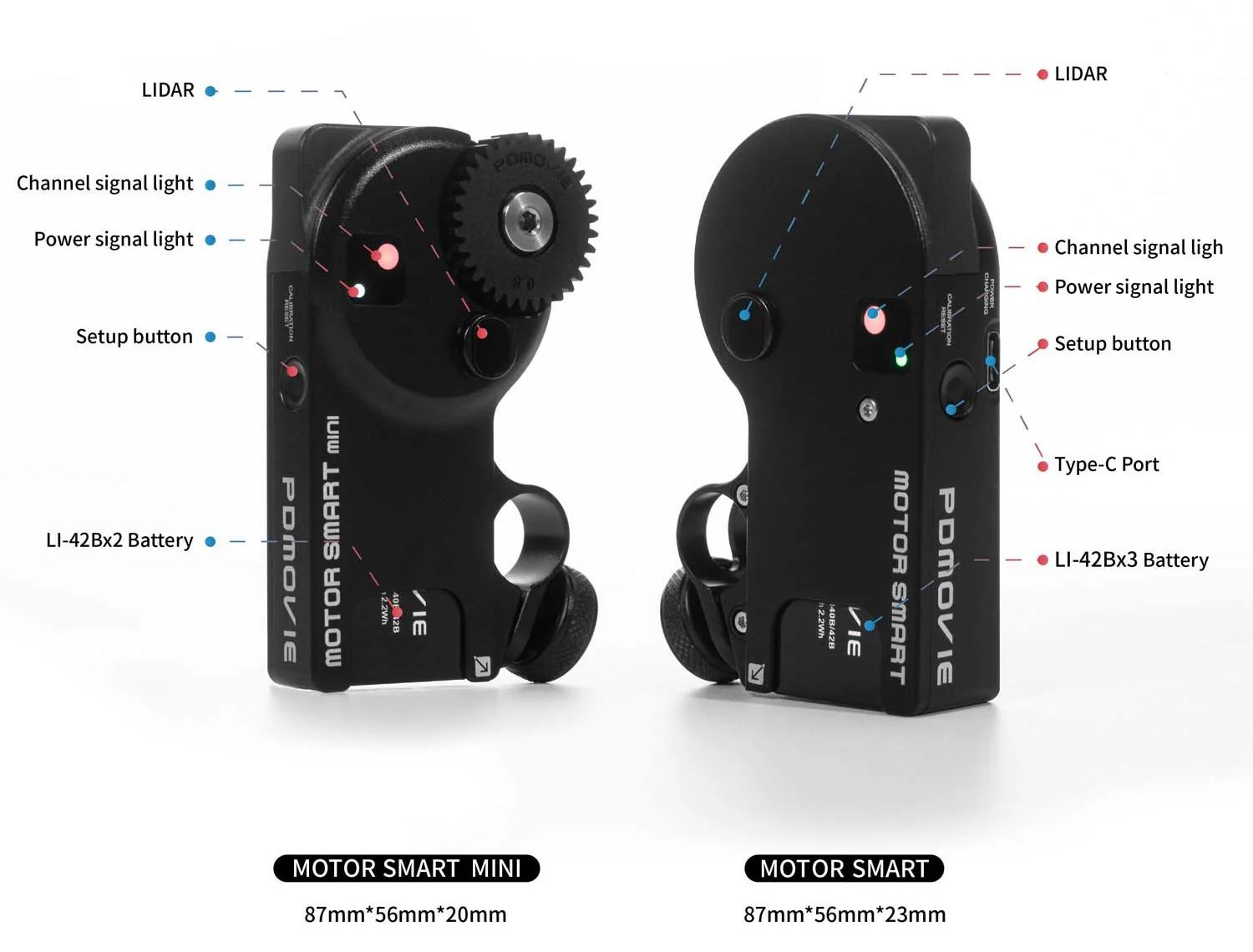

Discrepancy Comparison
MOTOR SMART MINI VS MOTOR SMART

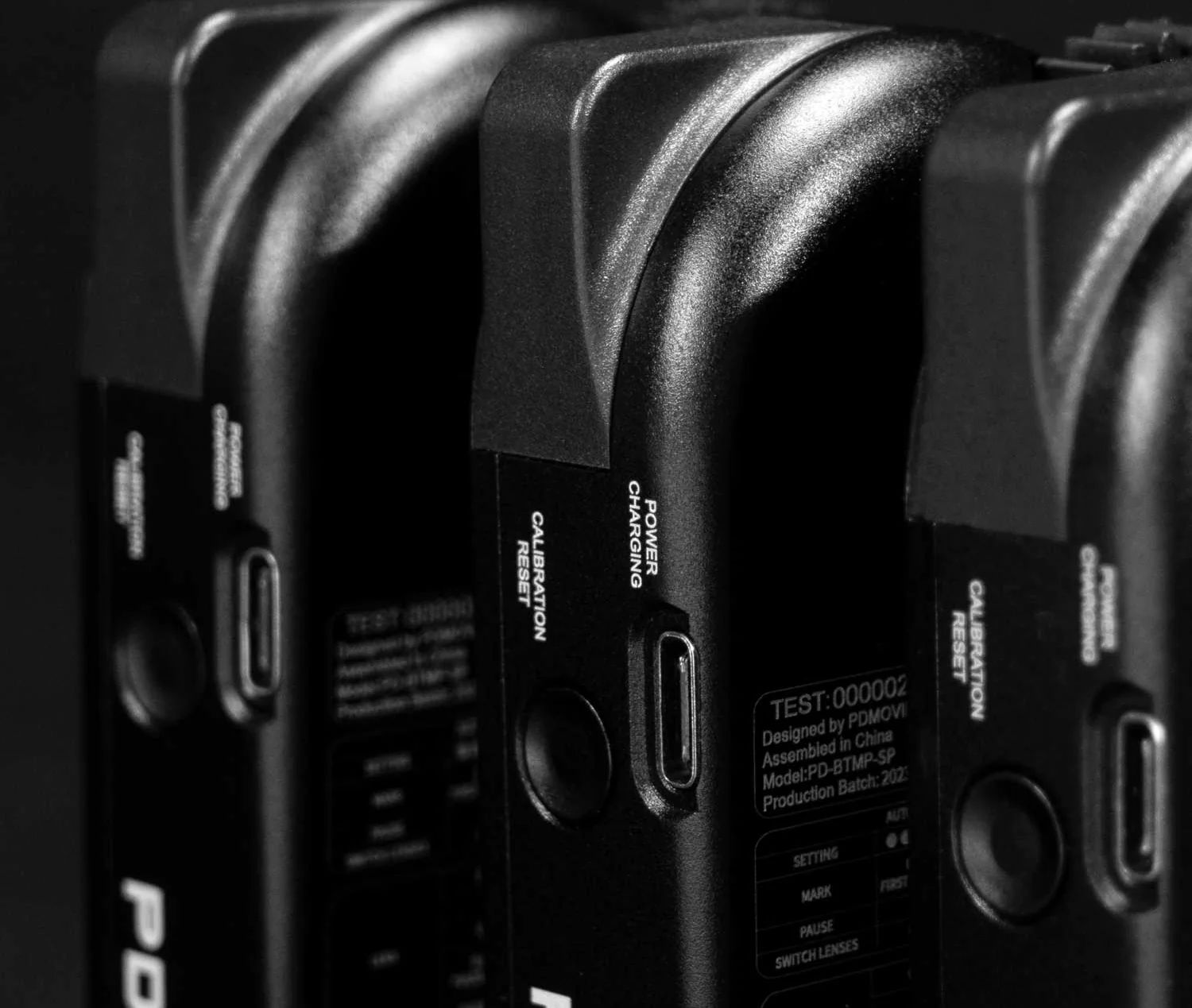

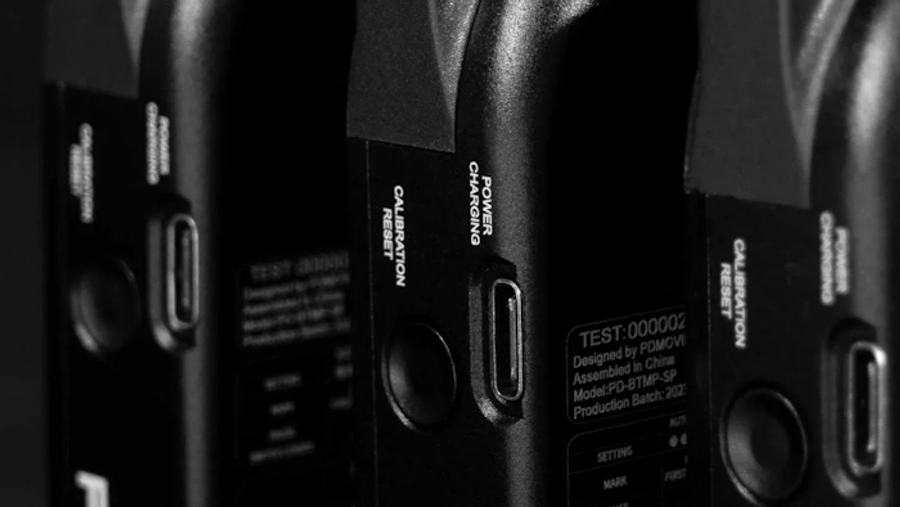

Type-C Quick Charge
MOTOR SMART can quick charge the battery and enter to double power mode through Type-C interface
*MOTOR SMART MINI does not have Type-C interface

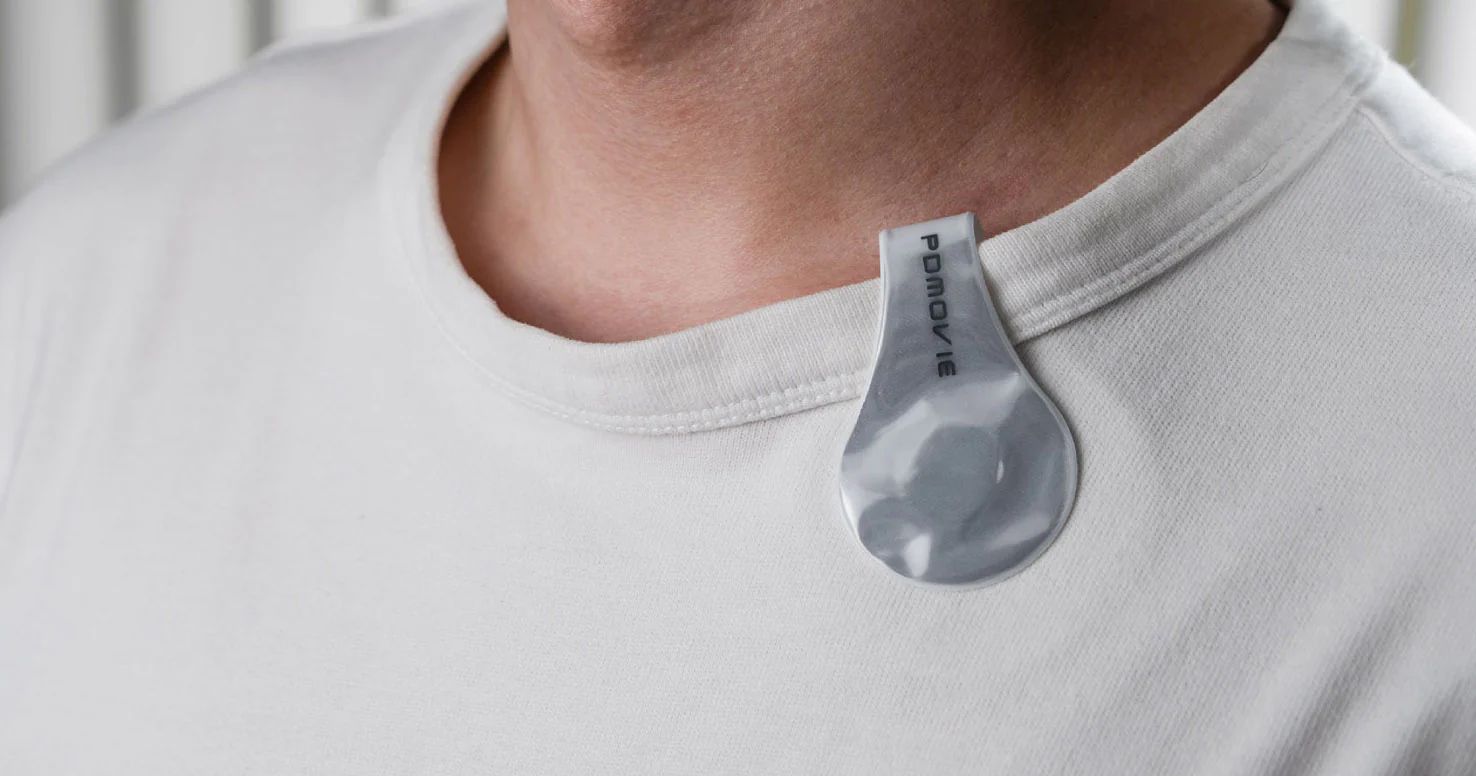

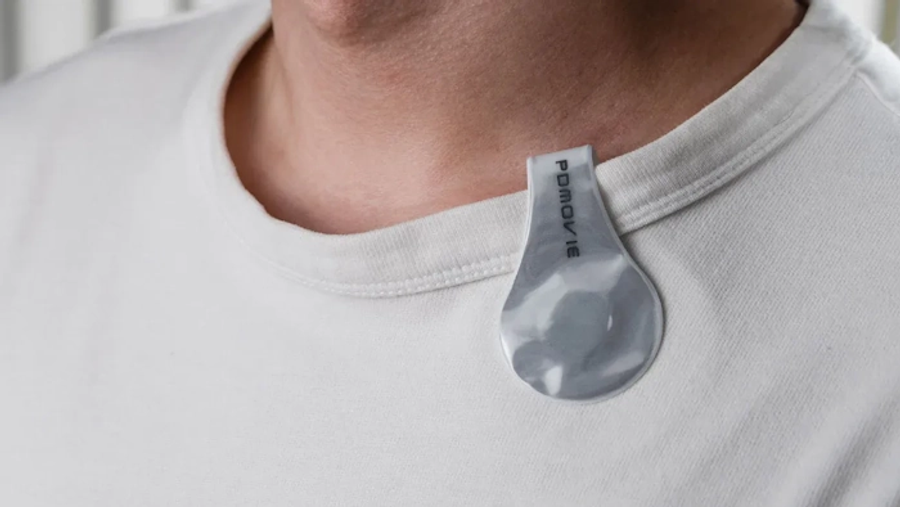

Assistive Focus Stickers
Applying assistive focus stickers can increase LIDAR measuring distance. Users can use the provided reflective stickers or purchase their own preferred reflective stickers

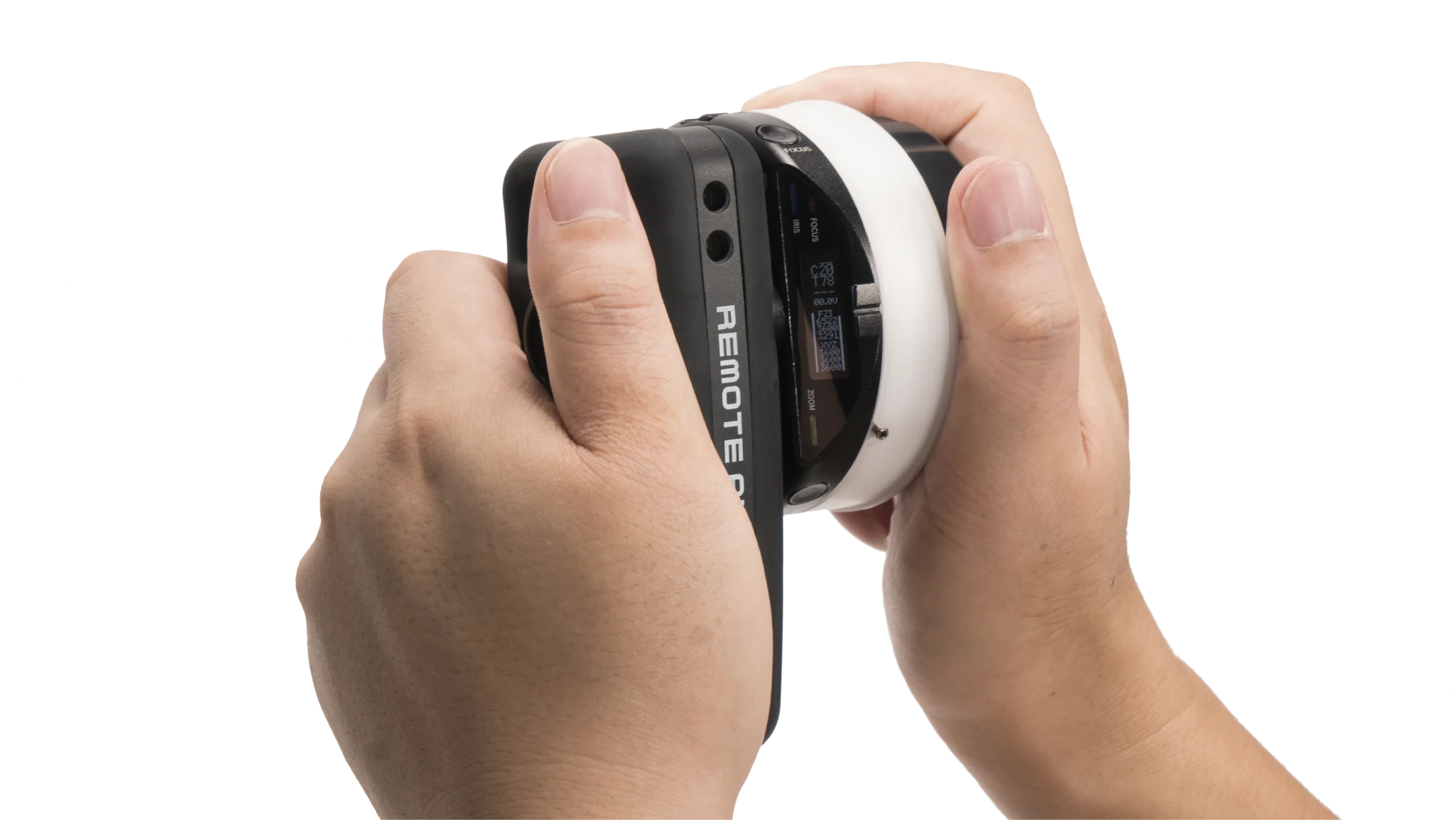

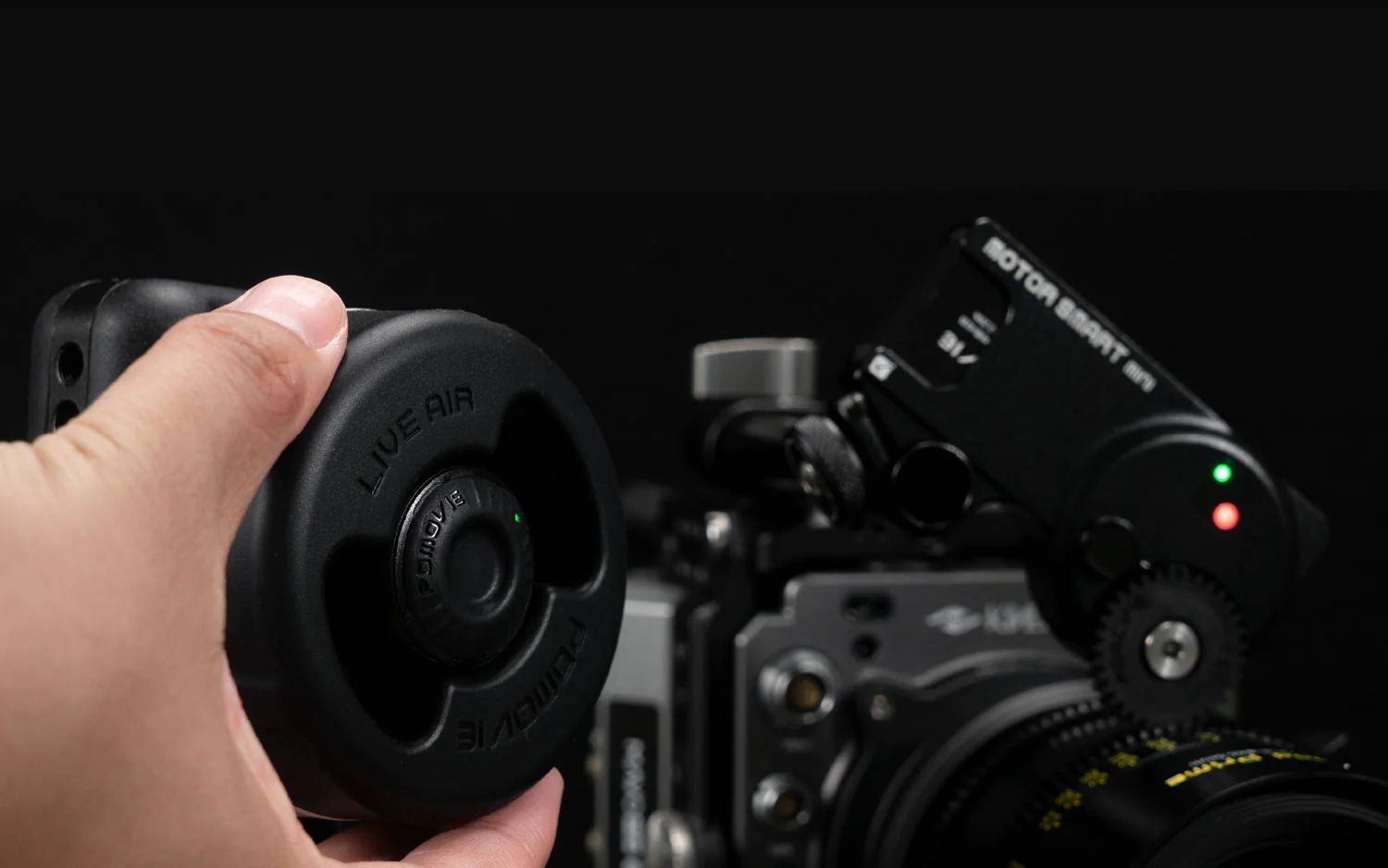

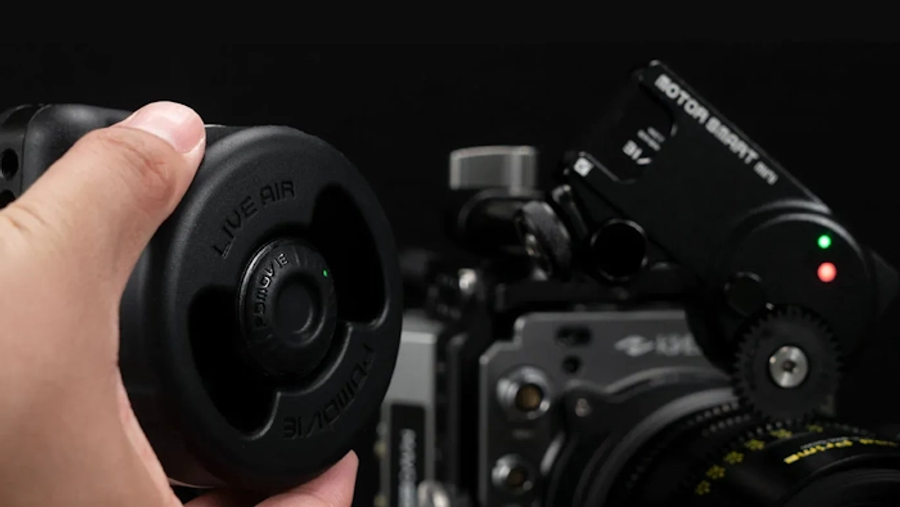

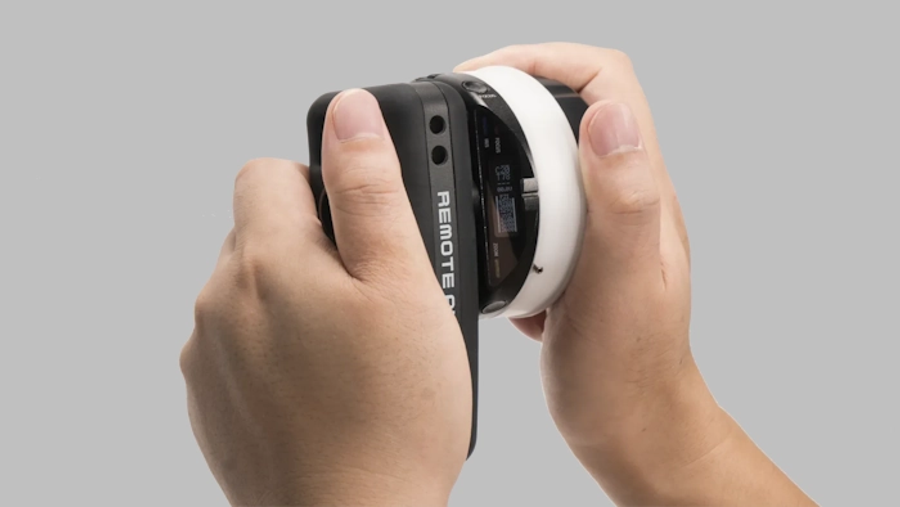

REMOTE AIR RIR Large Handwheel Device
Get rid of spatial limitations, operate wirelessly and appear more confident
REMOTE AIR RIR Large Handwheel Device
Get rid of spatial limitations, operate wirelessly and appear more confident
Ultimate Tool for Solo Shooting
Automatic focus allows for an integrated user experience of receiving, monitoring, and controlling by a single individual
Fully equipped with accessories, ready to use out of the box
Equipped with multiple accessories, from focus rings to versatile clamps, enabling the follow focus system to be quickly put into operation.
