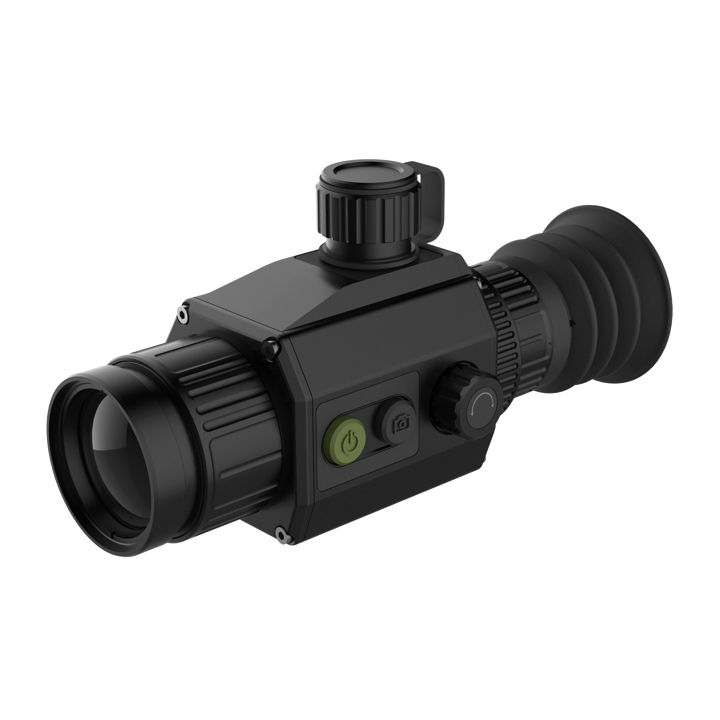

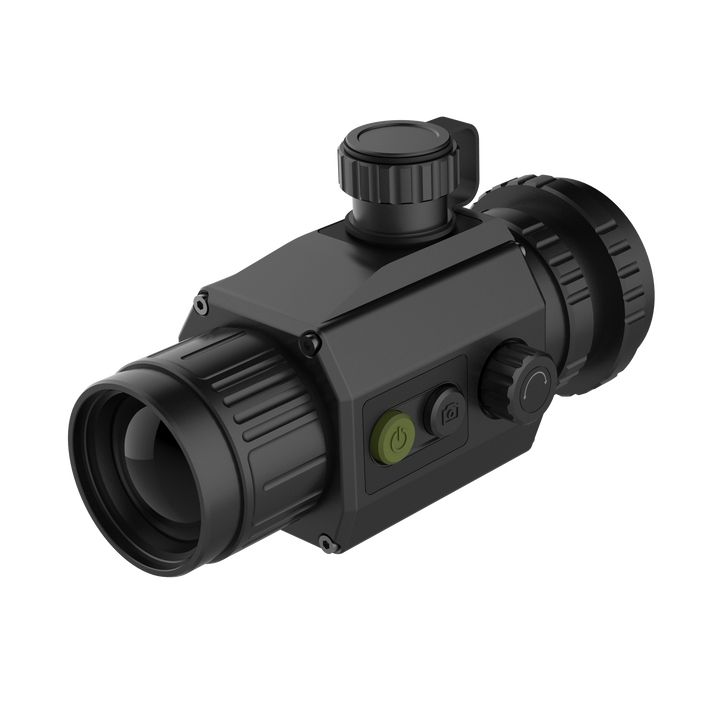

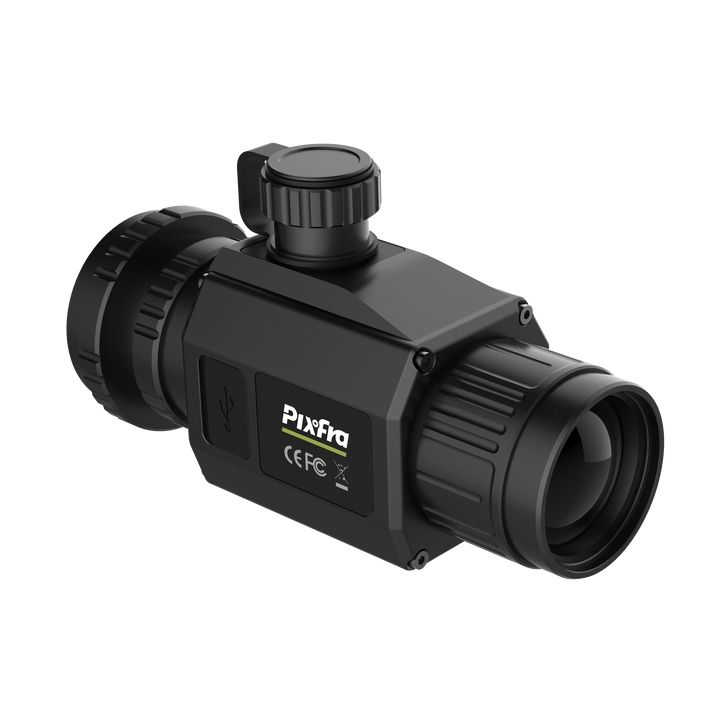

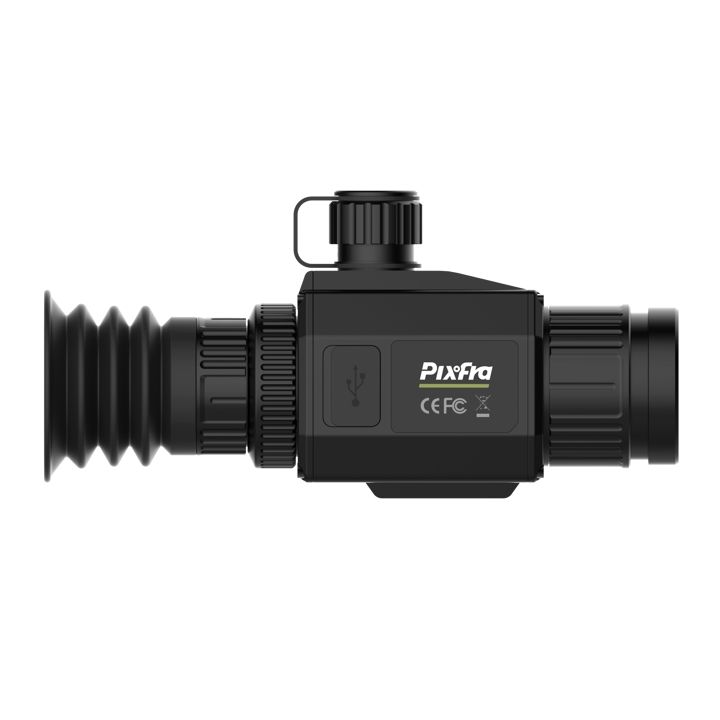

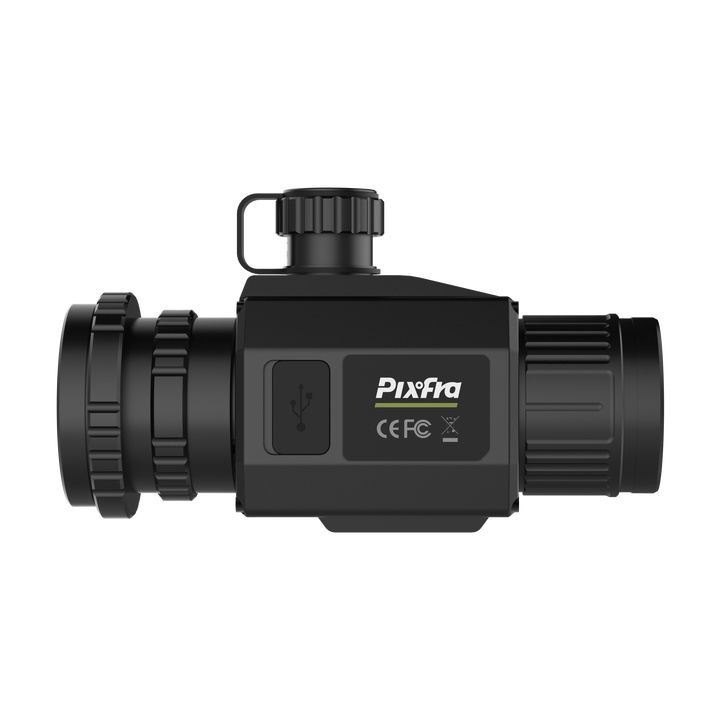

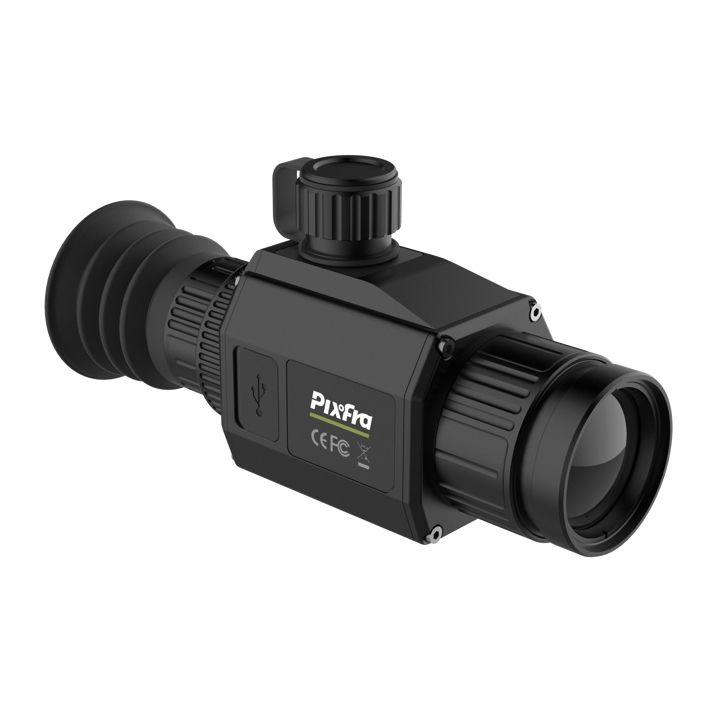

Pixfra CETUS 650 Thermal Riflescope 50mm Pix 640x512 Dis 1600x1200

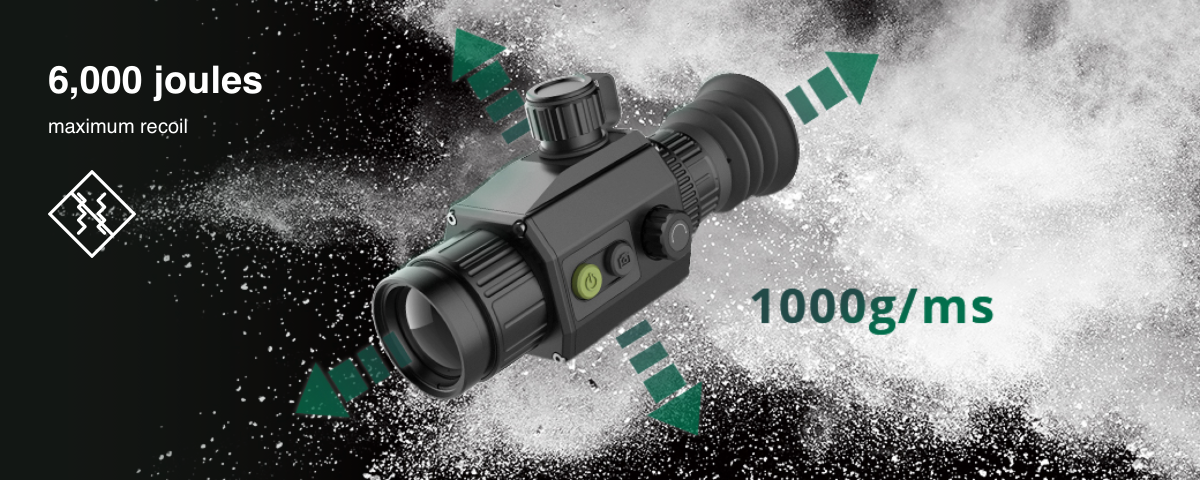

High Shock Resistance
The rugged structure is designed to withstand a maximum recoil of over 6,000 joules, perfect for a variety of rifle with calibers of 12 gauge, 9.3x64, .375H&H, etc.

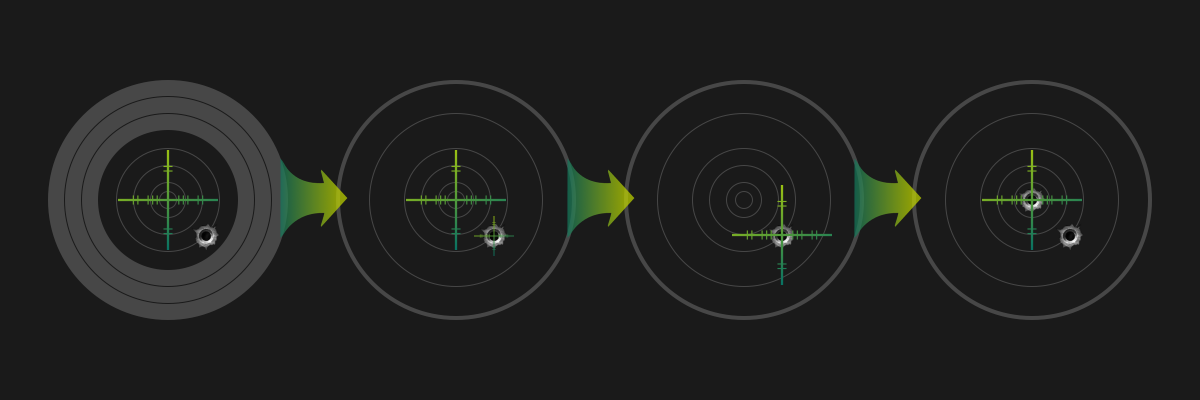

Better Zeroing Experience
Chiron supports one-shot zeroing. It supports the configuration of 5 x 6 reticles, and has more than 10 reticle types with a variety of colors optional. It also supports picture-in-picture mode or picture freeze mode when you zero, to help you zero faster.
Pro-grade Image Sensor
All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.

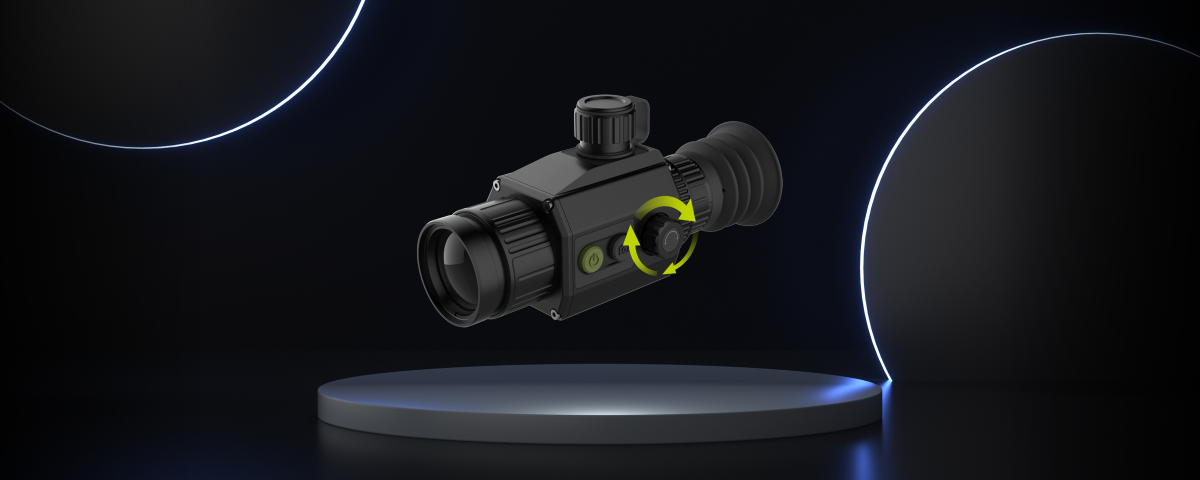

Easy on Your Hand, Simplified Operation

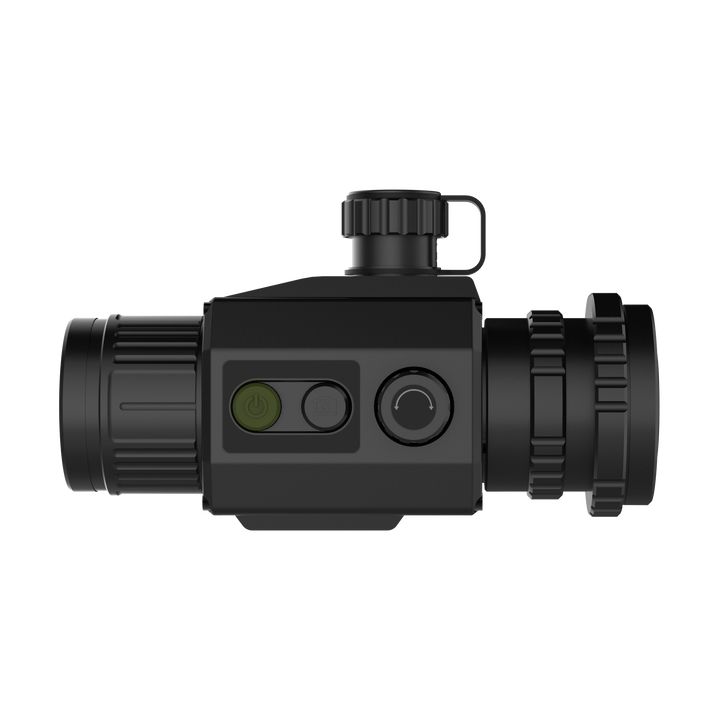

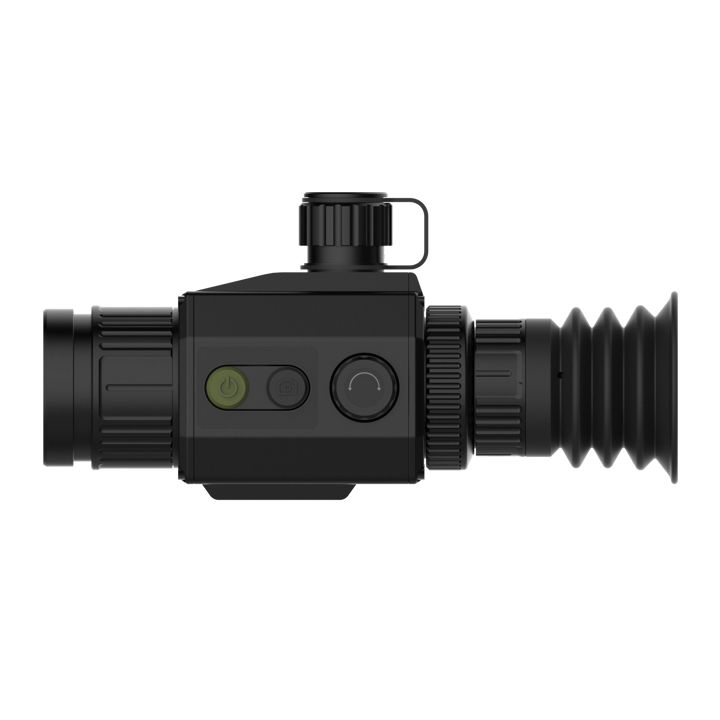

The Chiron series has a rotary knob design to help you quickly operate the menu for a more convenient and fast operating experience.
Ultra-low Latency
Hunting is all about “The moment,” so there must be no error between what you see on your device‘s display and where your target actually is. PIPS（ Pixfra Imaging Processing Solution ） allows image latency of less than 20ms, compared to 60ms with conventional image solutions, which will help you to accurately aim at the target.

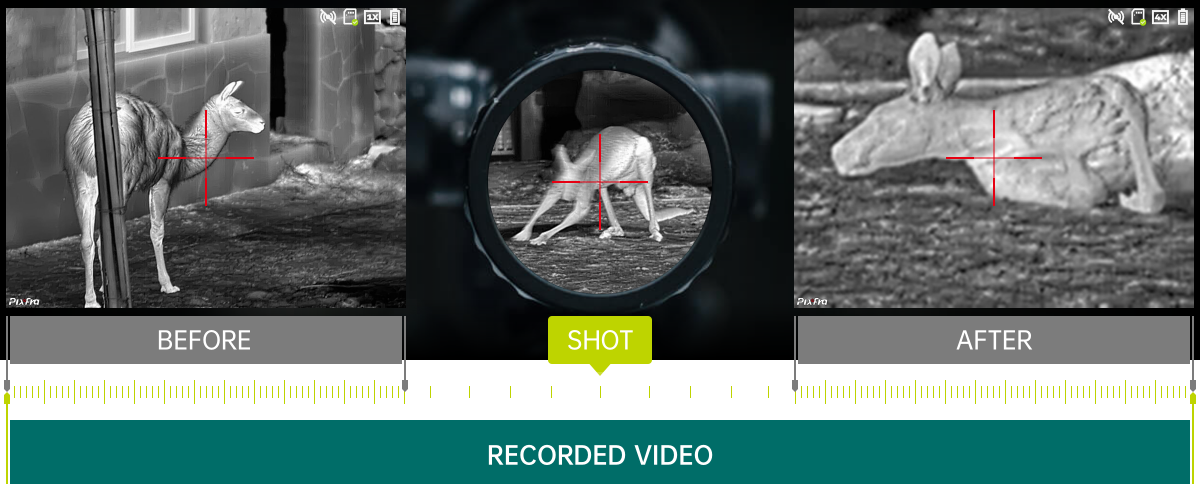

Pre For the Magic Moment
Chiron supports Recoil Activated Recording (RAR), it automatically records key moments as you shoot, so you don't miss any of the highlights. With the Pixfra APP, you can also quickly share videos with your friends.
Thermal
|
Detector Type |
Vanadium oxide uncooled focal plane detector |
|
Effective Pixels |
640 (H) × 512 (V) |
|
Pixel Pitch |
12 μm |
|
Spectral Range |
8 μm–14 μm |
|
Sensitivity (NETD) |
≤30 mK@f/1.0, 25°C |
|
Focal Length |
50 mm |
|
Aperture |
F1.0 |
|
Field of View |
H: 8.7°; V: 7.0° |
|
Focus Control |
Fixed |
|
Close Focus Distance |
5 m (16.40 ft) |
|
Detection Distance |
2,600 m (8,530.18 ft) |
|
Magnification |
2.63 × |
|
Frame Rate |
50 Hz |
Display
|
Screen |
1440 × 1080, 0.41 inch, OLED |
|
Color Palettes |
6 (white hot/black hot/iron red/alarm/emerald/amber) |
|
Video Compression |
H.264 |
|
Diopter Adjust |
–5 D to +5 D |
|
Eye Relief |
44 mm (1.73") |
|
Exit Pupil |
6 mm |
Function
|
Digital Zoom |
1×; 2×; 4×; 8× |
|
Reticle |
Multiple Patterns & Color Options |
|
Zeroing |
Yes |
|
Video Recorder |
Yes |
|
Snapshot |
Yes |
|
WiFi Hotspot |
Yes |
|
Hot Spot Track |
Yes |
|
Video Distance Measurement |
Yes |
|
FFC Calibration |
Auto; manual; immediately |
|
Standby Mode |
Yes |
|
PIP (Picture in Picture) |
Yes |
|
DPC (Defective Pixel Correction) |
Yes |
|
RAR (Recoil Activated Recorder) |
Yes |
