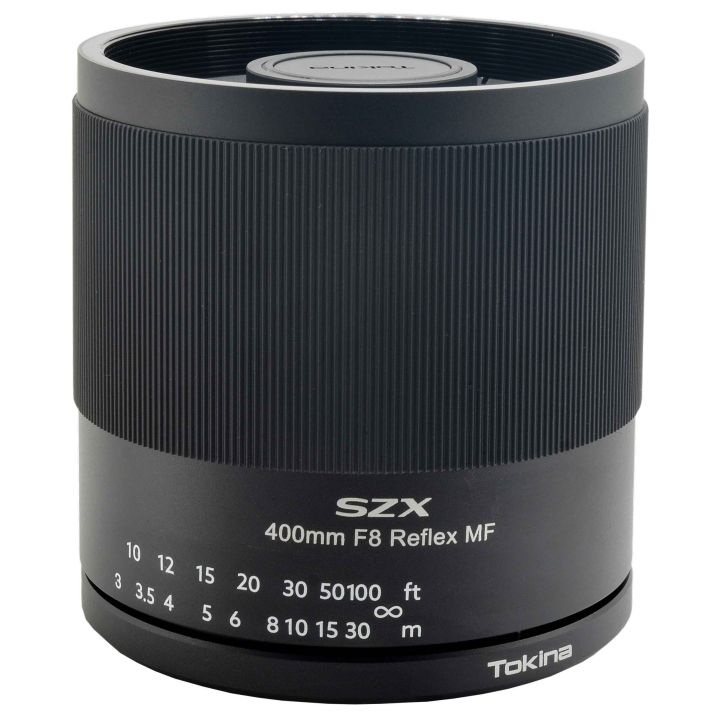

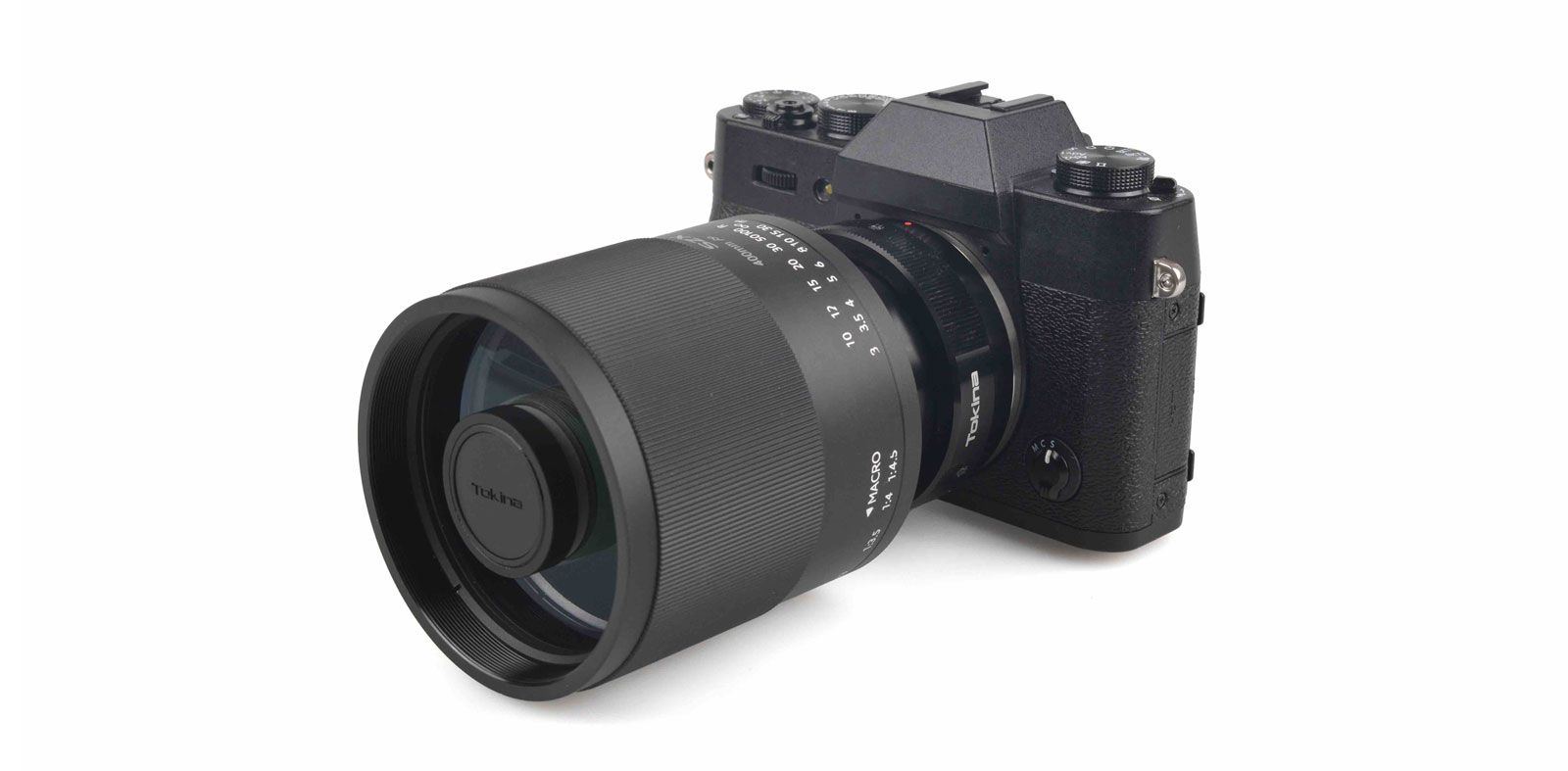

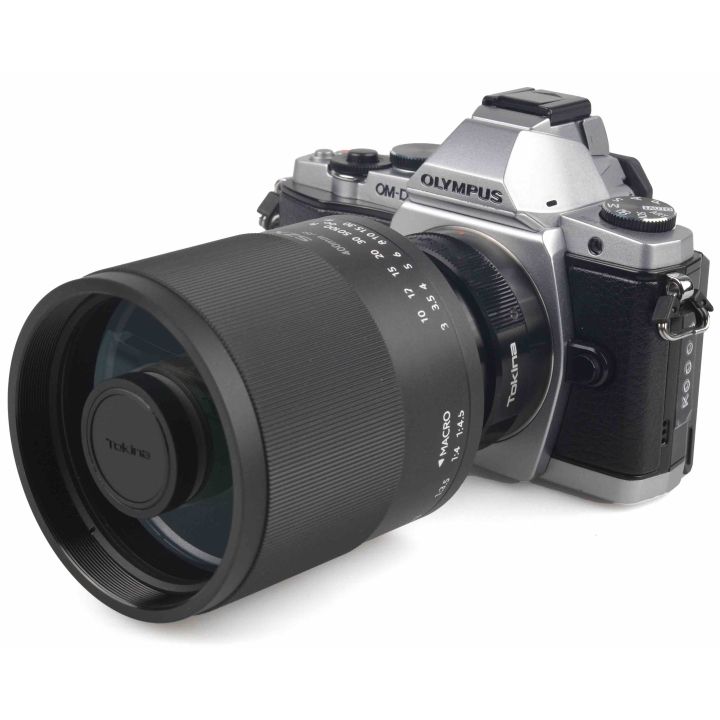

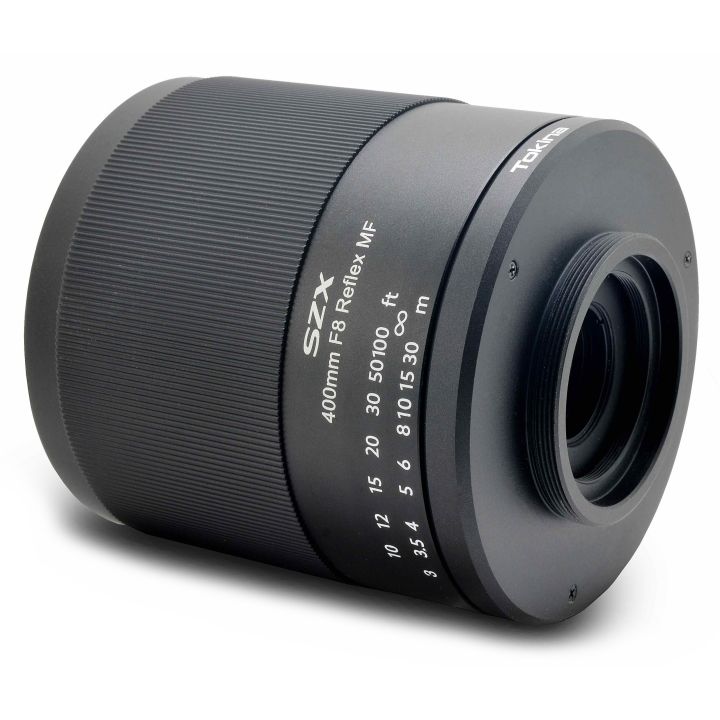

Tokina Super Tele 400mm f/8 Reflex MF Lens for Micro Four Thirds
- Micro Four Thirds System
- 800mm (35mm Equivalent)
- Fixed Aperture: f/8
- Catadioptric Telephoto Lens
- Manual Focus
- Multicoating and Antioxidant Coating
- Filter Size: 67mm
- Close Focus: 45.3"

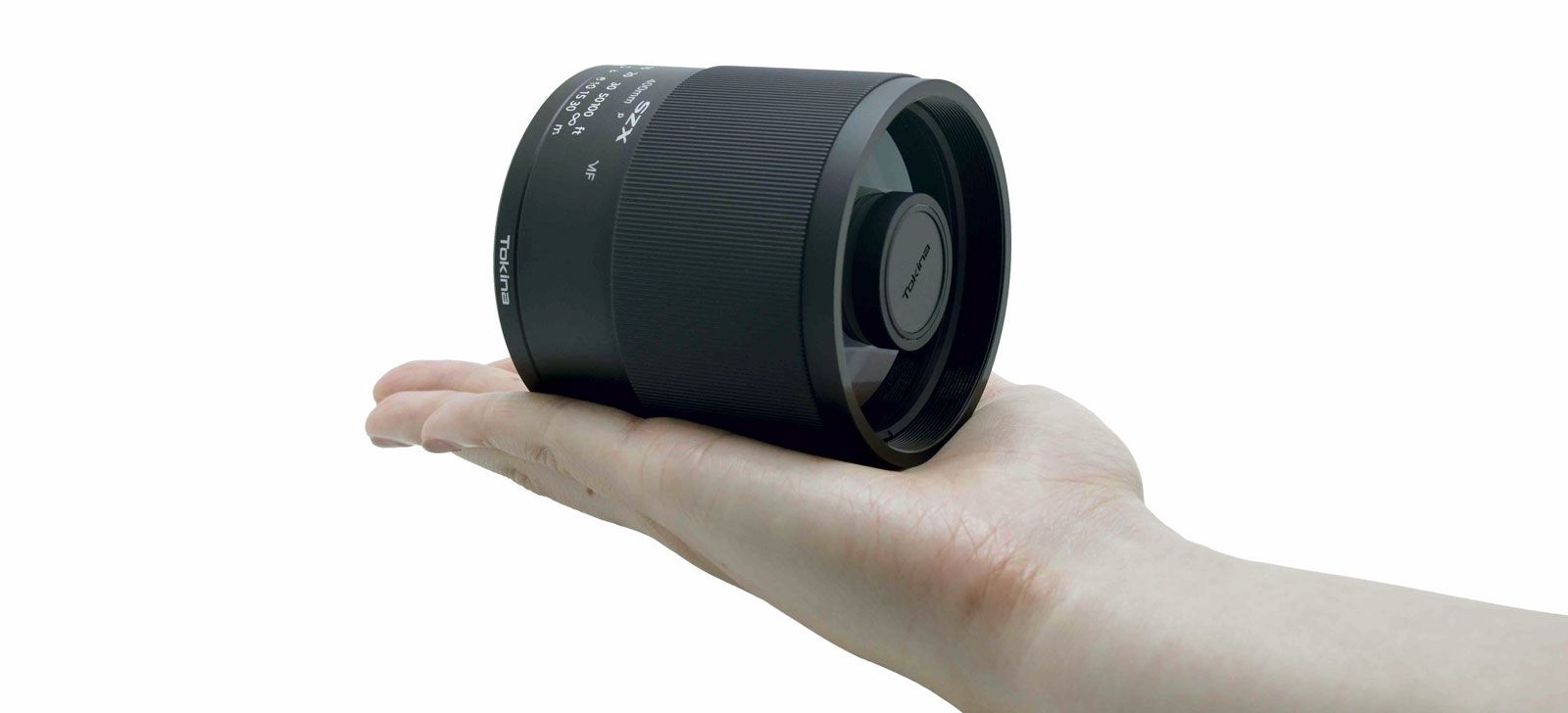

Compact and lightweight
Featuring 400mm focal length lens and weight only 340g (without mount adapter) Tokina SZX SUPER TELE 400mm F8 Reflex MF can be easily carried inside a pocket or small bag. For travel photographers who tend to seek for lightweight gear this feature is highly valuable.
Optics
Lens elements inside the lens are coated with multi-layer anti-reflection coating for effective light intake and as a result, for increasing shutter speed in low light conditions. Mirrored surfaces of the lens elements incorporate high-reflectivity silvered coating and a protective antioxidant layer on the back side for a longer product lifetime.
Macro shooting and Specific bokeh
The field of view is 6°8' (by frame diagonal) and min. focusing distance is 1.15m. It gives magnification 1:2.5 to capture an object with size 6x9cm on full frame. These properties help the photographer to avoid shadows while shooting close up images.
Optical construction of the lens creates specific donut-shaped and super smooth bokeh that finds support among many artistic photographers.
Easy and precise focusing
Tokina SZX SUPER TELE 400mm F8 Reflex MF is equipped with wide and excellent grip focus ring that provides smooth rotation range 270°. Precise focusing could not be more easy. Thanks to high quality processed metal parts and assembling process focus ring rotates smoothly even in low temperature environments giving no chance for dust to be sucked inside the lens.
Super compression
Thanks to its long focal length Tokina SZX SUPER TELE 400mm F8 Reflex MF can create images with super compression effect, when the background looks close and enlarged compared to the main object. This effect adds to the image enchanting atmosphere.

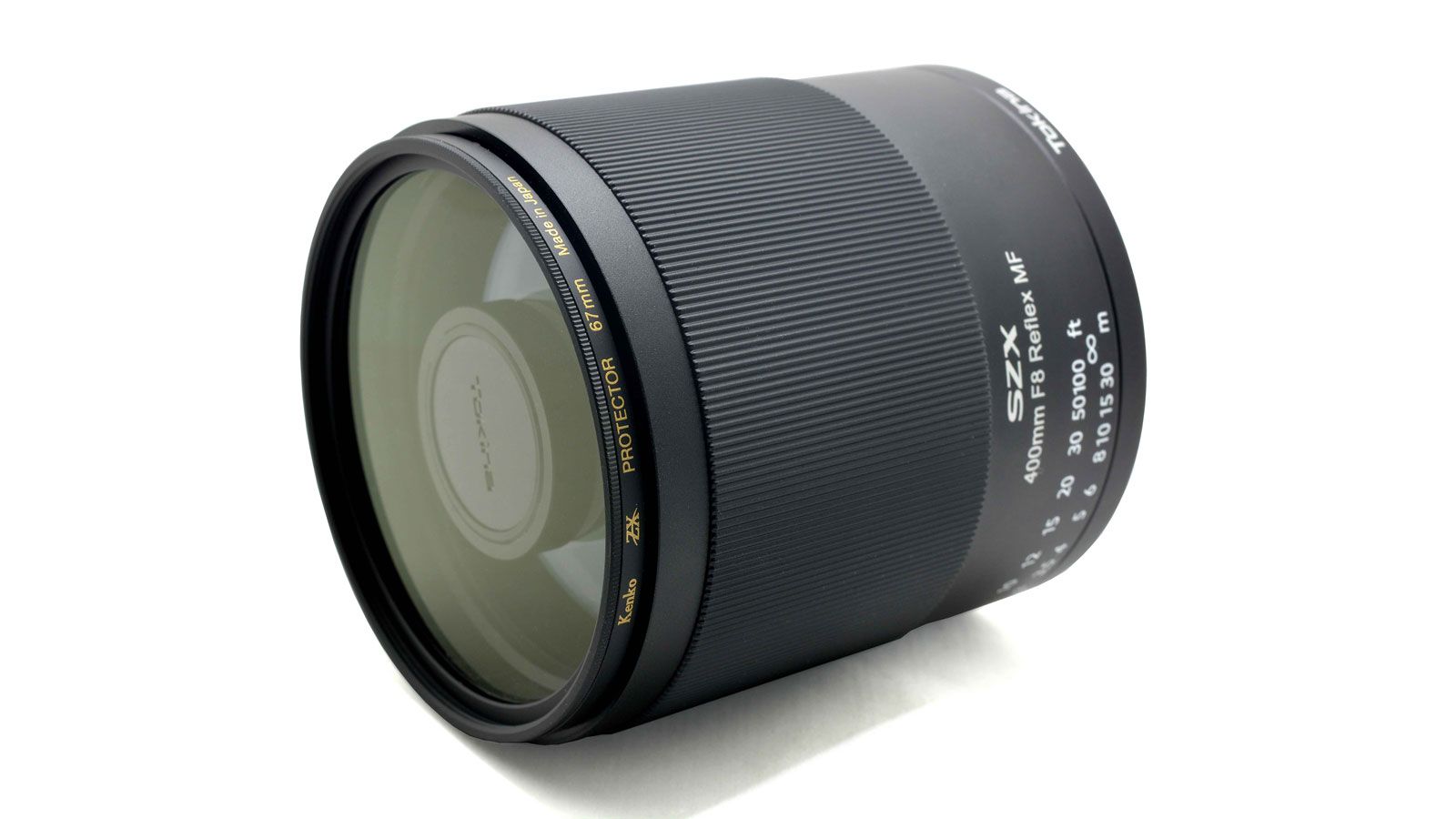

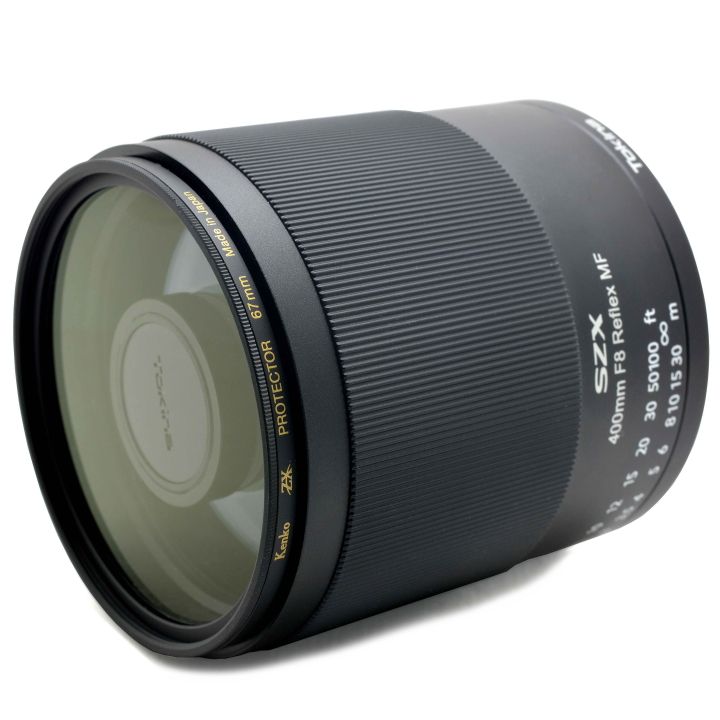

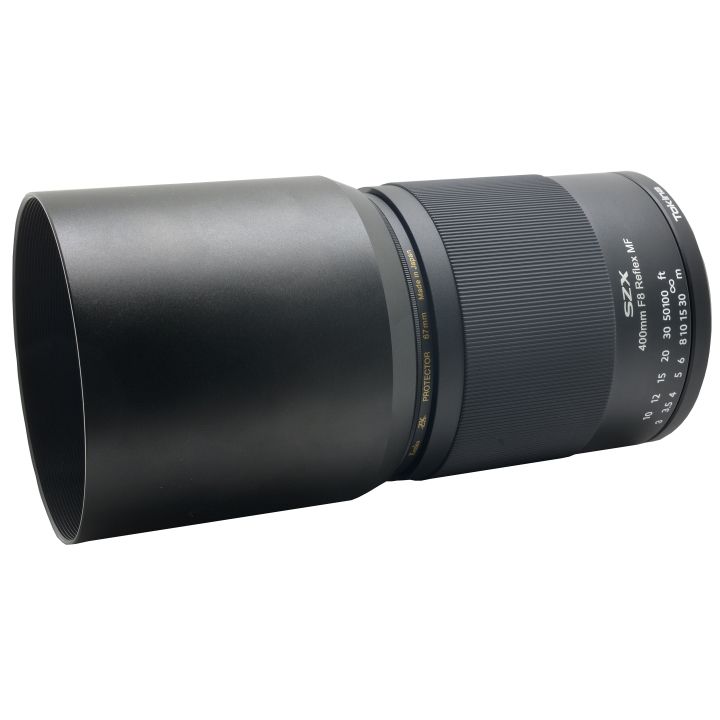

Hood and filters
Tokina SZX SUPER TELE 400mm F8 Reflex MF comes with a hood and supports 67mm filters. That allows photographer to use any creative filter to enhance the impact.

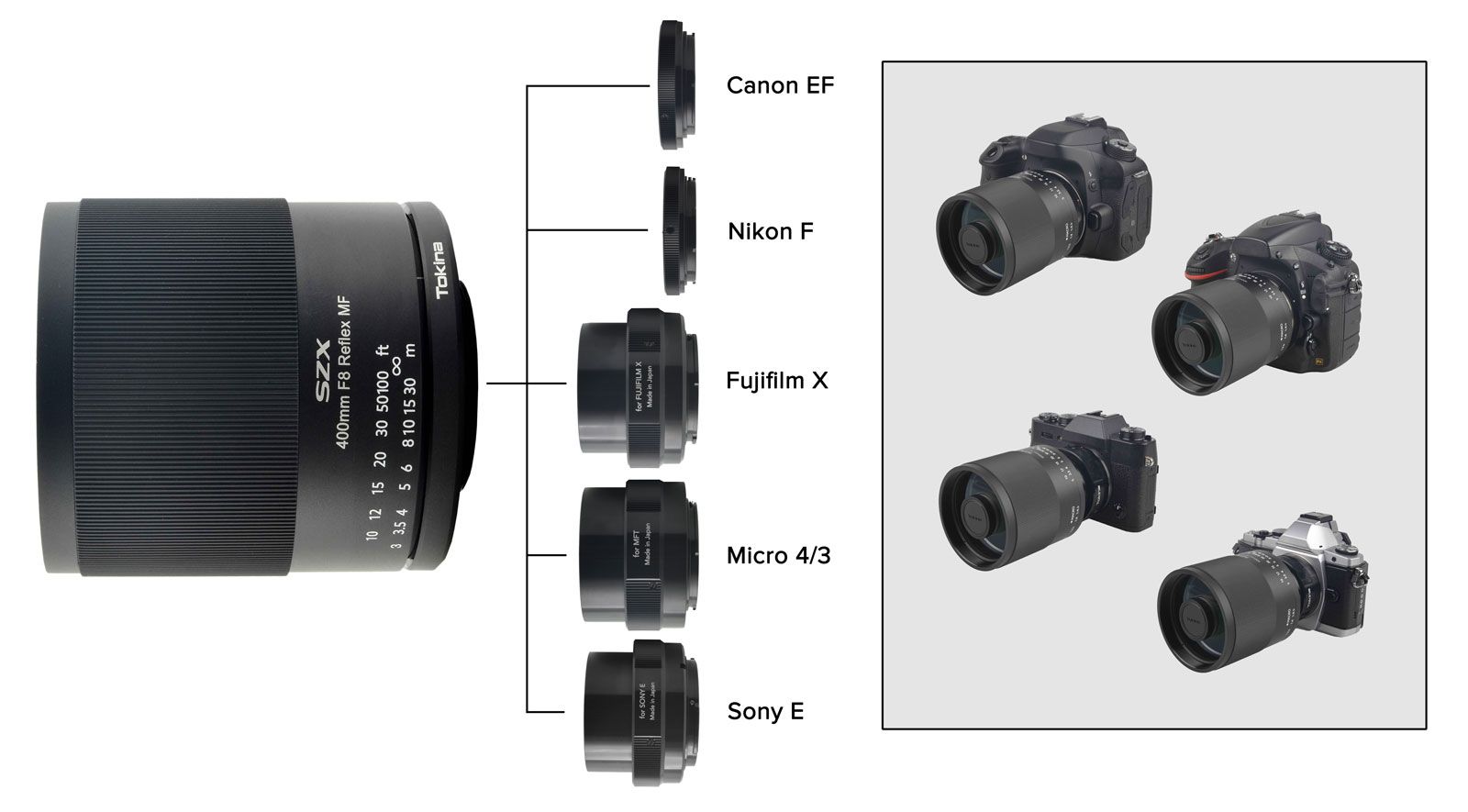

Versatile mount system
Tokina SZX SUPER TELE 400mm F8 Reflex MF adopts a T-mount standard (pitch 0.75mm, thread 42mm), that allows this lens to be attached to any camera by using mount adapters.
|
Focal Length |
400mm |
|
Maximum Aperture |
f/8 |
|
Minimum Aperture |
Not Specified by Manufacturer |
|
Lens Mount |
Micro Four Thirds |
|
Format Compatibility |
Full-Frame |
|
Angle of View |
6° 8' |
|
Tilt-Shift |
Not Specified by Manufacturer |
|
Minimum Focus Distance |
45.28" / 1.15 m |
|
Maximum Magnification |
0.4x |
|
Macro Reproduction Ratio |
1:2.5 |
|
Optical Design |
6 Elements in 5 Groups |
|
Diaphragm Blades |
0 |
|
Focus Type |
Manual Focus |
|
Image Stabilization |
No |
|
Filter Size |
67 mm (Front) |
|
Dimensions (ø x L) |
2.91 x 3.03" / 74 x 77 mm |
|
Weight |
12.52 oz / 355 g |
| Product Manuals | |
|---|---|
| Tokina Super Tele 400mm f/8 Reflex MF Lens for Micro Four Thirds - Product Manual |
- Tokina SZX 400mm f/8 Reflex MF Lens for Micro Four Thirds

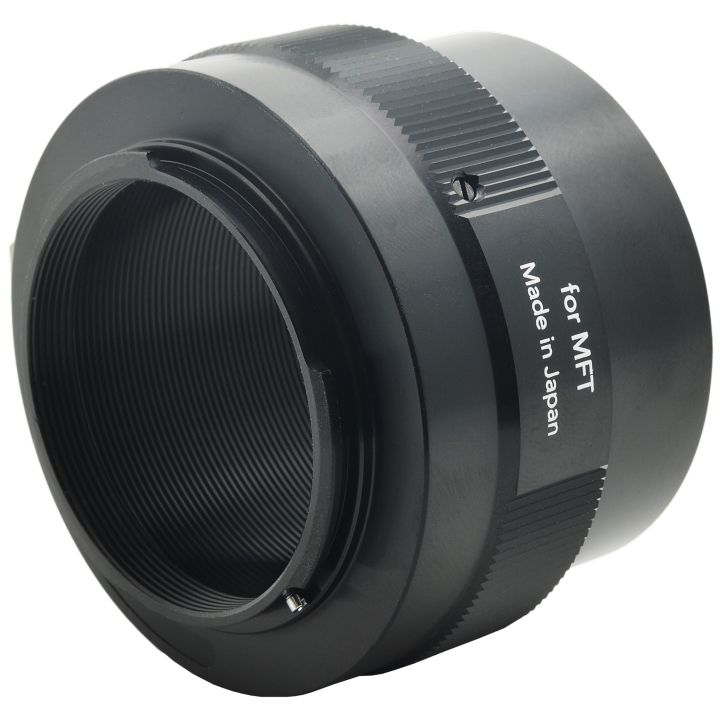

- Tokina TA0015 SZX T-Mount Adapter for Micro Four Thirds

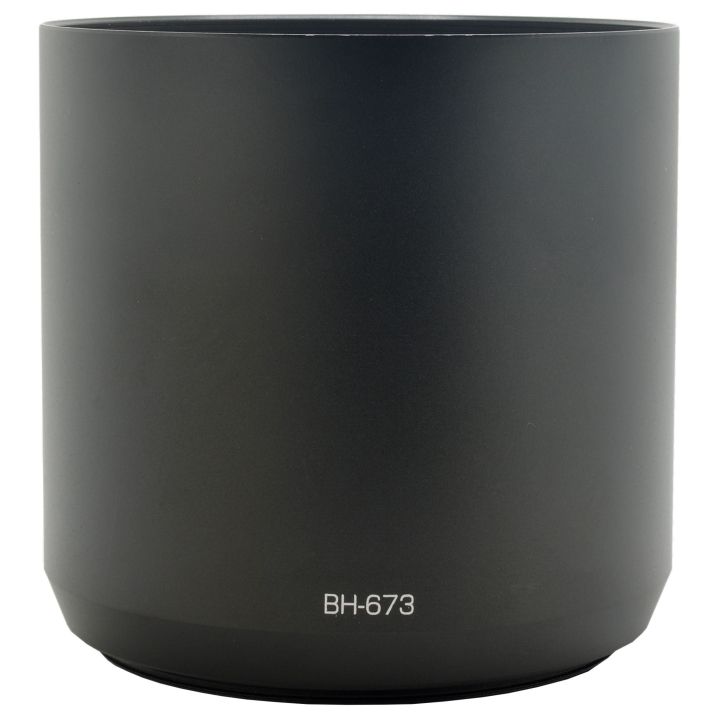

- BH-673 Lens Hood
Brand: Tokina |
Code: TKOS-063474
APN: 4961607634745 |
Supplier Code: 4961607634745
Brand: Tokina |
Code: TKOS-063474
APN: 4961607634745 |
Supplier Code: 4961607634745
At a glance
- Micro Four Thirds System
- 800mm (35mm Equivalent)
- Fixed Aperture: f/8
- Catadioptric Telephoto Lens
- Manual Focus
- Multicoating and Antioxidant Coating
- Filter Size: 67mm
- Close Focus: 45.3"
Compact and lightweightFeaturing 400mm focal length lens and weight only 340g (without mount adapter) Tokina SZX SUPER TELE 400mm F8 Reflex MF can be easily carried inside a pocket or small bag. For travel photographers who tend to seek for lightweight gear this feature is highly valuable. |
|
|
OpticsLens elements inside the lens are coated with multi-layer anti-reflection coating for effective light intake and as a result, for increasing shutter speed in low light conditions. Mirrored surfaces of the lens elements incorporate high-reflectivity silvered coating and a protective antioxidant layer on the back side for a longer product lifetime. |
Macro shooting and Specific bokehThe field of view is 6°8' (by frame diagonal) and min. focusing distance is 1.15m. It gives magnification 1:2.5 to capture an object with size 6x9cm on full frame. These properties help the photographer to avoid shadows while shooting close up images. Optical construction of the lens creates specific donut-shaped and super smooth bokeh that finds support among many artistic photographers. |
|
|
Easy and precise focusingTokina SZX SUPER TELE 400mm F8 Reflex MF is equipped with wide and excellent grip focus ring that provides smooth rotation range 270°. Precise focusing could not be more easy. Thanks to high quality processed metal parts and assembling process focus ring rotates smoothly even in low temperature environments giving no chance for dust to be sucked inside the lens. |
Super compressionThanks to its long focal length Tokina SZX SUPER TELE 400mm F8 Reflex MF can create images with super compression effect, when the background looks close and enlarged compared to the main object. This effect adds to the image enchanting atmosphere. |
|
|
Hood and filtersTokina SZX SUPER TELE 400mm F8 Reflex MF comes with a hood and supports 67mm filters. That allows photographer to use any creative filter to enhance the impact. |
Versatile mount systemTokina SZX SUPER TELE 400mm F8 Reflex MF adopts a T-mount standard (pitch 0.75mm, thread 42mm), that allows this lens to be attached to any camera by using mount adapters. |
|
Overall Concept
Tokina SZX SUPER TELE 400mm F8 Reflex MF is a 400mm super tele lens that adopts catadioptric type optical design with a constant F8 aperture. The lens offers compact alternative to standard tele photo lenses as more and more photographers are looking for easy-to-carry gear. 400mm F8 Reflex MF is designed keeping in mind active travel photographers seeking for outdoor landscape, wild nature or birds by providing compact and lightweight lens to be rediscovered in the new era of also compact but high-tech mirrorless cameras.
Tokina SZX SUPER TELE 400mm F8 Reflex MF is suitable for travel photography since the lens is compact and lightweight, and yet will help you to capture far objects that cannot be reached by standard zoom lenses. This lens can serve you best in different photographic genres, like landscape, people, street snap, macro, wild nature and even sports!
About the Series
Back in 1980s Tokina shocked the camera market by releasing two epoch-making lenses – SZ-X 210 (70-210mm f/4-5.6) and SZ-X 270 (28-70mm f/3.5-4.5). Common characteristics that can be applied to those 2 lenses are, by no doubts, extremely compact and extremely lightweight body compared to other zoom lenses of equal focal length. Tokina was the first lens manufacturer that succeeded in developing tele and standard zoom lenses with such valuable advantages for the photographers.
S - Satisfaction
Z - Zest
X - Something unknown or exciting
Giving our respect to Tokina engineers of that time we decided to give a new birth to this legendary series by developing and offering a range of exciting products with specific features and valuable advantages Tokina never produced before.
Borrowing the abbreviation of the legendary Tokina SZ-X series (80s-90s) we aim to provide satisfaction to the photographer through our passion and enthusiasm as an optical manufacturer.
Optical Performance
Long 400mm focal length of Tokina SZX SUPER TELE 400mm F8 Reflex MF while being such a compact and lightweight is realized thanks to catadioptric optical design.

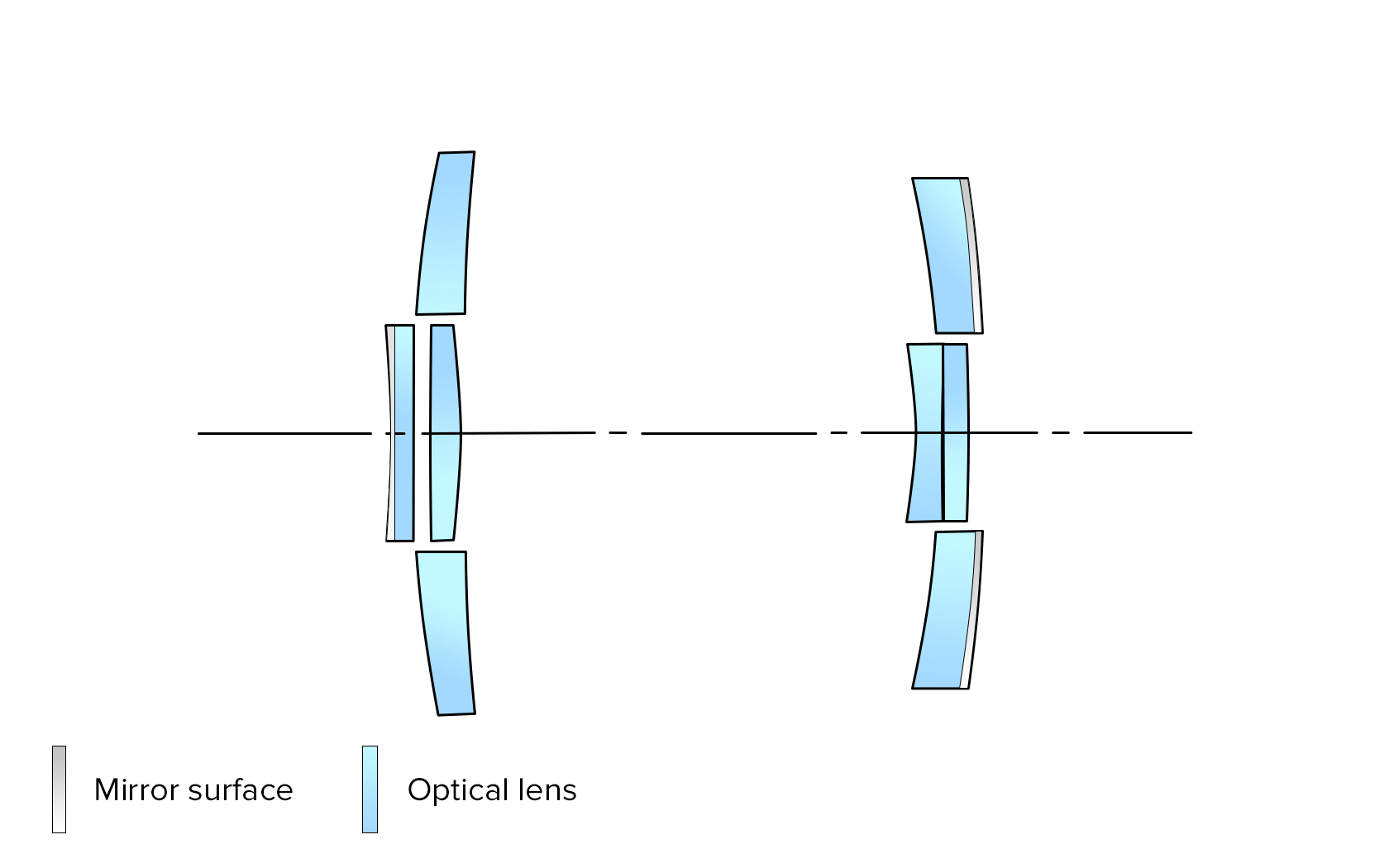

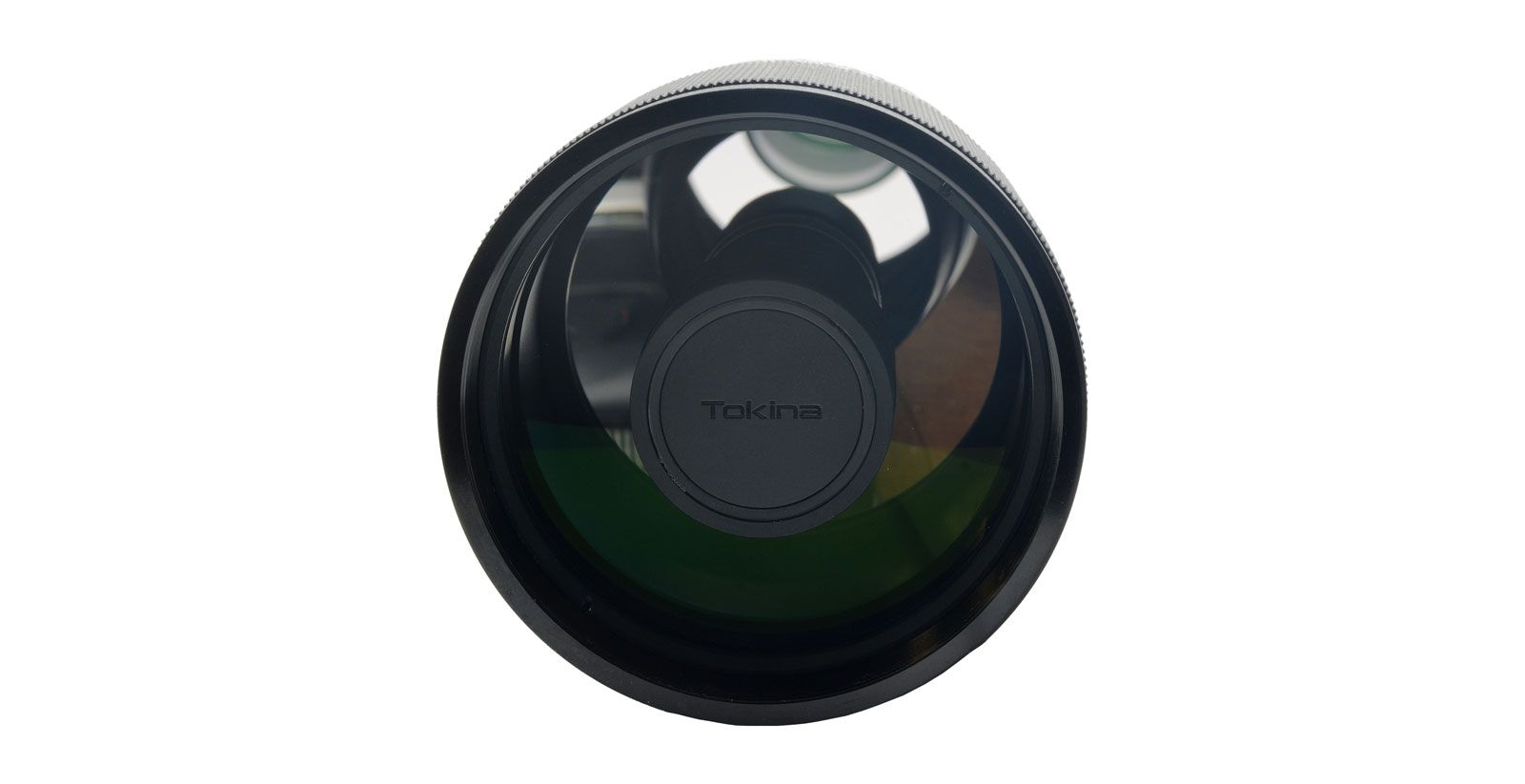

LENS CONSTRUCTION

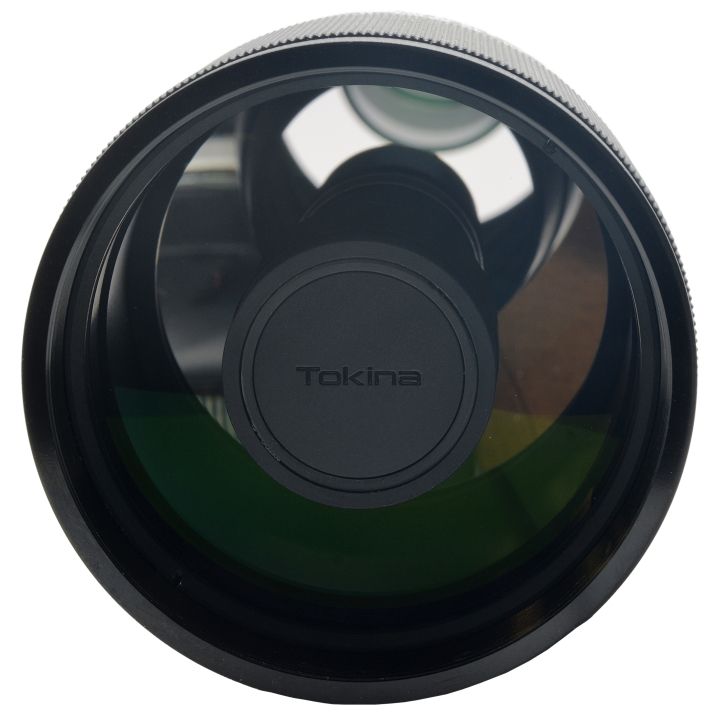

Mirror lenses are tele photo lenses that incorporate a combination of 3 lenses silvered on the outside of the glass to reflect light back and forth between the ends of the lens. This structure folds the light cutting the tube length in half. In this way the construction makes the physical size of the lens around a third of the size of a conventional lens and allows a lightweight body, because the mirrors are much lighter than the optical glass.
Rediscovering Reflex Lens with Mirroless Cameras
Reflex type of lenses are used to be considered as out of fashion, inconvenient gear due to fixed aperture, manual focusing and absence of image stabilization. We suggest to rediscover all advantages of reflex type lenses again, by using it with contemporary mirrorless cameras.
