Unitree Go2 Robotic Quadruped
- Unitree Go2 Robotic Quadruped
- Available in 3 packages: Air, Pro and Edu.
- 4D Ultra-wide LIDAR as standard
- Weight: 15kg
- Ideal for consumers, schools, universities, research, and industrial applications.
Your New Intelligent Friend
Based on the technical innovation of lightweight quadrupeds, Unitree upgraded its technology to create a smart and improved walking partner. Go2 features Unitree's self-developed 4D LIDAR L1 with 360° x90° hemispherical ultra-wide recognition, super small blind spot and a minimum detection distance as low as 0.05m, enabling Go2 to recognise multiple terrains.

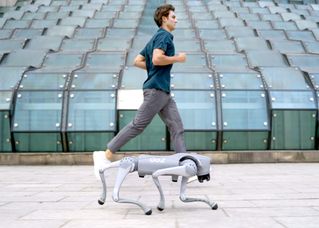

Intelligent side-by-side follow
By adopting the new wireless vector positioning and control technology, the positioning accuracy is technically upgraded by 50%. In open spaces with no shelter, the remote control distance can reach over 30m, and combined with the optimised obstacle avoidance strategy, it can make the robot better traverse complex terrain.
Capable of a variety of actions and poses

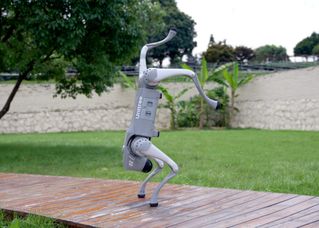

The Unitree Go2 boasts a variety of poses such as jumping, stretching, shaking hands, cheering, pouncing, and sitting down.
| Specifications | Go2 Air | Go2 Pro | Go2 Edu |
| Dimensions standing | 70x31x40cm | 70x31x40cm | 70x31x40cm |
| Dimensions crouching | 76x31x20cm | 76x31x20cm | 76x31x20cm |
| Weight (with battery) | 15kg | 15kg | 15kg |
| Material | Aluminium alloy & high strength plastic | Aluminium alloy & high strength plastic | Aluminium alloy & high strength plastic |
| Voltage | 28V - 33.6V | 28V - 33.6V | 28V - 33.6V |
| Peak capicity | 2000W | 2000W | 2000W |
| Payload | 7kg | 8kg | 8kg |
| Max speed | 2.5m/s | 3.5m/s | 3.7m/s |
| Max climb height | 15cm | 16cm | 16cm |
| Max climb angle | 30° | 40° | 40° |
| Range of motion | Body: -48° to 48° Thigh: -200° to 90° Shank: -156° to -48° |
Body: -48° to 48° Thigh: -200° to 90° Shank: -156° to -48° |
Body: -48° to 48° Thigh: -200° to 90° Shank: -156° to -48° |
| Intra-joint circuit | Yes | Yes | Yes |
| Joint Heat Pipe Cooler | Yes | Yes | Yes |
| Wireless Vector Positioning Module | No | Yes | Yes |
| LiDAR FOV | 360° x 90° | 360° x 90° | 360° x 90° |
| Intelligent Detection & Avoidance | Yes | Yes | Yes |
| HD Wide-angel camera | Yes | Yes | Yes |
| Foot-end force sensor | No | No | Yes |
| Basic Actions | Yes | Yes | Yes |
| Auto-scaling strap | No | Yes | Yes |
| Upgraded Intelligent OTA | Yes | Yes | Yes |
| RTT 2.0 image transmission | Yes | Yes | Yes |
| Graphical programme | Yes | Yes | Yes |
| Front light | Yes | Yes | Yes |
| WiFi6 with dual-band | Yes | Yes | Yes |
| Bluetooth 5.2/4.2/2.1 | Yes | Yes | Yes |
| 4G Module (China & EU) | No | Yes | Yes |
| Voice Function | No | Yes | Yes |
| ISS 2.0 Intelligent side-follow | Yes | Yes | Yes |
| Charging plate compatibility | No | No | Yes |
| Manual Controller | Optional | Optional | Yes |
| High computing power module | No | No | NVIDIA Jetson Orin (optional) |
| Battery | 8,000mAh | 8,000mAh | 15,000mAh (endurance) |
| Battery Life | 1-2h | 1-2h | 2-4h |
| Charger | 33.6V 3.5A | 33.6V 3.5A | 33.6V 9A |
| Warranty | 6 months | 1 year | 1 year |
