Vanguard LVL-45
Whether you're a videographer or landscape photographer, the ability to level your tripod in seconds on any terrain will save time that you can use on composing the perfect shot. Vanguard's Levelling Adaptor will allow you to do this on any tripod, and the Leveling Adaptor 45 is a lightweight CNC machined universal adaptor with a 45mm base.

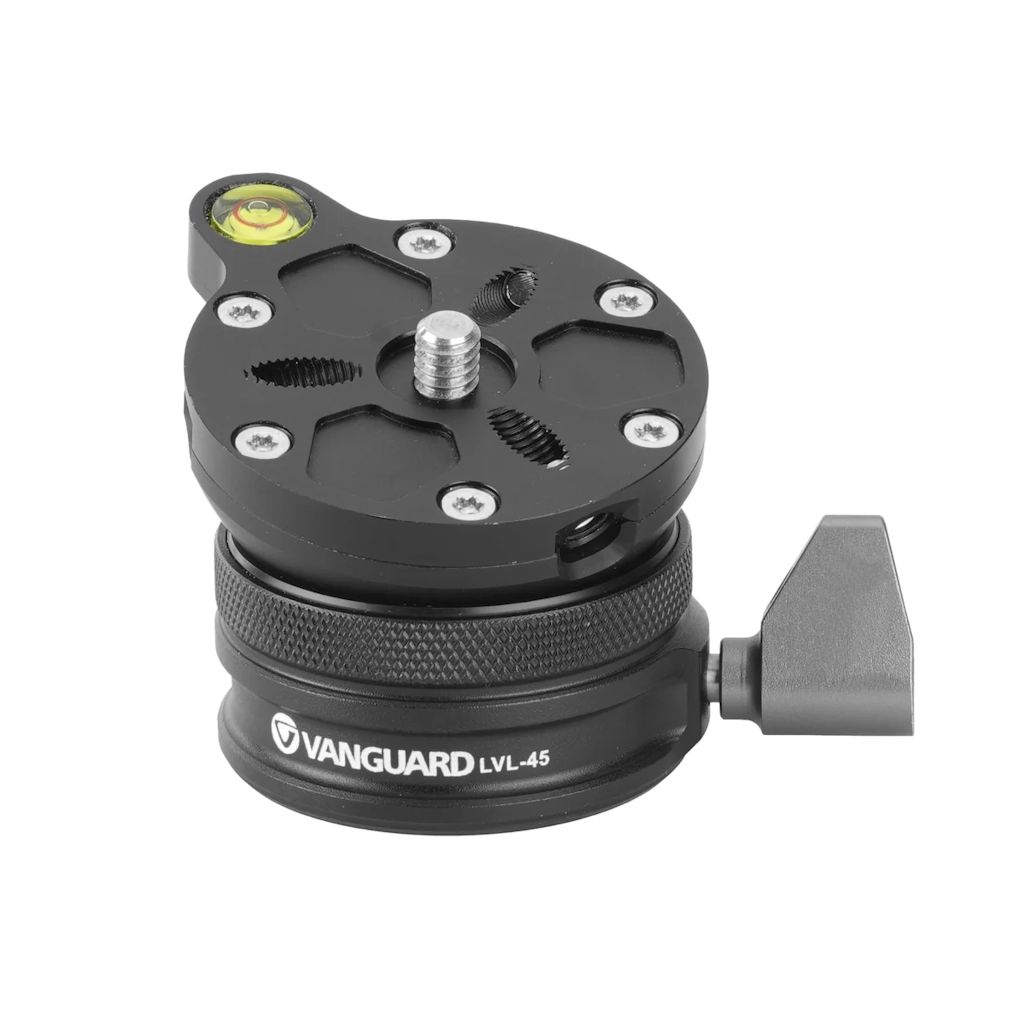

This lightweight CNC machined 1/2 ball level weighs 140g and has a load capacity of 18kg, and is designed to tilt ±15° and rotate 360° using the one easy grip locking knob. It also includes a clear spirit bubble to check that your tripod head and camera are perfectly level in seconds, whatever the terrain. The level comes with a built in 3/8" thread in the base that is factory fitted with a 1/4" adaptor, ensuring that it will fit onto any tripod or monopod.

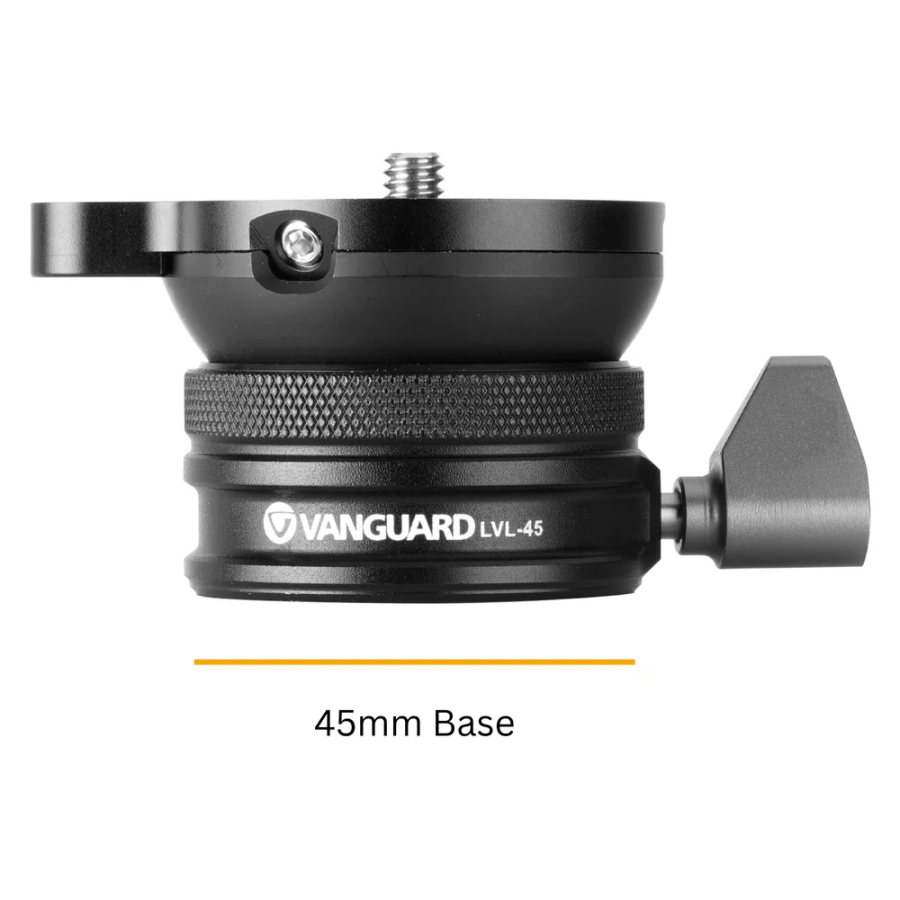

That said, the base of this model is 45mm, so is designed to be attached to all but the smallest travel tripods, but other sizes are available. The number in the model name relates to the base diameter in millimetres (for example LVL-42 has a 42mm base). On top of the level is a 1/4" thread which allows any tripod head (or camera) with a 1/4" thread to fit, and it includes a second 1/4" to 3/8" adaptor to allow any tripod head to fit.
| Model | LVL-42 | LVL-45 | LVL-55 | LVL-65 | LVL-75 |
| Base Diameter | 42mm | 45mm | 55mm | 65mm | 75mm |
| Top Diameter | 45mm | 50mm | 60mm | 70mm | 80mm |
| Height | 36mm | 39mm | 40mm | 40mm | 43mm |
| Weight | 115g | 140g | 185g | 250g | 355g |
| Load Capacity | 20kg | 25kg | 30kg | 35kg | 40kg |
| Tilt | ±13° | ±15° | ±15° | ±15° | ±15° |
| Pan | 360° | 360° | 360° | 360° | 360° |
| CNC Machined | Yes | Yes | Yes | Yes | Yes |
Brand: Vanguard |
Code: V254067
APN: 4719856254067 |
Supplier Code: V254067
Brand: Vanguard |
Code: V254067
APN: 4719856254067 |
Supplier Code: V254067
At a glance
Whether you're a videographer or landscape photographer, the ability to level your tripod in seconds on any terrain will save time that you can use on composing the perfect shot. Vanguard's Levelling Adaptor will allow you to do this on any tripod, and the Leveling Adaptor 45 is a lightweight CNC machined universal adaptor with a 45mm base.
|
This lightweight CNC machined 1/2 ball level weighs 140g and has a load capacity of 18kg, and is designed to tilt ±15° and rotate 360° using the one easy grip locking knob. It also includes a clear spirit bubble to check that your tripod head and camera are perfectly level in seconds, whatever the terrain. The level comes with a built in 3/8" thread in the base that is factory fitted with a 1/4" adaptor, ensuring that it will fit onto any tripod or monopod. That said, the base of this model is 45mm, so is designed to be attached to all but the smallest travel tripods, but other sizes are available. The number in the model name relates to the base diameter in millimetres (for example LVL-42 has a 42mm base). On top of the level is a 1/4" thread which allows any tripod head (or camera) with a 1/4" thread to fit, and it includes a second 1/4" to 3/8" adaptor to allow any tripod head to fit. |
|
