Vixen SX2 Equatorial Telescope Mount with Star Book One

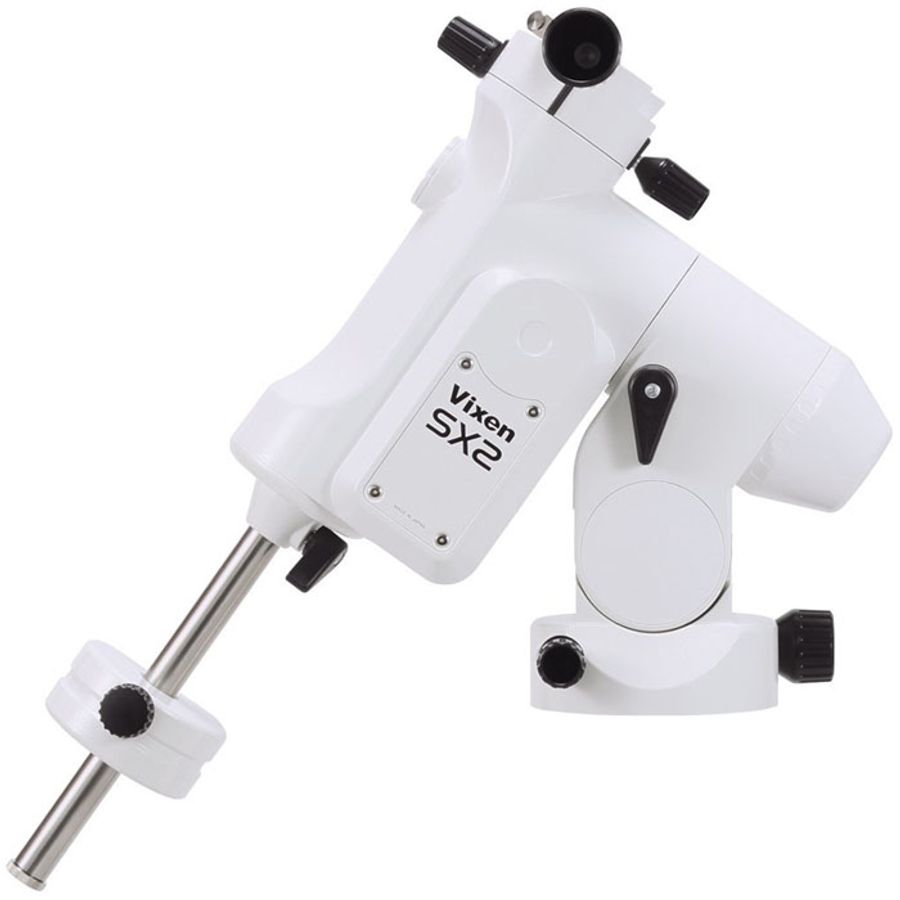

Vixen SX2 Equatorial Mount
The SX2 incorporates precision plus motors and accurate micro-step motion control which achives highly stable and smooth movement of the mount. The counterweight bar is moved back into the mount body for strage by simply loosening the bar lock lever and it is convenient for transporting the mount and set up.

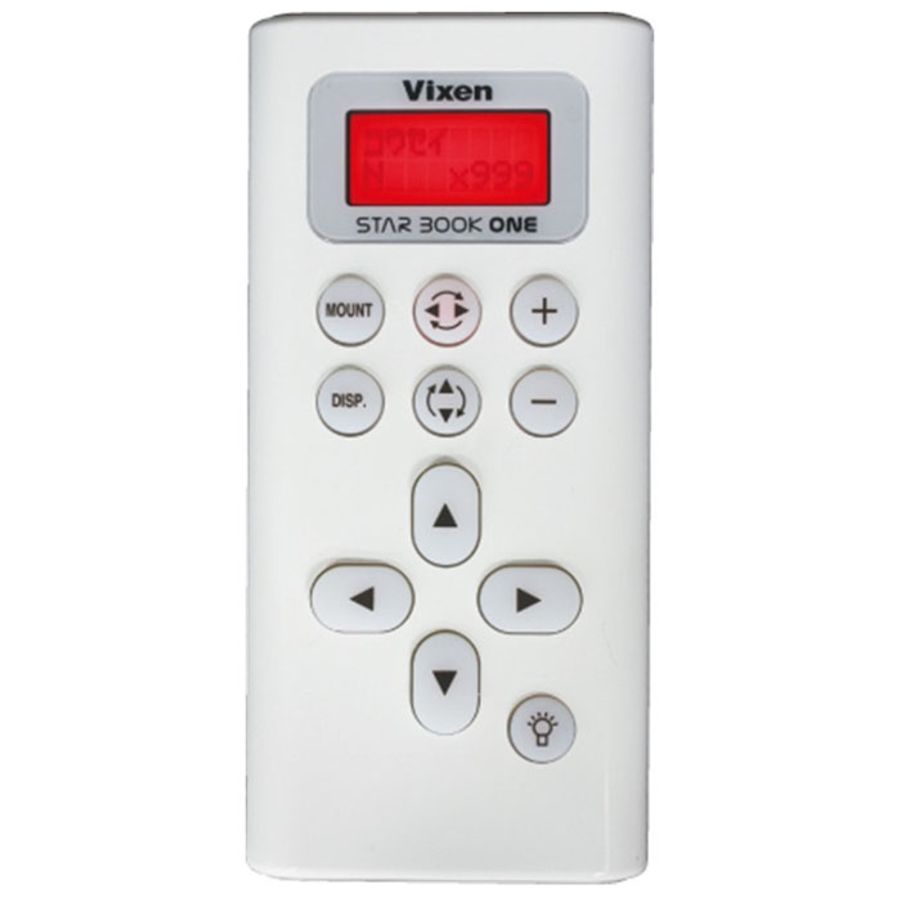

Vixen STAR BOOK ONE dual-axis controller.
The SX2 mount comes as standard with the STAR BOOK ONE. The four direction buttons on the STAR BOOK ONE moves the mount in X and Y axes (RA snd Dec directions) either quickly and slowly. Versatile tracking options are available in addition to sidereal and solar tracking rates. Backlash compensation, autoguider port and built-in LED light are some of useful functions of the STAR BOOK ONE.
| Equatorial mount | |
|
Specifications |
SX2 equatorial mount |
|
R. A. slow motion |
Worm and wheel gears with 180-tooth whhole circle micro movement, dia. 72mm, brass |
|
DEC slow motion |
Worm and wheel gears with 180-tooth whhole circle micro movement, dia. 72mm, brass |
|
Worm shaft |
Dia. 9mm, made of brass |
|
R. A. axis |
Dia. 40mm |
|
DEC axis |
Dia. 35mm |
|
Number of bearings |
5 pieces |
|
Counterweight bar |
Dia. 20mm stainless steel, retractable |
|
Polar alignment scope (optional) |
Compatible with polar alignment scope PF-LII |
|
Azimuth adjustment |
Fine adjustments by double screws with knob, about 1.2 degrees per rotation, adjustable range ±7 degrees. |
|
Altitude adjustment |
Latitude adjustable between 0 degree and 70 degrees (divided into high, middle and low altitude zones) with 2 degree increments, and adjustable ±15 degrees per zone, fine adjustmentby tangent screw with knob, about 0.8 degrees per location. |
|
Motor drive |
Pulse motors with micro-step motion control (250pps) |
|
Slewing / tracking |
Automatic slewing by wireless unit with smartphone (free app), 1000x of sidereal rate at max slewing speed, high-precision tracking |
|
Loading capacity |
12kg (300kg-cm torque load at 25cm from the cross point of the RA and DEC axes.) |
|
Controller cable port |
D-SUB 9 PIN male |
|
Power port |
DC12V EIAJ RC5320A Class4 Center-plus |
|
Working voltage /. Electrical consumption |
DC12V / 0.3～2.0A |
|
Size |
343 x 360 x 128mm |
|
Weight |
Approx. 7kg (excl. counterweight) |
|
Counterweight |
1.9kg x 1 |
|
Optional accessories |
SXG-HAL130 tripod, SXG half pillar, SXG-P85DX pillar, power supply |

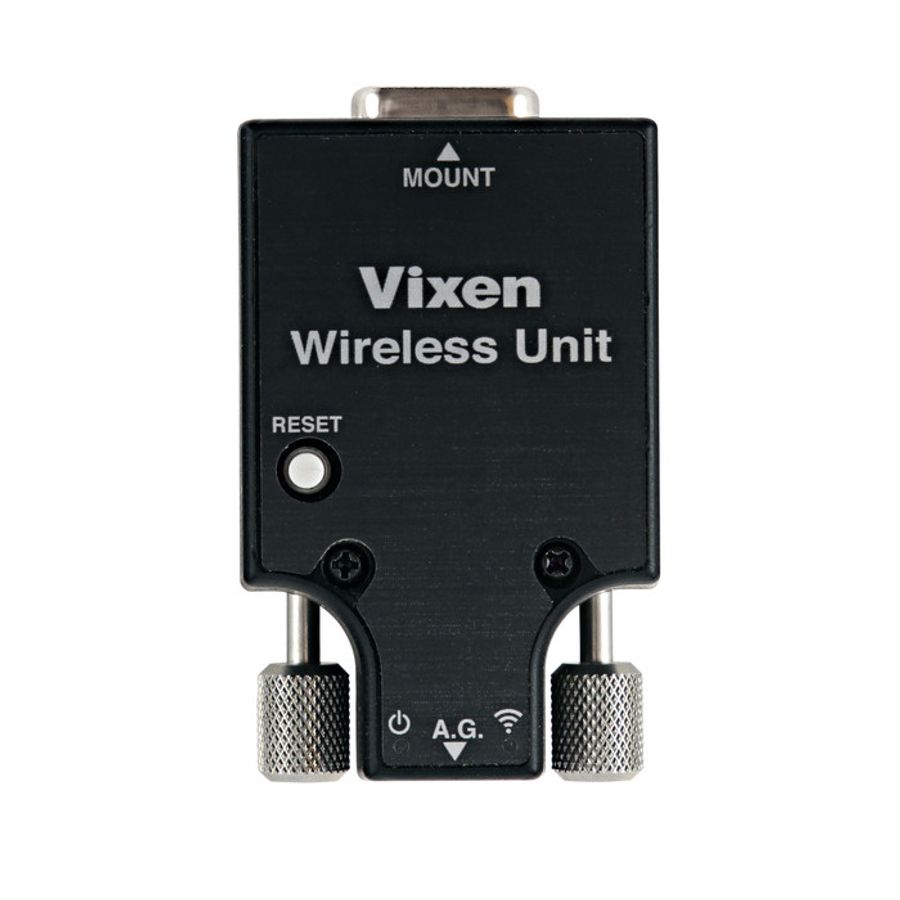

| Wireless unit | |
|
Type of devices |
WiFi mount controller unit |
|
CPU |
32bit CISC Processor 120MHz |
|
Controller cable port |
D-SUB 9PIN male |
|
Autoguider port |
6-pole 6-core modular jack (for external autoguider) |
|
Wifi function |

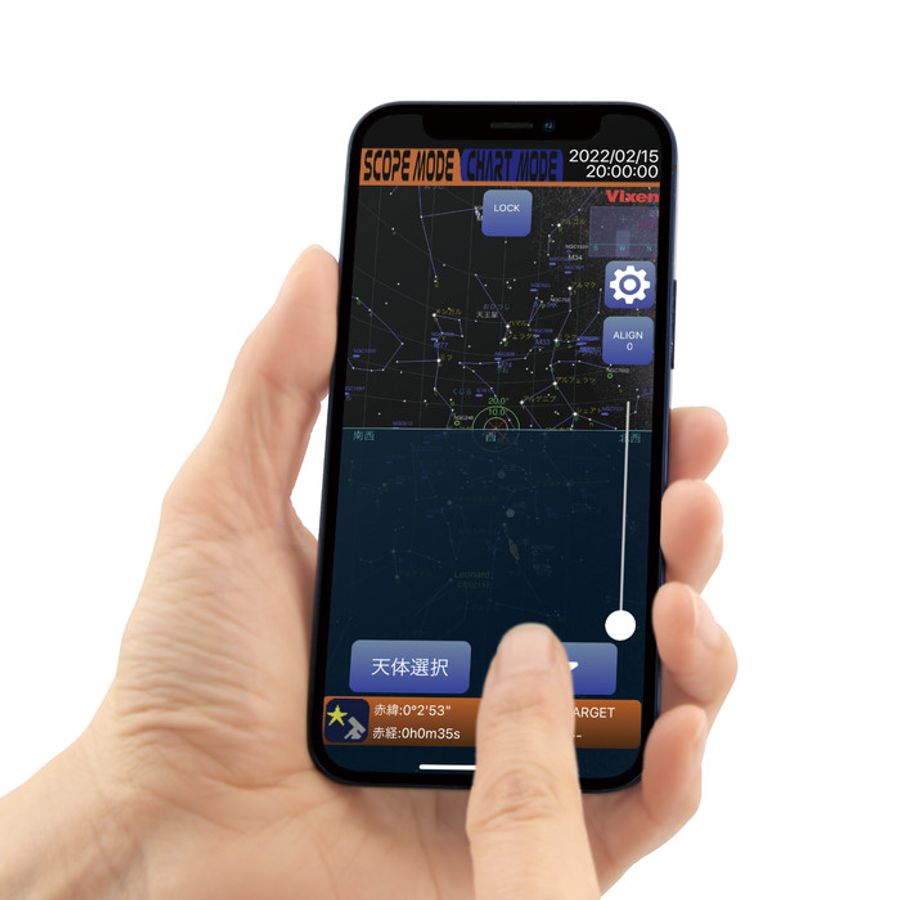

Using smartphone as a user interface with the app STAR BOOK Wireless |
|
App operating environment |
Supported OS: Android 6 or higher, iOS 9.0 or higher* |
|
Power supply |
Supplied from the mount |
|
Operating voltage / power consumption |
DC12V / 0.1A (max) |
|
Operating temperature |
0～40℃ |
|
Others |
Version-up with wireless LAN |
