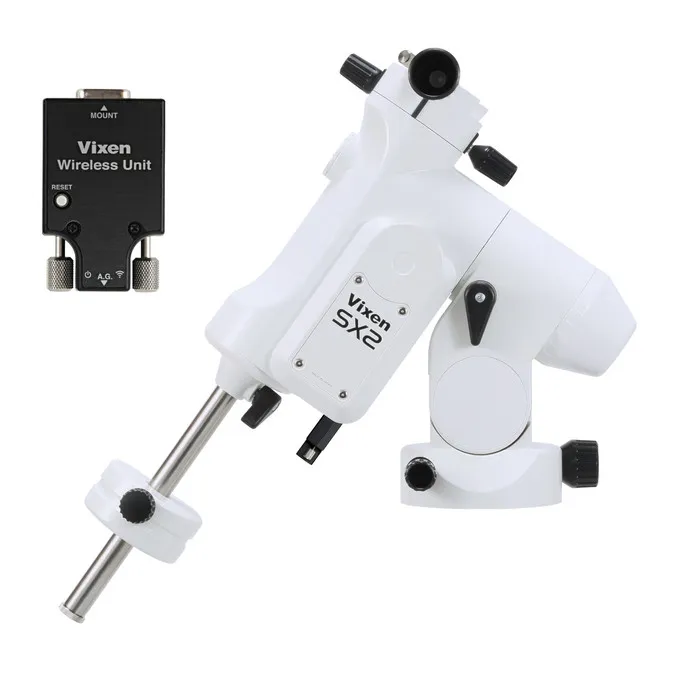

Vixen SX2 Mount with WL
| Equatorial mount | |
|
Specifications |

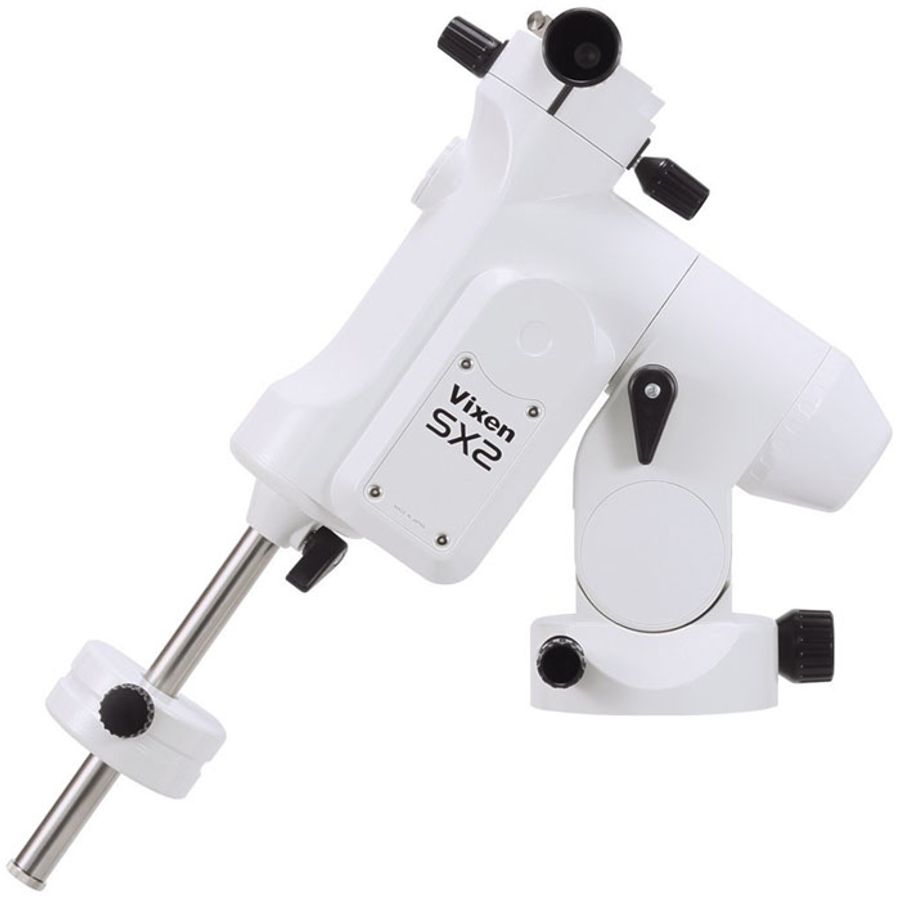

SX2 equatorial mount |
|
R. A. slow motion |
Worm and wheel gears with 180-tooth whhole circle micro movement, dia. 72mm, brass |
|
DEC slow motion |
Worm and wheel gears with 180-tooth whhole circle micro movement, dia. 72mm, brass |
|
Worm shaft |
Dia. 9mm, made of brass |
|
R. A. axis |
Dia. 40mm |
|
DEC axis |
Dia. 35mm |
|
Number of bearings |
5 pieces |
|
Counterweight bar |
Dia. 20mm stainless steel, retractable |
|
Polar alignment scope (optional) |
Compatible with polar alignment scope PF-LII |
|
Azimuth adjustment |
Fine adjustments by double screws with knob, about 1.2 degrees per rotation, adjustable range ±7 degrees. |
|
Altitude adjustment |
Latitude adjustable between 0 degree and 70 degrees (divided into high, middle and low altitude zones) with 2 degree increments, and adjustable ±15 degrees per zone, fine adjustmentby tangent screw with knob, about 0.8 degrees per location. |
|
Motor drive |
Pulse motors with micro-step motion control (250pps) |
|
Slewing / tracking |
Automatic slewing by wireless unit with smartphone (free app), 1000x of sidereal rate at max slewing speed, high-precision tracking |
|
Loading capacity |
12kg (300kg-cm torque load at 25cm from the cross point of the RA and DEC axes.) |
|
Controller cable port |
D-SUB 9 PIN male |
|
Power port |
DC12V EIAJ RC5320A Class4 Center-plus |
|
Working voltage /. Electrical consumption |
DC12V / 0.3～2.0A |
|
Size |
343 x 360 x 128mm |
|
Weight |
Approx. 7kg (excl. counterweight) |
|
Counterweight |
1.9kg x 1 |
|
Optional accessories |
SXG-HAL130 tripod, SXG half pillar, SXG-P85DX pillar, power supply |
| Wireless unit | |
|
Type of devices |
WiFi mount controller unit |
|
CPU |
32bit CISC Processor 120MHz |
|
Controller cable port |
D-SUB 9PIN male |
|
Autoguider port |
6-pole 6-core modular jack (for external autoguider) |
|
Wifi function |

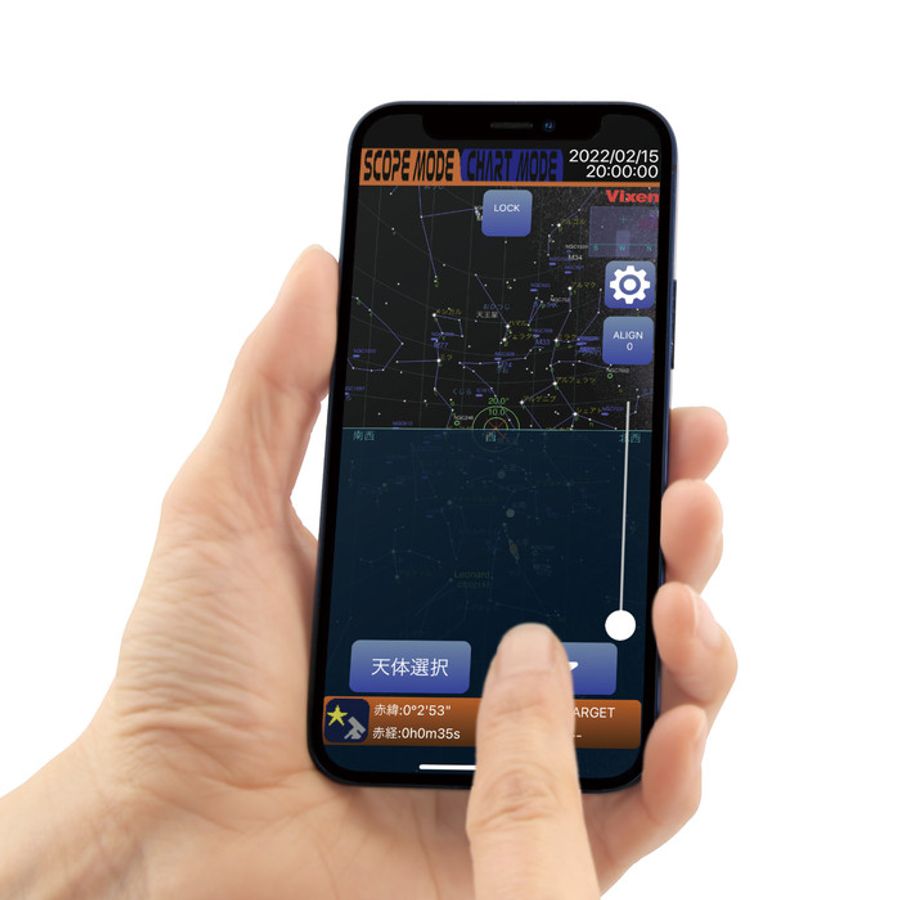

Using smartphone as a user interface with the app STAR BOOK Wireless |
|
App operating environment |
Supported OS: Android 6 or higher, iOS 9.0 or higher* |
|
Power supply |
Supplied from the mount |
|
Operating voltage / power consumption |
DC12V / 0.1A (max) |
|
Operating temperature |
0～40℃ |
|
Others |
Version-up with wireless LAN |
Brand: Vixen |
Code: VX25049
APN: 4955295250493 |
Supplier Code: 25409
Brand: Vixen |
Code: VX25049
APN: 4955295250493 |
Supplier Code: 25409
