VIXEN APZ-R130Sf Telescope with mount Tripod and Accessories

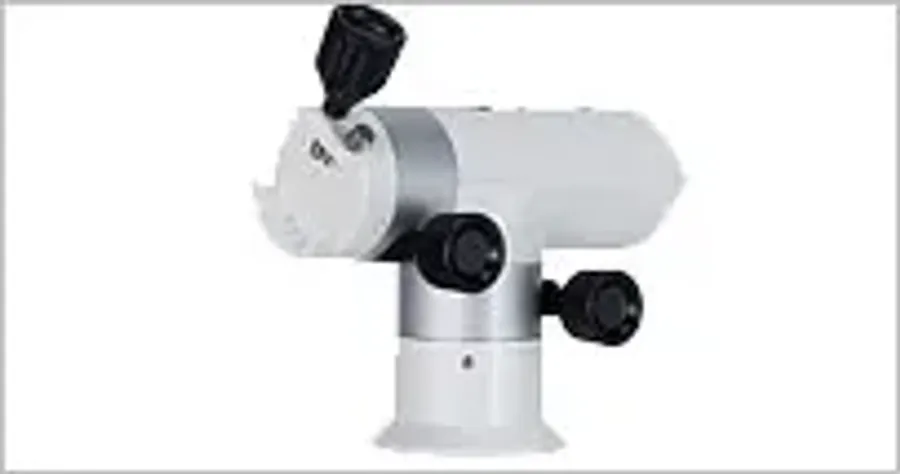

APZ Mount
With smooth friction control mechanism of the APZ mount, the telescope can be moved quickly by hand to your trget object. Lightweight grab-and-go telescope to take it to anywhere.

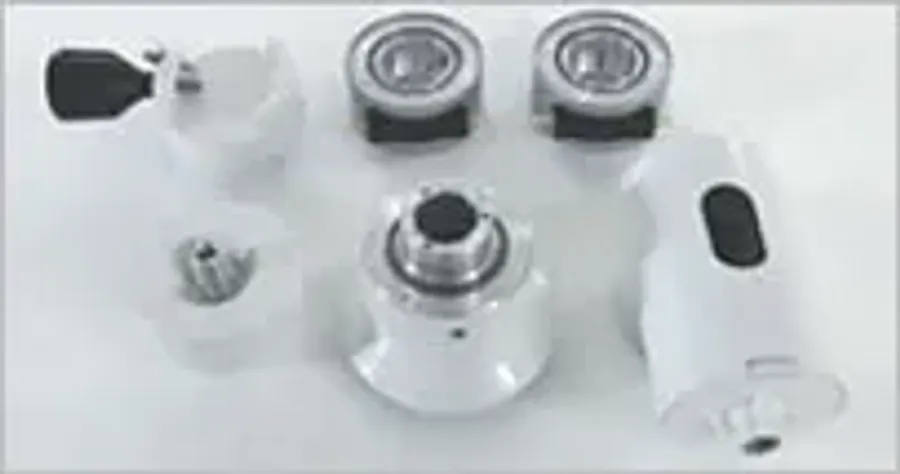

Derived from the transformation of the AP Mount.
The mount is composed of sectional modules and units that can be easily upgraded to an AP equatorial mount with additional components.

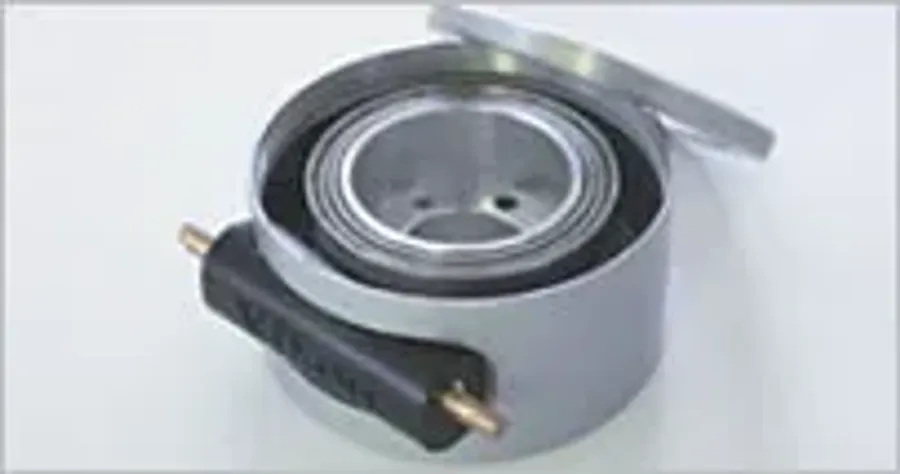

Sealed Ball Bearings
The sealed type ball bearings are used for movable part to eliminate from mixing in of dust particles and offer excellent durability. It ensures smooth rotation of an optical tube loaded.
Decent 8kg Loading Weight
The rigid body and sealed ball bearings allows for using a VMC telescope with 200mm aperture.
Optical tubes
| Objective mirror, effective aperture | 130mm parabolic, multicoated |
| Focal length (Focal ratio) | 650mm (F5.0) |
| Resolving power / Limiting magnitude | 0.89 arc seconds / 12.3 |
| Light gathering power | 345x unaided eye |
| Dimensions / Weight | 160mm dia. x 575mm long / 5.3kg (Net 4.0kg) |
| Finder scope | 6x30mm Finder, 7 degrees field of view |
Eyepiece section
| Adapter threads / Visual back | 43mm and 42mm for T-ring / 31.7mm push fit |
| Eyepieces | PL20mm (33x, 89' field of view), PL6.3mm (103x, 30' field of view) |
Tripod
| Leg type, material | 3-section aluminum legs with quick-release leg clamps |
| Size / Weight | Adjustable from 570mm to 1296mm in length, from 526mm to 1159mm in height, setup radius from 350mm to 710mm / 3.0 kg |
Others
| Photography | Usable with Prime focus, Eypiece projection and Afocal imaging |
| Solar observation | Not available |
| Total weight | 12.1kg (without eyepieces) |
Brand: Vixen |
Code: VX25844
APN: 4955295258444 |
Supplier Code: 25844
