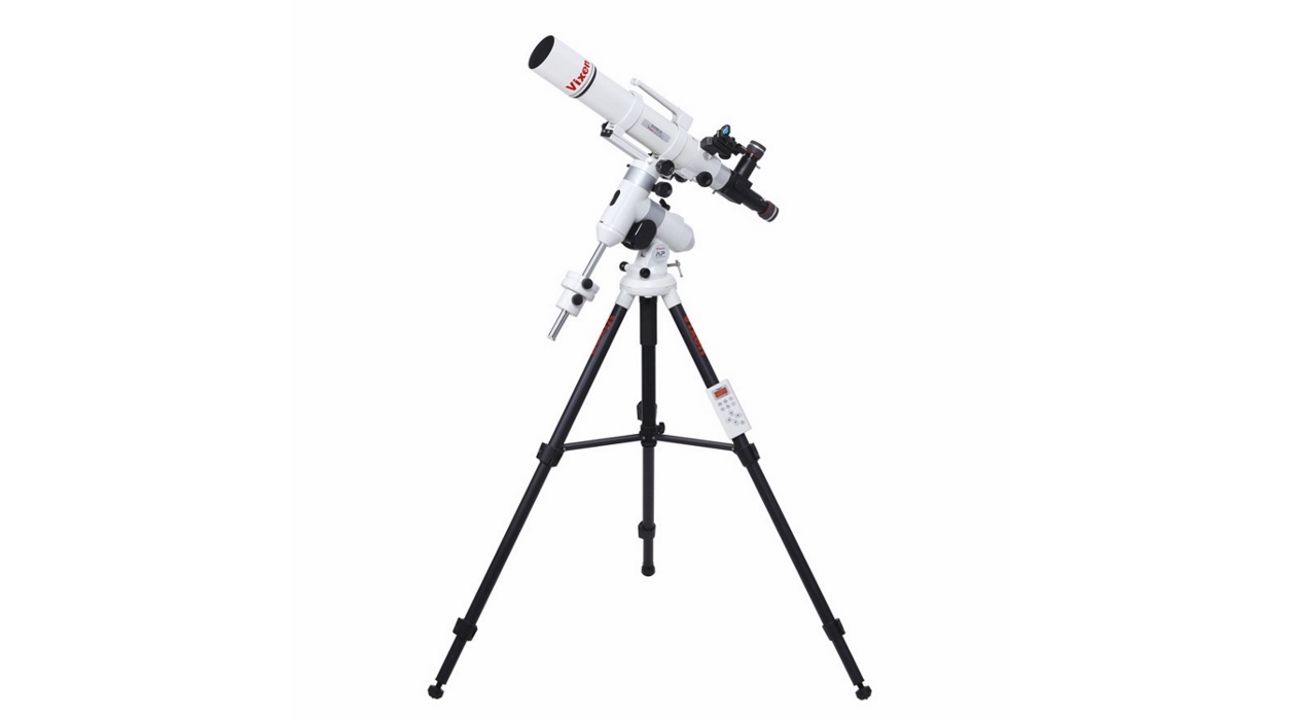

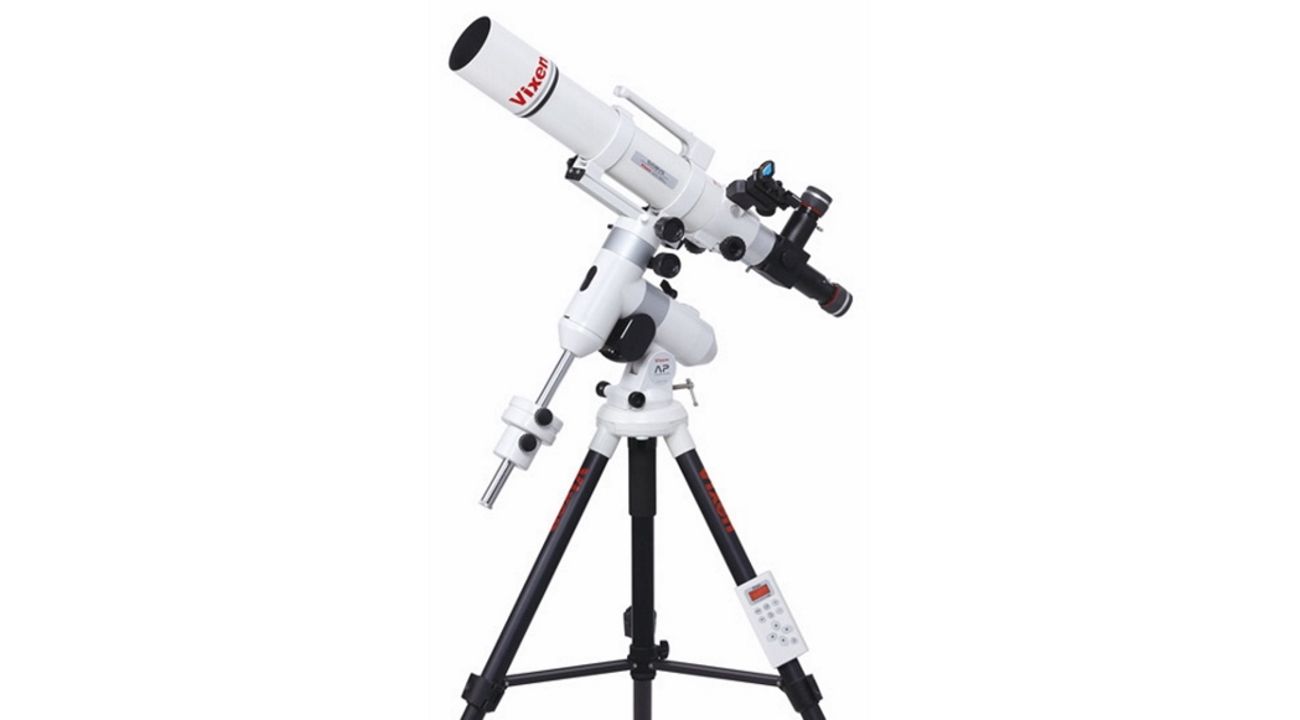

VIXEN AP-SD81S-SM Telescope with Mount Tripod & Accessories

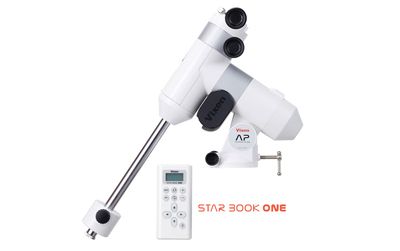

APZ Mount
With smooth friction control mechanism of the APZ mount, the telescope can be moved quickly by hand to your trget object. Lightweight grab-and-go telescope to take it to anywhere.
Derived from the transformation of the AP Mount.
The mount is composed of sectional modules and units that can be easily upgraded to an AP equatorial mount with additional components.
Sealed Ball Bearings
The sealed type ball bearings are used for movable part to eliminate from mixing in of dust particles and offer excellent durability. It ensures smooth rotation of an optical tube loaded.
Decent 8kg Loading Weight
The rigid body and sealed ball bearings allows for using a VMC telescope with 200mm aperture.
A80Mf OTA
An achromatic refractor with multicoated 80mm objective lens that allows sharp views of the moon and planets.

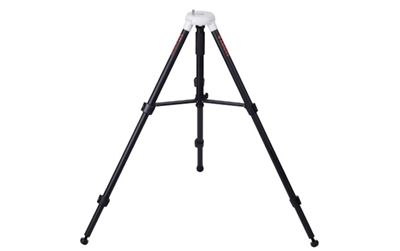

APP-TLL130 Tripod
A highly compact and lightweight tripod combining durability and ease of use. The tripod legs can be extended to 130cm long or retracted to about 60cm long for storage. The spike of the leg is protected with rubber covering and it allows for using the tripod according to your set up envirnment.

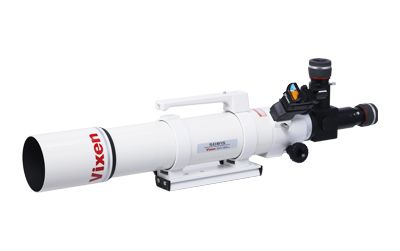

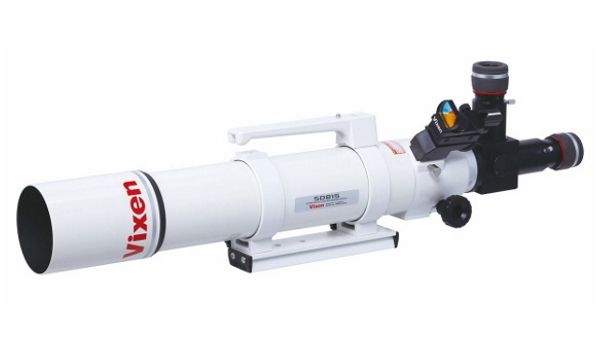

Optical Tube
| Objective Lens | D=81mm, SD Apochrimatic, Multi Coated |
| Focal length (Focal ratio) | F=625mm (f7.7) |
| Resolving power / Limiting magnitude | 1.43 arc seconds / 11.3 |
| Light gathering power | 134× unaided eye |
| Dimensions / Weight | 90mm dia × 585mm long / 3.6kg (Net 2.3kg) |
| Finder scope | XY red Dot Finder Ⅱ (zero power) |
Focuser
| Focusing mechanism | Rack-and-pinion (with focus lock) |
| Adapter threads / Visual back | 60mm and 42mm for T-ring / 50.8mm push fit |
| Accessories | Tube rings, Dovetail tube plate, Metal carry handle |
| Eyepieces | SLV20mm (31X, 97' field of view), SLV5mm (125X, 24' field of view) |
| Leg type, material | 3-section aluminum legs with quick-release leg clamps |
| Size / Weight | Adjustable from 570mm to 1296mm in length, from 526mm to 1159mm in height, setup radius from 350mm to 710mm / 3.0kg |
Others
| Accessories | Parts case, Counterweight 1 kg × 1, 1.9kg × 1 |
| Photography | Usable with Prime focus, Eyepiece projection and Aforcal imaging |
| Solar observation | Available with sun projection screen set B |
| Total weight | 13.1kg (without battries and without eyepieces) |
Brand: Vixen |
Code: VX26163
APN: 4955295261635 |
Supplier Code: 26163
