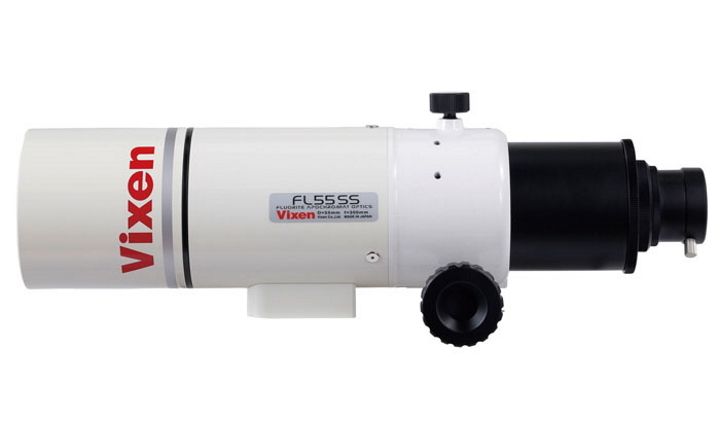

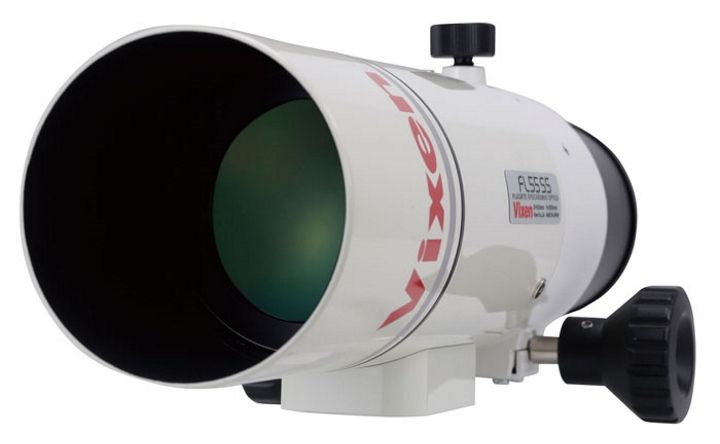

Vixen FL55SS OTA Telescope Optical Tube Assembly
Fluorite lens
A fluorite lens with less chromatic aberration is used to create a sharp image with less color bleeding.

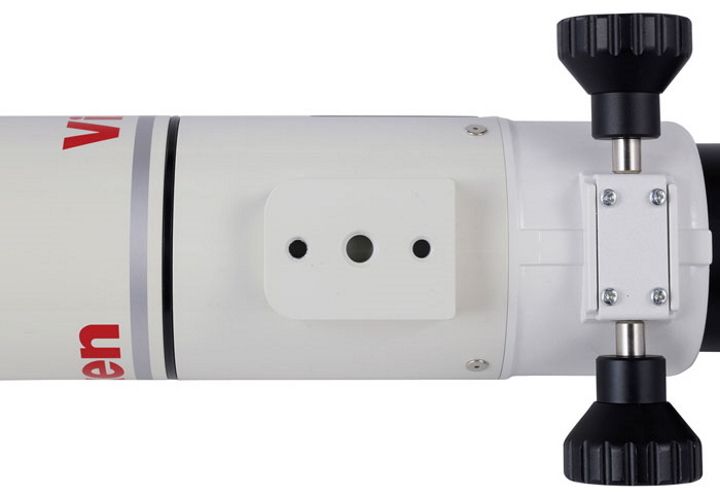

Vixen standard Arimizo, equipped with camera tripod screw
Equipped with slide bar M. It can be mounted as it is on a stand with Vixen standard Arimizo such as AP series and SX series. Equipped with 1/4 inch and 3/8 inch screws. It can be mounted on a commercially available camera tripod.
Compatible with finder (sold separately)
Equipped with screws compatible with the Arimizo finder pedestal (sold separately). Compatible with the separately sold finder (finder legs).
Lens barrel
| Effective diameter of objective lens | 55mm / Fluorite Apochromat / Multi-coating |
| Focal length (aperture ratio F) | 300mm (F5.5) |
| Resolution / limit grade | 2.11 seconds, 10.5, etc. |
| Condensing power | 62 times the naked eye |
| Size / weight | Length 282mm (without extension tube) Outer diameter 80mm 1.5kg |
| Finder | Arimizo type pedestal (sold separately) can be installed |
Eyepiece
| Parts mounting size | Screwed in / 60mm, 43mm, 36.4mm inserted / 31.7mm |
| Eyepiece (31.7mm diameter) | 31.7mm diameter eyepiece (sold separately) can be used |
Other
| Plates, bands, etc. | Slide bar M |
| photography | Enlargement, direct focus, compact digital camera (colimate) shooting possible * A separate camera adapter etc. is required |
| Sun observation | Can be used in combination with the solar projection plate A set (sold separately) (fits, but the weight balance cannot be perfectly adjusted.) |
| Gross weight | 1.5kg (by eyepiece) |
Brand: Vixen |
Code: VX26201
APN: 4955295262014 |
Supplier Code: 26201
Brand: Vixen |
Code: VX26201
APN: 4955295262014 |
Supplier Code: 26201
Fluorite lensA fluorite lens with less chromatic aberration is used to create a sharp image with less color bleeding. |
|
|
Vixen standard Arimizo, equipped with camera tripod screwEquipped with slide bar M. It can be mounted as it is on a stand with Vixen standard Arimizo such as AP series and SX series. Equipped with 1/4 inch and 3/8 inch screws. It can be mounted on a commercially available camera tripod. |
Compatible with finder (sold separately)Equipped with screws compatible with the Arimizo finder pedestal (sold separately). Compatible with the separately sold finder (finder legs). |
|
