Vixen PORTA-A70Lf 70mm Mobile Telescope with Mount Tripod and Accessories

Loading
  • Vixen PORTA-A70Lf 70mm Mobile Telescope with Mount Tripod and Accessories
  • Vixen PORTA-A70Lf 70mm Mobile Telescope with Mount Tripod and Accessories
  • Vixen PORTA-A70Lf 70mm Mobile Telescope with Mount Tripod and Accessories
  • Vixen PORTA-A70Lf 70mm Mobile Telescope with Mount Tripod and Accessories
$835.00 In Stock

An ideal telescope for grab and go observing.
The A70Lf refractor is a basic all-around telescope that gives beginners intriguing views of lunar crators and Saturn's rings.

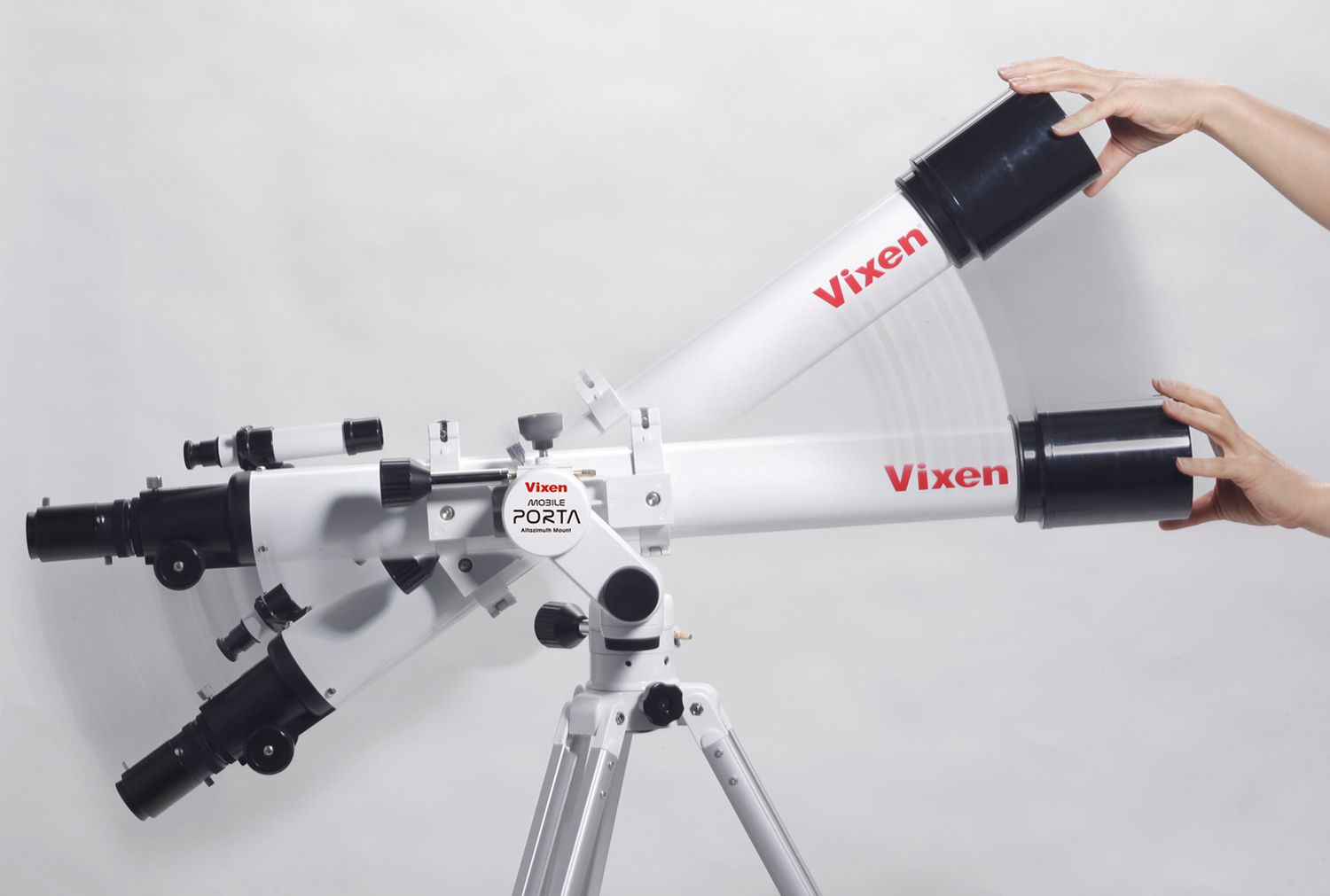

Simple and intuitive operation by friction stop motion.

The MOBILE PORTA has the same function as the PORTA II and you can swing the telescope by hand in the vertical and horizontal directions freely and stop with simple friction.

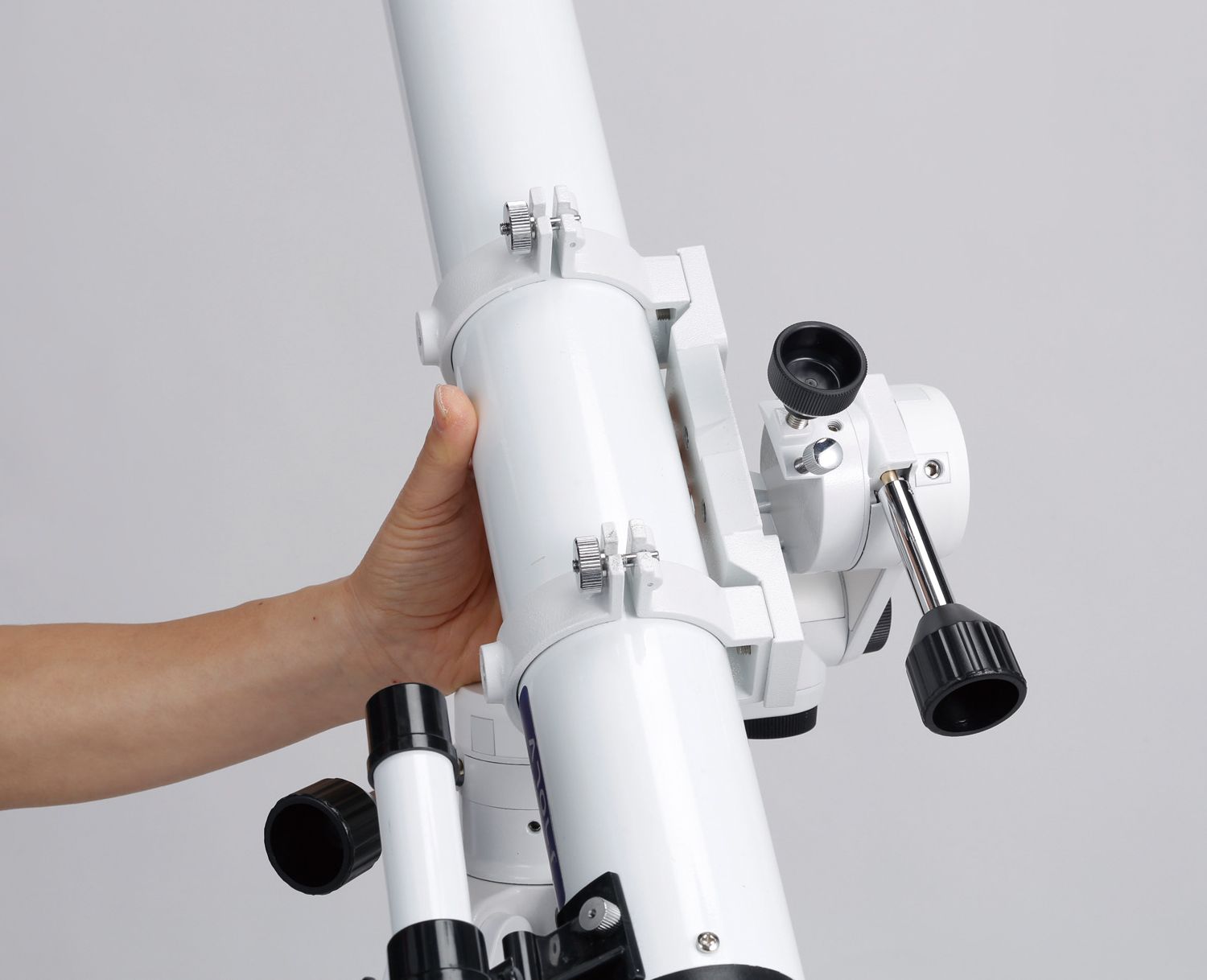

Dovetail-plate Attachment

With Vixen's renowned dovetail-plate system, different optical tubes can be easily attached. The mount holds optical tubes weighing up to 3.5 kg.

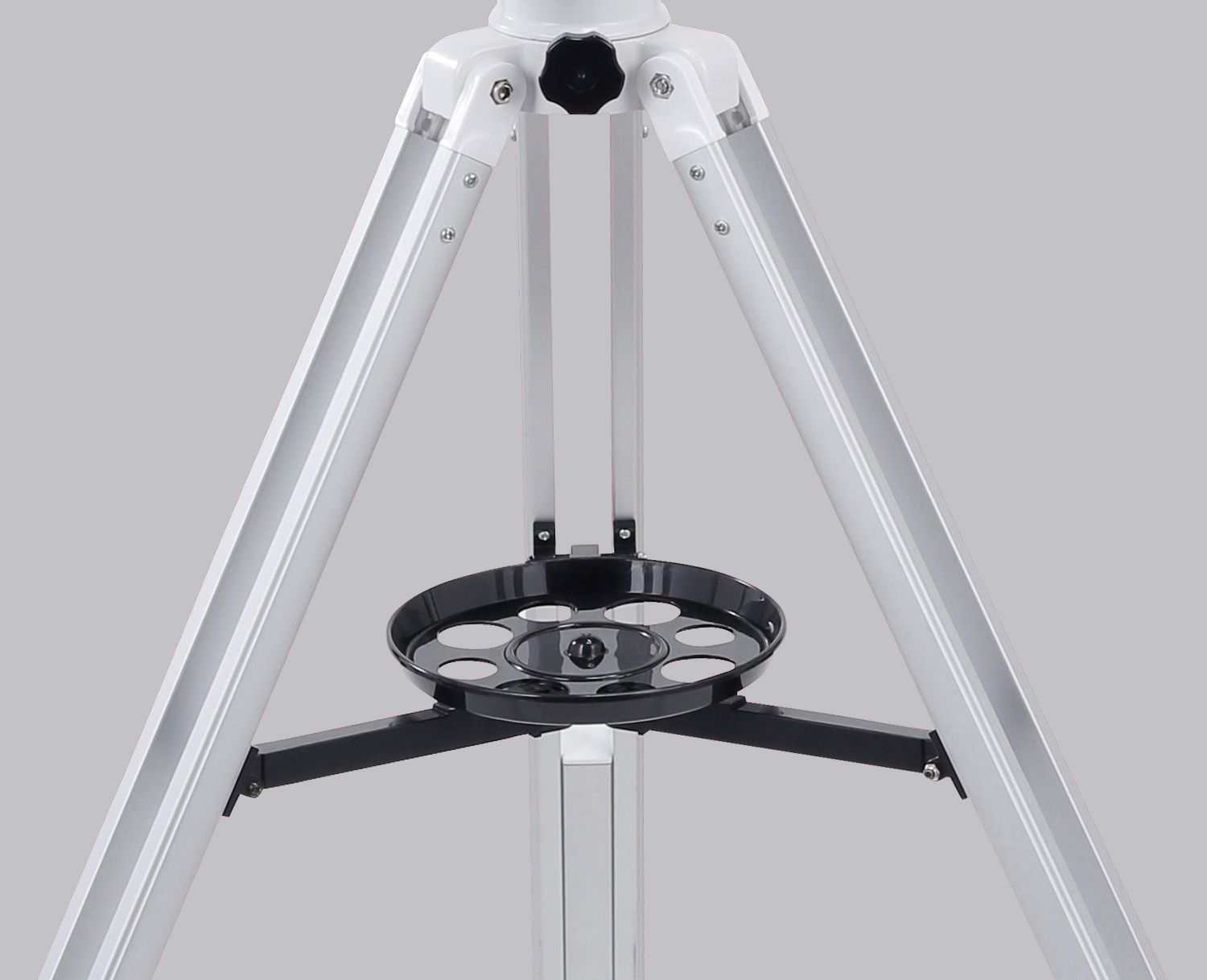

Accessory tray

The accessory tray is convenient in putting small pieces such as eyepieces. It is useful when observing at night.

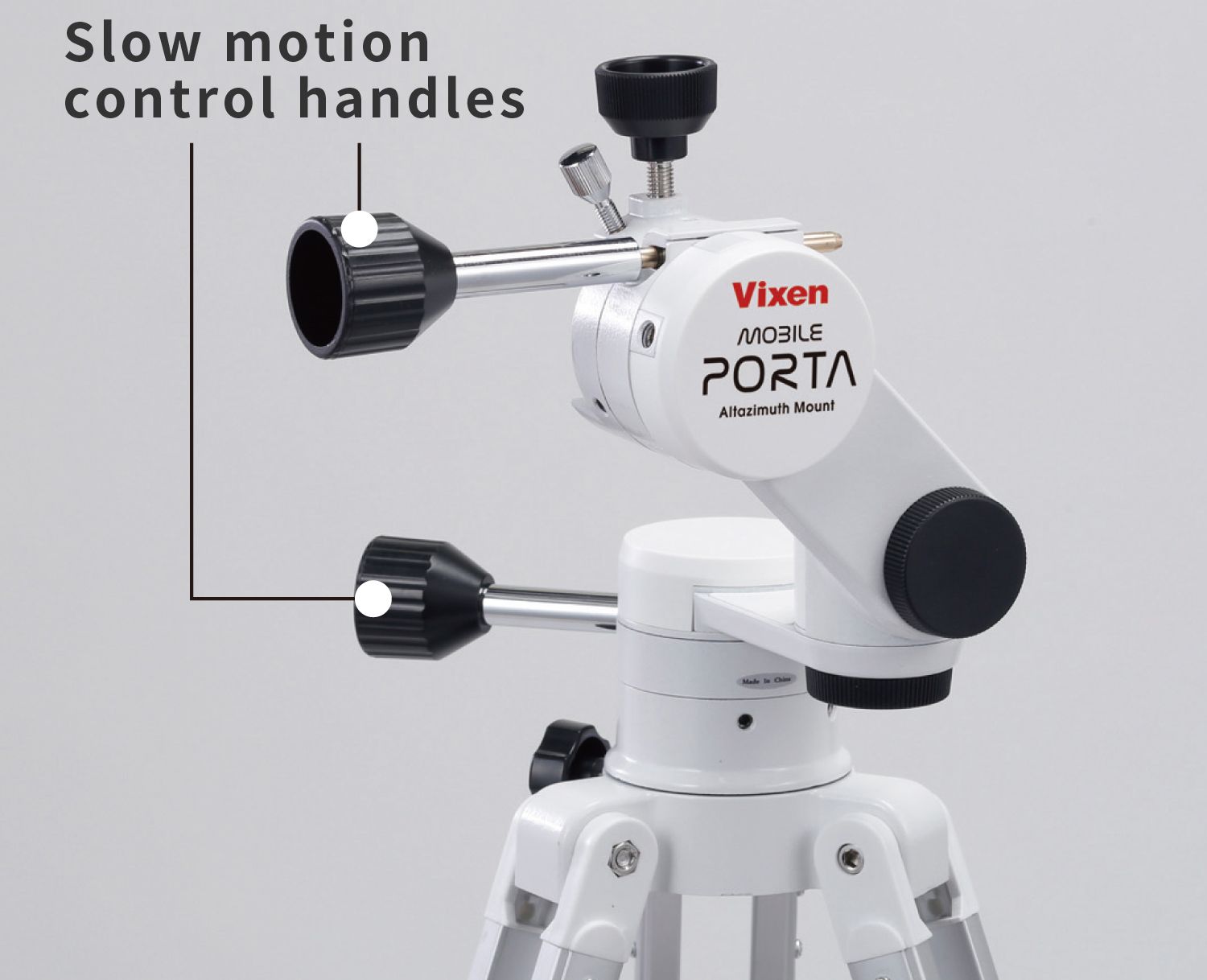

Slow motion control handles

The slow motion control handles of the MOBILE PORTA allow for operating the mount in the whole-circle of the vertical and horizontal movements. It is helpful as used together with the friction stop mechanism when observing at high magnification. The position of the slow motion control handles can be changed if needed.

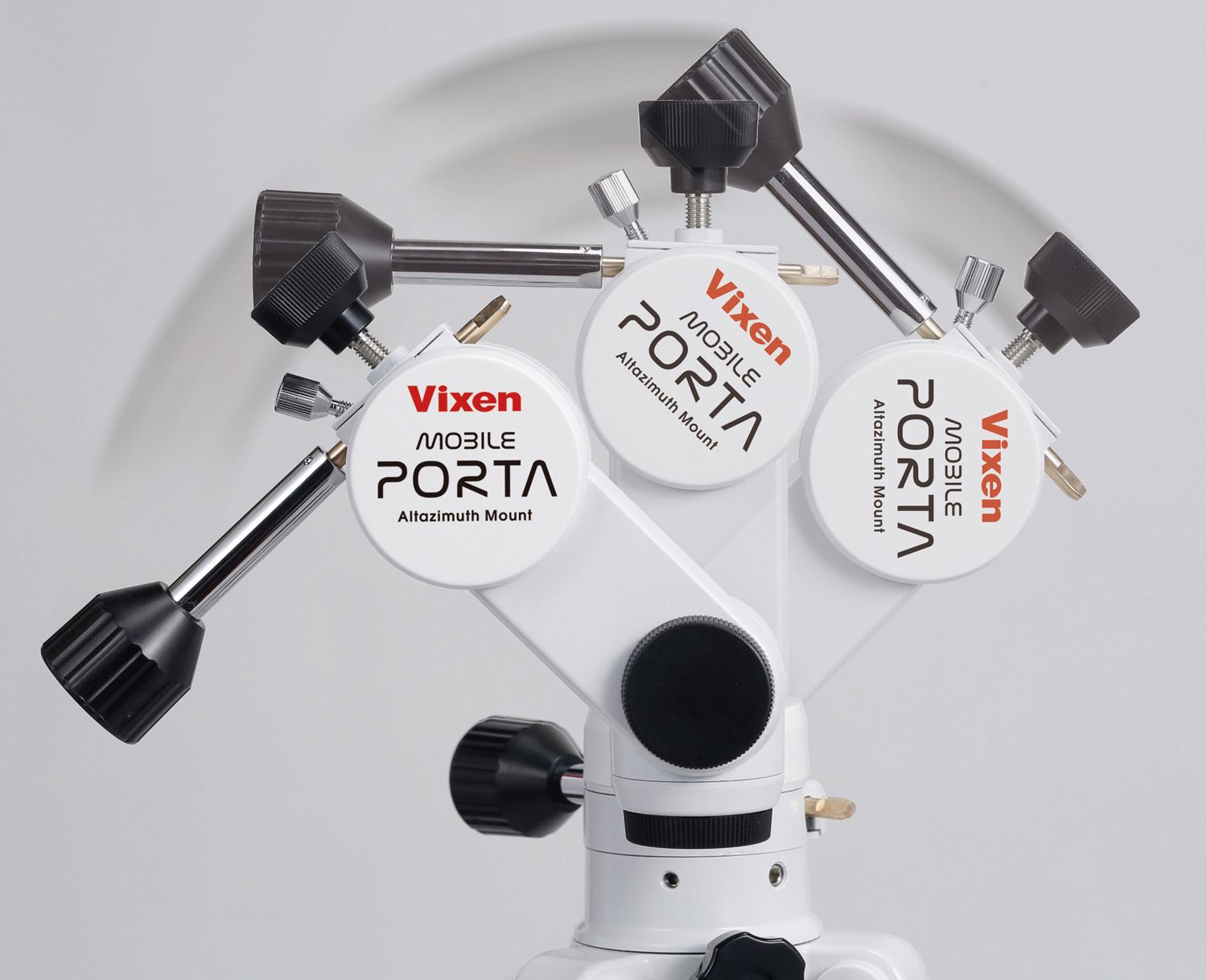

Movable multi-arm

The direction of the multi-arm can be rotated in 15 degree intervals so that you can avoid interfering with the slow motion control handle or the optical tube. In addition, the vertical slow motion control handle can be moved outward, in the horizontal direction, to avoid interference with the horizontal slow motion control handle.

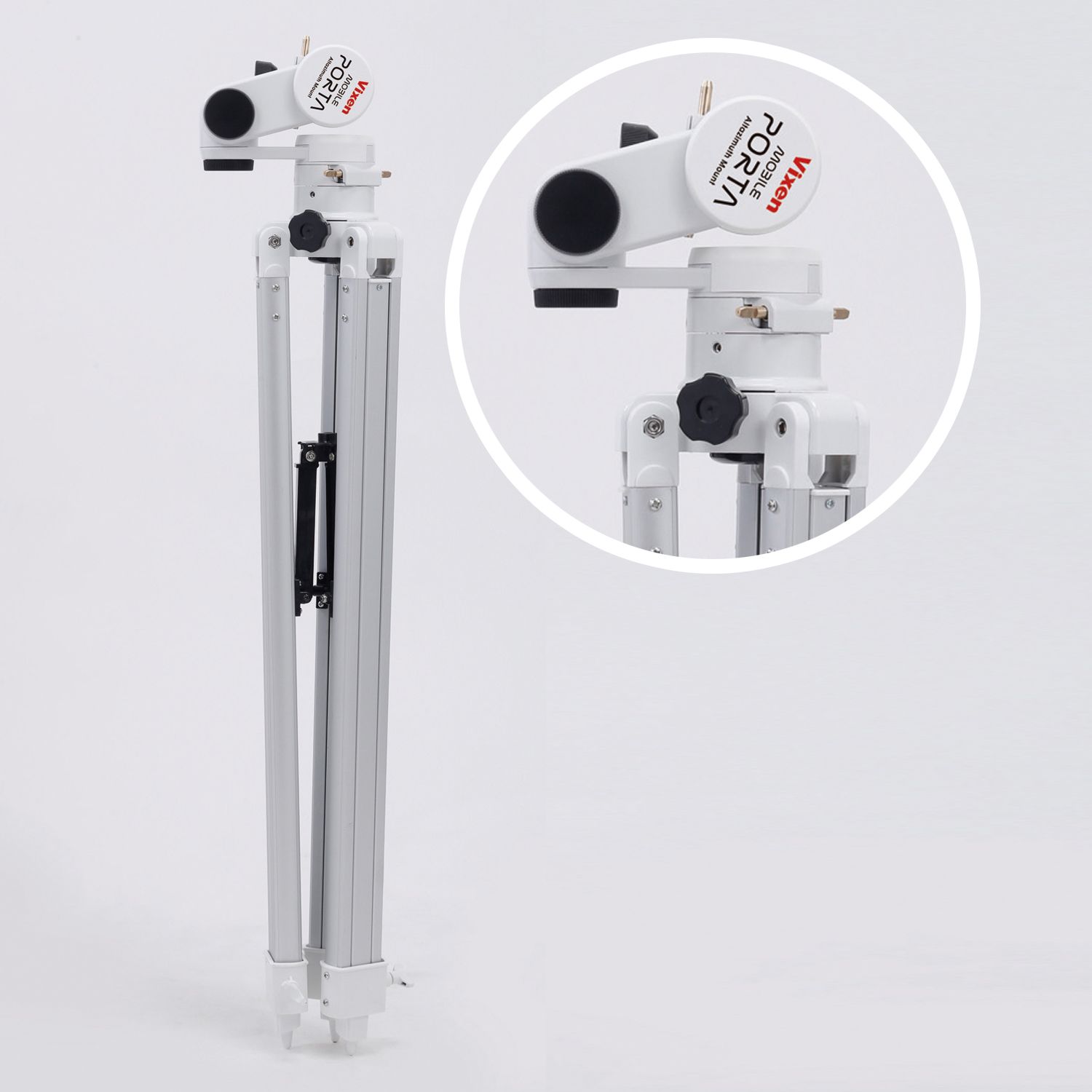

Foldable mount head

The mount head of the MOBILE PORTA can be folded for convenient strage or transport. The mount head is detachable from the tripod. The tube and Tripod Bag 100, sold separately, is the perfect bag for storage and transport of your MOBILE PORTA. An optical tube cannot be put together in the bag.

Optical Tube

Objective lens D=70mm, Achromatic, multi-coated
Focal length (Focal ratio) F=900mm (f12.9)
Resolving power / Limiting magnitude 1.66 arc seconds / 11.0
Light gathering power 100× unaided eye
Size / Weight 76mm dia × 860mm / 2.5kg (Net 1.9kg)
Finder scope 6x24mm, 5 degrees FoV

Focuser

Focusing mechanism Rack-and-pinion type
Adapter threads / Visual back 42mm for T-ring, 317mm push-fit
Eyepieces NPL20mm (45X, 65' field of view), NPL6.3mm (143X, 22' field of view)

Tripod

Leg type, material 2-section aluminum legs with quick-release leg clamps
Size Adjustable from 720mm to 1290mm in length (from 640mm to 1140mm in height),
setup radius from 410mm to 700mm

Others

Accessories Erect-image prism 31.7, Allen wrenches 4mm and 3mm

Others

Photography Usable with Prime focus, Eyepiece projection and Aforcal imaging
Solar observation
Not available
Total weight 4.9kg (without eyepieces)

Related Categories Refractor

Brand: Vixen | Code: VX39905
APN: 4955295399055 | Supplier Code: 39905
