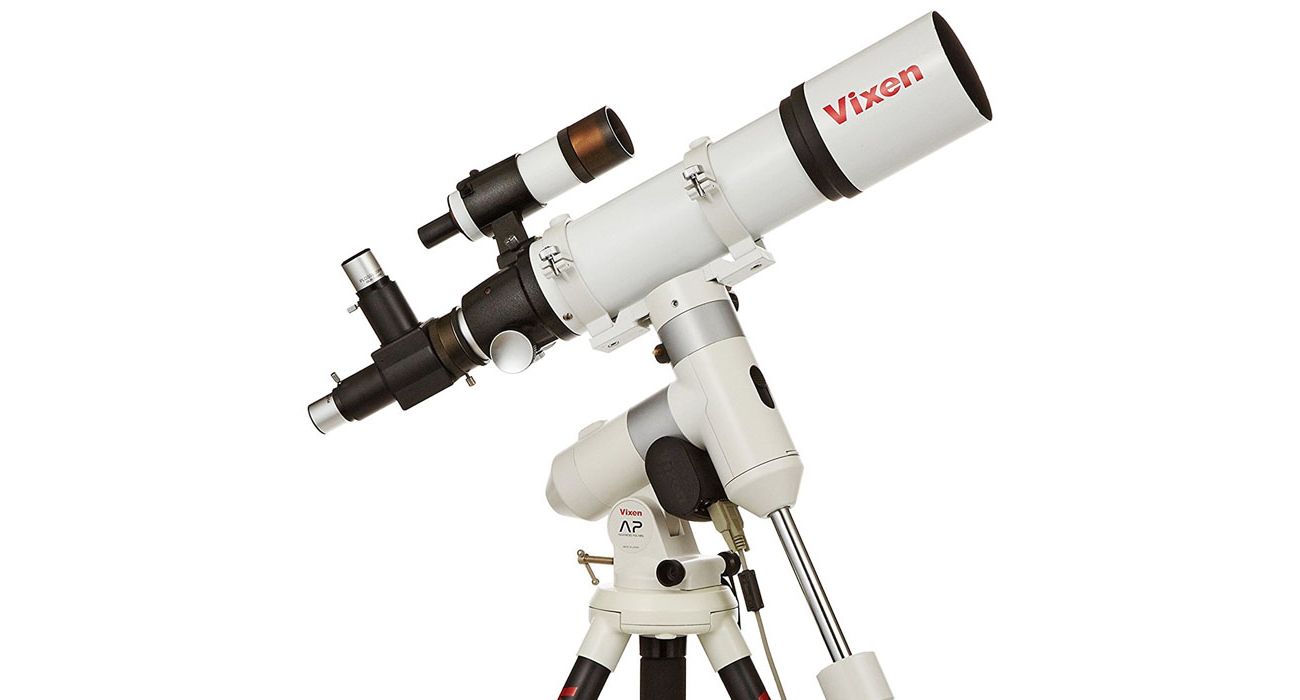

VIXEN AP-ED80Sf Telescope with mount Tripod and Accessories
AP Equatorial mount
The Advanced Polaris mount is ideally suited for beginners who want to become familiar with equatorial mount or experienced observers who wan ta simple grab and go mount. The AP mount securely supports your telescope optical tube for comfortable observing. With its friction control system, the mount can be quickly moved to your target object. A wide selection of optional accessories are available for the AP mountto meet your observation needs.
Stylish design
The new stylish and smart design removes a difficult image on astronomical telescopes. Together with just 3.6kg lightweight body (without counterweight), you can easily handle full-scale astronomical telescopes. As the four AA batteries for power supply is integrated inside the body and adoption of internal electrical contacts eliminates successfully external wiring which is exposed to the outside in the past.
Friction control system
Simply point the target objects by moving the optical tube by hands. The friction control system allows you to manually point the telescope at the object without using knobs and clamps.
Simple polar alignment
The optional polar meter can be attached on the equatorial mount for simple polar alignment. Even beginners can quickly align polar axis. For precision alignment, the polar axis scope is usually used, but the polar meter can outperforms especially where Polaris is not visible.
Polar alignment scope PF-L

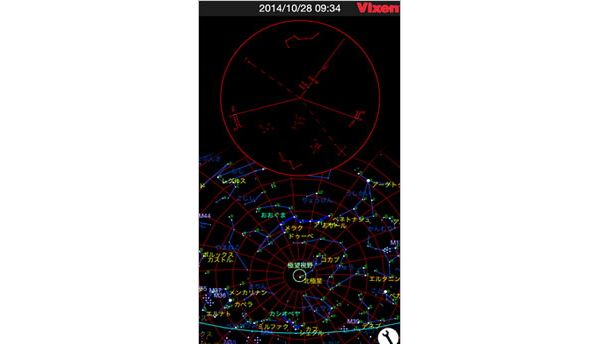

The polar alignment scope PF-L features an employment of three stars alignment system and built-in dark field illuminator to enable alignment while looking into the polar alignment scope. This illumination powers off automatically to prevent unnecessary consumption of power.Corresponding to the polar alignment scope PF-L, we delivers free applications "PFL Assist" for smartphone and tablet that support polar alignment by visuallizing a visible position in the constellation displayed.
ED80Sf optical tube assembly
An apochromatic refractor which reduces color aberration at extremely high level, realizing less deburring and clear field of view in high contrast.
APP-TL130 tripod
The compact APP-TL130 tripod is adjustable between 60cm and 130cm, combining both the portability of the photographic tripod and strength of the astronomical telescope tripod. Tipo of the tripod can be switched between rubber and metal spikes, so that it will not damage floor even when it is used indoors.
Optical tube
| Apochromatic refractor | 80mm SD apochromatic, multi-coated |
| Focal length | 650mm (f/5) |
| Resolving power / Limiting magnitude | 1.45 arc sec. / 11.3 |
| Light gathering power | 131x unaided eye |
| Dimensions / Weight | L: 575mm x OD 160mm, 5.3kg (Body 4.0kg) |
| Finder scope | 6x30mm, 7°actual field of view |
Drawtube
| Visual back | 42mm for T-ring, 50.8mm, 31.7mm push-fit |
| Eyepiece (Dia. 31.7mm) | PL20mm (30x), PL6mm (100x) |
Tripod
| Material, Type | Aluminum 3-section leg |
| Dimensions / Weight | L:570⇔1,296mm, H:526⇔1,159mm, closed 598.4mm, Radius: 350⇔710mm, 3.0kg |
Others
| Accessories | Counterweight 1kg x 1 pc., 1.9kg x 1 pc. |
| Photography | Eyepiece projection, prime-focus, afocal imaging. |
| Solar observation | Not possible |
| Total weight | 14.3kg without eyepiece |
Brand: Vixen |
Code: VX39981
APN: 4955295399819 |
Supplier Code: 39981
AP Equatorial mountThe Advanced Polaris mount is ideally suited for beginners who want to become familiar with equatorial mount or experienced observers who wan ta simple grab and go mount. The AP mount securely supports your telescope optical tube for comfortable observing. With its friction control system, the mount can be quickly moved to your target object. A wide selection of optional accessories are available for the AP mountto meet your observation needs. |
|
|
Stylish designThe new stylish and smart design removes a difficult image on astronomical telescopes. Together with just 3.6kg lightweight body (without counterweight), you can easily handle full-scale astronomical telescopes. As the four AA batteries for power supply is integrated inside the body and adoption of internal electrical contacts eliminates successfully external wiring which is exposed to the outside in the past. |
Friction control systemSimply point the target objects by moving the optical tube by hands. The friction control system allows you to manually point the telescope at the object without using knobs and clamps. |
|
|
Simple polar alignmentThe optional polar meter can be attached on the equatorial mount for simple polar alignment. Even beginners can quickly align polar axis. For precision alignment, the polar axis scope is usually used, but the polar meter can outperforms especially where Polaris is not visible. |
Polar alignment scope PF-LThe polar alignment scope PF-L features an employment of three stars alignment system and built-in dark field illuminator to enable alignment while looking into the polar alignment scope. This illumination powers off automatically to prevent unnecessary consumption of power.Corresponding to the polar alignment scope PF-L, we delivers free applications "PFL Assist" for smartphone and tablet that support polar alignment by visuallizing a visible position in the constellation displayed. |
|
|
ED80Sf optical tube assemblyAn apochromatic refractor which reduces color aberration at extremely high level, realizing less deburring and clear field of view in high contrast. |
APP-TL130 tripodThe compact APP-TL130 tripod is adjustable between 60cm and 130cm, combining both the portability of the photographic tripod and strength of the astronomical telescope tripod. Tipo of the tripod can be switched between rubber and metal spikes, so that it will not damage floor even when it is used indoors. |
|
