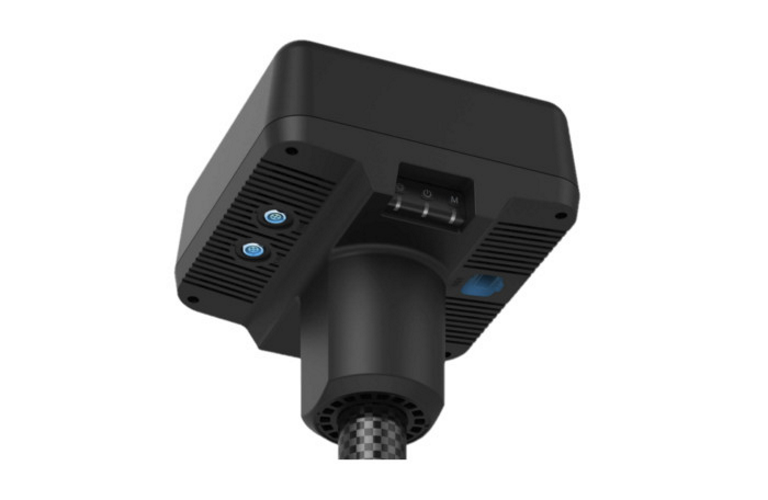

DJI D-RTK 2 High Precision GNSS Mobile Base Station for M300 / M210RTK V2 / P4R / P4M

DJI D-RTK 2 High Precision GNSS Mobile Base Station for M300 / M210RTK V2 / P4R / P4M

$5,115.00
  IN STOCK
  IN STOCK
  IN STOCK
PRODUCT ENQUIRY
  • DJI's high-precision GNSS receier for RTK corrections.
  • Provides centimeter-level positioning data.
  • Compatible with Phantom 4 RTK, Phantom 4 Multispectral, Matrice 210 RTK V2, Matrice 300 RTK, Agras MG-1, Agras T-16.

If you own a drone, it’s important that you understand the rules that keep you and others safe. Visit knowyourdrone.gov.au to find out more

Brand: DJI   |    Code: DJID-RTK2MOBSTA
APN: 190021024090   |    Supplier Code: CP.EN.00000304.01 Supplier Description: D-RTK 2 GNSS MOB STATION

OPTIMIZED ACCURACY.  ULTIMATE RELIABILITY.

GNSS RECEVIER

GNSS Frequency

Simultaneously receive:
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B

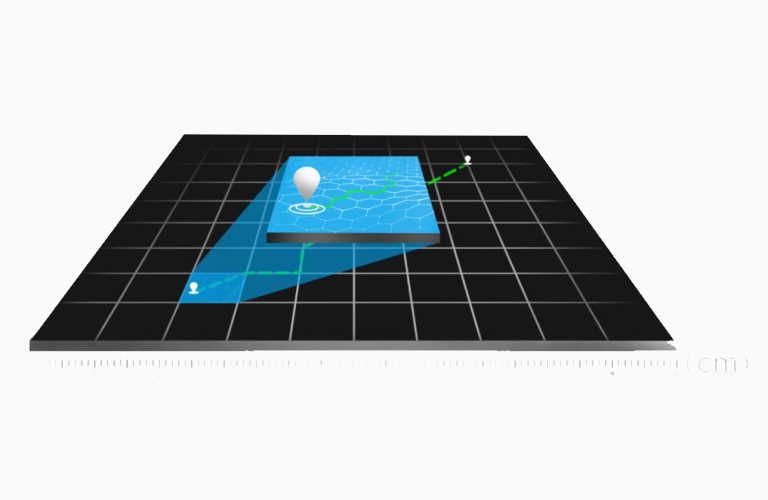

Positioning Accuracy

Single Point
Horizontal:1.5 m(RMS)
Vertical:3.0 m(RMS)
RTK
Horizontal:1 cm+ 1 ppm(RMS)
Vertical:2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.

Positioning Update Rate

1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz

Cold Start

<45 s

Hot Start

<10 s

Recapture Time

<1 s

Initialization Reliability

>99.9%

Differential Data Format

RTCM 2.X/3.X

IMU

Features

Built-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level

PHYSICAL CHARACTERISTICS

Dimensions(D-RTK 2 body with extension rod)

168 mm×168 mm×1708 mm

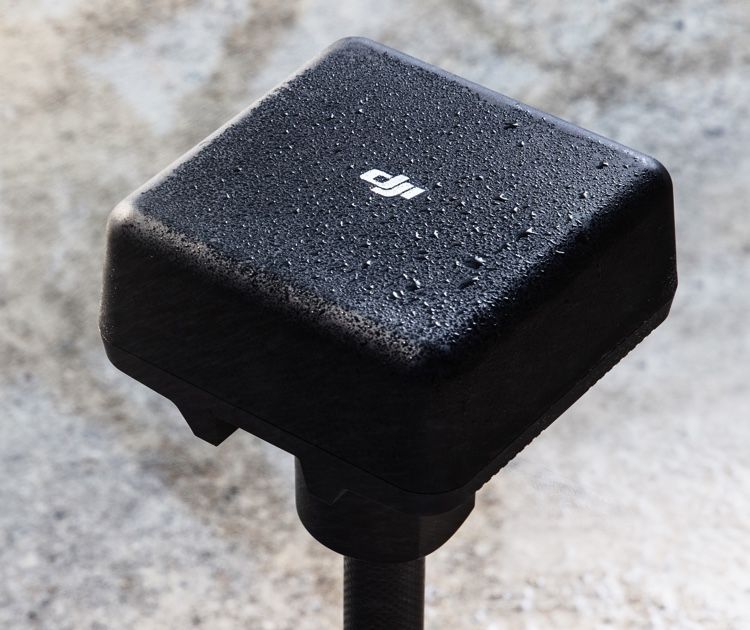

IP Rating

IP65

COMMUNICATION AND DATA STORAGE

Data Link

OcuSync, Wi-Fi, LAN, 4G

Operating Frequency

2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (China, United States, Australia)

EIRP

OcuSync
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm

Communication Distance

OcuSync: 2 km (unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

Memory Capacity

16 GB

ELECTRICAL CHARACTERISTICS

Power Consumption

12 W

Power Supply

16.5 to 58.8VDC

Battery

Type:Lithium-ion battery
Capacity: 4920 mAh
Energy: 37.3 WH

Run Time

WB37 battery:>2 h
MG-12000P battery:>50 h

OPERATING TEMPERATURE

Operating Temperature

4° to 131° F (-20° to 55° C)

COMPATIBLE SYSTEMS

Compatible with the following DJI systems

Phantom 4 RTK, Phantom 4 Multispectral, Matrice 210 RTK V2, Matrice 300 RTK, Agras MG-1, Agras T-16.

This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

OVERVIEW

OPTIMIZED ACCURACY.  ULTIMATE RELIABILITY.

SPECIFICATIONS

GNSS RECEVIER

GNSS Frequency

Simultaneously receive:
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B

Positioning Accuracy

Single Point
Horizontal:1.5 m(RMS)
Vertical:3.0 m(RMS)
RTK
Horizontal:1 cm+ 1 ppm(RMS)
Vertical:2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.

Positioning Update Rate

1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz

Cold Start

<45 s

Hot Start

<10 s

Recapture Time

<1 s

Initialization Reliability

>99.9%

Differential Data Format

RTCM 2.X/3.X

IMU

Features

Built-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level

PHYSICAL CHARACTERISTICS

Dimensions(D-RTK 2 body with extension rod)

168 mm×168 mm×1708 mm

IP Rating

IP65

COMMUNICATION AND DATA STORAGE

Data Link

OcuSync, Wi-Fi, LAN, 4G

Operating Frequency

2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (China, United States, Australia)

EIRP

OcuSync
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm

Communication Distance

OcuSync: 2 km (unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

Memory Capacity

16 GB

ELECTRICAL CHARACTERISTICS

Power Consumption

12 W

Power Supply

16.5 to 58.8VDC

Battery

Type:Lithium-ion battery
Capacity: 4920 mAh
Energy: 37.3 WH

Run Time

WB37 battery:>2 h
MG-12000P battery:>50 h

OPERATING TEMPERATURE

Operating Temperature

4° to 131° F (-20° to 55° C)

COMPATIBLE SYSTEMS

Compatible with the following DJI systems

Phantom 4 RTK, Phantom 4 Multispectral, Matrice 210 RTK V2, Matrice 300 RTK, Agras MG-1, Agras T-16.
