DJI Zenmuse P1 45MP Full-Frame Camera with 35mm lens (includes DJI Shield Basic)

DJI Zenmuse P1 45MP Full-Frame Camera with 35mm lens (includes DJI Shield Basic)

$10,150.00
  DUE: 31/05/2021
  DUE: 31/05/2021
  DUE: 31/05/2021
PRODUCT ENQUIRY

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

If you own a drone, it’s important that you understand the rules that keep you and others safe. Visit knowyourdrone.gov.au to find out more

Brand: DJI   |    Code: DJIZENMUSEP1
APN: 190021036505   |    Supplier Code: CP.ZM.00000136.01

General

Dimensions

198×166×129 mm

Weight

Approx. 787 g

Power

13 W

IP Rating

IP4X

Supported Aircraft

Matrice 300 RTK

Operating Temperature Range

-20° to 50° C

Storage Temperature Range

-20° to 60° C

Absolute Accuracy

Horizontal: 3 cm, Vertical: 5 cm *

Camera

Sensor

Sensor size (Still): 35.9×24 mm (Full frame)

Sensor size (Max video recording area): 34×19 mm

Effective Pixels: 45MP

Pixel size: 4.4 μm

Supported Lenses

DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°

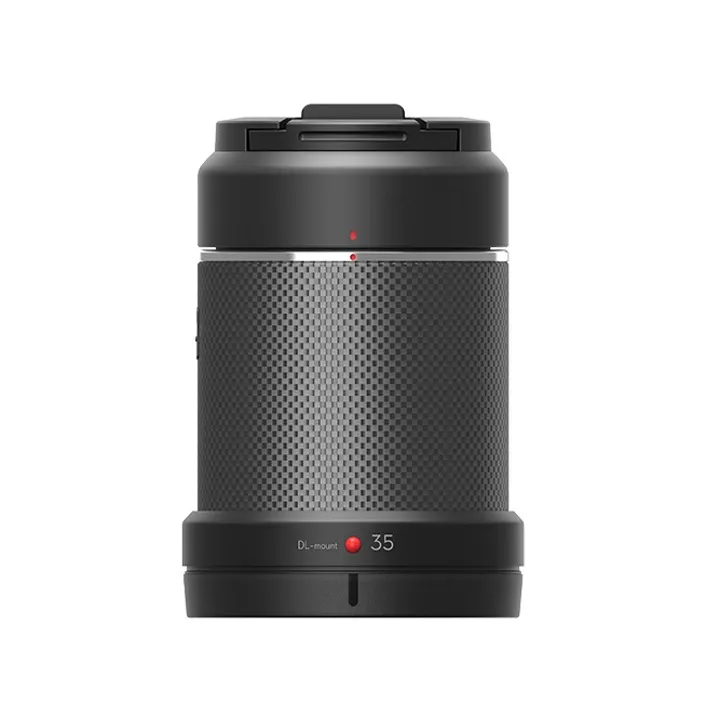

DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°

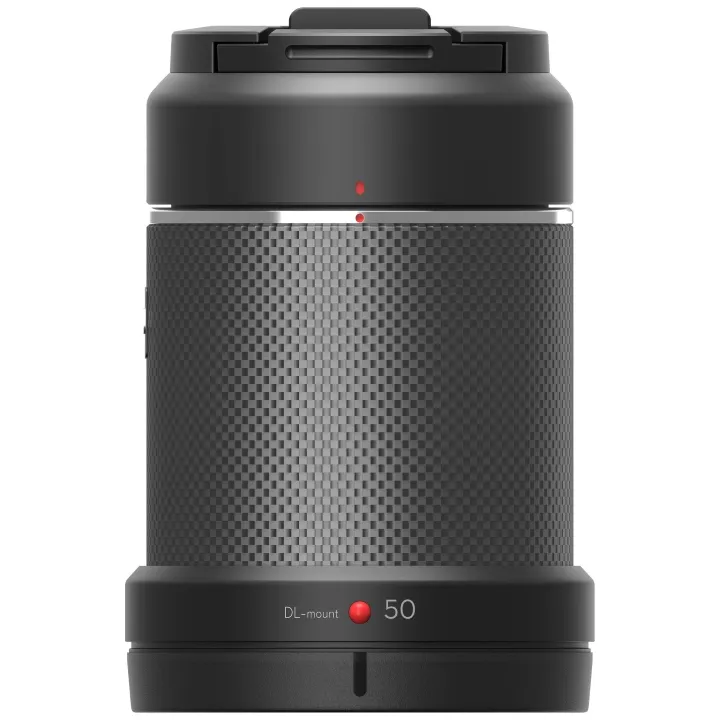

DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards

SD: UHS-1 rating or above; Max capacity: 128 GB



Storage Files



Photo / GNSS Raw Observation Data/ Image Log File

Photo Size

3:2 (8192×5460)

Operation Modes

Capture, Record, Playback

Minimum photo interval

0.7 s

Shutter Speed

Mechanical Shutter Speed: 1/2000-1/8 s

Electronic Shutter Speed: 1/8000-8 s

Aperture Range

f/2.8-f/16

ISO Range

Photo: 100-25600

Video: 100-3200

Video

Video Format

MP4

Video Resolution

16:9 (3840×2160)

Frame Rate

60fps

Gimbal

Stabilized System

3-axis (tilt, roll, pan)

Angular Vibration Range

0.01°

Mount

Detachable DJI SKYPORT

Mechanical Range

Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320°

* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

This product has yet to be reviewed

To be the first to review this product simply fill out the form to the left and let us know how you feel about this product!


To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

SPECIFICATIONS

General

Dimensions

198×166×129 mm

Weight

Approx. 787 g

Power

13 W

IP Rating

IP4X

Supported Aircraft

Matrice 300 RTK

Operating Temperature Range

-20° to 50° C

Storage Temperature Range

-20° to 60° C

Absolute Accuracy

Horizontal: 3 cm, Vertical: 5 cm *

Camera

Sensor

Sensor size (Still): 35.9×24 mm (Full frame)

Sensor size (Max video recording area): 34×19 mm

Effective Pixels: 45MP

Pixel size: 4.4 μm

Supported Lenses

DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°

DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°

DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards

SD: UHS-1 rating or above; Max capacity: 128 GB



Storage Files



Photo / GNSS Raw Observation Data/ Image Log File

Photo Size

3:2 (8192×5460)

Operation Modes

Capture, Record, Playback

Minimum photo interval

0.7 s

Shutter Speed

Mechanical Shutter Speed: 1/2000-1/8 s

Electronic Shutter Speed: 1/8000-8 s

Aperture Range

f/2.8-f/16

ISO Range

Photo: 100-25600

Video: 100-3200

Video

Video Format

MP4

Video Resolution

16:9 (3840×2160)

Frame Rate

60fps

Gimbal

Stabilized System

3-axis (tilt, roll, pan)

Angular Vibration Range

0.01°

Mount

Detachable DJI SKYPORT

Mechanical Range

Tilt: -125° to +40°; Roll: -55° to +55°; Pan: ±320°

* Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.
