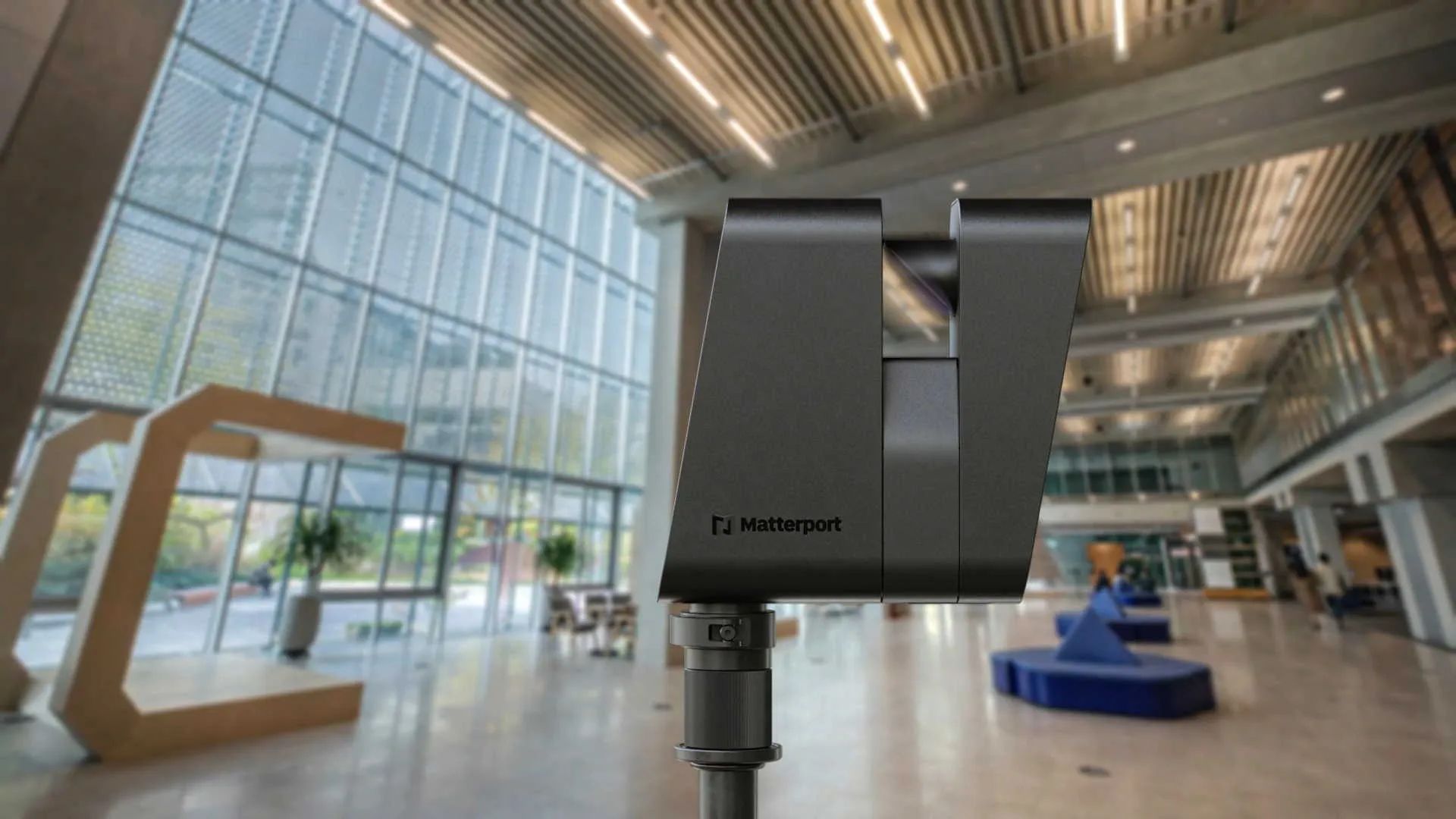

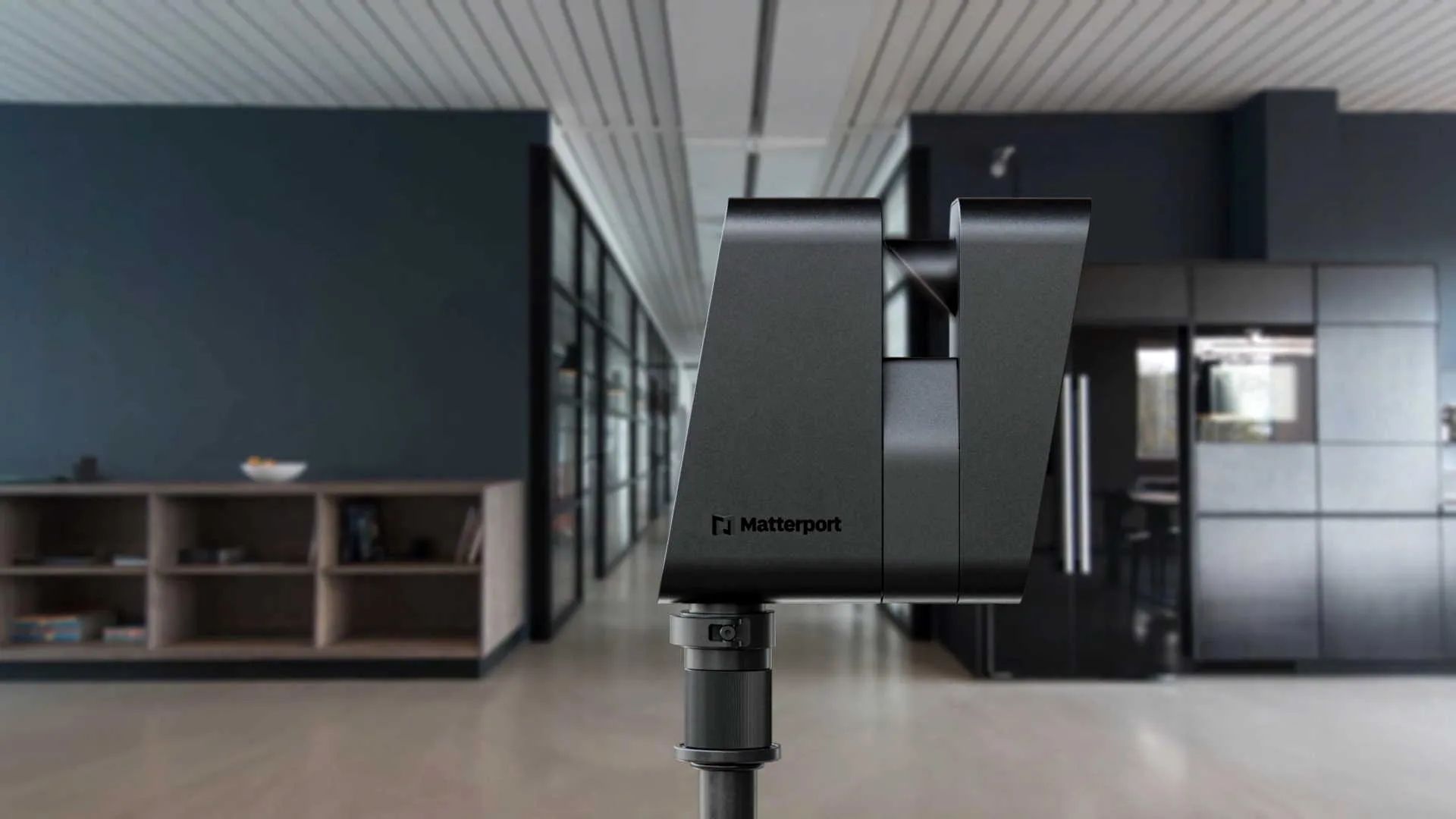

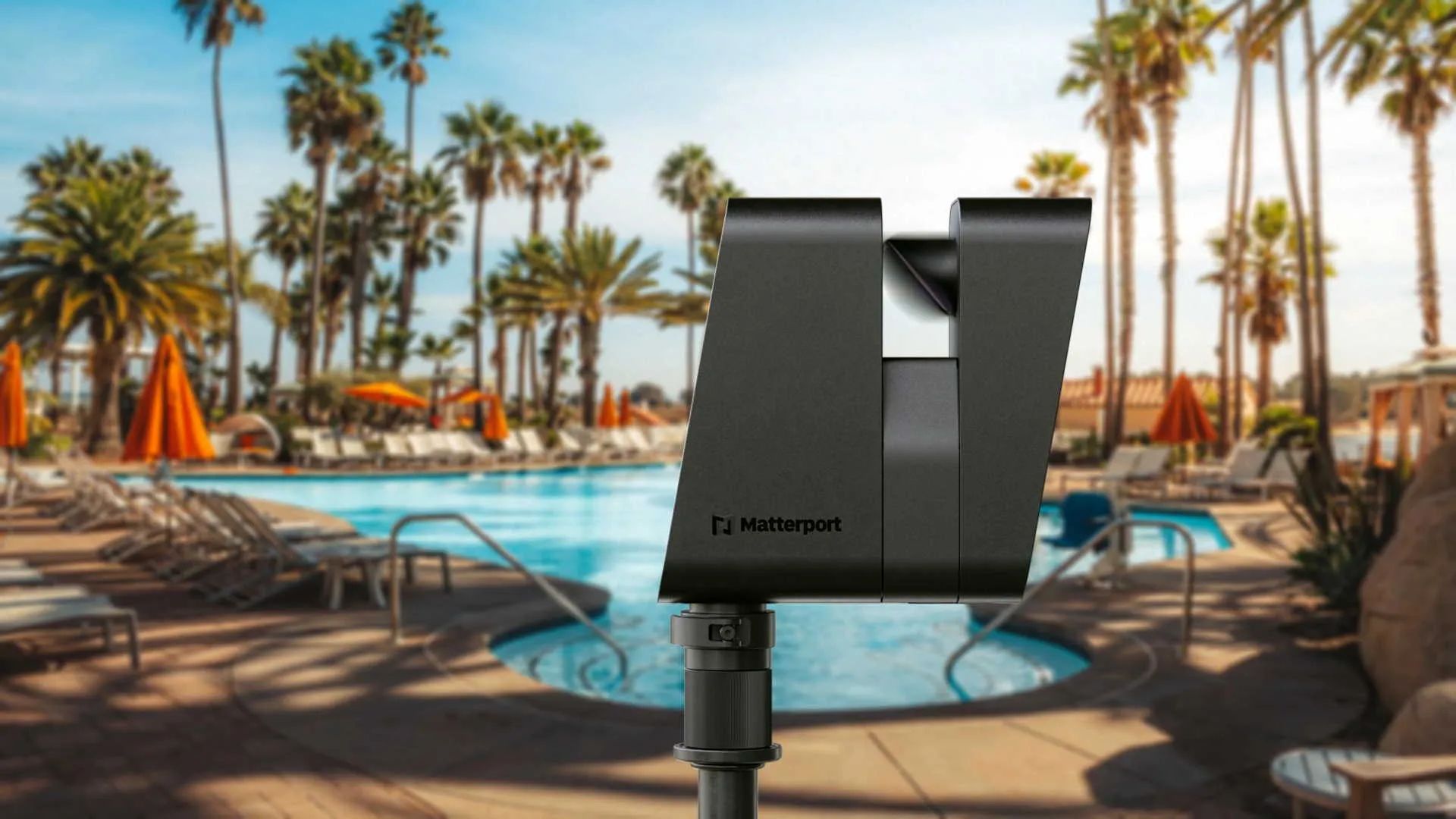

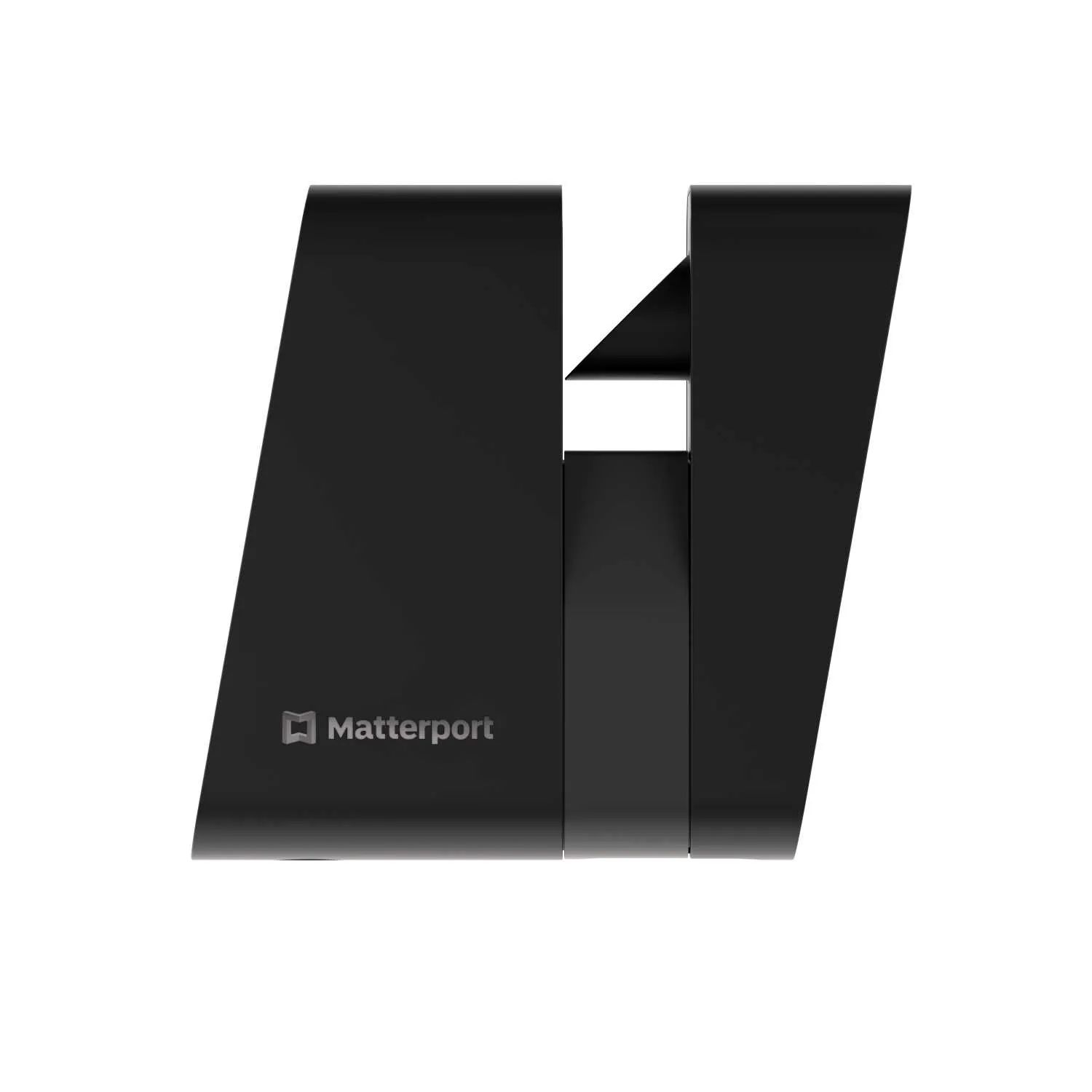

Matterport Pro 3 3D LiDAR Camera Performance Kit
- Complete 3D capture
- Max range: 100m
- Range accuracy: ± 20mm @10m
- Individual scan time: <20s / single scan
- Image resolution: ~135 megapixels
- Battery life: >230 scans, 3 hours (swappable)
- Size: 181mm x 161.4mm x 76mm
- Weight: 2.3kg
Faster As-Built SurveysCapture as-built data in a matter of minutes—far faster than manual methods and more quickly than terrestrial LiDAR scanners—and generate shareable digital twins. Export dimensional information into CAD and make it easier to start design proposals faster than ever.
|
 |
 |
Easier Construction Progress MonitoringCapture spaces on demand without delaying work. Replace photography with digital twins and use in-model notes to speed up collaboration with subcontractors and stakeholders
|
Better Quality Control and Work Package SignoffGenerate accurate 3D models to identify remedial work. Use tags to link directly from work locations to the appropriate punch cards. Enable fast, accurate, and high-quality documentation of a work package, and make it easy for offsite colleagues to sign them off.
|
 |
 |
Stronger Handover DocumentationMaintain an accurate record of a build as it progresses. Import captured data into design and building information modeling (BIM) packages to quickly compare what was designed and what has been built. Generate a final model and use tags, notes, and storytelling features to support building owners and operators with links to instructions, warranties, service support, and much more. GOES
|
More Successful PromotionCapture true-to-life 3D models and provide prospects with reasons to buy. Show them an accurate high-resolution digital-twin of the property. Virtually stage spaces in a variety of styles to attract a wider range of potential tenants and investors.
|
|
|
Adept Portfolio ManagementEasily view cloud-based models from any location and work confidently with contractors and collaborators. Highly detailed digital twins allow stakeholders to “walkthrough” specific locations in a building as if they were actually there and provide the realism and accuracy to enhance collaboration with every member of your team.
|
Effective Facilities ManagementImport building information and handover documentation into facilities management applications. Be in command of every detail of your building and get accurate measurements and estimates for cleaning, repairs, compliance, equipment, space planning, and more.
|
|
| Laser | Class 1 |
| Field of View | 360° H / 295° V |
| Range Acccuracy | ± 20mm @10m |
| Min range | 0.5m |
| Max range | 100m |
| Scan time | >20 seconds / scan |
| Image Resolution | ~135 megapixels |
| Battery Life | >220 scans, 3 hours (swappable) |
| Dimensions | 181mm x 161.4mm x 76mm |
| Weight | 2.3kg |
| Operating temperature | 0°C to 40°C |
| Datasheets | |
|---|---|
| Matterport Pro 3 3D LiDAR Camera Performance Kit - Datasheet |
- Matterport Pro 3
- 2 x removable batteries
- Battery charging kit
- Quick-release tripod mount
- Tripod
- Wheeled dolly
- 2 x door stops
- Small hard case
- Backpack
Matterport software plans can be purchased here.
Brand: Matterport |
Code: MC300PK
Supplier Code: MC3003-X
Brand: Matterport |
Code: MC300PK
Supplier Code: MC3003-X
At a glance
- Complete 3D capture
- Max range: 100m
- Range accuracy: ± 20mm @10m
- Individual scan time: <20s / single scan
- Image resolution: ~135 megapixels
- Battery life: >230 scans, 3 hours (swappable)
- Size: 181mm x 161.4mm x 76mm
- Weight: 2.3kg
Faster As-Built SurveysCapture as-built data in a matter of minutes—far faster than manual methods and more quickly than terrestrial LiDAR scanners—and generate shareable digital twins. Export dimensional information into CAD and make it easier to start design proposals faster than ever.
|
|
|
Easier Construction Progress MonitoringCapture spaces on demand without delaying work. Replace photography with digital twins and use in-model notes to speed up collaboration with subcontractors and stakeholders
|
Better Quality Control and Work Package SignoffGenerate accurate 3D models to identify remedial work. Use tags to link directly from work locations to the appropriate punch cards. Enable fast, accurate, and high-quality documentation of a work package, and make it easy for offsite colleagues to sign them off.
|
|
|
Stronger Handover DocumentationMaintain an accurate record of a build as it progresses. Import captured data into design and building information modeling (BIM) packages to quickly compare what was designed and what has been built. Generate a final model and use tags, notes, and storytelling features to support building owners and operators with links to instructions, warranties, service support, and much more. GOES
|
More Successful PromotionCapture true-to-life 3D models and provide prospects with reasons to buy. Show them an accurate high-resolution digital-twin of the property. Virtually stage spaces in a variety of styles to attract a wider range of potential tenants and investors.
|
|
|
Adept Portfolio ManagementEasily view cloud-based models from any location and work confidently with contractors and collaborators. Highly detailed digital twins allow stakeholders to “walkthrough” specific locations in a building as if they were actually there and provide the realism and accuracy to enhance collaboration with every member of your team.
|
Effective Facilities ManagementImport building information and handover documentation into facilities management applications. Be in command of every detail of your building and get accurate measurements and estimates for cleaning, repairs, compliance, equipment, space planning, and more.
|
|

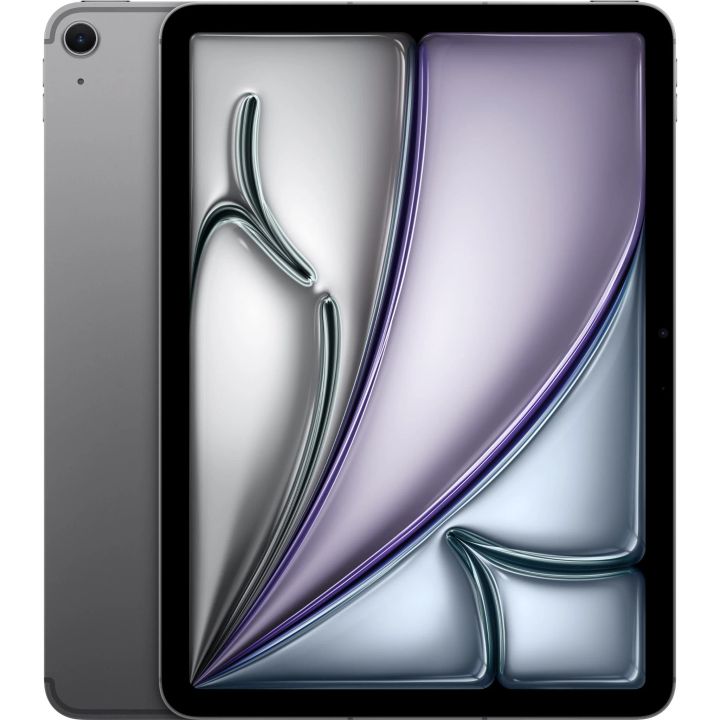

Apple iPad Air 11” M2 512GB Wi-Fi (Space Grey) for Leica BLK360 / RTC360
