Slik SH-747FC 3-Way Head with QD Plate & Friction Control

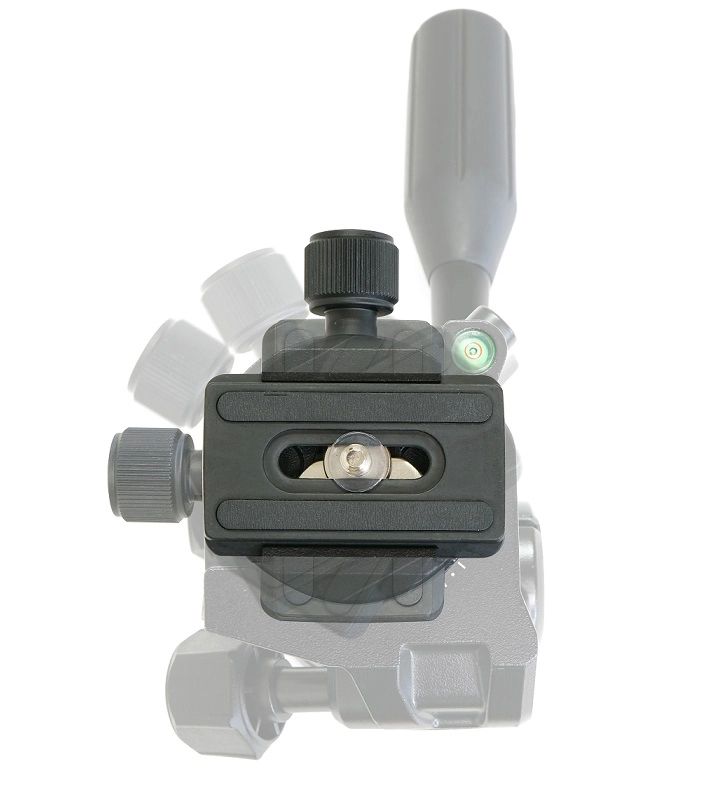

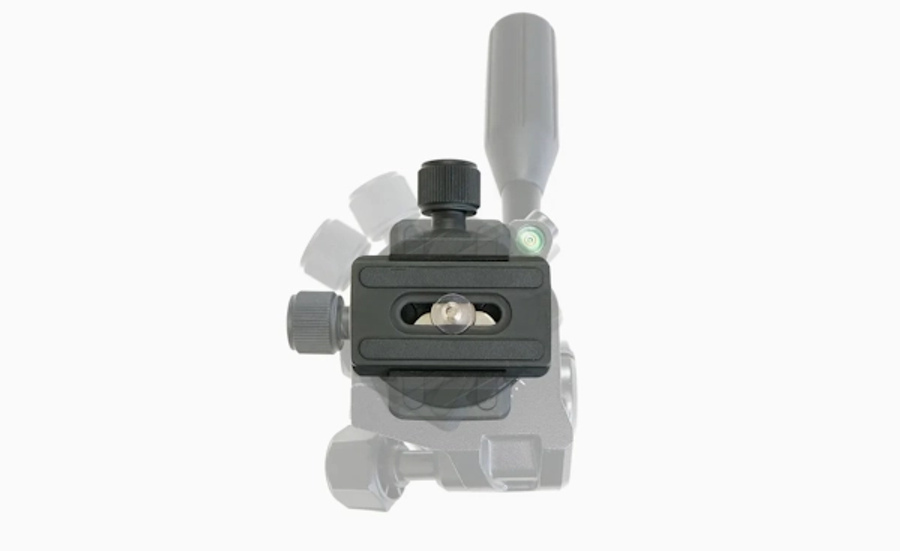

Rotatable QRS Platform
90 deg. rotatable ”Arca-Swiss” compatible QRS platform allows a camera to be mounted perpendicular to or parallel to the tilting direction of the pan head. It is very useful feature when replacing a camera with an L-bracket from a single-focus lens to a super telephoto lens with a mounting arm.

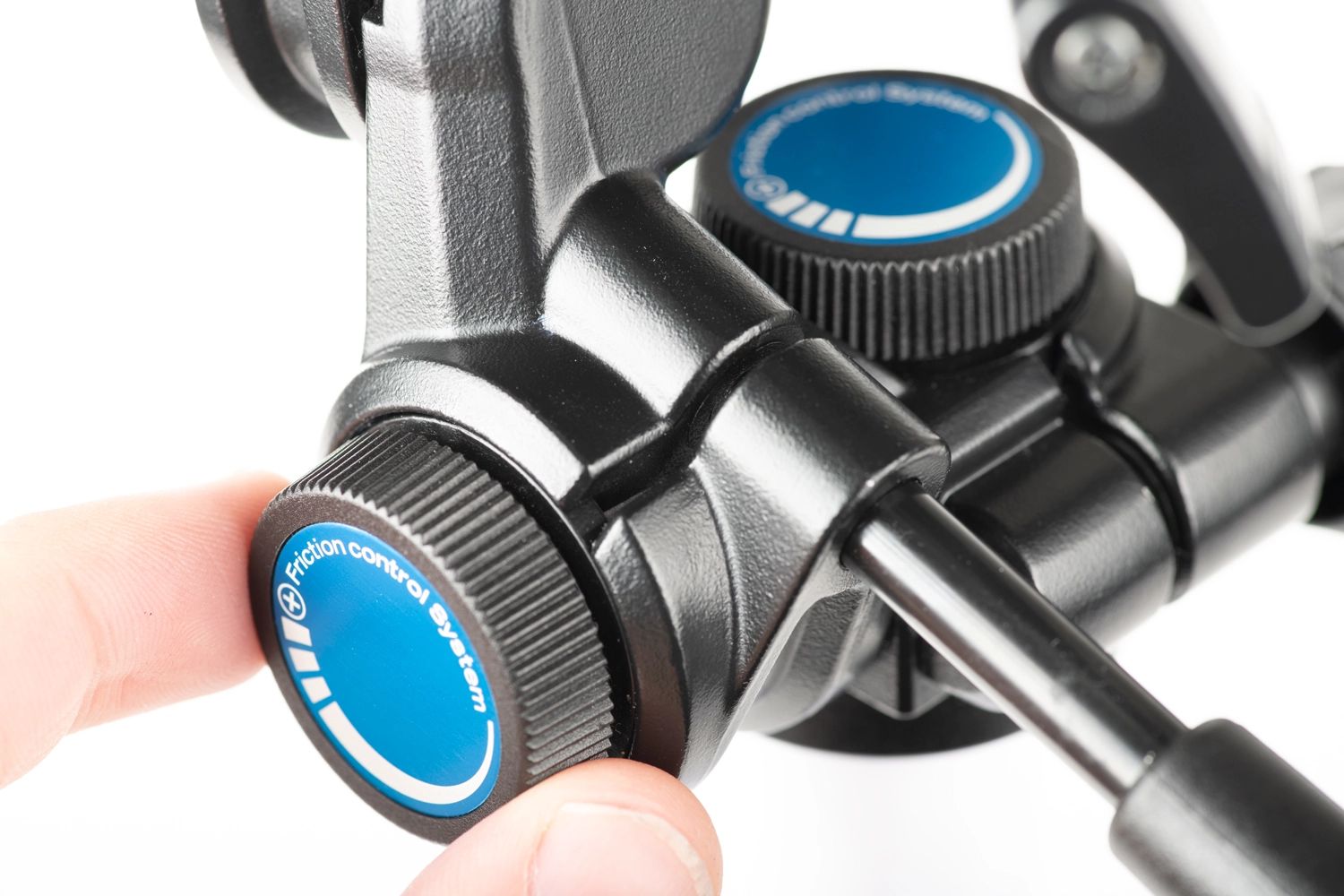

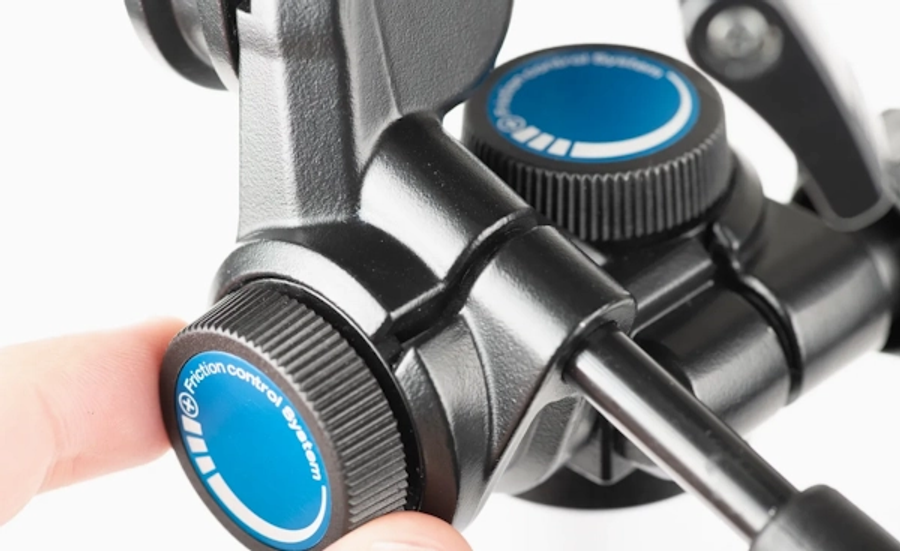

Independent Pan & Tilt Friction Control
The independent pan & tilt friction control dial allows you to fine-tune the "drag" or "resistance" you feel in your hand while panning or tilting. This ensures smoother framing movements during video recording. Moderate resistance is also ideal when chasing fast-moving subjects.

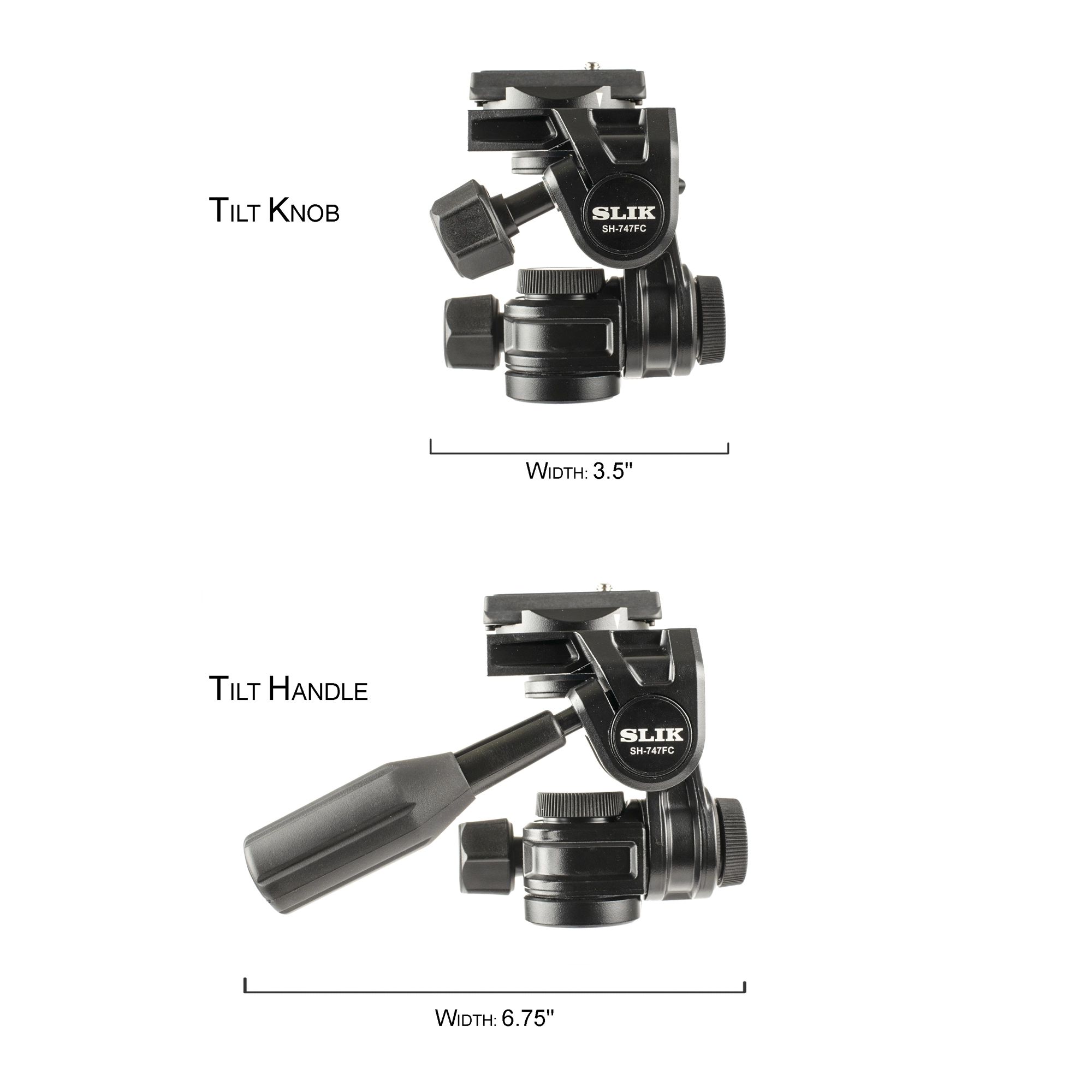

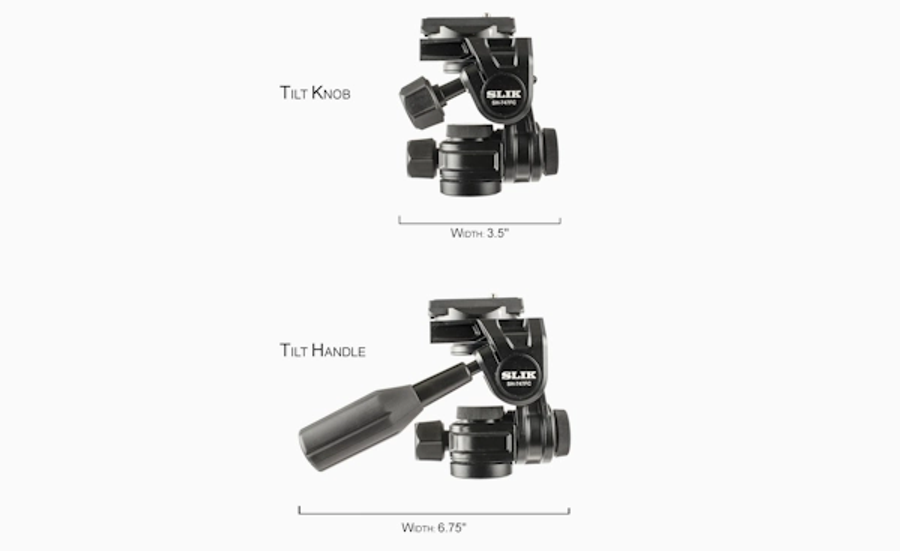

Short Vertical Tilt Knob
By replacing the vertical pan handle to a short knob, there is no need to remove the vertical pan handle when storing the tripod in the bag. Of course, vertical pan handle is also included in the package, if you want to operate the pan head in conventional style.

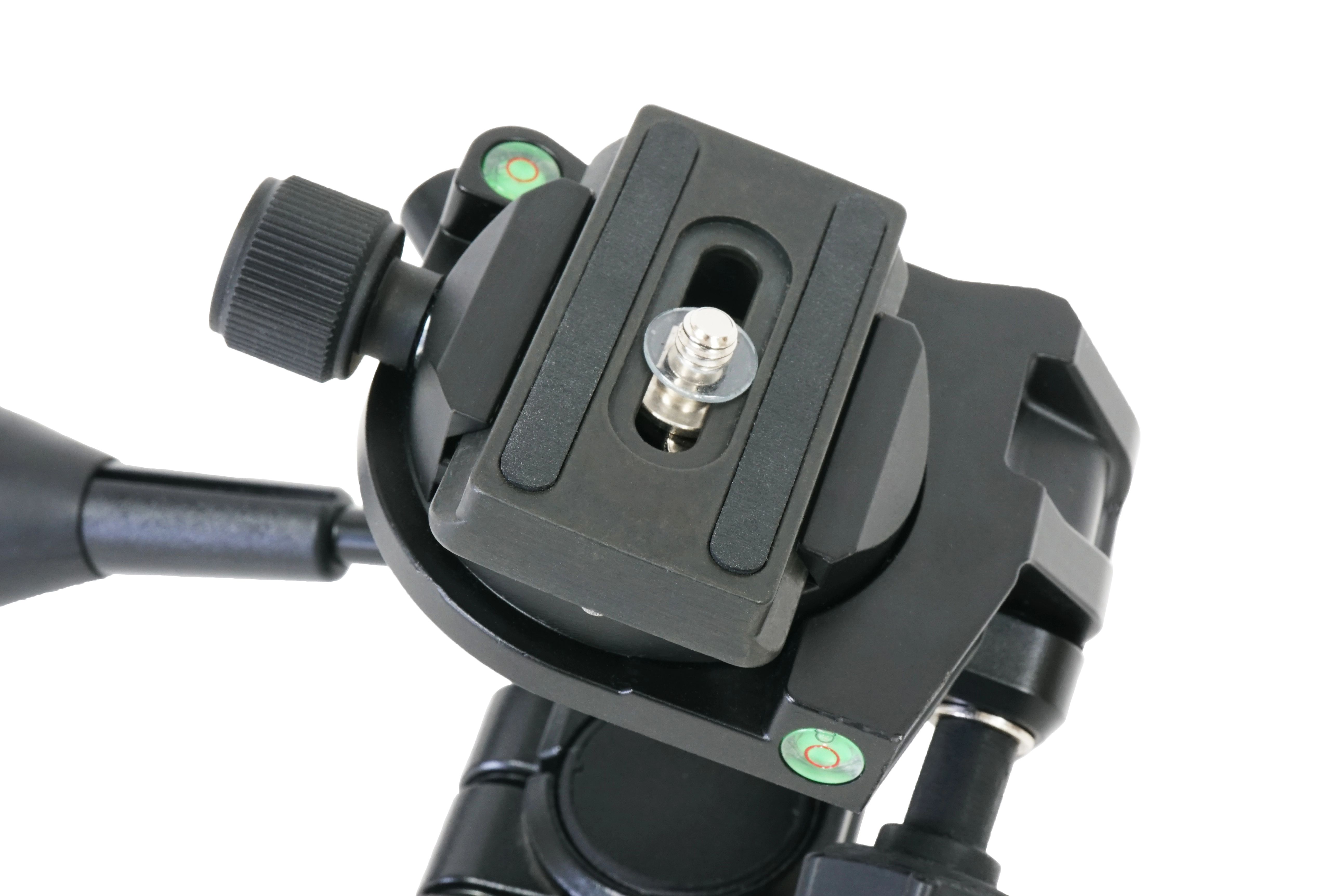

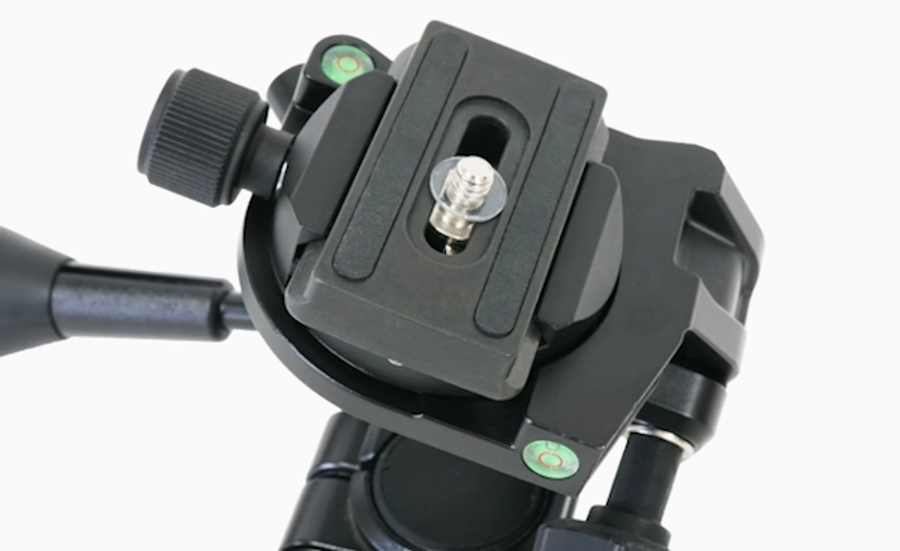

Dual Bubble Leveler
Equipped with a dual bubble levelers that can set the horizontal level of the camera when the platform is set to a horizontal position or a vertical position.
|
Type of Bubble Level: |
Dual bubble level |
|
Size of camera platform: |
38 x 62mm |
|
Camera mounting screw: |
U1/4 |
|
Camera Plate |
Q.R.S. 6507 |
|
Tripod mounting screw: |
U1/4 (with U3/8 screw adapter) |
|
Height: |
115mm |
|
Weight: |
690g |
|
Load capacity: |
7kgs |
| Product Manuals | |
|---|---|
| Slik SH-747FC 3-Way Head with QD Plate & Friction Control - Product Manual |
Brand: Slik |
Code: SH-6256455
APN: 4906752256459 |
Supplier Code: 6256455
Brand: Slik |
Code: SH-6256455
APN: 4906752256459 |
Supplier Code: 6256455
At a glance
Rotatable QRS Platform90 deg. rotatable ”Arca-Swiss” compatible QRS platform allows a camera to be mounted perpendicular to or parallel to the tilting direction of the pan head. It is very useful feature when replacing a camera with an L-bracket from a single-focus lens to a super telephoto lens with a mounting arm. |
|
|
Independent Pan & Tilt Friction ControlThe independent pan & tilt friction control dial allows you to fine-tune the "drag" or "resistance" you feel in your hand while panning or tilting. This ensures smoother framing movements during video recording. Moderate resistance is also ideal when chasing fast-moving subjects. |
Short Vertical Tilt KnobBy replacing the vertical pan handle to a short knob, there is no need to remove the vertical pan handle when storing the tripod in the bag. Of course, vertical pan handle is also included in the package, if you want to operate the pan head in conventional style. |
|
|
Dual Bubble LevelerEquipped with a dual bubble levelers that can set the horizontal level of the camera when the platform is set to a horizontal position or a vertical position. |
