SLIK SVH-520 Video Fluid Head QD Plate & 70mm Arca Swiss

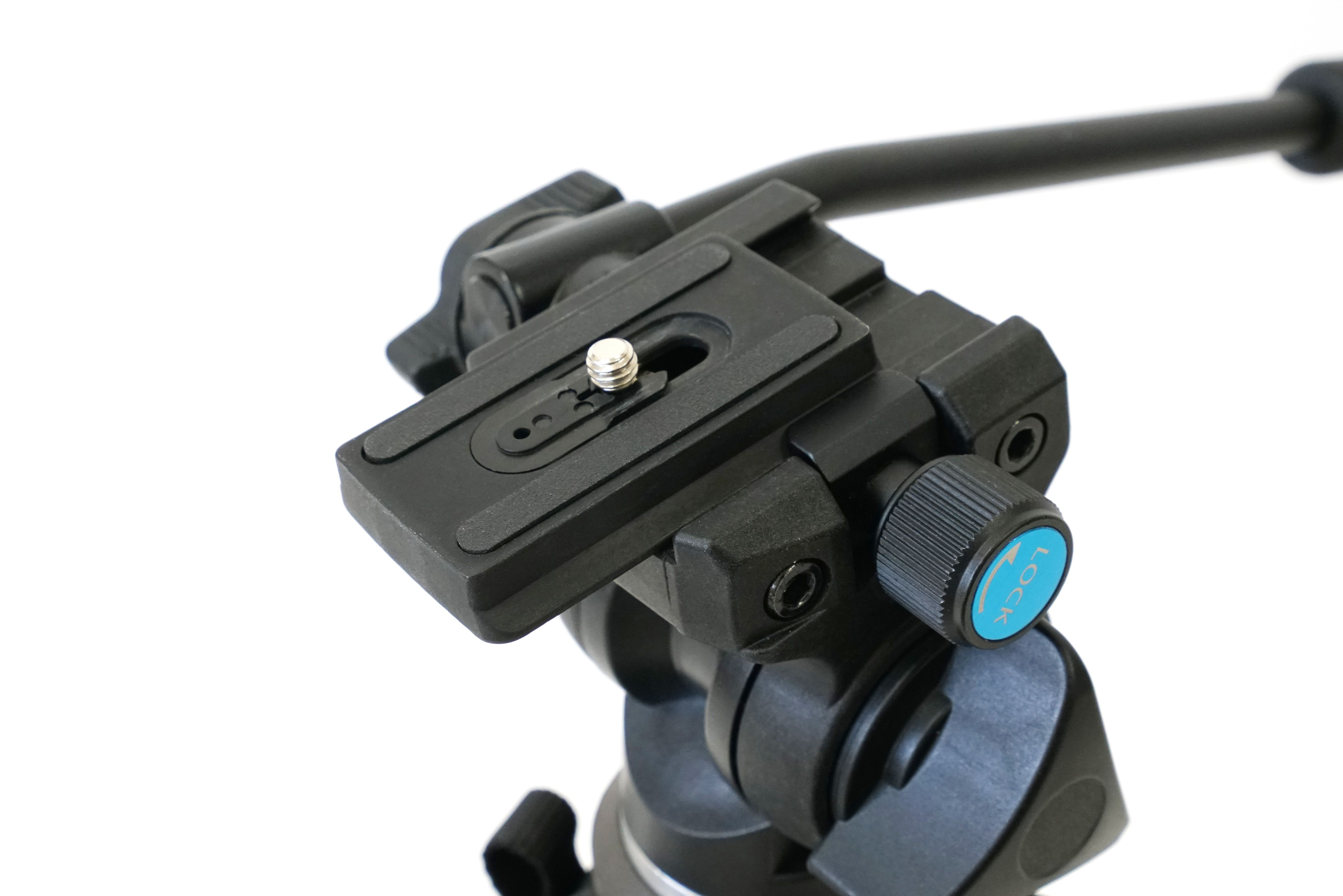

Arca Compatible Platform
SVH-520 has "viselike" clamping style Arca-type quick release platform that accommodates with any Arca style quick release plate, L-bracket or backpack "clip" design plate.

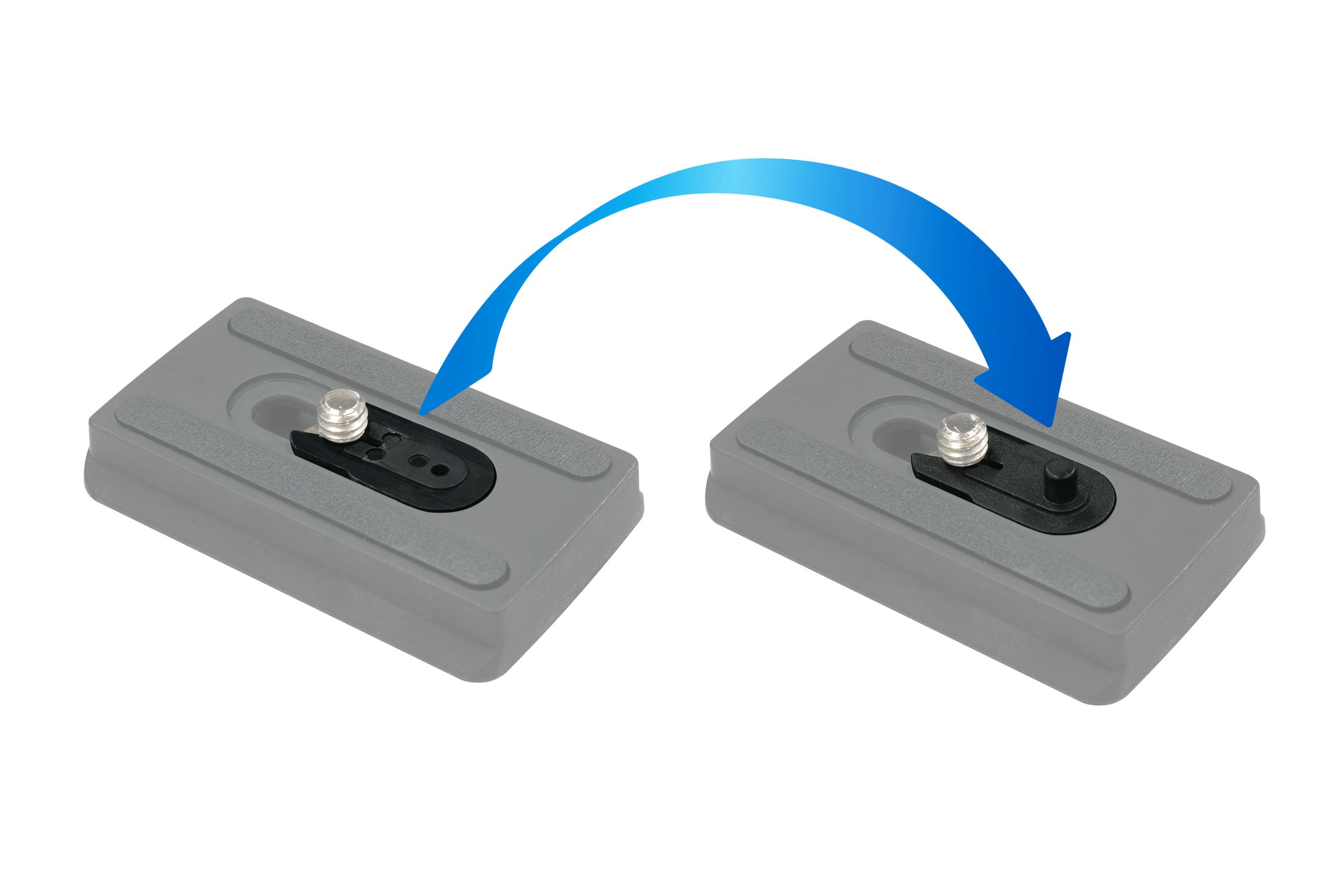

Reversible video boss plate
Most of video camera have a1/4" set screw, as well as a video boss hole to prevent a camera side sliding. The reversible Video Boss Plate can be easily removed and flipped over when attaching a scopes or photographic cameras that does not have a hole.

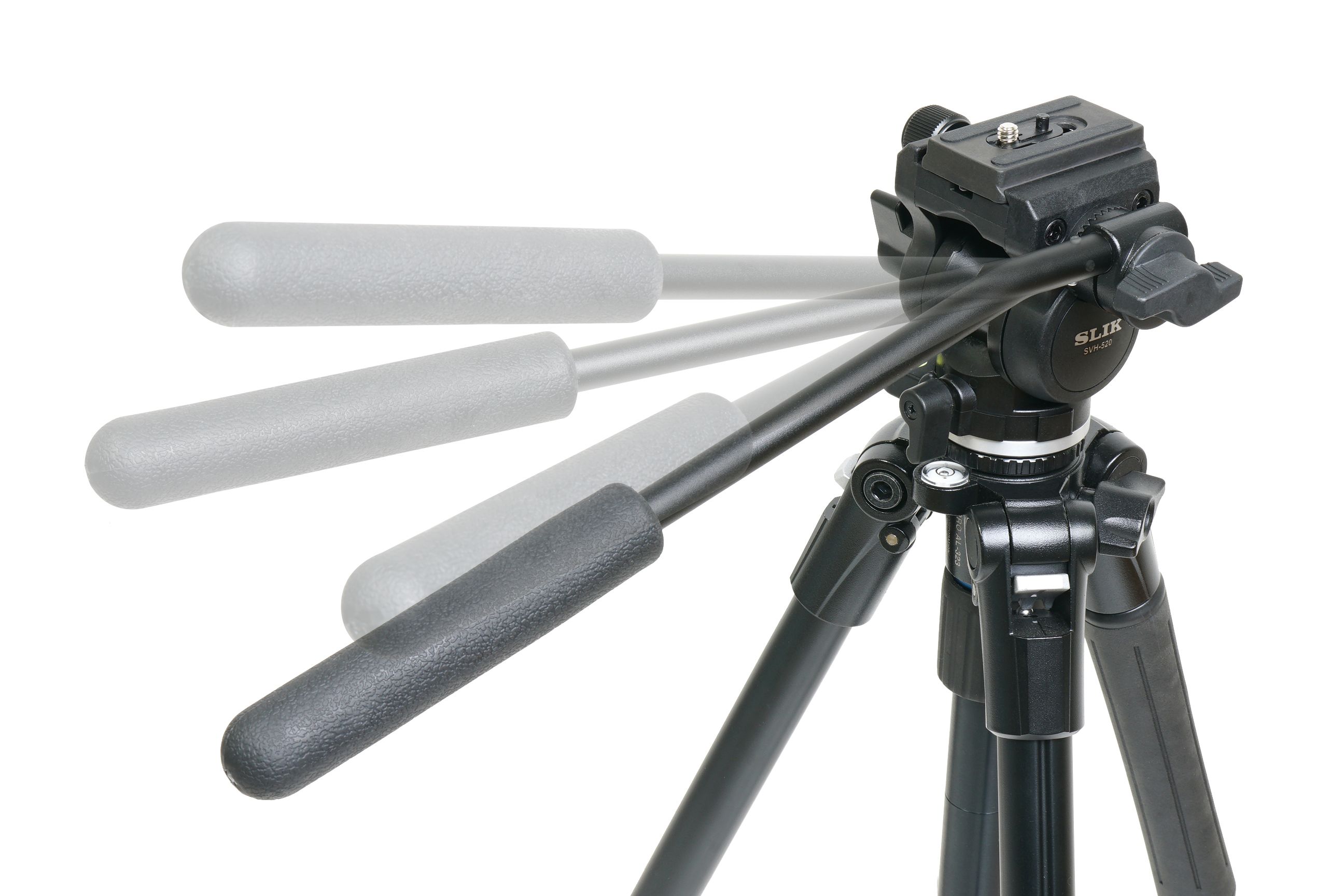

Curved Pan Handle
In order to delicately panning and tilting the video head, it is important that the pan bar is easy to grip. A slightly curved pan bar allows the videographer to place the grip in the most comfortable position.
|
Type of Bubble Level: |
Single bubble level |
|
Camera mounting screw: |
U1/4 (with reversible video boss plate) |
|
Tripod mounting screw: |
U1/4 (with U3/8 screw adapter) |
|
Base diameter: |
50mm |
|
Size of camera platform: |
38 x 60mm |
|
Height: |
100mm |
|
Weight: |
565g |
|
Load capacity: |
4 kgs |
|
Quick Release: |
Q.R.S. 6502 |
| Product Manuals | |
|---|---|
| SLIK SVH-520 Video Fluid Head QD Plate & 70mm Arca Swiss - Product Manual |
Brand: Slik |
Code: SH-6256536
APN: 4906752 256534 |
Supplier Code: 6256536
Brand: Slik |
Code: SH-6256536
APN: 4906752 256534 |
Supplier Code: 6256536
At a glance
Arca Compatible PlatformSVH-520 has "viselike" clamping style Arca-type quick release platform that accommodates with any Arca style quick release plate, L-bracket or backpack "clip" design plate. |
|
|
Reversible video boss plateMost of video camera have a1/4" set screw, as well as a video boss hole to prevent a camera side sliding. The reversible Video Boss Plate can be easily removed and flipped over when attaching a scopes or photographic cameras that does not have a hole. |
Curved Pan HandleIn order to delicately panning and tilting the video head, it is important that the pan bar is easy to grip. A slightly curved pan bar allows the videographer to place the grip in the most comfortable position. |
|
