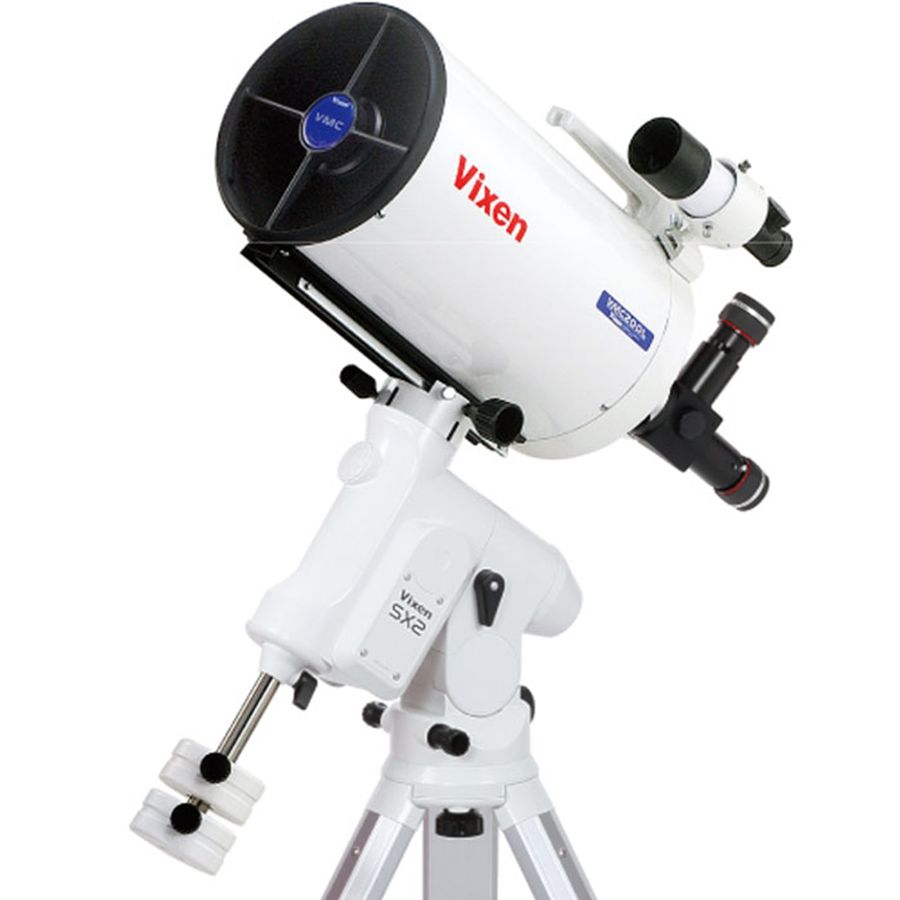

Vixen SX2-VMC200L Telescope with Tripod & Mount Kit
Vixen VMC200 Optical Tube Assembly
The VMC 200L features highly compact optical tube with 200mm aperture. It provides very sharp images in the field of view and highly recommended for those who attach much importance with visual observation.

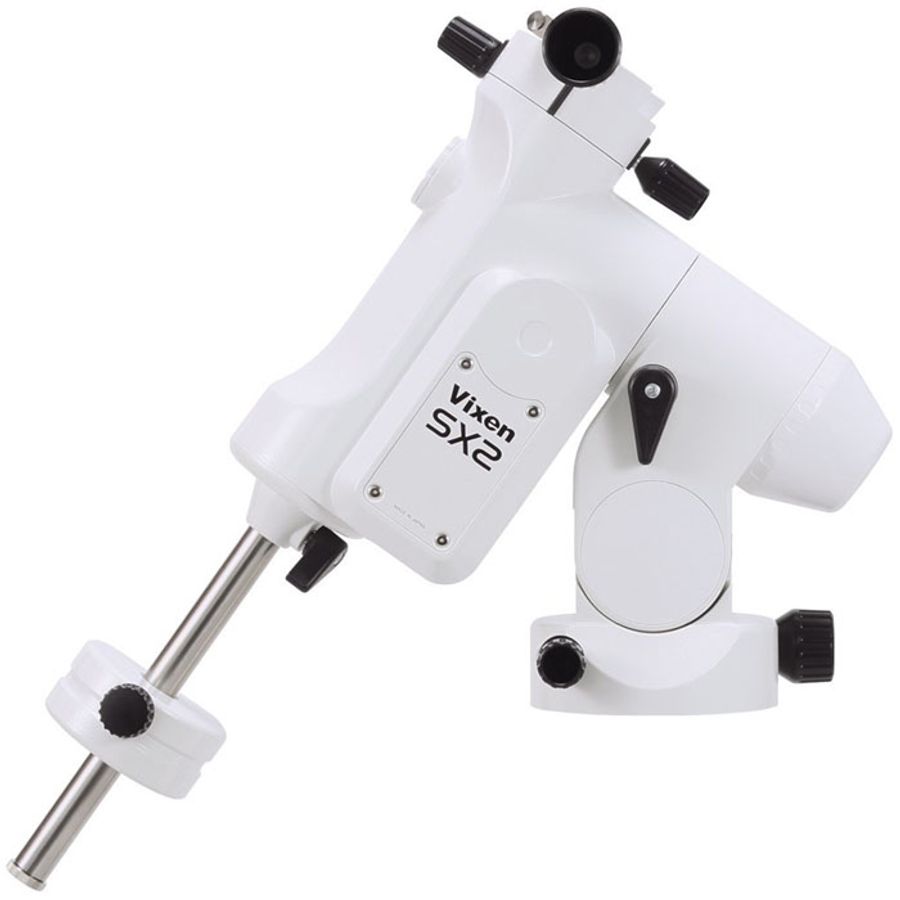

Vixen SX2 Equatorial Mount
The SX2 incorporates precision plus motors and accurate micro-step motion control which achives highly stable and smooth movement of the mount.

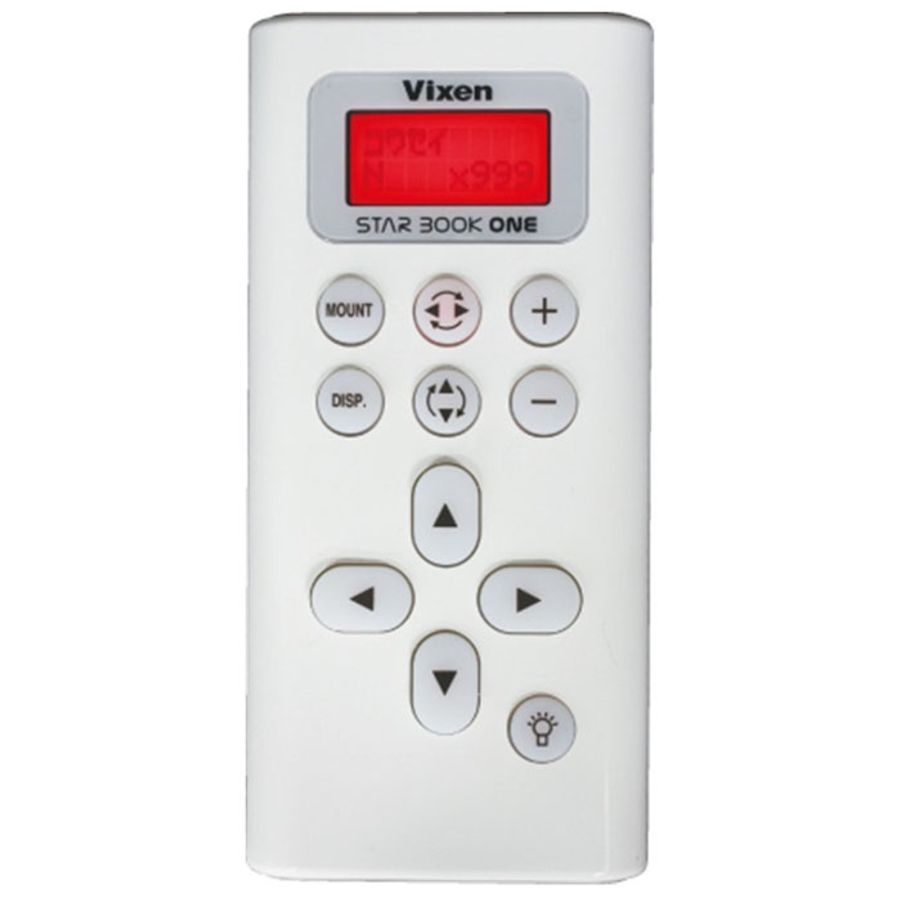

STAR BOOK ONE dual-axis controller
The SX2 mount comes as standard with the STAR BOOK ONE. The four direction buttons on the STAR BOOK ONE moves the mount in X and Y axes (RA snd Dec directions) either quickly and slowly. Versatile tracking options are available in addition to sidereal and solar tracking rates. Backlash compensation, autoguider port and built-in LED light are some of useful functions of the STAR BOOK ONE.
| Optical Tube | |
|
Primary Mirror |
D=200mm precision spherical mirror, multicoated |
|
Focal length (Focal ratio) |
F=1950mm (f9.75) |
|
Resolving power / Limiting magnitude |
0.58 arc seconds / 13.3 |
|
Light-gathering power |
816 x unaided eye |
|
Dimensions / Weight |
510mm dia × 232mm long / 6.8kg (Net 5.9kg) |
|
Finder scope |
7X 50mm with illuminated reticle (7 degrees field of view) |
|
Focuser |
|
|
Adapter threads / Visual back |
60mm and 42mm for T-ring / 50.8mm push fit |
|
Eyepieces |
SLV20mm (98X, 31' field of view), SLV9mm (217X, 14' field of view) |
|
Tripod |
|
|
Leg type, material |
Large hex-shaped adjustable 2-section aluminum legs |
|
Size / Weight |
Adjustable from 807mm to 1299mm in length, from 730mm to 1156mm in height, setup radius from 460mm to 706mm / 5.5 kg |
|
Others |
|
|
Accessories |
Parts case, Counterweight 1.9 kg x 2 |
|
Photography |
Usable with Prime focus, Eyepiece projection and Aforcal imaging |
|
Solar observation |
Not available |
|
Total weight |
23.2kg (without battries and without eyepieces) |
- VIXEN SX2-VMC200L Optical tube assembly
- SX2 equatorial mount (with Star Book One)
- SXG-HAL130 tripod
Brand: Vixen |
Code: VX25078
APN: 4955295250783 |
Supplier Code: 25078
Brand: Vixen |
Code: VX25078
APN: 4955295250783 |
Supplier Code: 25078
At a glance
This advanced Vixen SX2-VMC200L telescope combines a high-quality 200mm catadioptric optical system with Vixen's precise SX2 equatorial mount, sturdy tripod and essential accessories. Perfect for astrophotography and detailed celestial observation, this comprehensive setup from the renowned Japanese optical manufacturer delivers exceptional image clarity and tracking accuracy. The telescope's reflector design provides excellent light-gathering capability for viewing deep-sky objects, planets and lunar details with outstanding contrast and resolution. Ideal for both beginner and experienced astronomers seeking a complete, reliable astronomical system. Vixen VMC200 Optical Tube AssemblyThe VMC 200L features highly compact optical tube with 200mm aperture. It provides very sharp images in the field of view and highly recommended for those who attach much importance with visual observation. |
|
|
|
Vixen SX2 Equatorial MountThe SX2 incorporates precision plus motors and accurate micro-step motion control which achives highly stable and smooth movement of the mount. |
STAR BOOK ONE dual-axis controllerThe SX2 mount comes as standard with the STAR BOOK ONE. The four direction buttons on the STAR BOOK ONE moves the mount in X and Y axes (RA snd Dec directions) either quickly and slowly. Versatile tracking options are available in addition to sidereal and solar tracking rates. Backlash compensation, autoguider port and built-in LED light are some of useful functions of the STAR BOOK ONE. |
|
