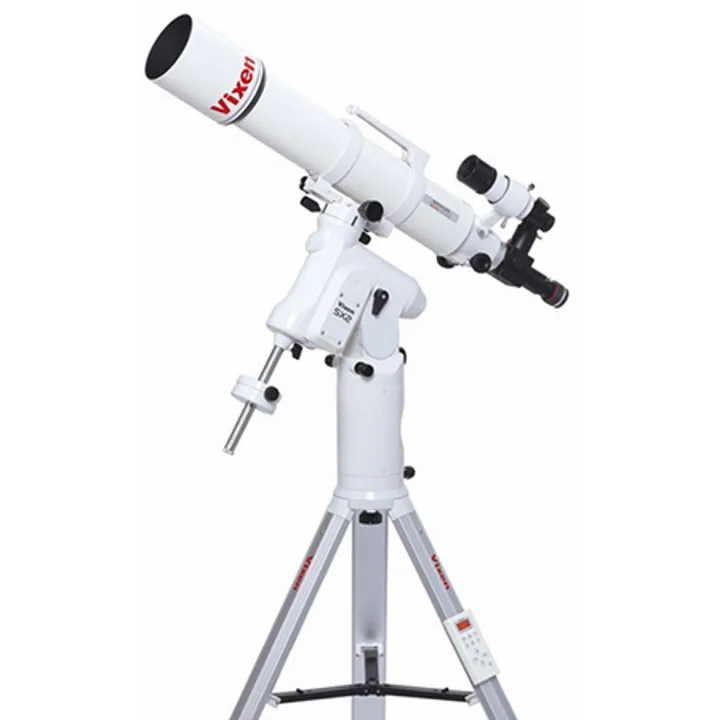

Vixen SX2-SD103S Telescope with SX2 Mount & Tripod
- Premium all-in-one telescope setup designed for both beginners and experienced astronomers
- Accessories include mount and tripod for immediate use
- Exceptional Japanese optical quality for crisp, high-contrast views with minimal chromatic aberration
- Stable and accurate tracking provided by the SX2 mount for smooth observation sessions
- Ideal fo dlunar and planetary viewing. deep-sky exploration and general stargazing.

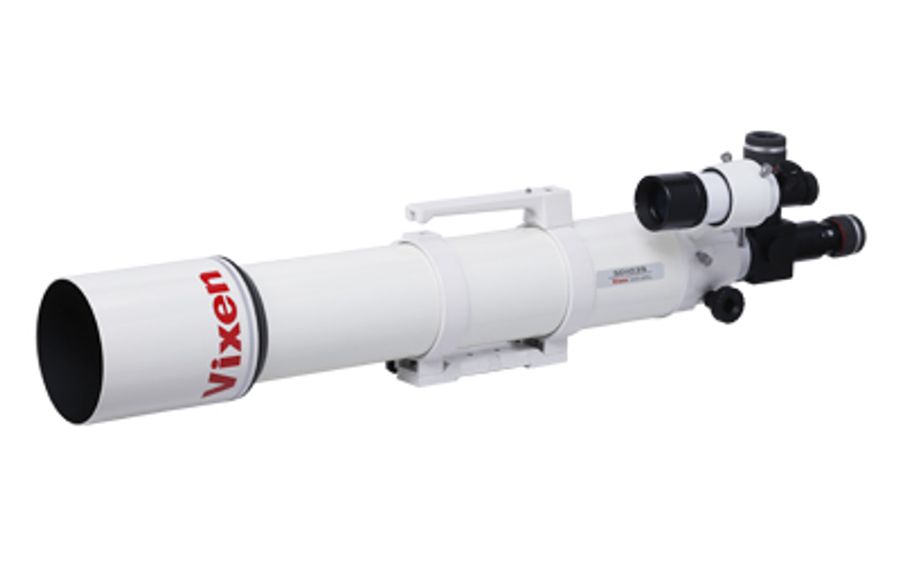

SD103S optical tube assembly.
Vixen apochromatic refractors feature "Super extra-low Dispersion" SD optical glass in its objective lens. The SD glass produces clear and high contrast viewing, vertually free of false color. Brighter F7.7 images will satisfy the most demanding visual astronomer or astro-photographer. The SD103S comes with a flip mirror diagonal that allows you to switch the light pass quickly from straight through to angled viewing.a

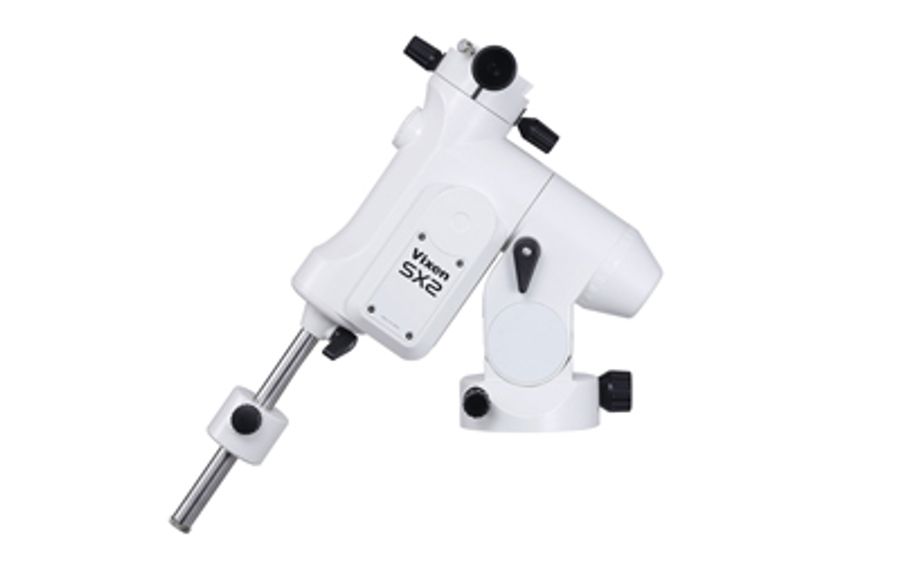

SX2 equatorial mount.
The SX2 equatorial mount offers simple and easy operation of your telescope with a STAR BOOK ONE dual-axis controller. With Vixen's accurate micro-step motion control technology, the SX2 mount achieves highly stable and smooth rotations of the pulse motors. The SX2 mount is a good choice for starting the first step to serious celestial observing.

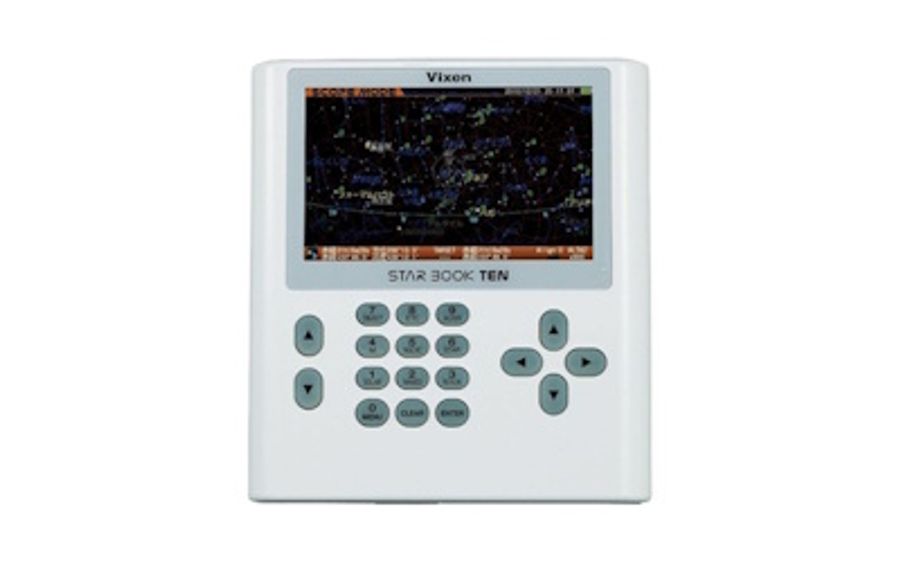

STAR BOOK TEN star chart go-to navigation controller is available as optional.
The SX2 mount works with an optional STAR BOOK TEN handheld controller, featuring an intuitive star chart Go-to system with high definition color LCD display. Incorporating over 270,000 objects, the STAR BOOK TEN identifies and tracks your trarget easily.

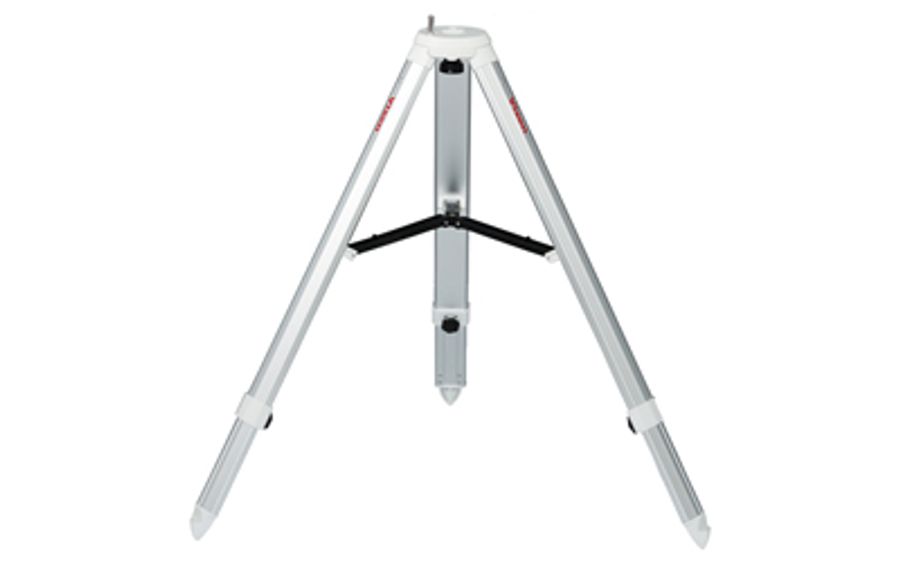

SXHAL130 Aluminum tripod.
With high solidness and stability it is highly suitable for observing sessions in a remote place.
| Optical Tube | |
|
Objective Lens |
D=103mm, SD Apochrimatic, Multi Coated |
|
Focal length (Focal ratio) |
F=795mm (f7.7) |
|
Resolving power / Limiting magnitude |
1.13 arc seconds / 11.8 |
|
Light gathering power |
217× unaided eye |
|
Dimensions / Weight |
115mm dia × 810mm long / 5.4kg (Net 3.6kg) |
|
Finder scope |
7X 50mm with illuminated reticle (7 degrees field of view) |
|
Focuser |
|
|
Focusing mechanism |
Rack-and-pinion (with focus lock) |
|
Adapter threads / Visual back |
60mm and 42mm for T-ring / 50.8mm push fit |
|
Accessories |
Tube rings, Dovetail tube plate, Metal carry handle |
|
Eyepieces |
SLV20mm (40X, 75' field of view), SLV5mm (159X, 19' field of view) |
|
Tripod |
|
|
Leg type, material |
Large hex-shaped adjustable 2-section aluminium legs |
|
Size / Weight |
Adjustable from 807mm to 1299mm in length, from 730mm to 1156mm in height, setup radius from 460mm to 706mm / 5.5 kg |
|
Others |
|
|
Accessories |
SXG half piller, Parts case, Counterweight 1.9 kg x 1 |
|
Photography |
Usable with Prime focus, Eyepiece projection and Aforcal imaging |
|
Solar observation |
Available with sun projection screen set B |
|
Total weight |
21.7kg (without batteries and without eyepieces) |
- Vixen SD103S 103mm f/7.7 Apo Refractor Telescope (Optical Tube Assembly)
- SX2 Mount
- SXG-HAL130 Tripod
- Limited 2-Year Manufacturer Warranty
- Limited 1-Year Manufacturer Warranty (on Electronics)
